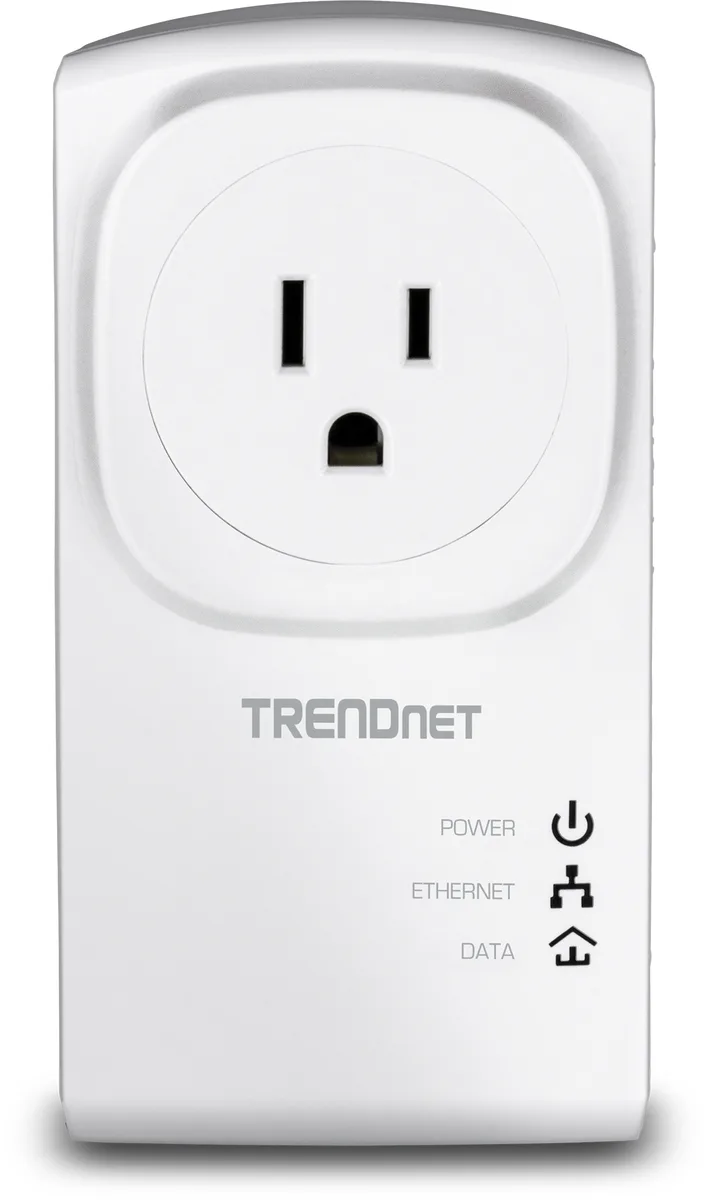

Two white compact powerline adapters with built-in pass-through outlets and Ethernet ports

TRENDnet

TRENDnet TPL-407E2K powerline networking kit 500 Mbps 2 adapters

SKU CH-6W0M-DN1M3 MPN TPL-407E2K

Two adapters extend a wired network over existing electrical wiring at up to 500 Mbps while keeping the power socket free for other devices

  • StandardsIEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 1901 / HomePlug AV H
  • InterfaceEthernet port Sync / reset button Status LEDs Power plug
  • Encryption128-bit AES Encryption
  • Ports1 x 10/100 Mbps Auto-MDIX RJ-45 port
  • LEDsPower (PWR) Powerline (PL) Connection Ethernet (ETH) Connect
  • CertificationsCE, FCC

Size AV 500

  • AV 500
  • AV2 1300

Struck-through versions exist but are not stocked here.

Style 2 Adapters

  • 2 Adapters
  • Single Adapter, with Built-in Outlet

Struck-through versions exist but are not stocked here.

  • Uses existing electrical wiring for network connectivity
  • Built-in power socket preserves outlet availability
  • 500 Mbps powerline speed supports HD streaming
  • 128-bit AES encryption secures data transmission
  • Plug-and-play setup with two included adapters

TRENDnet Powerline 500 AV Nano Kit

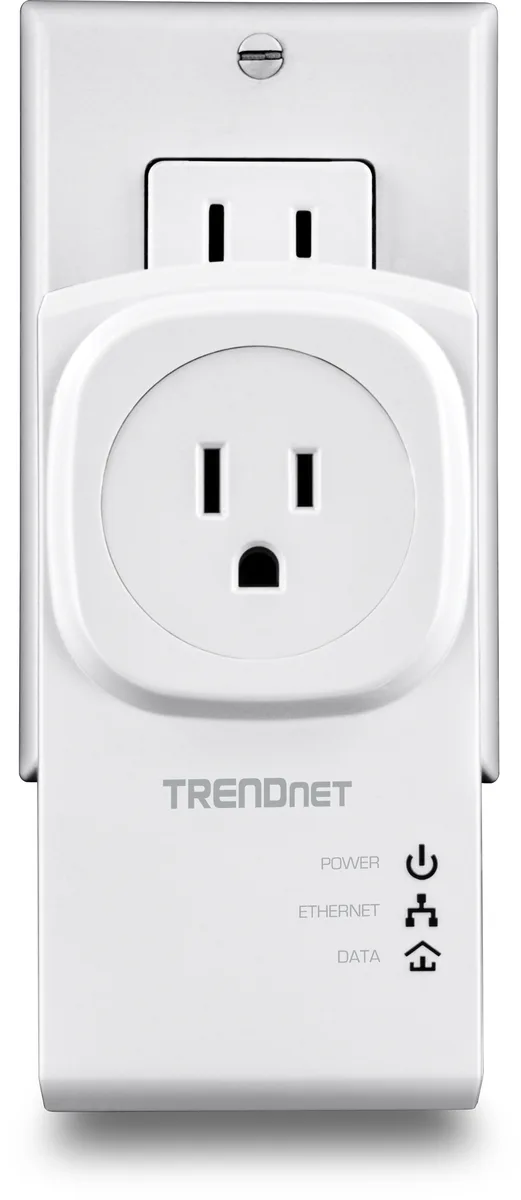

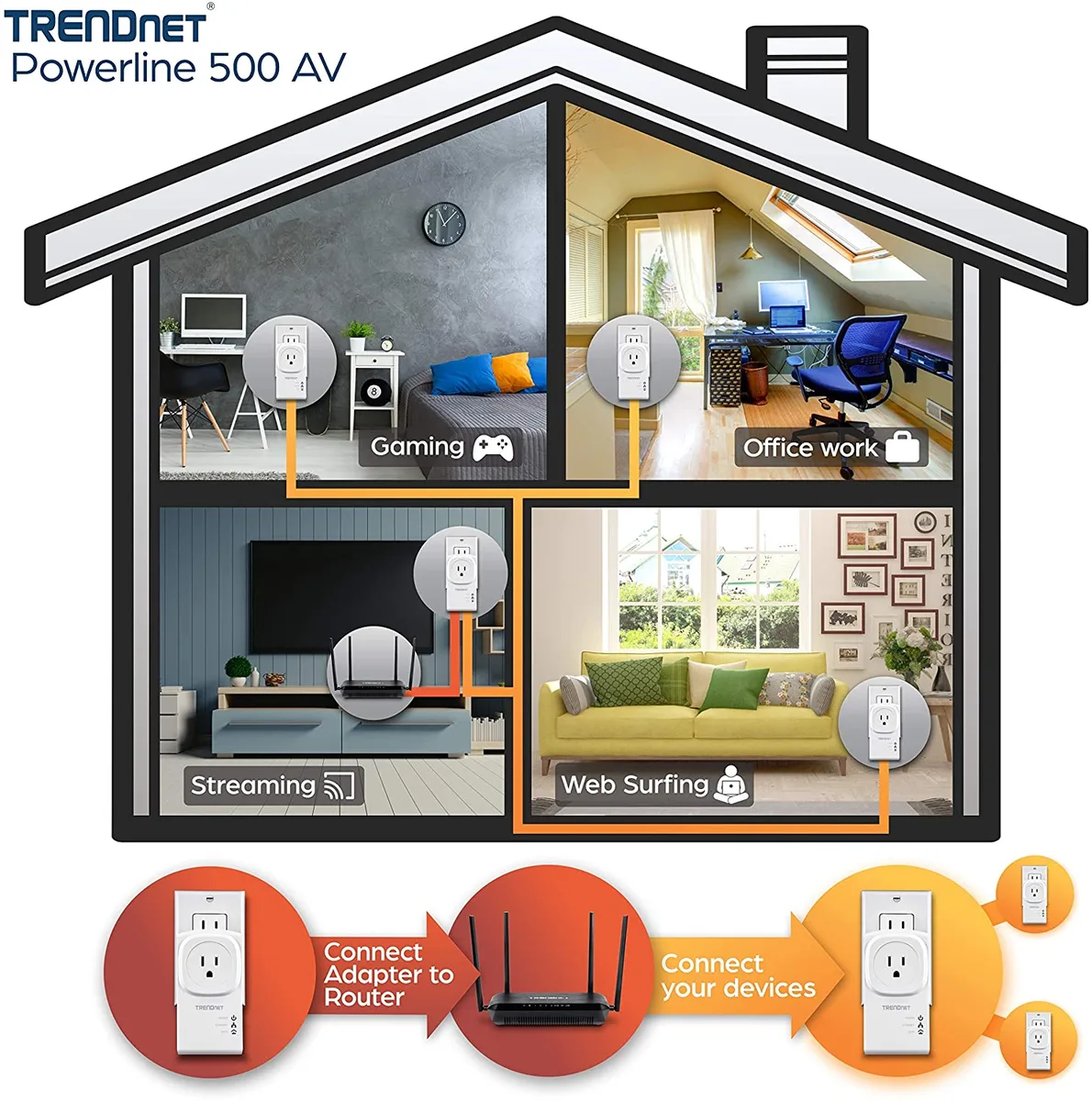

The TRENDnet TPL-407E2K kit uses existing electrical wiring to extend a wired network without new cables. It includes two compact adapters, each with a pass-through AC socket so no wall outlet is lost. A 10/100 Mbps Ethernet port on each unit connects routers, smart TVs or game consoles. Setup is plug-and-play with 128-bit AES encryption.

Ideal for homes without Ethernet runs

Renters or owners who cannot drill walls will appreciate the 300 metre range over power lines. The adapters support IEEE 1901 and HomePlug AV standards for broad compatibility. Households needing Gigabit wired speeds or Wi-Fi mesh coverage should consider alternative technologies not provided by this kit.

500 Mbps powerline PHY rate decides suitability

The 500 Mbps data PHY rate sets the maximum throughput ceiling for the link. Real-world speed depends on wiring quality, distance and electrical noise across the 2 to 68 MHz band. If your use case demands sustained throughput above this physical-layer limit, a different networking method is required.

Highlights

  • Uses existing electrical wiring for network connectivity
  • Built-in power socket preserves outlet availability
  • 500 Mbps powerline speed supports HD streaming
  • 128-bit AES encryption secures data transmission
  • Plug-and-play setup with two included adapters

Specifications

BrandTRENDnet
ModelTPL-407E2K
StandardsIEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 1901 / HomePlug AV
HomePlug 1.0

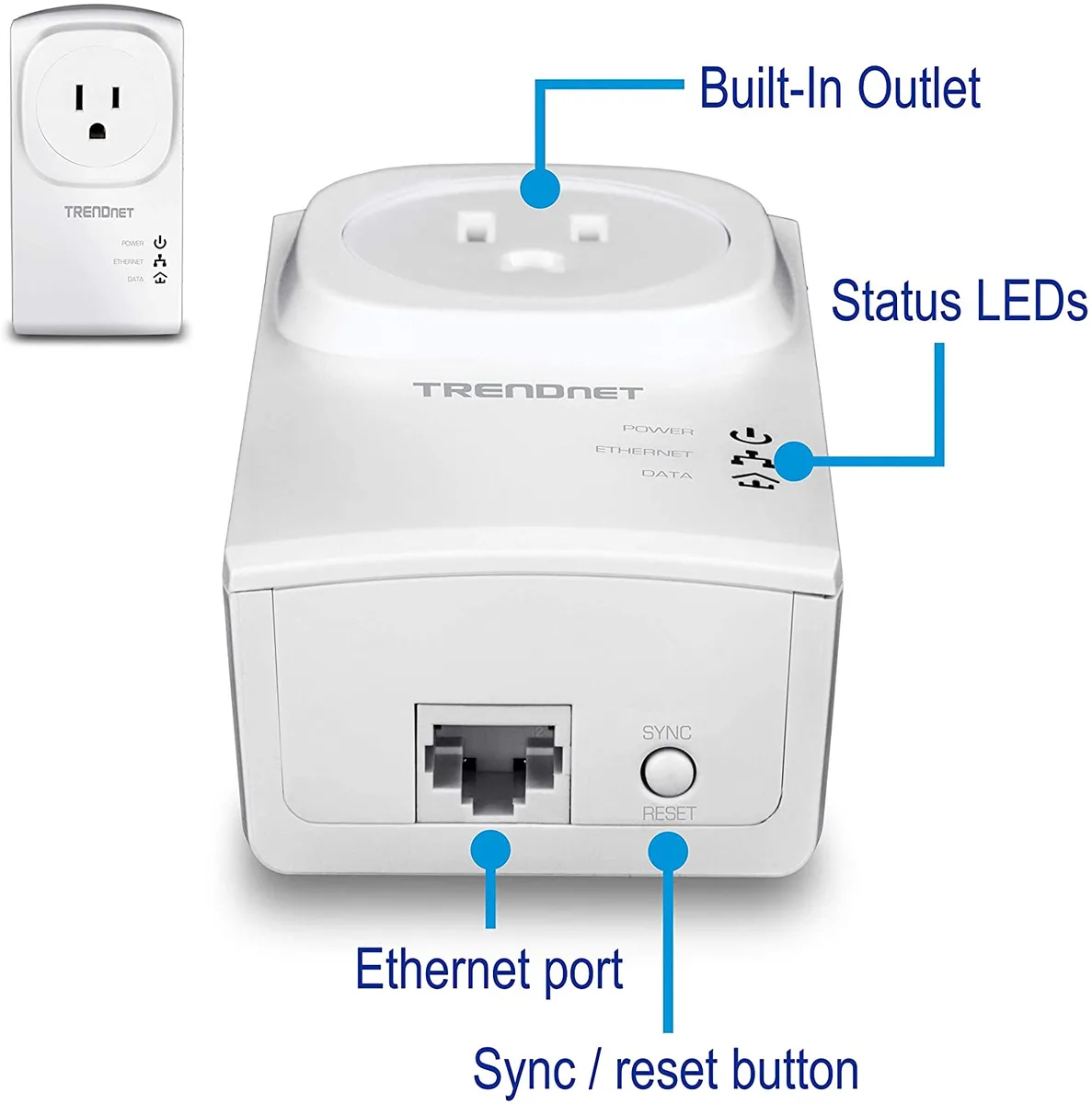

InterfaceEthernet port
Sync / reset button
Status LEDs
Power plug
Encryption128-bit AES Encryption
Ports1 x 10/100 Mbps Auto-MDIX RJ-45 port
LEDsPower (PWR)
Powerline (PL) Connection
Ethernet (ETH) Connection
CertificationsCE, FCC
Powerline SpeedsUp to 500Mbps
Connection TypeRJ45
Connection Speeds10/100M
Kit TypeDouble
Frequency Band2 ~ 68 MHz
Power Supply100~250V AC, 50~60Hz
System RequirementWindows® 10, 8.1, 8, 7, Vista, XP
Temperature0°C ~ 40°C
FeaturesData PHY Rate
500 Mbps
Networking Distance
Up to 300 m (980 ft.) linear distance over electrical power lines
Security
128-Bit AES (Advanced Encryption Standard)

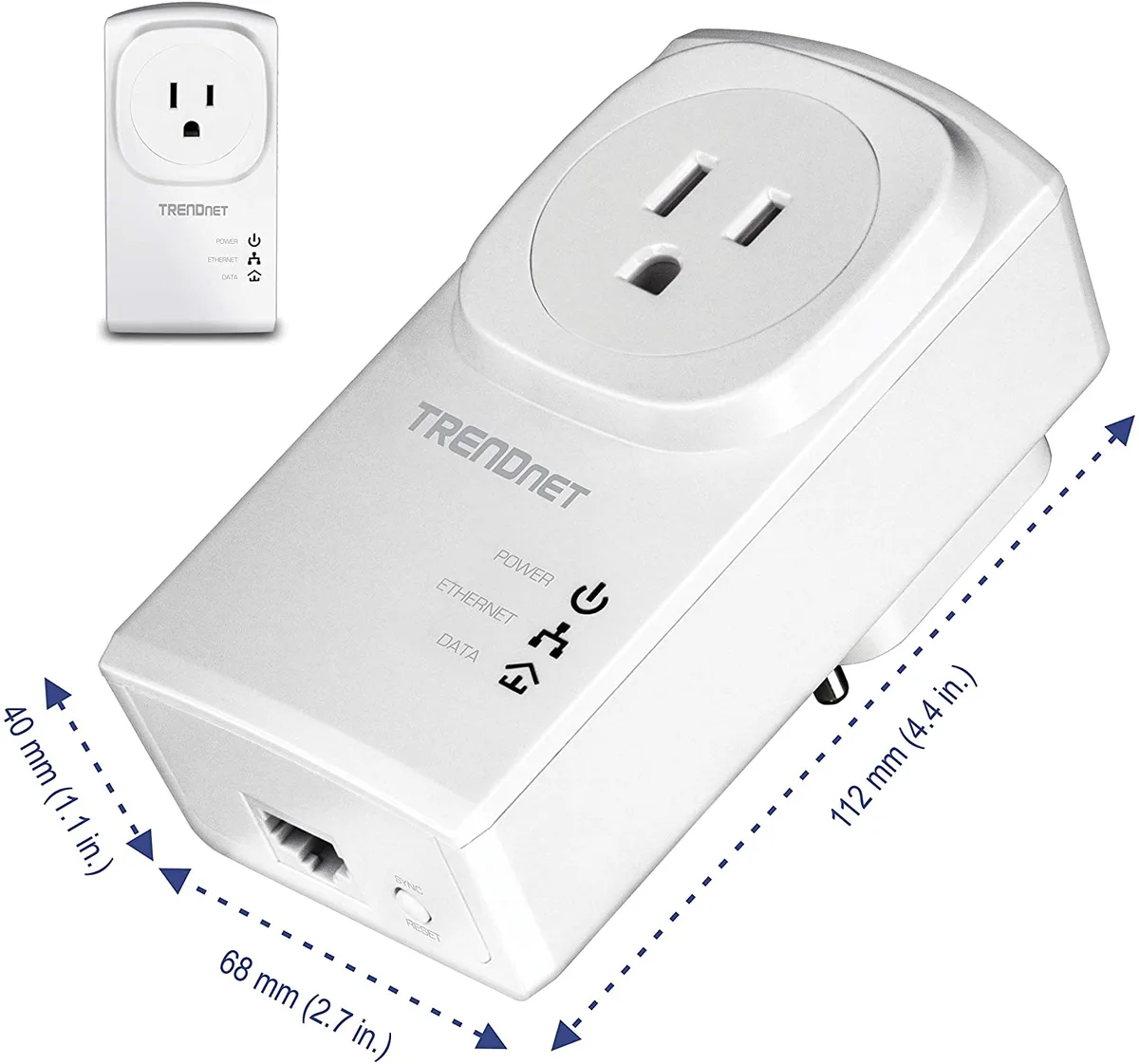

Dimensions112 x 68 x 40 mm (4.4 x 2.7 x 1.1 in.)
Weight3.6 oz.
Package Contents2 x TPL-407E
Quick Installation Guide
2 x Network cable (1.5 m / 5 ft.)
Shipping weight0.64 kg
Package size203 × 163 × 107 mm

Questions about this item

Will the 112 × 68 × 40 mm adapters block the adjacent wall socket?

Each unit has a built-in pass-through socket so the outlet remains usable after the adapter is plugged in.

How do I pair the two adapters using the sync button?

Press the sync/reset button on one adapter for two seconds, then press the button on the second adapter within two minutes; the PL LED will light solid when pairing finishes.

What upkeep does the 128-bit AES encryption need over time?

No ongoing maintenance is required; encryption keys are handled automatically, and a factory reset via the sync button restores defaults if needed.
