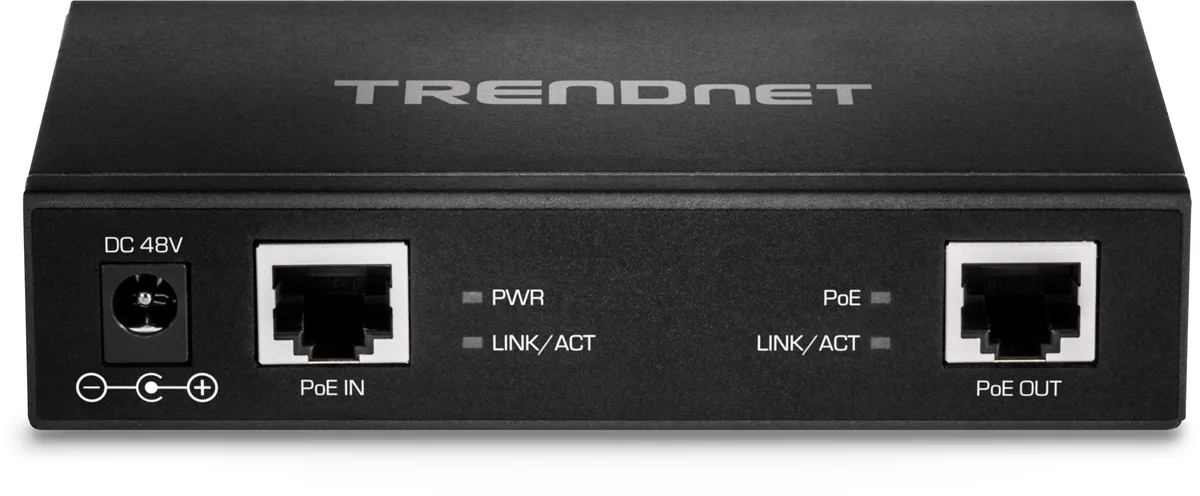

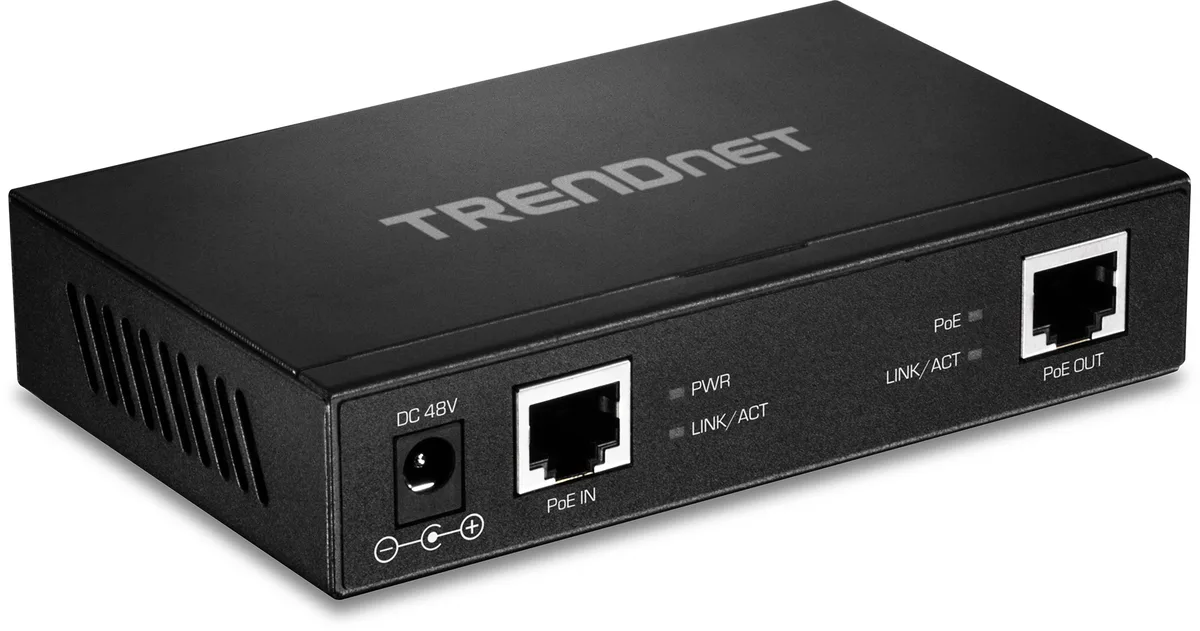

Small black metal box with two Gigabit PoE ports and optional power socket

TRENDnet

TRENDnet TPE-E110 PoE+ Repeater 100m 200m

SKU CH-8QQB-M5QRP MPN TPE-E110

Gigabit PoE+ repeater extends power and data an extra 100 metres for a total reach of 200 metres, supports 15.4 W and 30 W devices, and can be daisy-chained up to seven units for 800 metres

  • TypePoE Repeater
  • ColorBlack
  • SpecificationsStandards: IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab I
  • FeaturesExtends 100 meters for a total distance of up to 200 meters
  • Extends PoE+ connections an extra 100 m for a total reach of 200 m
  • Daisy-chains up to 5 units giving a 600 m PoE+ network extension
  • Auto-detects 15.4 W PoE or 30 W PoE+ and forwards power accordingly
  • Operates without an external power supply for simpler deployments
  • Durable metal housing with wall-mount option suits commercial environments

Gigabit PoE+ Repeater

The TRENDnet TPE-E110 is a Gigabit PoE+ repeater that extends a powered network link by an extra 100 metres. It accepts a PoE or PoE+ feed and forwards both data and power to a remote device with no external supply needed. The unit is wall-mountable and housed in durable metal. Installation is plug-and-play with no configuration required.

Installers needing longer runs

This repeater suits installers who must place PoE cameras, access points or VoIP phones beyond the standard 100 metre Ethernet limit. Daisy-chaining up to five units pushes the total reach to 600 metres while preserving PoE+ power. Buyers who need fibre-distance links or more than seven daisychained segments should consider other technologies. The optional 54 V 37.8 W adapter is sold separately for non-PoE sources.

100 metre extension per unit

Each TPE-E110 adds 100 metres to the cable run, yielding a maximum 200 metre span from the power sourcing equipment. With five units in series the PoE+ network can stretch to 600 metres total. The device auto-detects 15.4 W PoE or 30 W PoE+ input and passes it through the single Gigabit output port. No external power is required when a PoE+ source is present.

Highlights

  • Extends PoE+ connections an extra 100 m for a total reach of 200 m
  • Daisy-chains up to 5 units giving a 600 m PoE+ network extension
  • Auto-detects 15.4 W PoE or 30 W PoE+ and forwards power accordingly
  • Operates without an external power supply for simpler deployments
  • Durable metal housing with wall-mount option suits commercial environments

Specifications

BrandTRENDnet
ModelTPE-E110
TypePoE Repeater
ColorBlack
SpecificationsStandards:
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at
Device Interface:
1 x Gigabit PoE/PoE+ in port
1 x Gigabit PoE/PoE+ out port
1 x Power port (optional power adapter is not included)
LED indicators

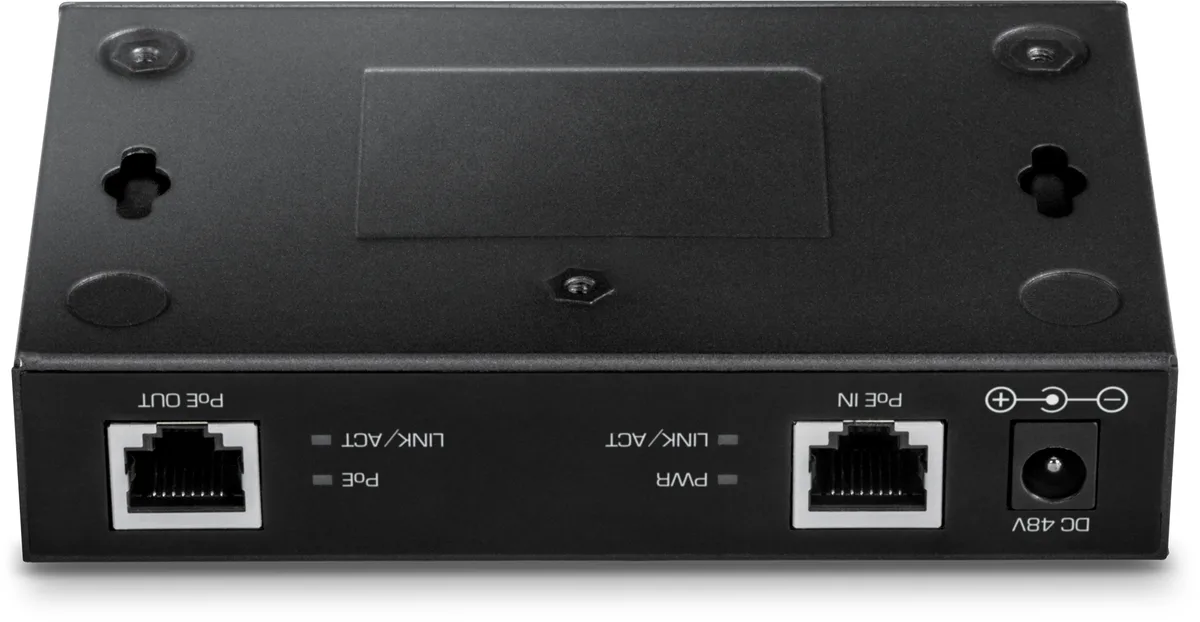

Installation mounting points
Data Transfer Rate:
Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)
Power:
Powered by PoE/PoE+ Device
Consumption: 2 Watts (max.)
FeaturesExtends 100 meters for a total distance of up to 200 meters (656 ft.)
Daisy chain up to 7 units for a total PoE+ network extension of 800 m (2,600 ft.)
Plug and play installation
No external power required
Wall mountable
Rugged metal housing
Shipping weight0.41 kg
Package size185 × 114 × 41 mm

Questions about this item

Does the TPE-E110 include the optional 54 V power adapter in the box?

No, the optional 54 V 37.8 W power adapter (part 54VDC0700) is sold separately; the repeater normally draws power from the PoE/PoE+ input.

When should I use the optional 54 V power adapter instead of relying on PoE+ power alone?

Use the optional adapter when the PoE+ source cannot supply the full 30 W needed at the far end, or when daisy-chaining several units and voltage drop becomes a concern.

What total cable run can I expect from the switch to a powered device when one TPE-E110 is installed?

The extender adds 100 m to the standard 100 m limit, giving a combined reach of up to 200 m (656 ft) from the power sourcing equipment.
