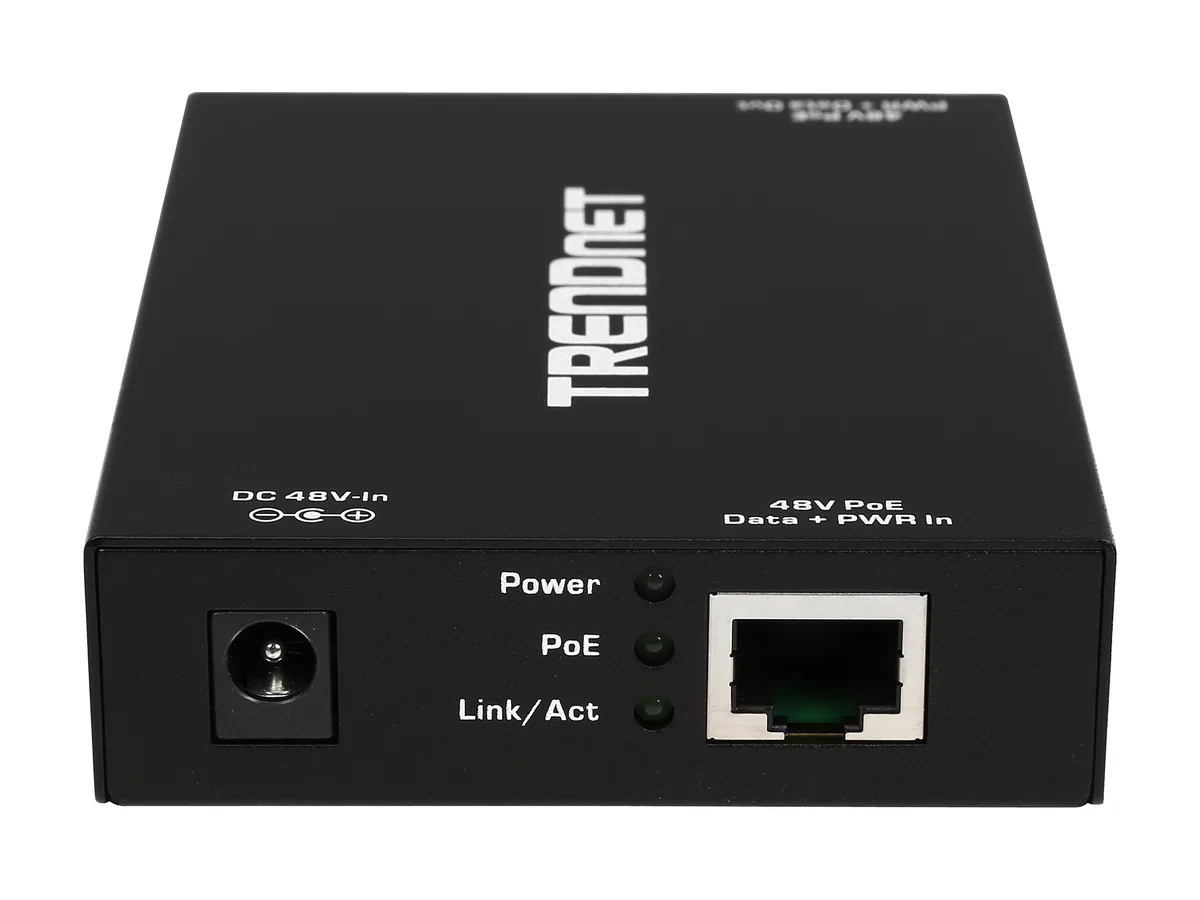

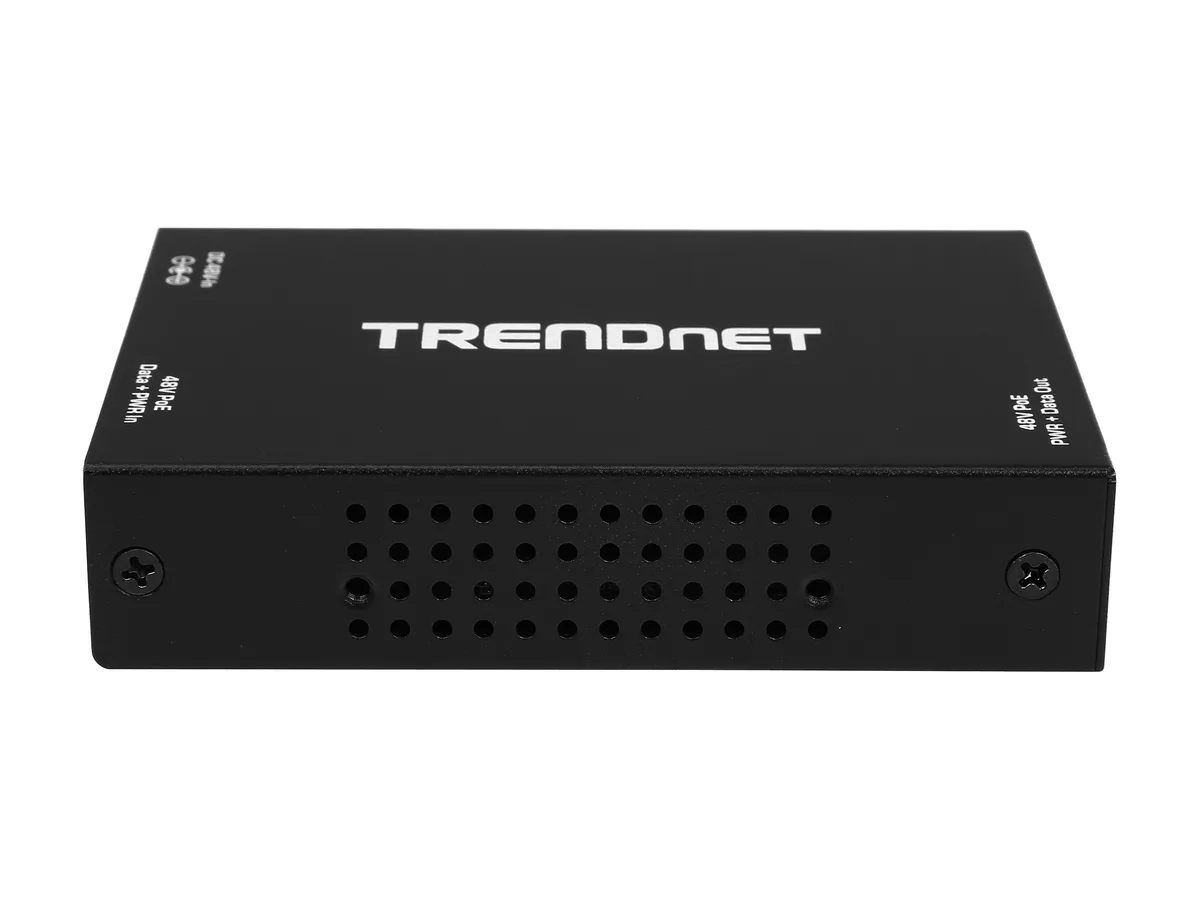

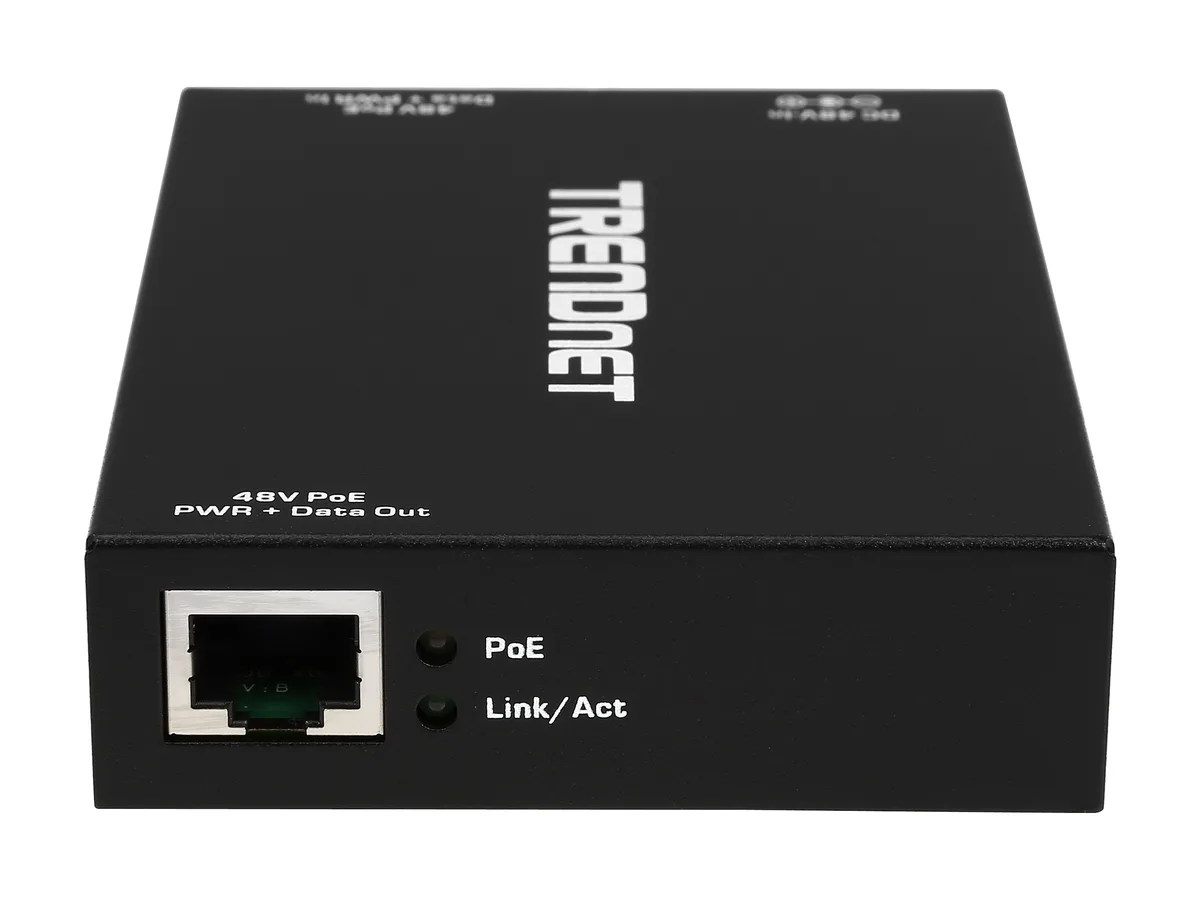

Black rectangular PoE+ repeater with two RJ45 ports and wall-mount brackets

TRENDnet

TRENDnet TPE-E100 PoE+ Repeater 100m Extension

SKU CH-799A-22GEW MPN TPE-E100

Extends PoE+ connections 100 metres for 200-metre total reach, daisy-chains up to three units for 400 metres, supports 15.4 W PoE and 30 W PoE+, wall-mountable metal housing

  • TypePoE Repeater
  • ColorBlack
  • SpecificationsStandards: IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab I
  • FeaturesExtends 100 meters for a total distance of up to 200 meters
  • Extends PoE+ links 100 m for 200 m total reach
  • Daisy-chain up to three units for 400 m PoE network span
  • Powers devices up to 30 W without external adapter
  • Gigabit 10/100/1000Base-T ports keep full bandwidth over distance
  • Durable metal housing with wall-mount option fits tight installs

PoE+ Repeater for Gigabit Networks

The TRENDnet TPE-E100 is a single-port PoE+ repeater designed for installers who need to push Gigabit Ethernet and power beyond the standard cable limit. It accepts PoE or PoE+ input and forwards both data and power through one Gigabit output port. The unit mounts on a wall and operates without an external adapter.

100-Metre Extension Limit per Unit

Each repeater adds 100 metres to the link, so a single device yields a total run of 200 metres (656 ft.) while maintaining 10/100/1000Base-T speeds. The IEEE 802.3af and 802.3at standards cap delivered power at 15.4 W and 30 W respectively, so the downstream device must stay within those budgets. No separate power supply is required unless the optional power port is used.

Replaces Mid-Span Injectors and Extra Switches

This repeater removes the need for a mid-span injector or an additional powered switch when the cable run exceeds 100 metres. Daisy-chaining two units extends a PoE+ network to 300 metres (980 ft.), and three units reach 400 metres (1,312 ft.). The jump is worth it when a single cable pull must cover long corridors, outdoor poles or campus links without adding AC outlets.

Highlights

  • Extends PoE+ links 100 m for 200 m total reach
  • Daisy-chain up to three units for 400 m PoE network span
  • Powers devices up to 30 W without external adapter
  • Gigabit 10/100/1000Base-T ports keep full bandwidth over distance
  • Durable metal housing with wall-mount option fits tight installs

Specifications

BrandTRENDnet
ModelTPE-E100
TypePoE Repeater
ColorBlack
SpecificationsStandards:
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at
Device Interface:
1 x Gigabit PoE/PoE+ in port
1 x Gigabit PoE/PoE+ out port
1 x Power port (optional power adapter is not included)
LED indicators
Installation mounting points
Data Transfer Rate:
Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)
Power:
Powered by PoE/PoE+ Device
Consumption: 2 Watts (max.)
FeaturesExtends 100 meters for a total distance of up to 200 meters (656 ft.)
Daisy chain two TPE-E100s for a total PoE+ network extension of 300 m (980 ft.)
Plug and play installation
No external power required
Wall mountable
LED indicators
Rugged metal housing
Shipping weight0.27 kg
Package size130 × 107 × 46 mm

Questions about this item

One port or two — which setup do I need?

The TPE-E100 has one Gigabit PoE/PoE+ in port and one Gigabit PoE/PoE+ out port, giving two RJ-45 ports total for inline extension.

What does the 30 W PoE+ rating mean for my camera or access point?

It delivers up to 30 W to the connected device, so PoE+ cameras, access points or VoIP phones receive full power through the extended run.

Does the Gigabit Ethernet link run at 1000 Mbps over the extra 100 m?

Yes, the repeater supports 10/100/1000Base-T on both ports, so the Gigabit link is maintained across the additional 100 m segment.
