Black metal PoE+ injector with four data in and four data plus power out ports

TRENDnet

TRENDnet TPE-147GI 65W 4-Port Gigabit PoE+ Injector

SKU CH-2SVQ-67HW0 MPN TPE-147GI

Adds PoE+ power to a non-PoE switch through four Gigabit ports with a 65W budget, supporting 30W per device up to 100 meters

  • TypePoE+ Injector
  • ColorBlack
  • SpecificationsStandards - IEEE 802.3 - IEEE 802.3u - IEEE 802.3ab - IEEE 8
  • Features4 x Gigabit ports (Data in) 4 x Gigabit PoE+ ports (Data + P
  • Powers four devices with up to 30W each via PoE+
  • 65W total budget supports multiple PoE and PoE+ endpoints simultaneously
  • Fanless metal housing runs silently while reducing energy use
  • Gigabit data in and PoE+ out ports maintain full network speed
  • Extends PoE connections up to 100m (328 ft.) from the switch

Power and connectivity

The TRENDnet TPE-147GI adds Power over Ethernet Plus to an existing non-PoE Gigabit switch. It provides four Gigabit data input ports and four Gigabit data plus PoE+ output ports. A 65W total power budget delivers up to 30W per port for compatible devices. The fanless metal housing ensures silent operation and lower energy consumption.

Suitable installations and limits

This injector suits network managers who need to power up to four PoE or PoE+ devices such as wireless access points or IP cameras from a standard switch. It supports cable runs up to 100 metres (328 feet) using standard Ethernet cabling. Builders requiring more than four powered ports or a total PoE budget exceeding 65W should consider a multi-port PoE switch instead.

Deciding specification

The single figure that determines suitability is the 65W PoE power budget shared across the four output ports. If the combined draw of all connected devices stays within this limit, the unit will power them reliably. If the planned deployment needs more total power, this injector cannot meet the requirement.

Highlights

  • Powers four devices with up to 30W each via PoE+
  • 65W total budget supports multiple PoE and PoE+ endpoints simultaneously
  • Fanless metal housing runs silently while reducing energy use
  • Gigabit data in and PoE+ out ports maintain full network speed
  • Extends PoE connections up to 100m (328 ft.) from the switch

Specifications

BrandTRENDnet
ModelTPE-147GI
TypePoE+ Injector
ColorBlack
SpecificationsStandards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at

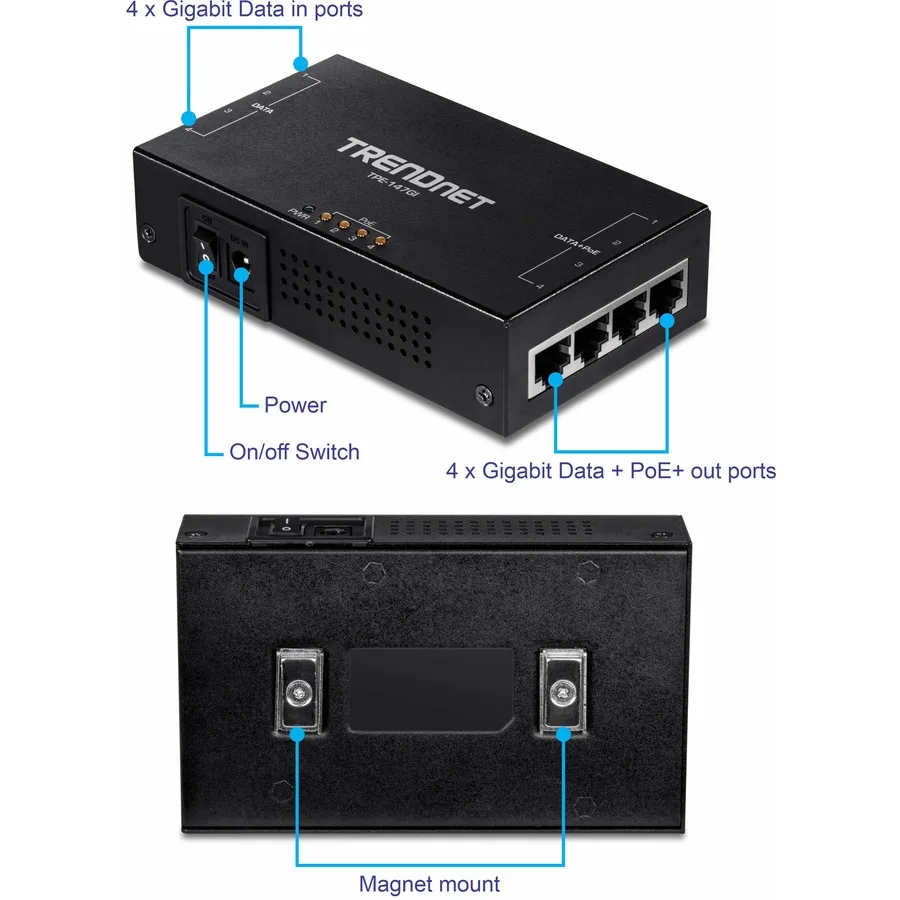

Device Interface
- 4 x Gigabit Data in ports
- 4 x Gigabit Data + PoE+ out ports
- Metal Housing
- Power Switch
PoE Budget: Max. 65W
Power:
- Input: 100 – 240V AC, 50/60 Hz
- Output: 55V DC, 1.3A
- Max. consumption: 70W
Temperature: 0° - 40° C (32° - 104° F)
Humidity: Max. 90% non-condensing
Certifications
- CE
- FCC
Dimensions : 126.4 x 73.95 x 32mm (5.00" x 2.90" x 1.26")
Weight : 322g (11.30 oz.)
Features4 x Gigabit ports (Data in)
4 x Gigabit PoE+ ports (Data + PoE out)
65W PoE power budget
Supports both PoE (15.4W) and PoE+ (30W) power
Uses IEEE 802.3af / IEEE 802.3at industry PoE standards for greater device interoperability
Connects PoE devices up to 100m (328 ft.) away
Fanless design eliminates operating noise and lowers energy consumption
Shipping weight0.68 kg
Package size178 × 102 × 76 mm
