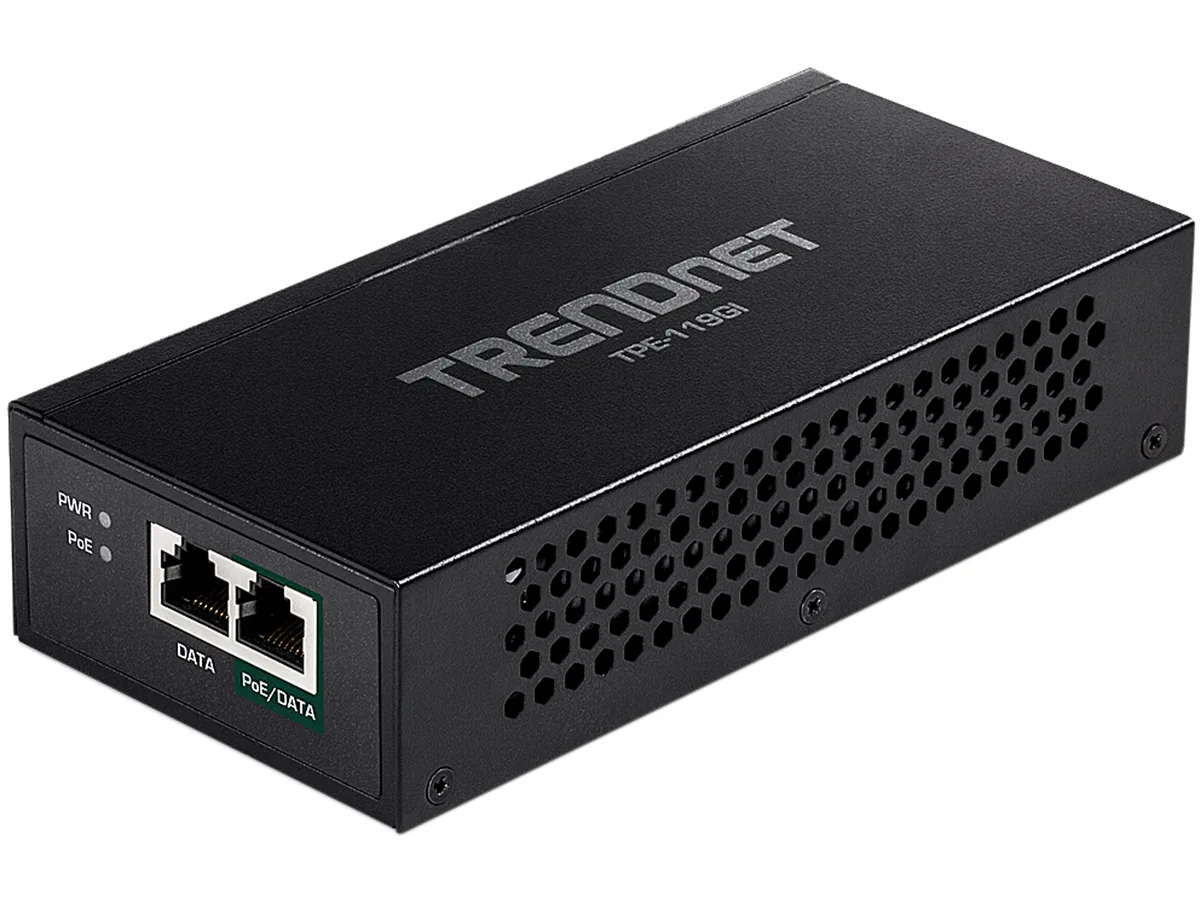

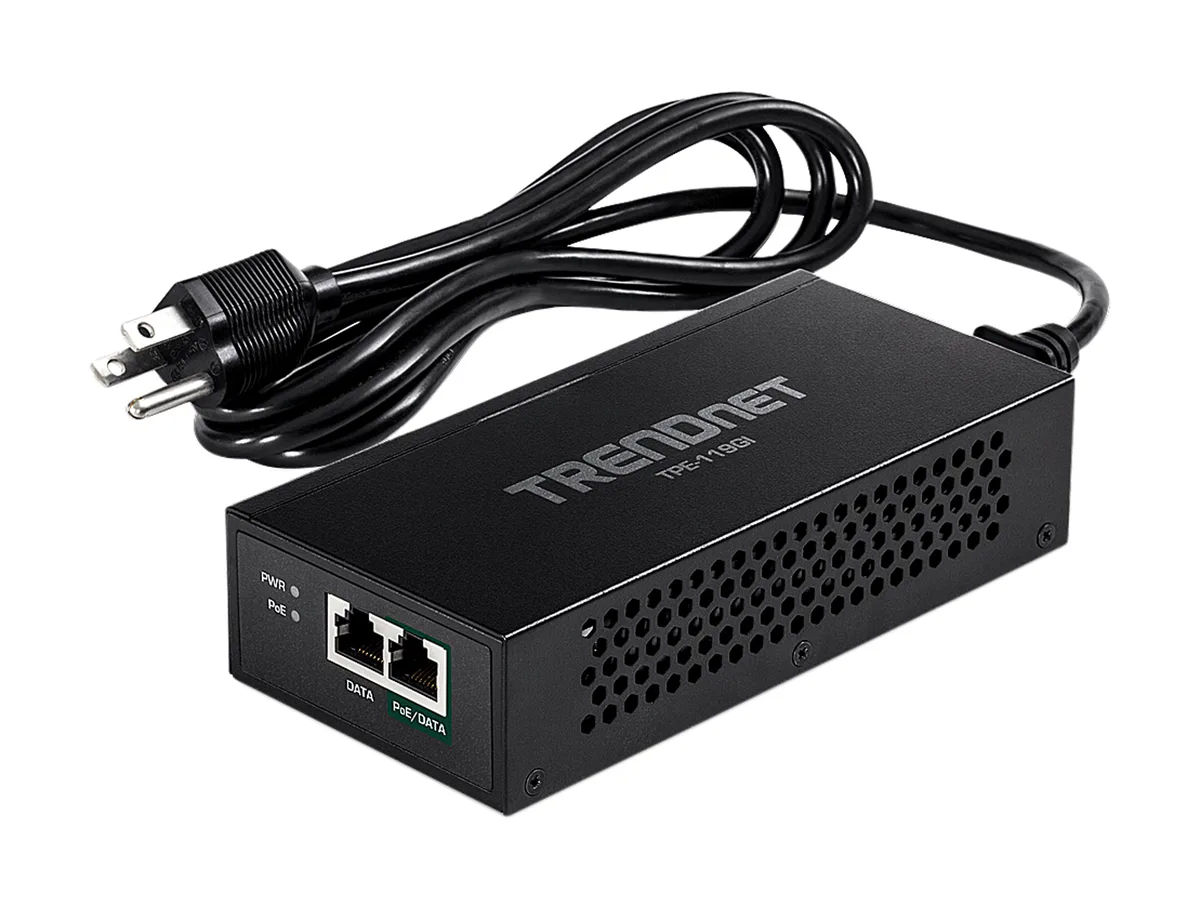

Black rectangular PoE++ injector with two Ethernet ports and integrated power supply

TRENDnet

TRENDnet TPE-119GI (v1.0R) Gigabit PoE++ Injector 95W

SKU CH-JY25-5PQHH MPN TPE-119GI (v1.0R)

Converts a non-PoE port to deliver up to 95W of power to PoE, PoE+, or PoE++ devices over 100m

  • TypePoE Injector
  • ColorBlack
  • SpecificationsStandards: - IEEE 802.3 - IEEE 802.3u - IEEE 802.3ab - IEEE
  • Features4-Pair PoE PoE++ injector supplies power to a PoE (up to 15.
  • Converts a standard port to PoE++ Gigabit
  • Delivers up to 95W for demanding devices
  • Auto-sensing supplies correct PoE, PoE+ or PoE++ wattage
  • Powers devices up to 100m (328 ft) away
  • IEEE 802.3af/at/bt compliant for broad compatibility

Product Purpose

The TRENDnet TPE-119GI Gigabit PoE++ Injector adds Power over Ethernet capability to a standard network link. It is built for installers who need to power compatible cameras, access points, or VoIP phones up to 100 metres from a switch without running separate power cabling.

Power Capability

The unit auto-negotiates IEEE 802.3af, 802.3at, and 802.3bt standards to deliver the correct wattage up to 95W. This single specification determines whether your end device can be supported, as the injector will only supply the class the connected equipment requests.

Installation Notes

No software configuration is required; connect the data-in port to your switch and the PoE++ out port to the powered device. The integrated power supply and metal wall-mount enclosure simplify placement, but verify that the remote device accepts 4-pair PoE to avoid a mismatch.

Highlights

  • Converts a standard port to PoE++ Gigabit
  • Delivers up to 95W for demanding devices
  • Auto-sensing supplies correct PoE, PoE+ or PoE++ wattage
  • Powers devices up to 100m (328 ft) away
  • IEEE 802.3af/at/bt compliant for broad compatibility

Specifications

BrandTRENDnet
ModelTPE-119GI (v1.0R)
TypePoE Injector
ColorBlack
SpecificationsStandards:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
Device Interface:
- 1 x Gigabit Data in port
- 1 x Gigabit PoE++ out port
Data Transfer Rate:
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
Special Features: Wall-mountable
PoE: Pin 1, 2, 4, 5 for power+ and pin 3, 6, 7, 8 for power
Power

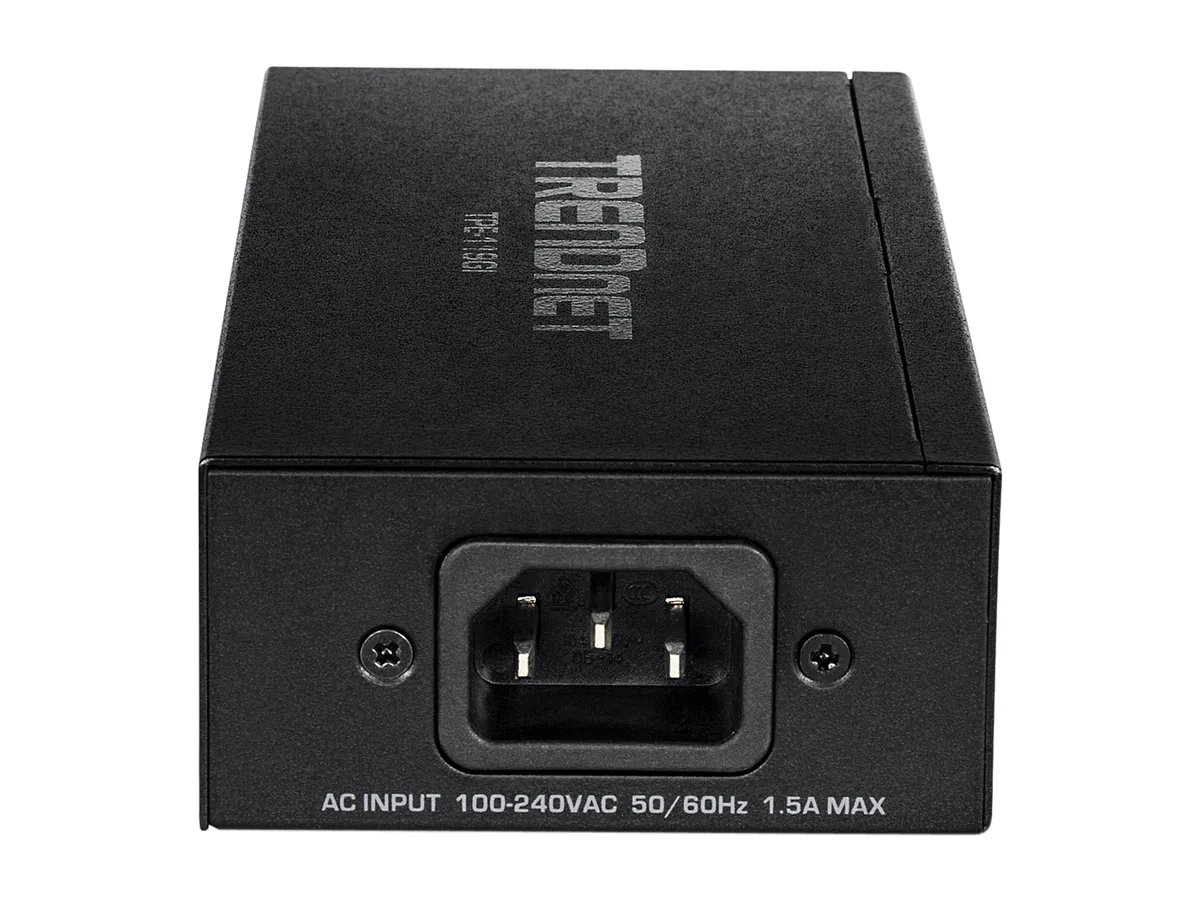

- Input: 100 - 240V AC, 50/60Hz, internal power supply
- Max. Consumption: 3W
PoE Budget: Max. 95W
Temperature: 0 - 40°C (32 - 104°F)
Humidity: Max.
Features4-Pair PoE
PoE++ injector supplies power to a PoE (up to 15.4W), PoE+ (up to 30W), or PoE++ (up to 95W) device
Easy Installation
No configuration needed, simply connect a PoE network device to the Power over Ethernet injector
Gigabit Ports
1 x Gigabit port and 1 x Gigabit PoE++ port
PoE Distance
Provides a 4-Pair PoE network connection up to 100m (328 ft.) away from the 802.3bt PoE injector
LED Indicators
LED indicators on the PoE injector confirm PoE connectivity
Wall Mount Design
Wall-mount design and a sturdy metal enclosure accommodates most installations scenarios
Auto-Sensing T
Shipping weight0.91 kg
Package size206 × 155 × 69 mm

Questions about this item

What does the 95W PoE++ rating mean for the device I connect?

The injector can deliver up to 95 watts to a compatible PoE++ device, while also supporting lower-power PoE (15.4W) and PoE+ (30W) equipment automatically.

Which Ethernet standards does the injector support and what speed does that limit me to?

It complies with IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at and 802.3bt, providing Gigabit data rates up to 100 metres.

What physical mounting options does the metal enclosure provide?

The unit features a wall-mount design with a metal enclosure for secure installation.
