Small black metal box with two network ports and power cord

TRENDnet

TRENDnet TPE-117GI Gigabit Ultra PoE+ Injector 60W

SKU CH-1ZJ4-KBATN MPN TPE-117GI

Converts a non-PoE Gigabit port to an Ultra PoE Gigabit port delivering up to 60W for devices up to 100m away

  • TypePoE+ Injector
  • ColorBlack
  • SpecificationsStandards: IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af
  • FeaturesFull Duplex Gigabit speeds Supplies PoE (15 watts), PoE+ (30
  • Delivers up to 60W Ultra PoE power for demanding devices
  • Converts a standard gigabit port to an Ultra PoE gigabit port
  • Powers compatible devices up to 100m (328 ft.) away
  • Supports IEEE 802.3af, 802.3at and Ultra PoE standards
  • Plug-and-play operation requires no software configuration

Gigabit Ultra PoE+ Injector 60W

The TRENDnet TPE-117GI merges a Gigabit data link with electrical power to deliver an Ultra PoE signal up to 60 watts. It accepts 100 to 240 volt AC input and provides one Gigabit data-in port plus one Gigabit Ultra PoE out port in a metal housing. The unit operates at full duplex Gigabit speed and supports IEEE 802.3af, 802.3at and Ultra PoE standards.

Upgrade from standard PoE or PoE+ injectors

Replaces a 15 watt PoE or 30 watt PoE+ injector when the attached device demands up to 60 watts. The jump is worth it for pan-tilt-zoom cameras, multi-radio access points or LED lighting that exceed the 30 watt ceiling. Plug-and-play deployment avoids software configuration and reduces installation cost by using existing copper cabling up to 100 meters.

Suits installers powering high-watt PoE devices

Ideal for network technicians who need to supply 60 watts over a single Gigabit run without a PoE switch. Not for buyers who only need 15.4 watts or 30 watts, as lower-cost PoE or PoE+ injectors cover those loads. Also not for setups requiring multi-port power distribution or managed PoE features.

Highlights

  • Delivers up to 60W Ultra PoE power for demanding devices
  • Converts a standard gigabit port to an Ultra PoE gigabit port
  • Powers compatible devices up to 100m (328 ft.) away
  • Supports IEEE 802.3af, 802.3at and Ultra PoE standards
  • Plug-and-play operation requires no software configuration

Specifications

BrandTRENDnet
ModelTPE-117GI
TypePoE+ Injector
ColorBlack
SpecificationsStandards:
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at
IEEE 802.3bt compatible
Device Interface:

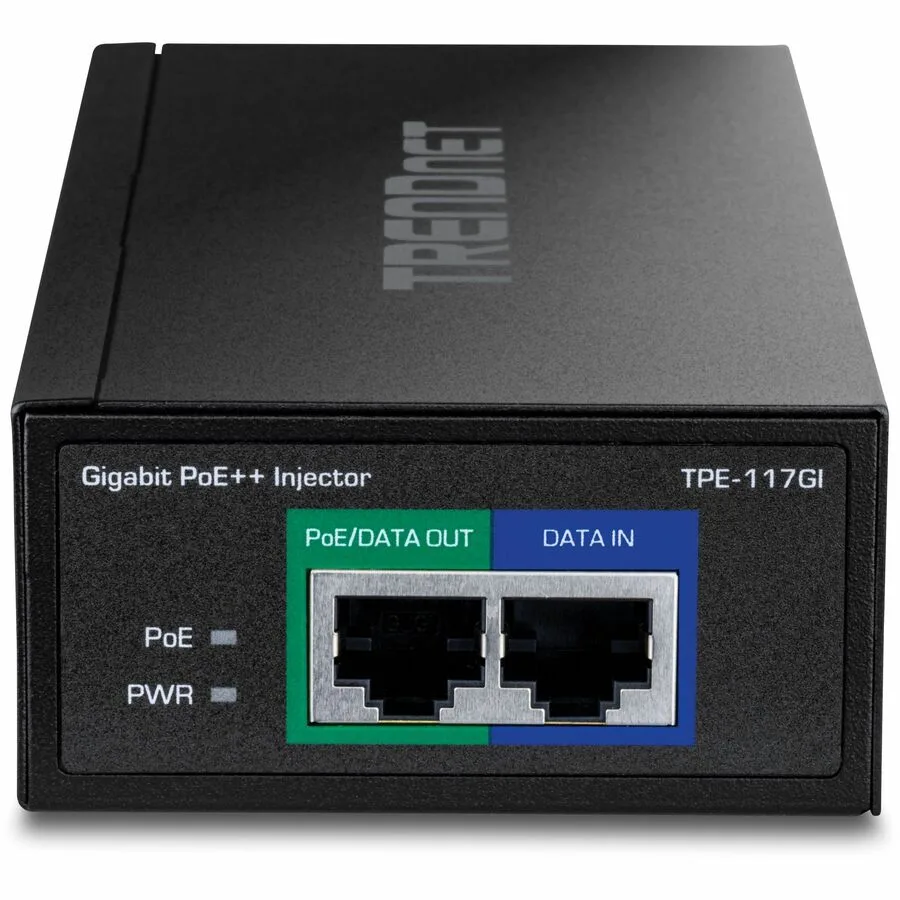

1 x Gigabit Data in port
1 x Gigabit Ultra PoE out port
Metal Housing
Power
Input: 100-240V, 2A 50-60Hz
Output: 52V, 1.38A
PoE Budget: 60 watts max.
Power Consumption: 5 watts max. (without PD)
Temperature: 0 - 60 degree C (32 - 140 degree F)
Humidity: Max. 95% non-condensing
Dimension: 0.80" x 4.00" x 3.00"
Weight: 0.41 lb.
FeaturesFull Duplex Gigabit speeds
Supplies PoE (15 watts), PoE+ (30 watts) or Ultra PoE power (60 watts)
Network a PoE device located up to 100 meters (328 ft.) away
Converts a non-PoE Gigabit port to an Ultra PoE Gigabit port
Save on installation and equipment costs
Supports IEEE 802.3af / 802.at / Ultra PoE
Shipping weight0.73 kg
Package size229 × 147 × 66 mm

Questions about this item

Does the TPE-117GI need a rack shelf or can it sit on a desk?

The metal housing is a compact desktop unit; no rack ears or brackets are included, so it simply rests on a flat surface near a mains socket.

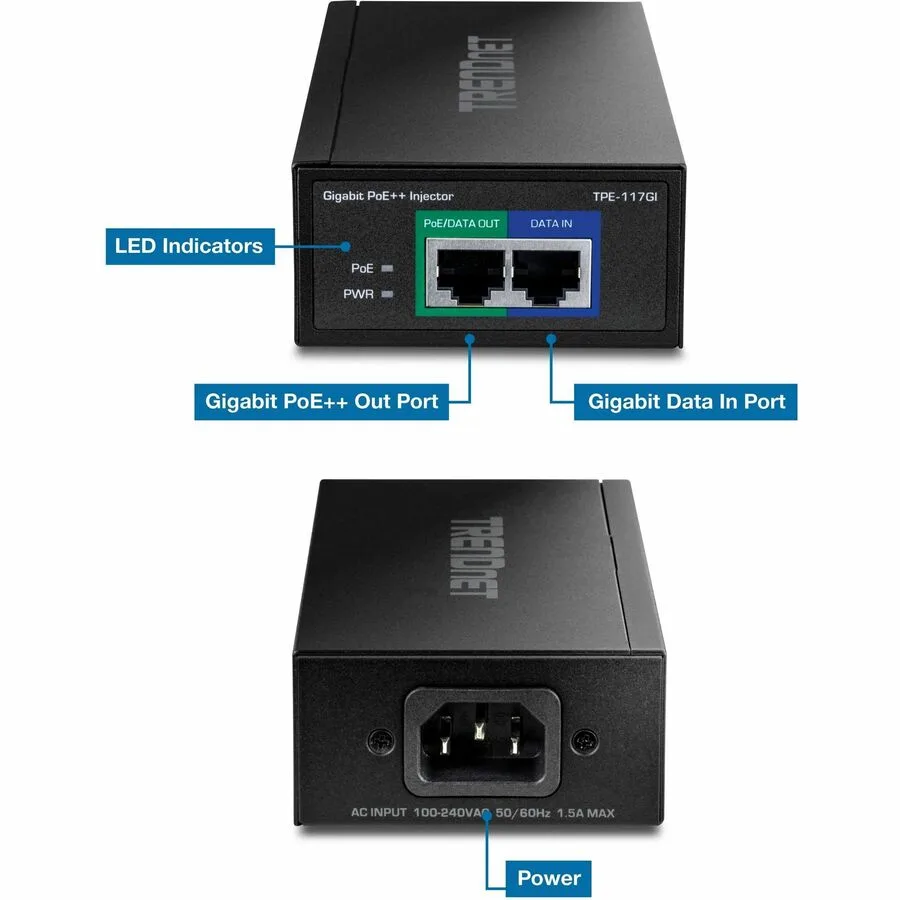

Which cable goes into the Data In port and which into the Ultra PoE Out port during setup?

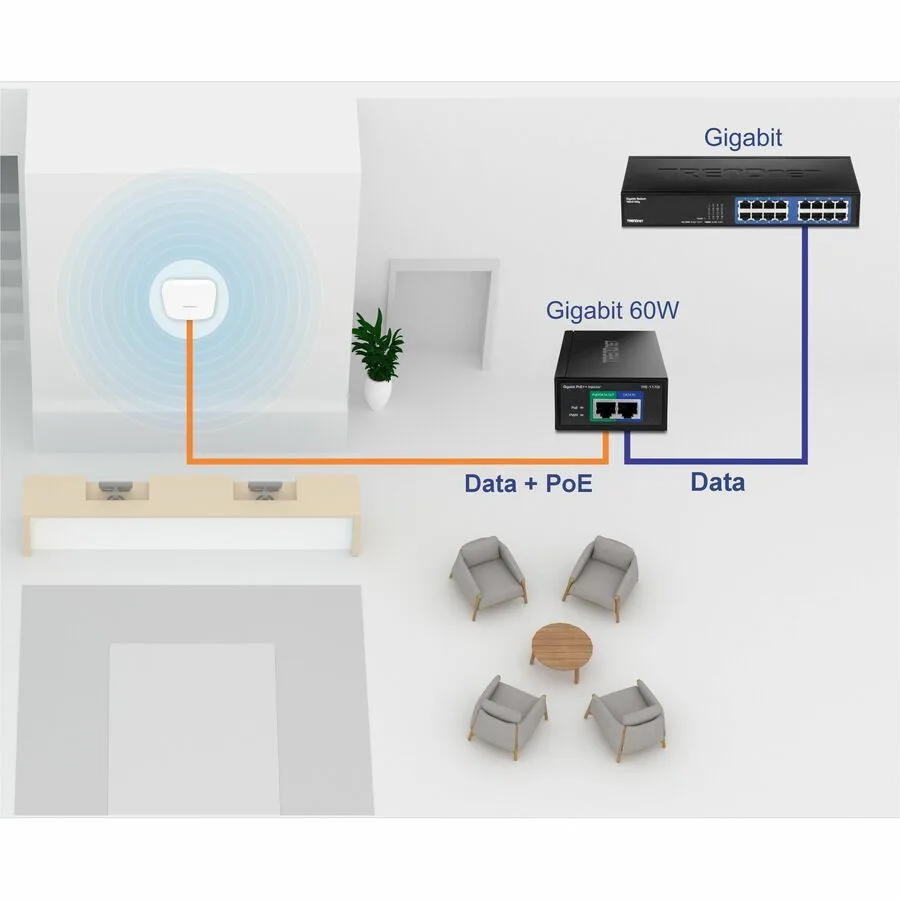

Connect the network switch to the Gigabit Data In port, then run a single Ethernet cable from the Gigabit Ultra PoE Out port to the powered device — reversing them will not deliver power.

How often should the internal power supply be checked or replaced?

The injector has no user-serviceable parts and no moving components; it runs continuously without scheduled maintenance, and replacement is only needed if the unit fails to supply 15.4 W, 30 W or 60 W to a connected device.
