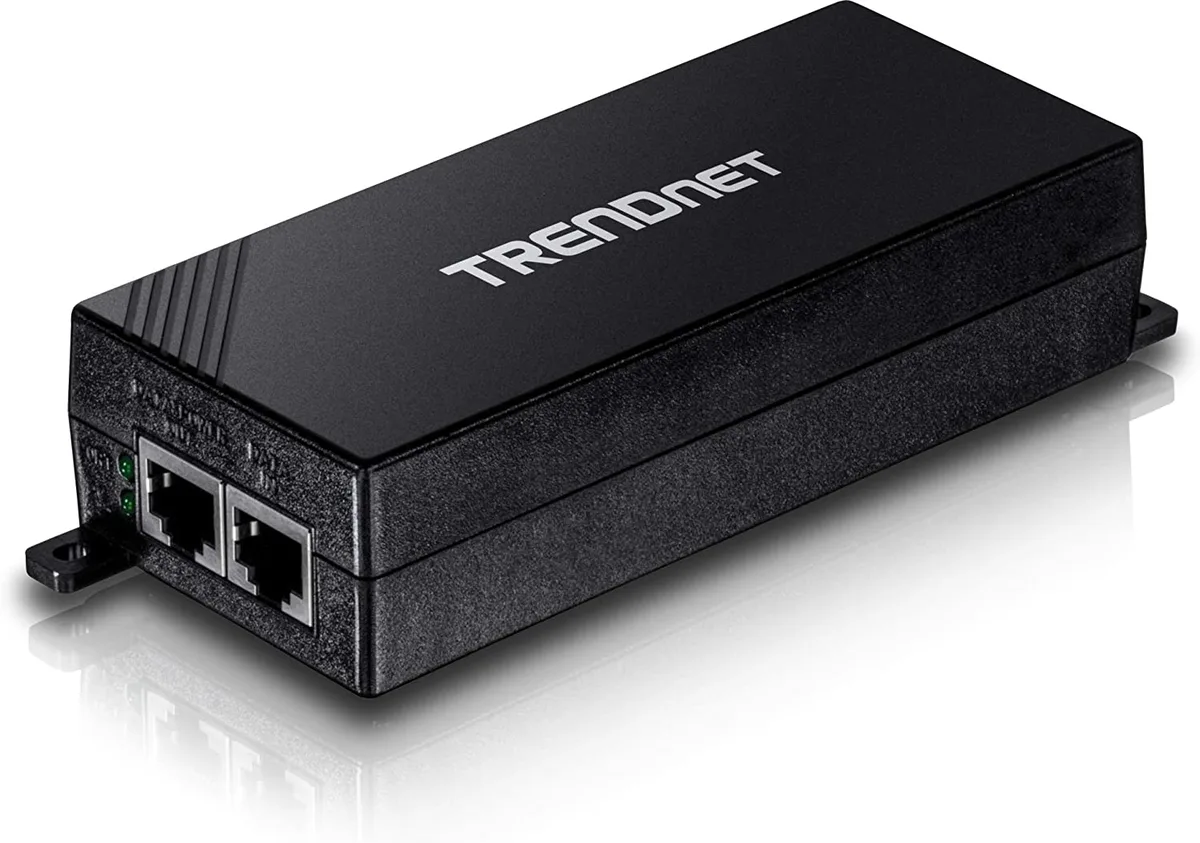

Black rectangular PoE+ injector with two Ethernet ports and integrated power supply

TRENDnet

TRENDnet TPE-115GI Gigabit PoE+ Injector 30W

SKU CH-088Q-BEA0H MPN TPE-115GI

Adds PoE+ power to a Gigabit network link, delivering up to 30 W over 100 m

  • TypeGigabit PoE+ Injector
  • ColorBlack
  • SpecificationsStandard: IEEE 802.3/3u/3ab, IEEE 802.3af/3at Ports: 1 x 10/
  • FeaturesIEEE 802.3at PoE+ (30 Watt) compliant Backwards compatible w
  • Delivers up to 30W PoE+ power to compatible devices
  • Powers legacy PoE equipment at 15.4W automatically
  • Extends network reach up to 100 meters (328 ft.)
  • Adds PoE+ capability to any non-PoE Gigabit port
  • Integrated power supply simplifies installation with no external brick

Gigabit PoE+ injector for non-PoE ports

This TRENDnet TPE-115GI injector adds IEEE 802.3at PoE+ or IEEE 802.3af PoE power to a standard Gigabit Ethernet link. It accepts 100–240 V AC input and supplies up to 30 W on the powered port. The unit is NDAA and TAA compliant and mounts on a wall.

Installers needing a single powered drop up to 100

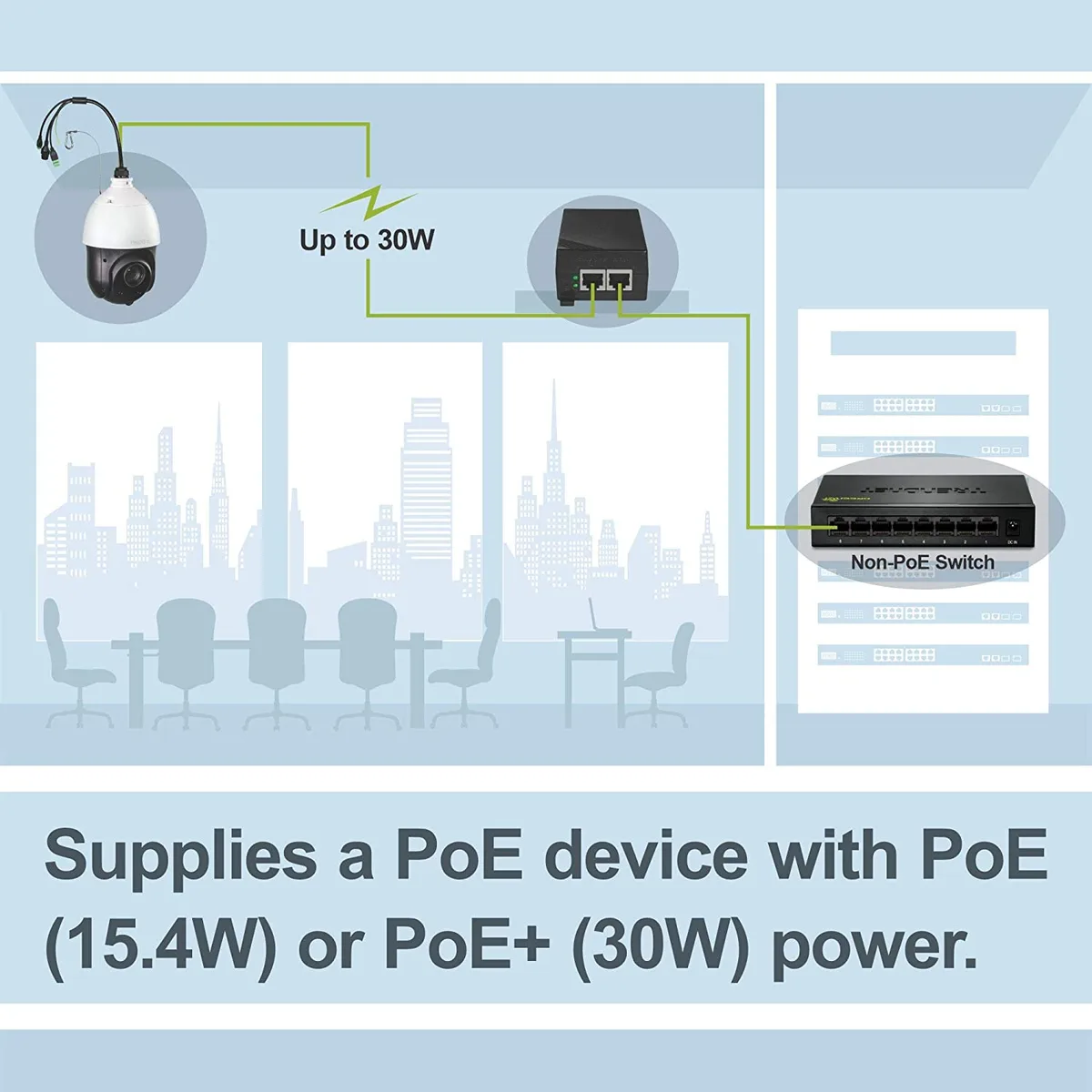

Network teams who want to power a wireless access point, IP camera or VoIP phone without a PoE switch will find this injector simple and standards-based. Buyers who need to power multiple devices from one unit or require managed PoE features should look at a multi-port PoE switch instead.

30 W maximum PoE+ output on the powered port

The injector automatically negotiates 15.4 W PoE or 30 W PoE+ depending on the connected device. This single power budget is the deciding factor: if the end device draws more than 30 W, this model cannot supply it.

Highlights

  • Delivers up to 30W PoE+ power to compatible devices
  • Powers legacy PoE equipment at 15.4W automatically
  • Extends network reach up to 100 meters (328 ft.)
  • Adds PoE+ capability to any non-PoE Gigabit port
  • Integrated power supply simplifies installation with no external brick

Specifications

BrandTRENDnet
ModelTPE-115GI
TypeGigabit PoE+ Injector
ColorBlack
SpecificationsStandard: IEEE 802.3/3u/3ab, IEEE 802.3af/3at
Ports: 1 x 10/100/1000 Mbps Data-In (Data only), 1 x 10/100/1000 Mbps PWR+Data out (Data + Power)
PoE Delivery: Pair 1: Pin 1, 2; Pair 2: Pin 3, 6
Power: Input: 100~240 V, 50~60 Hz, 0.65 A max.
Power Consumption: Max 30 Watts
Dimensions: 5.2" x 2.5" x 1.4"
Weight: 162 g (5.7 oz.)
Certifications: CE, FCC
FeaturesIEEE 802.3at PoE+ (30 Watt) compliant
Backwards compatible with IEEE 802.3af PoE (15 Watt) devices
Automatically supplies a PoE+ (30 Watts) or PoE (15 Watts) connection to the device

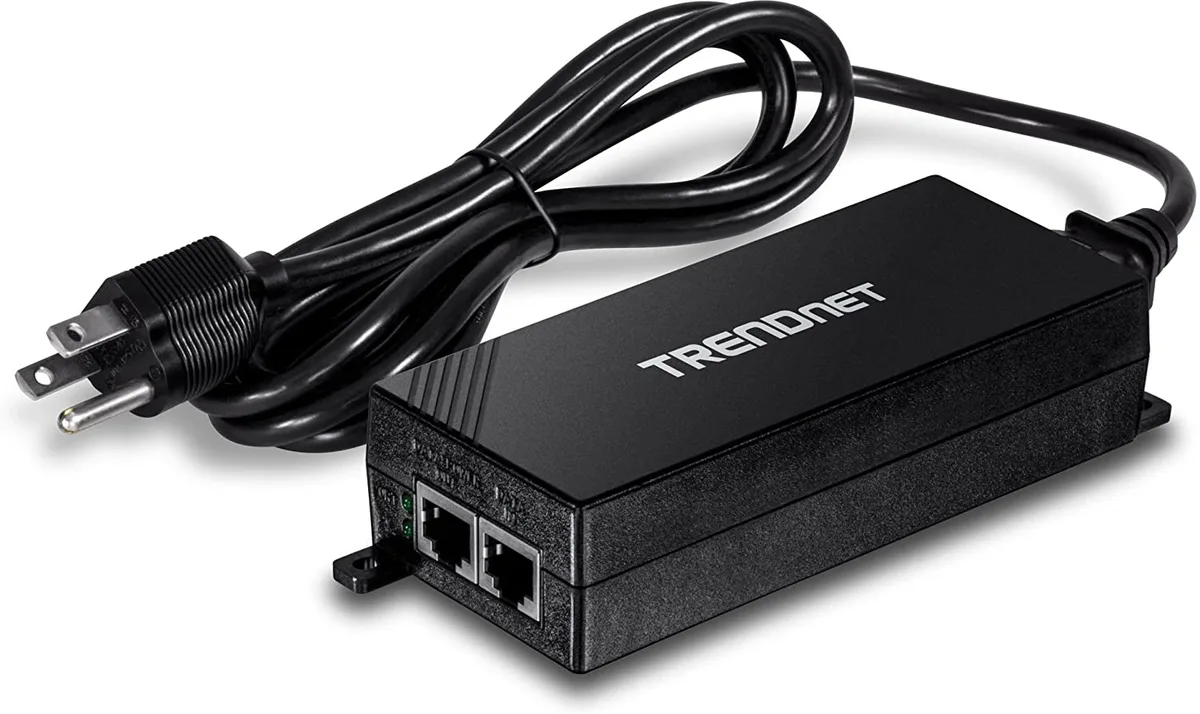

Integrated power supply
Network devices for distances of up to 100 meters (328 ft.)
1 x 10/100/1000 Mbps Auto-MDIX Data In port
1 x 10/100/1000 Mbps PoE+ Auto-MDIX Data Out port
Power port with LED indicator
Easily install a PoE+ or PoE device where a power outlet is not available
Reduce installation and network equipment costs
Safeguards network devices with short circuit protection
Package Contents:
TP
Shipping weight0.40 kg
Package size211 × 107 × 51 mm

Questions about this item

How much power does the TPE-115GI draw when supplying a full 30W PoE+ load all day?

The injector accepts 100~240 V input and delivers up to 30W PoE+ or 15.4W PoE; actual draw depends on the connected device and cable length up to 100 m.

What non-PoE Gigabit equipment must I already have to use this injector?

You need a standard Gigabit switch or router port for the Data-In side and a Cat5e or better cable run to the powered device.

Will the TPE-115GI work with my older 802.3af access points and IP cameras?

Yes, it is backwards compatible with IEEE 802.3af PoE devices and auto-senses to supply 15.4W instead of 30W.
