Black compact PoE injector with two Ethernet ports

TRENDnet

TRENDnet TPE-113GI Gigabit PoE Injector 15.4W

SKU CH-4YG8-Q3HCQ MPN TPE-113GI

Adds 15.4W PoE power to a Gigabit Ethernet link for devices up to 328 ft away

  • TypePoE Injector
  • ColorBlack
  • SpecificationsStandard: IEEE 802.3/3u/3ab, IEEE 802.3af Power over Etherne
  • FeaturesIEEE 802.3ab Gigabit and 802.3af PoE compliant Gigabit Power
  • Delivers power and data up to 100 meters (328 ft.) for flexible device placement
  • Supplies 15.4W PoE output compliant with IEEE 802.3af to power compatible network devices
  • Converts a standard non-PoE Gigabit port into a powered PoE Gigabit connection
  • Operates at full-duplex Gigabit speeds for high-bandwidth network performance
  • NDAA compliant for use in regulated government and federal environments

Gigabit PoE injector with 15.4 W output

The TRENDnet TPE-113GI adds IEEE 802.3af Power over Ethernet to a standard Gigabit link. It accepts data on one 10/100/1000 Mbps port and delivers both data and power on a second 10/100/1000 Mbps port. The injector supports full-duplex Gigabit speeds over distances up to 100 meters (328 ft). No configuration is required thanks to auto-sensing technology.

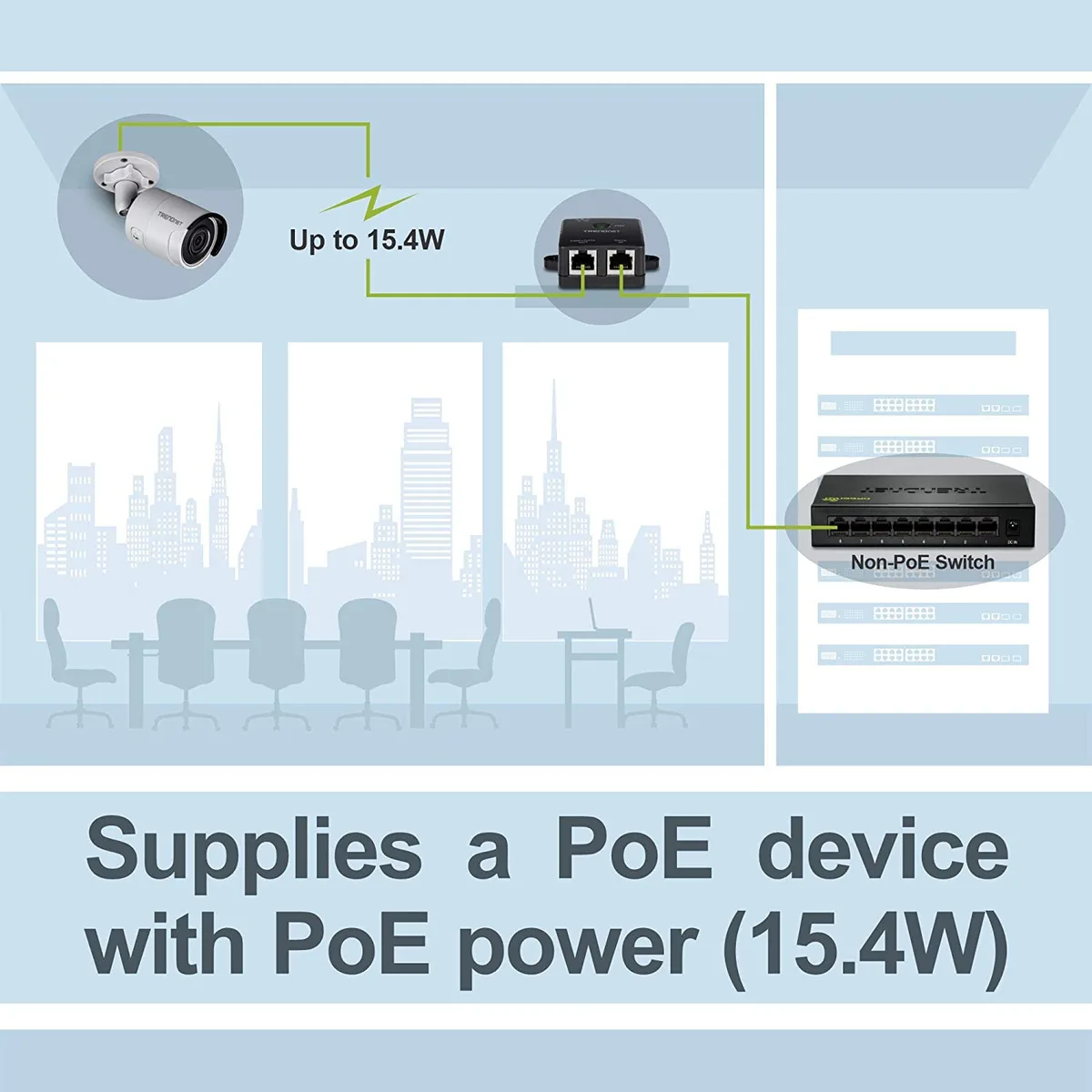

Installers powering a single PoE device

This unit suits deployments where one wireless access point, IP camera or VoIP phone needs power and the existing switch lacks PoE ports. It is not intended for installations that require more than 15.4 W per device or for powering multiple endpoints from a single injector. Buyers needing higher wattage or multi-port PoE should consider a PoE switch instead.

15.4 W IEEE 802.3af power budget

The injector complies with the 802.3af standard and supplies a maximum of 15.4 W to the powered device. This figure determines whether your PoE equipment will operate correctly; devices that draw more power will not start up. Verify the power requirement of your endpoint before purchasing.

Highlights

  • Delivers power and data up to 100 meters (328 ft.) for flexible device placement
  • Supplies 15.4W PoE output compliant with IEEE 802.3af to power compatible network devices
  • Converts a standard non-PoE Gigabit port into a powered PoE Gigabit connection
  • Operates at full-duplex Gigabit speeds for high-bandwidth network performance
  • NDAA compliant for use in regulated government and federal environments

Specifications

BrandTRENDnet
ModelTPE-113GI
TypePoE Injector
ColorBlack
SpecificationsStandard: IEEE 802.3/3u/3ab, IEEE 802.3af Power over Ethernet
1 x 10/100/1000Mbps DATA-IN (Data only)
1 x 10/100/1000Mbps PWR+DATA OUT (Data + Power)
Network Media:
10Mbps: UTP/STP Cat. 5 and 5e up to 100 Meters
100Mbps: UTP/STP Cat. 5, and 5e up to 100 Meters
Gigabit: UTP/STP Cat 5e and 6 up to 100 meters
Data Lines:
Pair 1: Pin 1, 2
Pair 2: Pin 3, 6
Power:
Input: 100~240V, 50~60Hz, 0.4A max.
Output: 48V DC, 0.4A 18W max.
Power Consumption: 15.4 Watts (max.)
Dimensions (W x D x H): 70 x 45 x 25mm (2.75 x 1.8 x 1 in.)
Weight: 45 g (1.6 oz.)
FeaturesIEEE 802.3ab Gigabit and 802.3af PoE compliant
Gigabit Power over Ethernet (PoE) Injector delivers a PoE signal for distances of up to 100 meters (328 ft.)
1 x 10/100/1000Mbps Auto-MDIX Data In port
1 x 10/100/1000Mbps PoE Auto-MDIX Data Out port
Power port
Power LED indicator
Supplies power up to 15.4 Watts
Easily install a PoE device where a power outlet is not available
Reduce installation and network equipment costs
Safeguards network devices with short circuit protection
Plug and Play in remote location
Light weight and compact size

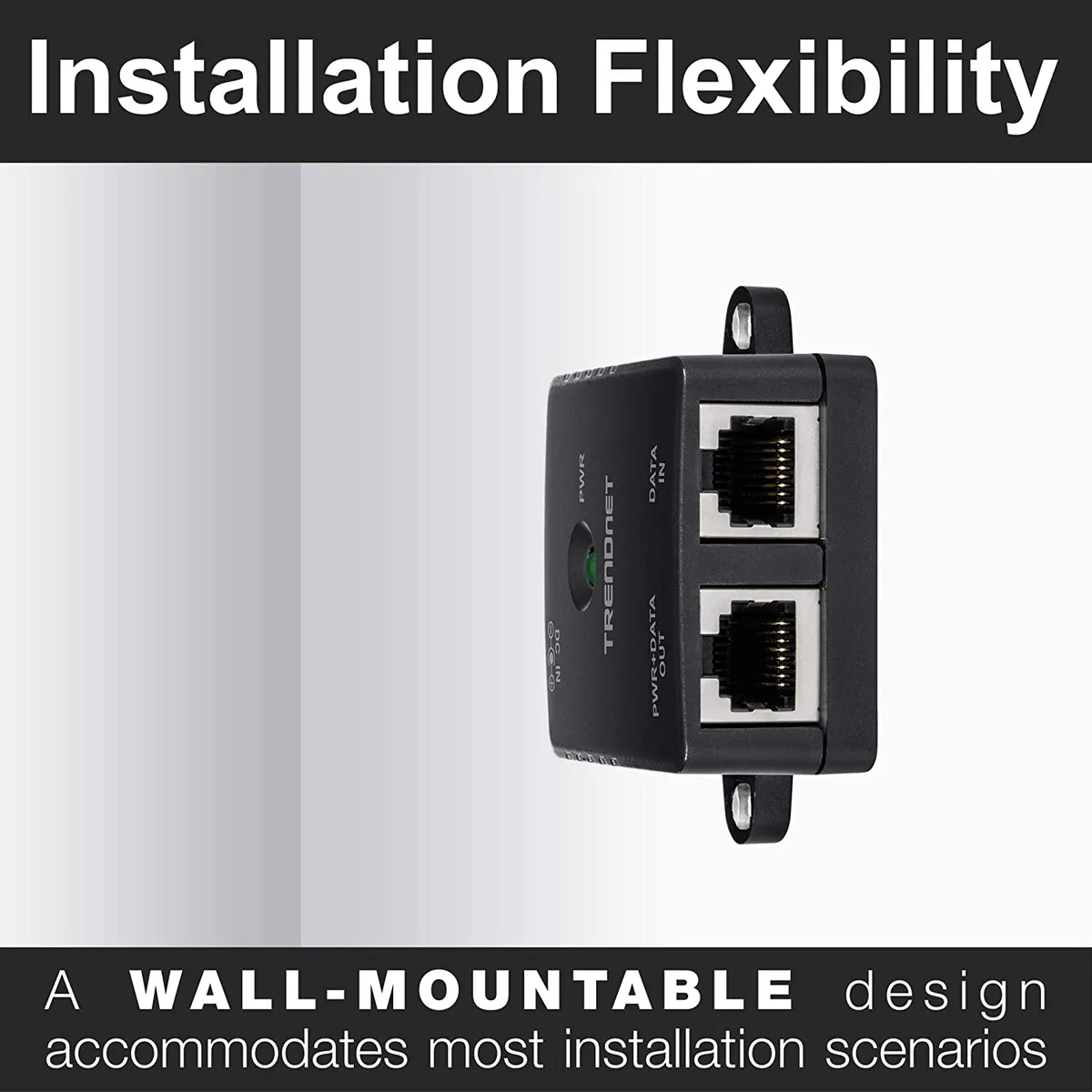

Wall mounting points.
Package Contents:
TPE-11
Shipping weight0.27 kg
Package size216 × 163 × 71 mm

Questions about this item

How do I verify the TPE-113GI is delivering 15.4W PoE after connecting it?

Check that the connected device powers on and establishes a Gigabit link; the injector auto-senses and supplies the correct wattage up to 15.4W per IEEE 802.3af.

What comes with the TPE-113GI and what must I supply?

The injector unit is included; you must provide a non-PoE Gigabit switch, Ethernet cables, and the PoE-powered device such as an access point or IP camera.

Which PoE standard does the TPE-113GI follow so I know it matches my device?

It complies with IEEE 802.3af, delivering up to 15.4W, suitable for standard PoE devices but not PoE+ or higher-power models.
