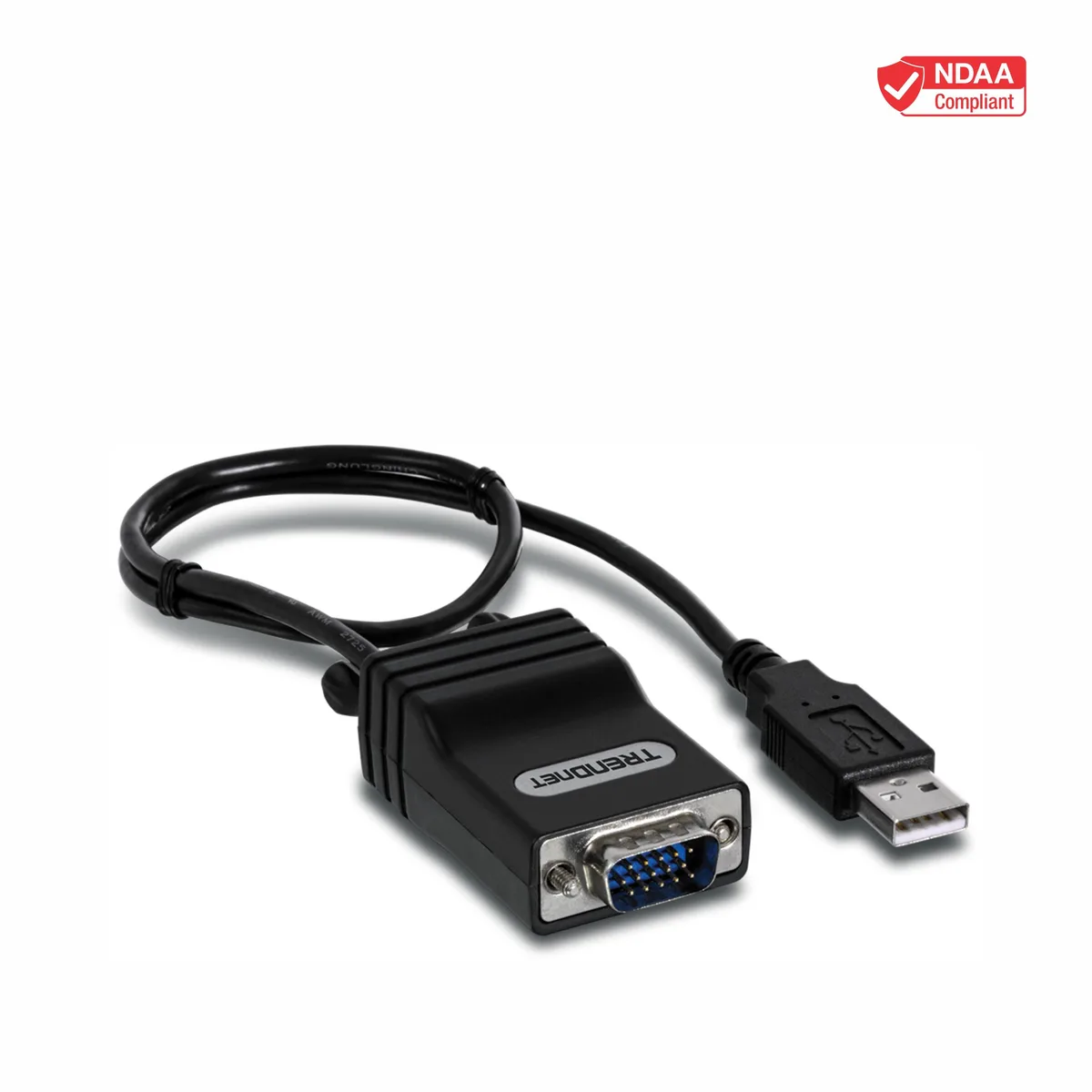

Small black dongle with VGA, USB and Ethernet plugs on a short cable

TRENDnet

TRENDnet TK-CAT5U USB Server Interface Module KVM switch

SKU CH-ZDXW-RVJPH MPN TK-CAT5U

Connects a computer to a CAT5 KVM switch via USB, VGA and 10/100 Mbps Ethernet using CAT5, 5e or 6 cable up to 40 cm long, supporting 1600 x 1200 resolution

  • TypeKVM Extender
  • PC ConnectorsInterface: 10/100 Mbps Ethernet port (networked to CAT5 KVM
  • Video Resolution1600 x 1200
  • Monitors SupportedUXGA
  • FeaturesSupported Cables: CAT5, 5e, 6
  • DimensionsCable length 40 cm (15.7 in.)
  • Connects a TRENDnet CAT5 KVM switch to a computer via USB and VGA ports
  • Supports CAT5, CAT5e and CAT6 network cables for flexible installation
  • Provides 1600 x 1200 video resolution for clear UXGA display quality
  • Includes 10/100 Mbps Ethernet, USB 2.0 and VGA male connectors on a 40 cm cable
  • Lightweight 48 g module requires one unit per connected computer

Server interface module

The TK-CAT5U connects a single computer to a TRENDnet CAT5 KVM switch using one USB and one VGA port. It is built for administrators who manage multiple servers from a single console over twisted-pair cabling. One module is required for each computer added to the KVM chain. ||

Thermal and power profile

The module draws power directly from the host USB 2.0 connection and has no fan or external supply. In normal operation it produces no audible noise and adds negligible heat to the server chassis. The 40 cm tether keeps the Ethernet link close to the system without restricting airflow. ||

Bundled impact

The package supplies only the interface module itself; no cables, software discs or rack brackets are included. Supported CAT5, 5e and 6 patch cables must be sourced separately to complete the link to the KVM switch. No driver installation is needed on Windows, Linux or Mac hosts.

Highlights

  • Connects a TRENDnet CAT5 KVM switch to a computer via USB and VGA ports
  • Supports CAT5, CAT5e and CAT6 network cables for flexible installation
  • Provides 1600 x 1200 video resolution for clear UXGA display quality
  • Includes 10/100 Mbps Ethernet, USB 2.0 and VGA male connectors on a 40 cm cable
  • Lightweight 48 g module requires one unit per connected computer

Specifications

BrandTRENDnet
ModelTK-CAT5U
TypeKVM Extender
PC ConnectorsInterface:
10/100 Mbps Ethernet port (networked to CAT5 KVM switch)
USB 2.0 male connector (Keyboard/Mouse connection to computer)
VGA male connector (VGA connection to computer)
Video Resolution1600 x 1200
Monitors SupportedUXGA
FeaturesSupported Cables: CAT5, 5e, 6
DimensionsCable length 40 cm (15.7 in.)
Weight48 g (1.7 oz.)
Shipping weight0.23 kg
Package size25 × 25 × 25 mm

Questions about this item

How do I connect the TK-CAT5U to my computer and the KVM switch?

Plug the USB 2.0 male and VGA male connectors into the computer, then run a CAT5, 5e or 6 cable from the 10/100 Mbps Ethernet port to the CAT5 KVM switch.

What cable length is included and will I need to replace it?

The module has a fixed 40 cm (15.7 in.) cable; replace the CAT5/5e/6 patch cord between module and switch if it becomes damaged or longer runs are needed.

What video resolution limit will I hit first during extended sessions?

The module supports up to 1600 x 1200 UXGA; sustained use will not exceed this resolution ceiling.
