TRENDnet TK-803R KVM switch
An 8-port rack-mount KVM switch controlling up to eight computers from one USB or PS/2 keyboard, mouse and VGA monitor at up to 2048 x 1536 resolution
- TypeD-Sub, USB, PS/2
- PC Connectors8 x VGA HDB 15-pin (female)
- Console Connectors1 x USB (Type A) / PS/2 (6-pin Mini Din) Mouse 1 x USB (Type
- Computer Connections8 Ports
- Monitor Connections1 Port
- Video Resolution2048 x 1536
- Control 8 servers from one console
- Supports USB and PS/2 keyboard and mouse
- Push-button and hot-key switching methods
- Rack-mount 19-inch 1U design saves space
- Video resolution up to 2048 x 1536

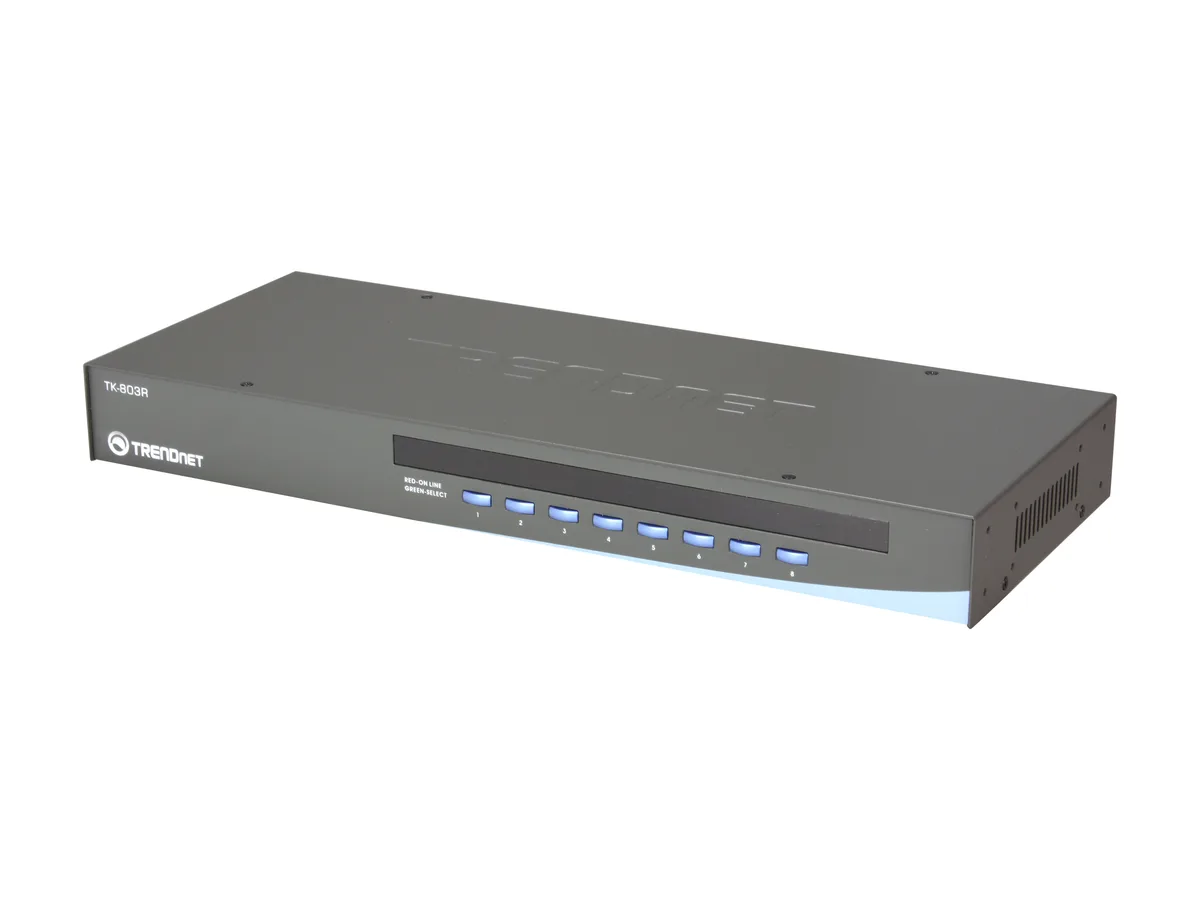

Eight-Port Rack-Mount KVM Switch
The TRENDnet TK-803R lets an administrator control up to eight computers or servers from a single keyboard, monitor and mouse. It fits a standard 19-inch 1U rack and accepts both USB and PS/2 peripherals on the console side. The unit ships with an external 9 V DC power adapter and supports Windows, Linux, Unix and Mac OS.
Replaces Eight Separate Consoles
Instead of dedicating a keyboard, display and pointing device to each machine, this switch consolidates control into one set. The jump is worth it when rack space is limited and operators need to move between servers in seconds. Switching is done by front-panel push buttons or programmable hot-keys with an AutoScan interval of 10 to 100 seconds.
VGA Resolution And Cable Limits
Video output tops out at 2048 x 1536 over VGA HDB 15-pin connections. Compatible cables are sold separately in 6, 10 and 15 foot lengths, so the maximum distance between the switch and any connected computer is 15 feet. The console port provides one VGA, one USB Type A and one PS/2 connector for keyboard and mouse.
Highlights
- Control 8 servers from one console
- Supports USB and PS/2 keyboard and mouse
- Push-button and hot-key switching methods
- Rack-mount 19-inch 1U design saves space
- Video resolution up to 2048 x 1536
Specifications
| Brand | TRENDnet |
|---|---|
| Model | TK-803R |
| Type | D-Sub, USB, PS/2 |

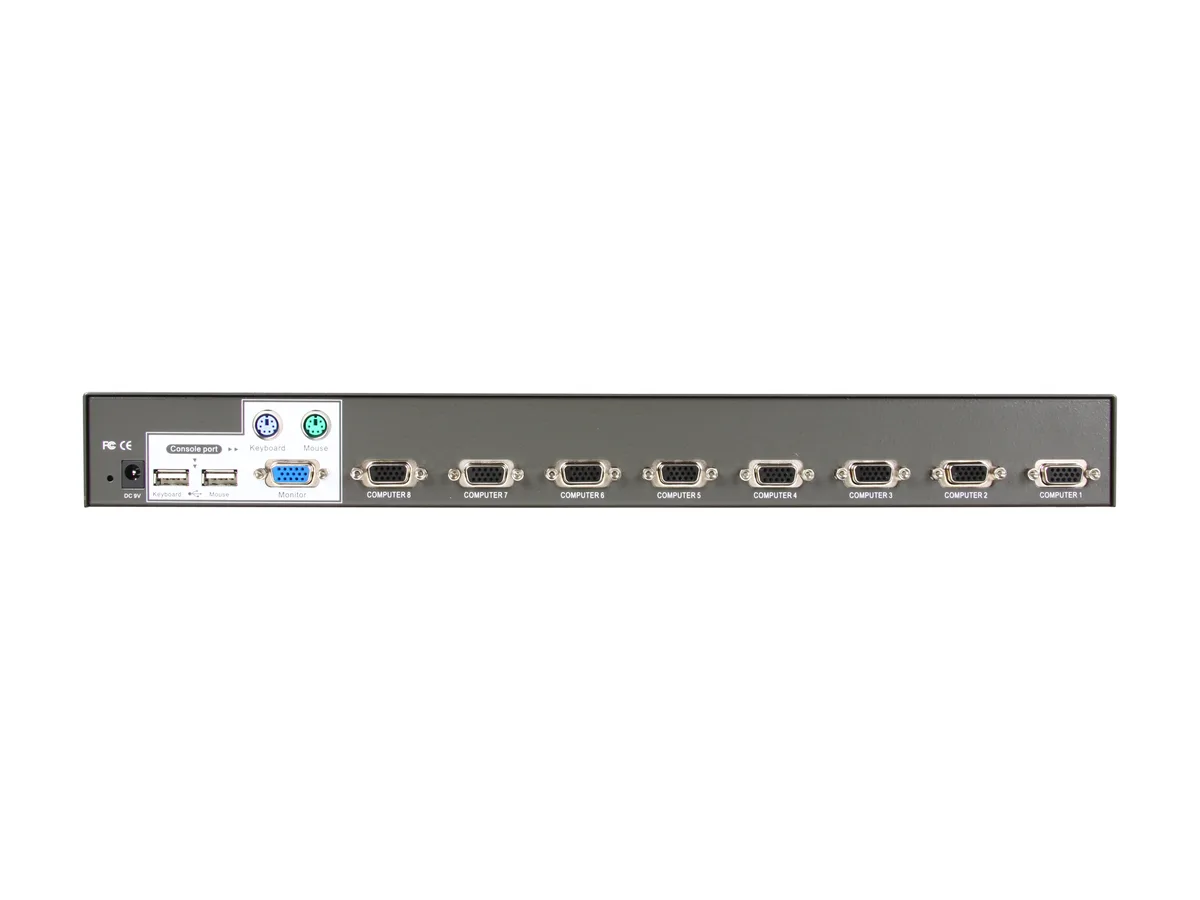

| PC Connectors | 8 x VGA HDB 15-pin (female) |
| Console Connectors | 1 x USB (Type A) / PS/2 (6-pin Mini Din) Mouse 1 x USB (Type A) / PS/2 (6-pin Mini Din) Keyboard 1 x VGA HDB 15-pin (female) |
| Computer Connections | 8 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 2048 x 1536 |
| PC Selection | Push Buttons/Hot Keys |
| AutoScan Interval | 10-100 seconds (Programmable through Hot-Key) |
| Temperature | 0 °C~40 °C (32 °F~104 °F) |
| Humidity | 0%~80% (non-condensing) |
| Power Features | 9V DC 1A External Power Adapter |
| USB Features | with USB support |
| Features | 8-Port USB KVM Switch Supports both USB and PS/2 Interface for console port Supports Microsoft IntelliMouse, IntelliMouse Explorer, Logitech NetMouse, Optical Mouse, and more Supports Windows 98SE/ME/ 2000/XP/2003 Server, Linux, Mac OS and more High video quality; up to 2048 x 1536 VGA resolution Firmware upgradeable via PC port Auto-Scan for monitored PCs with adjustable scan interval from 10-99 seconds Keyboard status restored when switching between PCs LEDs display for easy status monitoring Beeping sound for port switching confirmation (enable/disable) Hot-Key or push button swit |
| Dimensions | 16.0" x 6.5" x 1.8" |
| Weight | 4.0 lbs. |

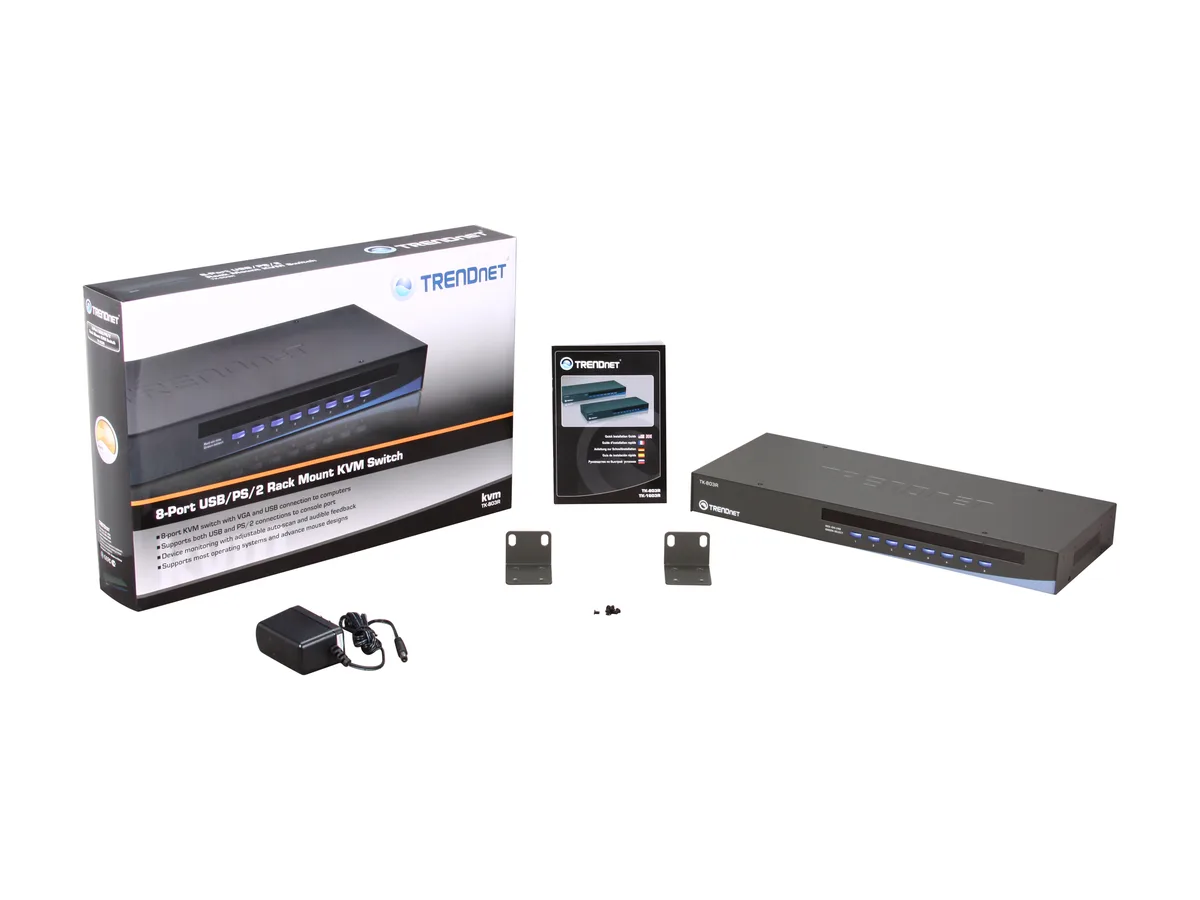

| Package Contents | KVM Switch Power Adapter User Manual |
| Shipping weight | 2.78 kg |
| Package size | 447 × 295 × 74 mm |
Questions about this item
What rack size does the TK-803R fit?
The switch uses a standard 19-inch 1U rack-mount design and measures 16.0 inches wide by 6.5 inches deep by 1.8 inches high.
Which cables connect the eight computers to the switch?
Each computer needs a VGA HDB 15-pin cable plus a USB Type A cable; compatible lengths are 6, 10 and 15 feet and are sold separately.
What will need replacing if the unit loses power?
The external 9V DC 1A power adapter is the only field-replaceable power component; the switch itself has no internal battery.
