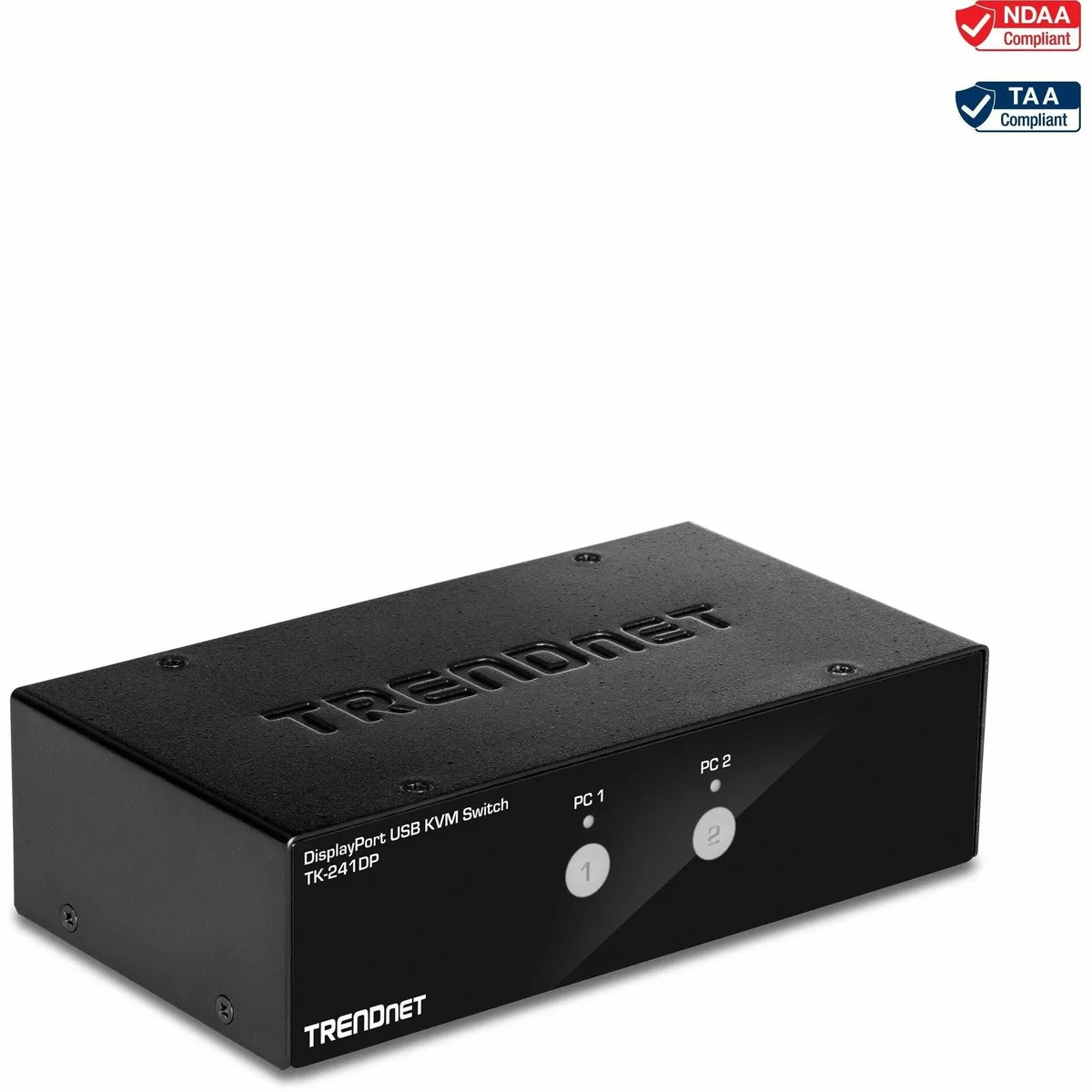

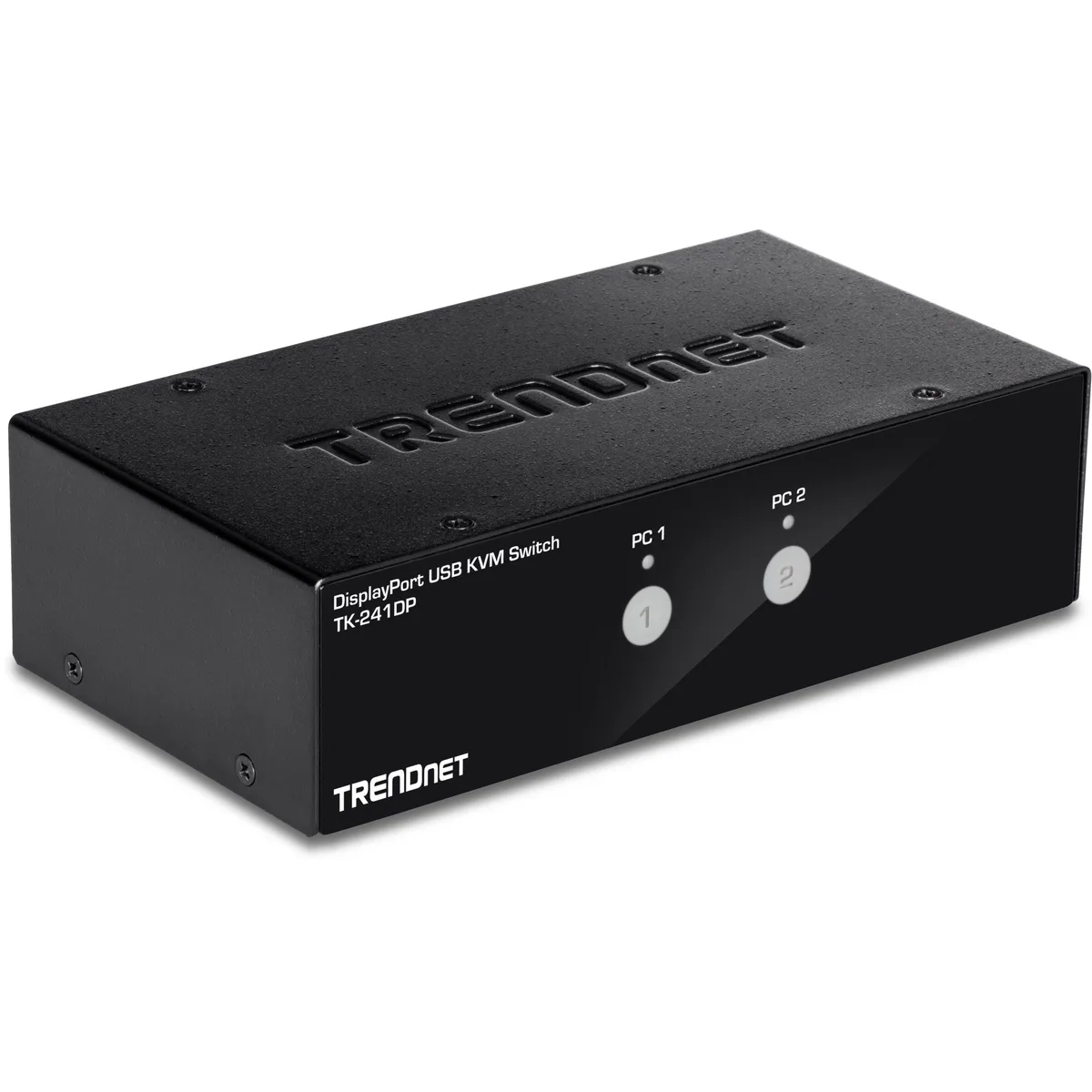

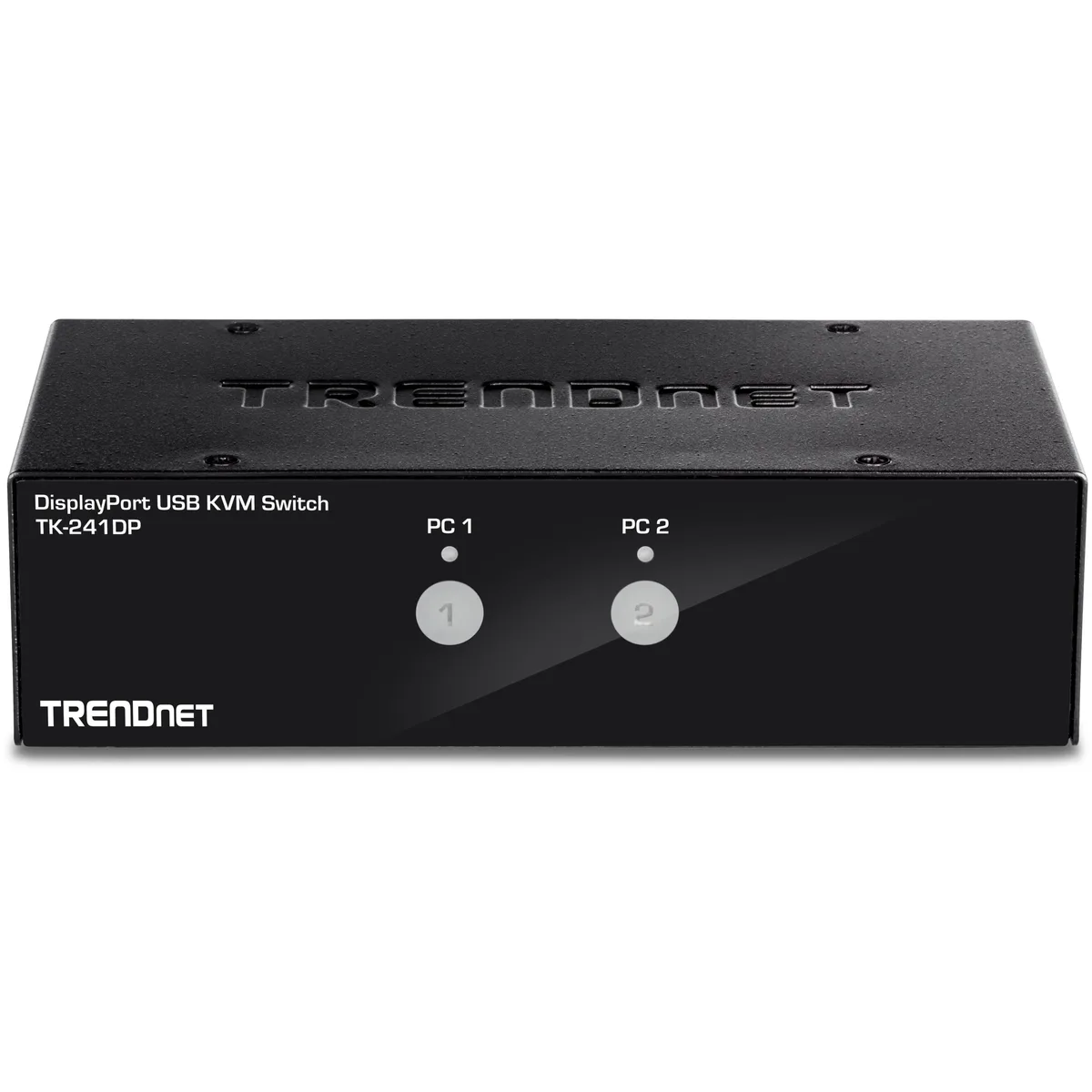

TRENDnet TK-241DP 2-Port DisplayPort 1.2 KVM Switch 4K 60Hz
Controls two DisplayPort 1.2 computers from one keyboard, mouse and monitor at up to 3840 x 2160 60 Hz with audio and two USB 2.0 ports
- TypeKVM Switch
- Weight3.19
- Control two computers with one DisplayPort console
- View 4K UHD at 3840 x 2160 60Hz or 2560 x 1440 144Hz
- Connect speakers and mic via 3.5mm audio jacks
- Add USB 2.0 peripherals through the built-in two-port hub
- Driverless setup with True Transparent USB emulation
Two-computer DisplayPort KVM
The TRENDnet TK-241DP lets one keyboard, mouse and monitor control two DisplayPort computers. It is built for workstations that need 4K UHD output at 60 Hz or 2560 x 1440 at 144 Hz without installing drivers. Buyers who need to manage more than two systems cannot use this switch.
Passive operation, no fan noise
The unit draws power from the connected USB ports so it adds no audible fan noise and no measurable heat to the desk. There is no external power brick to route and no software daemon consuming CPU cycles. Builders who need a rack-mounted KVM with redundant power supplies will not find those features here.
Two extra USB 2.0 ports and audio jacks
A pair of USB 2.0 ports on the front accept flash drives, printers or other peripherals that follow the active computer. The 3.5 mm speaker and microphone sockets pass analogue audio through the same switch. Users who require USB 3.x throughput or digital audio over DisplayPort must connect those devices directly.
Highlights
- Control two computers with one DisplayPort console
- View 4K UHD at 3840 x 2160 60Hz or 2560 x 1440 144Hz
- Connect speakers and mic via 3.5mm audio jacks
- Add USB 2.0 peripherals through the built-in two-port hub
- Driverless setup with True Transparent USB emulation
Specifications
| Brand | TRENDnet |
|---|---|
| Model | TK-241DP |
| Type | KVM Switch |
| Weight | 3.19 |
| Shipping weight | 0.92 kg |
| Package size | 251 × 99 × 43 mm |
Questions about this item
How do I install the TK-241DP and what step is often missed?

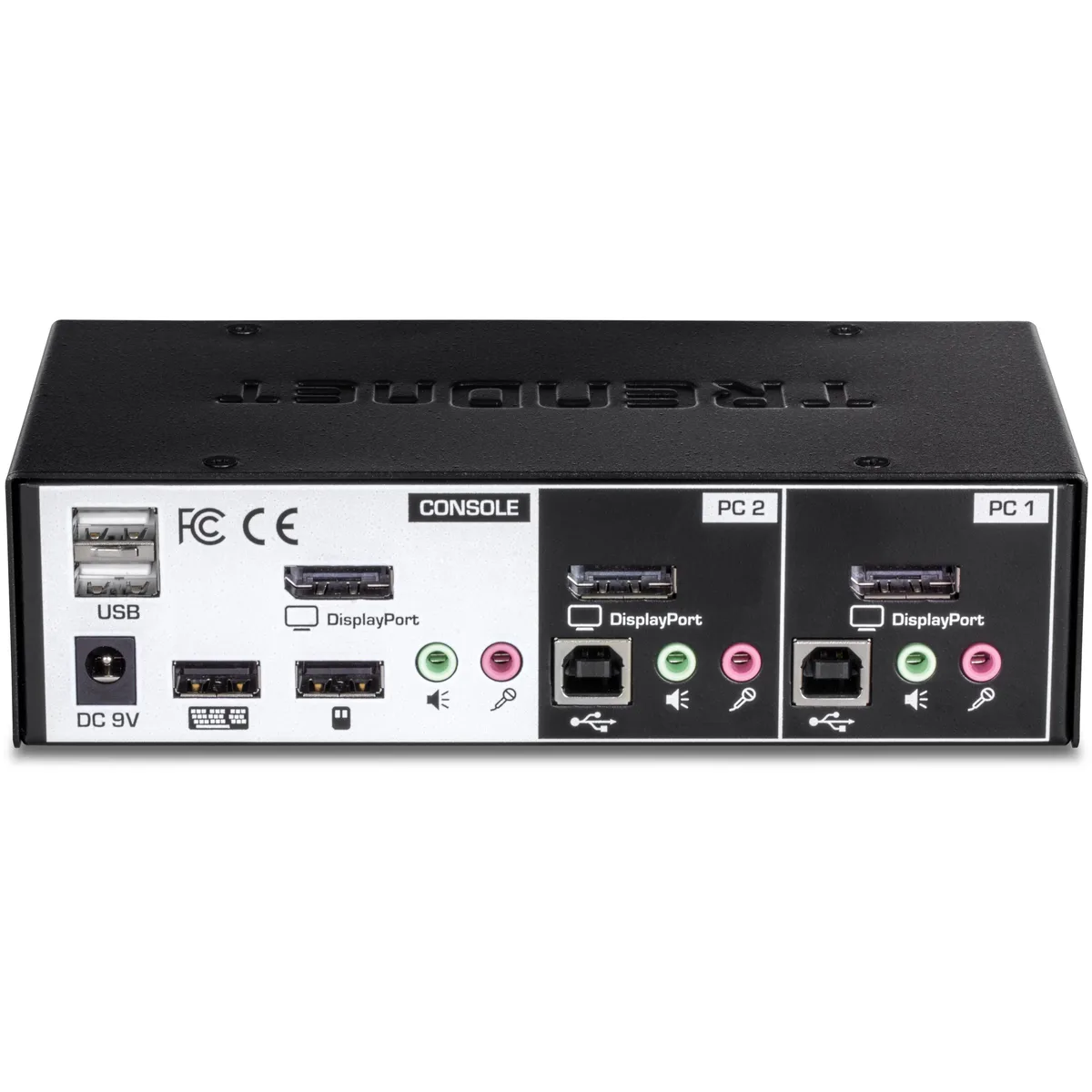

Connect each computer using a DisplayPort 1.2, USB Type A, and 3.5mm audio cable kit, then attach your monitor, keyboard, mouse, speakers and microphone to the console ports; the step often missed is ordering the separate TK-CP06 cable kits for both computers.
What maintenance or replacement will the TK-241DP need later?
The unit has no user-serviceable parts; if a 3.5mm audio jack or USB 2.0 port wears out from repeated plugging, the whole switch would need replacement.
What limit appears first during sustained 4K 60Hz use?
The DisplayPort 1.2 link caps video at 3840 x 2160 @ 60Hz, so that resolution ceiling is reached before any other constraint.
