TRENDnet
TRENDnet TK-214I 2-Port DVI USB KVM Switch with Audio and Cables
Control two computers from one DVI monitor, keyboard, mouse, speakers and microphone with included cables
- TypeDVI, USB
- PC Connectors2 Computers
- Console Connectors1 x DVI port (female) 2 x USB type A port (female) 1 x 3.5mm
- Computer Connections2 x USB Type A (male) 2 x DVI-I (male) 2 x 3.5mm audio plug
- Monitor Connections2 x DVI-I male (computer connector) 1 x DVI port female (con
- Video Resolution1920 x 1200

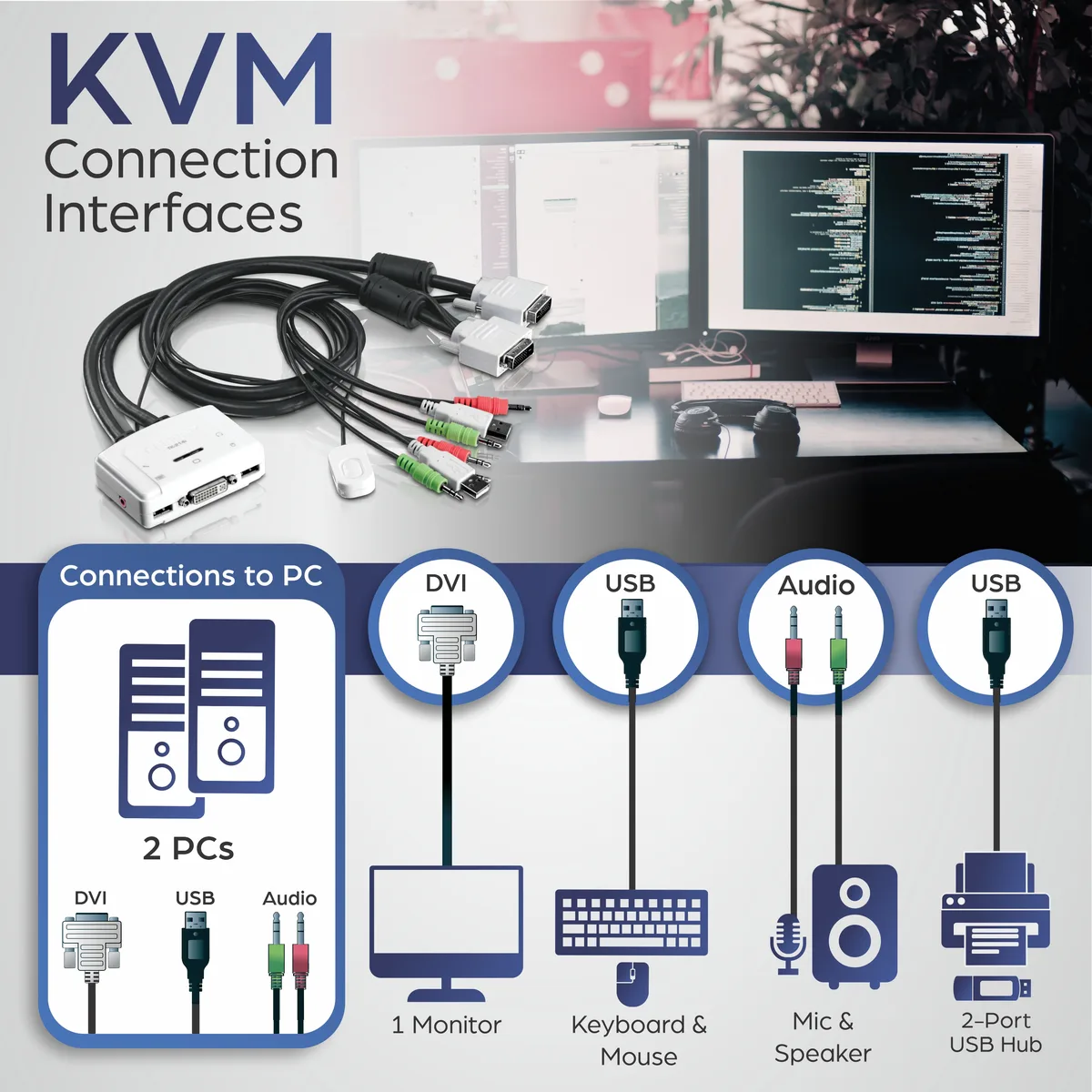

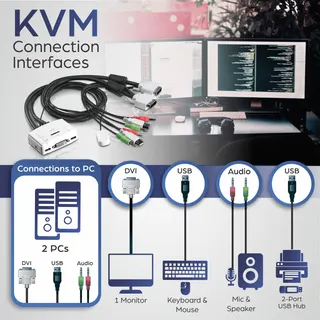

- Control two computers with one keyboard, monitor and mouse using the included cable kit

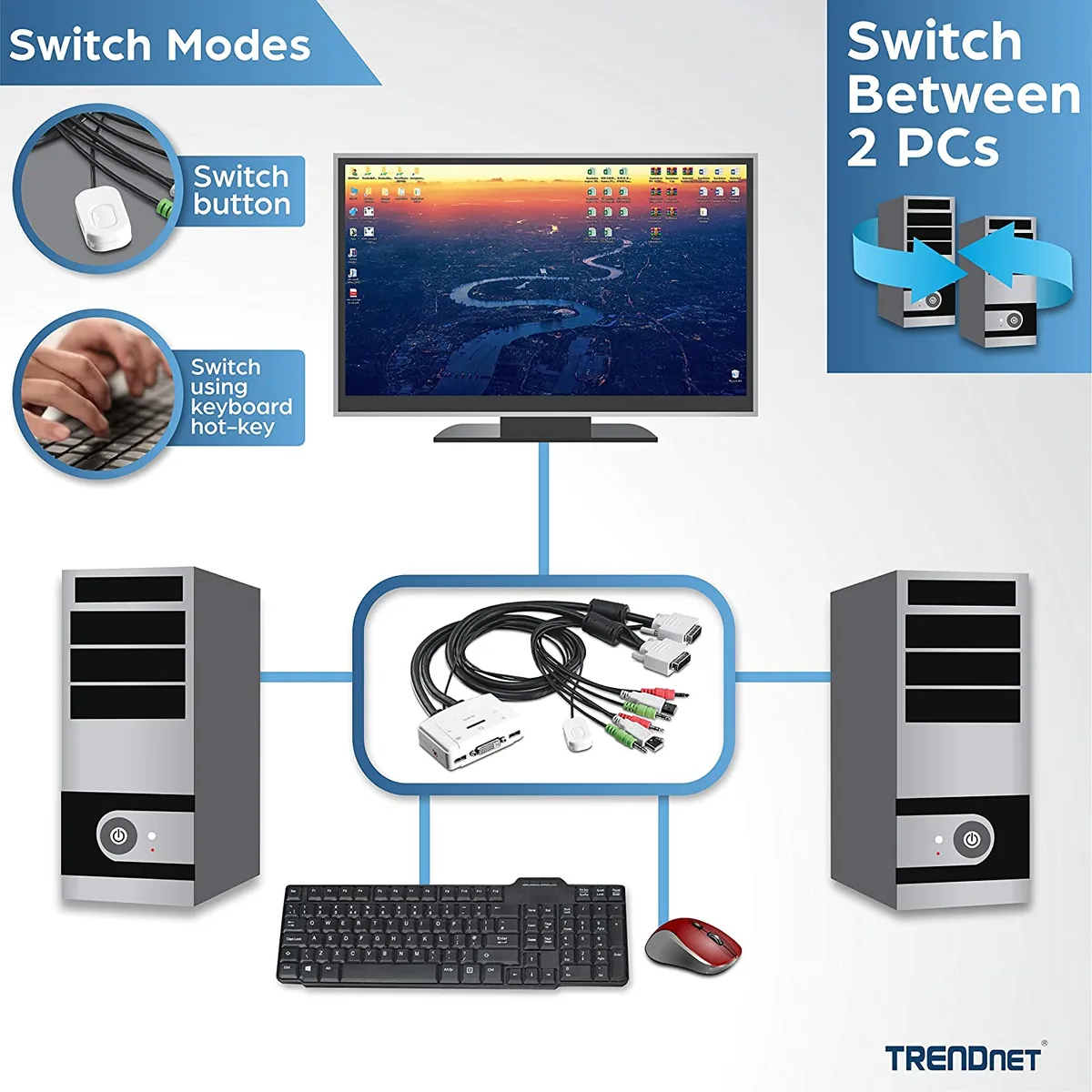

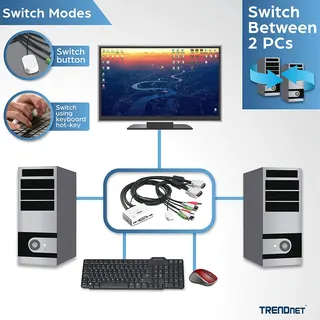

- Switch between PCs instantly via front push-button or hot-key commands on Windows, Linux and Mac
- Connect speakers and a microphone through 3.5 mm ports for full audio sharing
- USB bus power eliminates the need for an external adapter
- Compact 3.5" x 2.5" x 1.0" design fits neatly on any desk
Two-Computer DVI KVM Switch

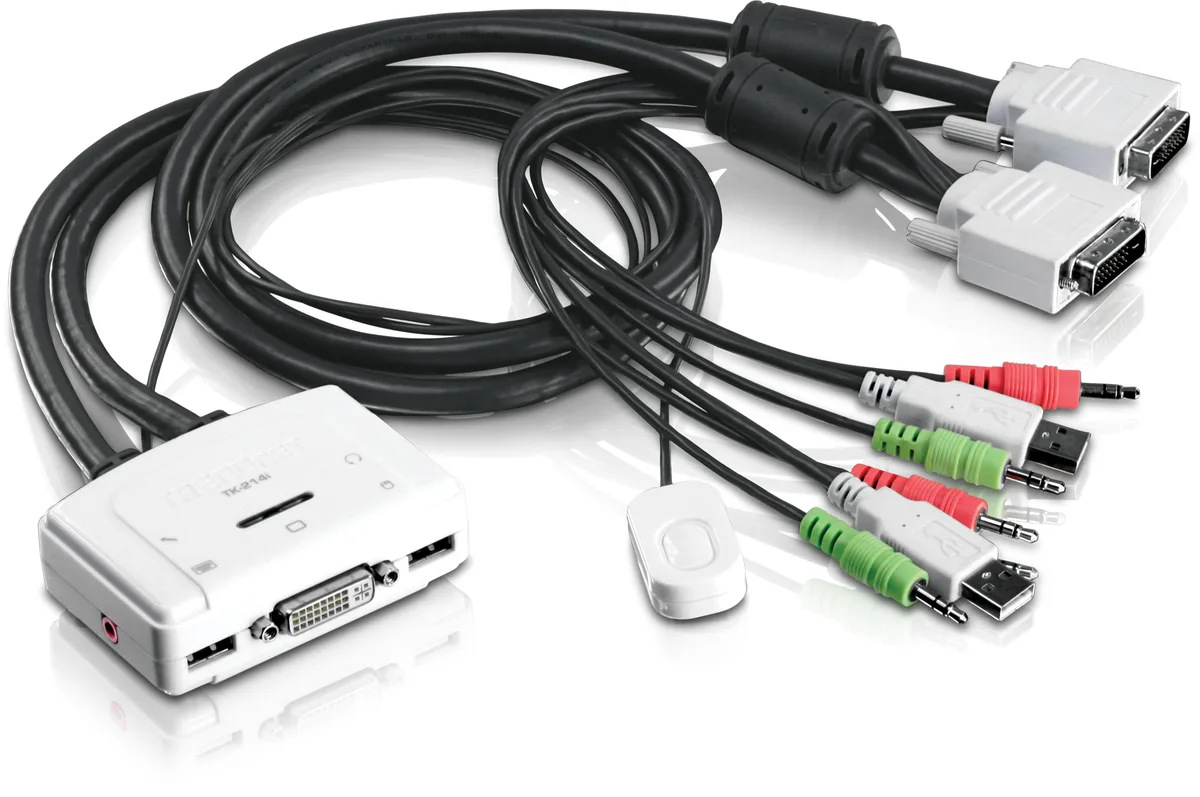

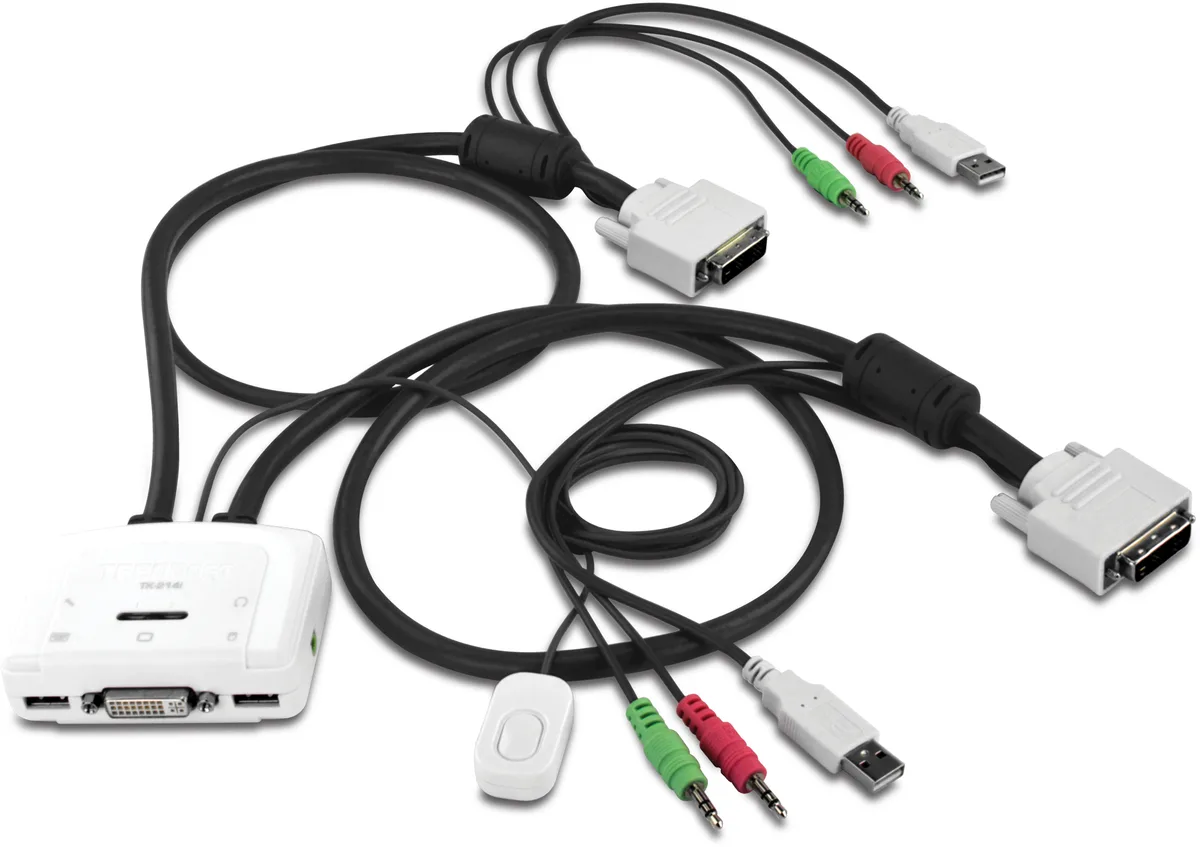

The TRENDnet TK-214I lets a single DVI monitor, USB keyboard, USB mouse, speakers and microphone control two computers. It ships with both sets of DVI, USB and audio cables so the link is ready immediately. The unit draws power from the USB bus, so no external adapter is required. It suits home offices or small labs where desk space is limited.
Steady-State Operation Within Rated Limits
The switch operates continuously between 0°C and 40°C with humidity up to 90% non-condensing. Passive cooling and bus power mean there are no fans to fail or power bricks to overheat during long sessions. LED indicators show which computer is active without adding thermal load. The solid-state switching path maintains the 1920 x 1200 video signal without degradation over time.
Cable Kit and Hot-Key Switching Simplify Setup
All required cables are included, so the installer only connects the six plugs per computer and the console peripherals. A push-button on the unit and configurable hot-keys change the active PC without software on Windows and Linux; Mac users need the supplied switcher software for 10.4 or higher. The fixed cable length limits how far the computers can sit from the console, and the DVI-I connectors do not carry native HDMI or DisplayPort signals.
Highlights
- Control two computers with one keyboard, monitor and mouse using the included cable kit
- Switch between PCs instantly via front push-button or hot-key commands on Windows, Linux and Mac
- Connect speakers and a microphone through 3.5 mm ports for full audio sharing
- USB bus power eliminates the need for an external adapter
- Compact 3.5" x 2.5" x 1.0" design fits neatly on any desk
Specifications
| Brand | TRENDnet |
|---|---|
| Model | TK-214I |
| Type | DVI, USB |
| PC Connectors | 2 Computers |
| Console Connectors | 1 x DVI port (female) 2 x USB type A port (female) 1 x 3.5mm audio port 1 x 3.5mm mic port |
| Computer Connections | 2 x USB Type A (male) 2 x DVI-I (male) 2 x 3.5mm audio plug 2 x 3.5mm microphone plug |
| Monitor Connections | 2 x DVI-I male (computer connector) 1 x DVI port female (console connector) |
| Video Resolution | 1920 x 1200 |
| PC Selection | Push button switch: Windows, Mac and Linux Hot Keys Command: Windows, Linux KVM Switcher Software: Windows and Mac 10.4 or higher |
| LED Indicators | Computer 1 or Computer 2 Status Indicator |
| Temperature | Operating: 0°C ~ 40°C (32°F ~ 104°F) Storage: -20°C ~ 60°C (-4°F ~ 140°F) |
| Humidity | Max. 90% (non-condensing) |
| Power Features | USB Bus Powered |
| USB Features | with USB support |

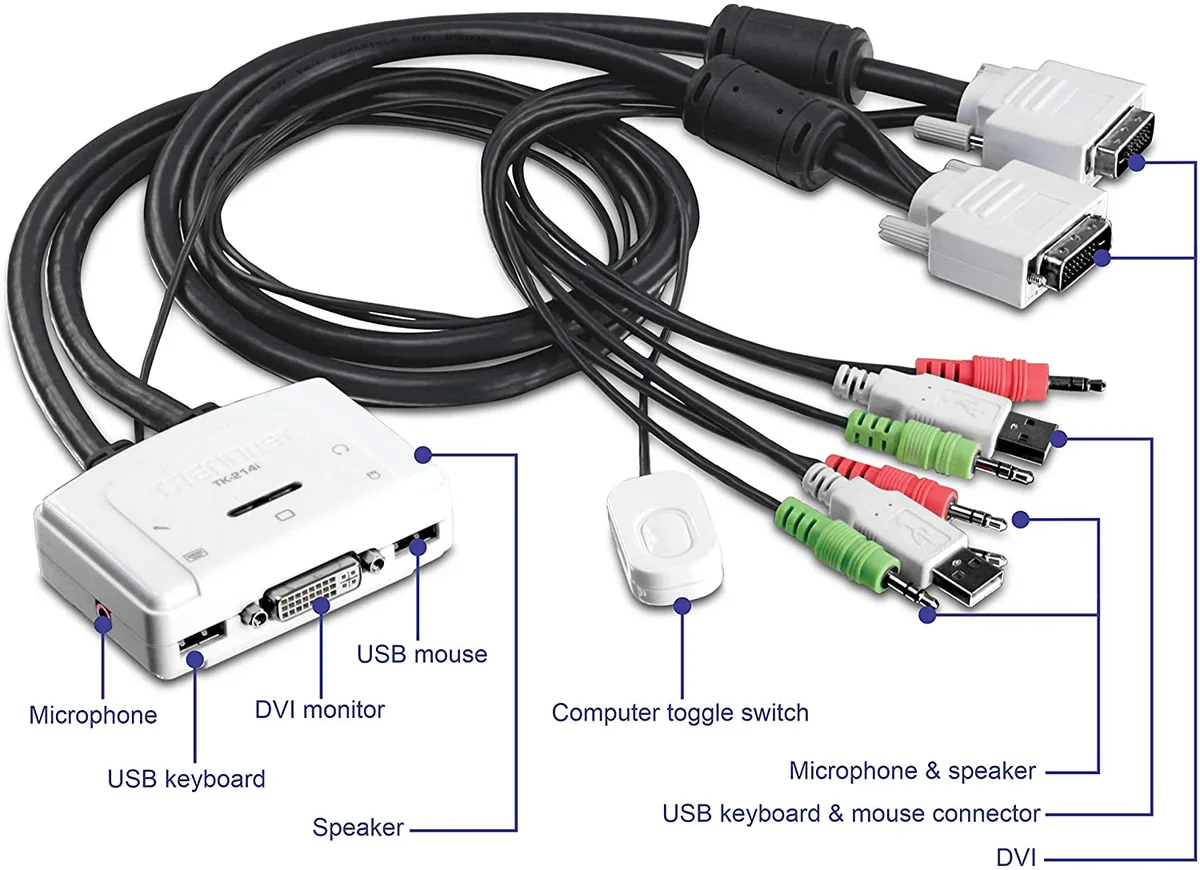

| Features | Use one keyboard, monitor, and mouse to control two computers Audio support for speakers and microphone Console-side hardware 1 x DVI port 2 x USB 2.0 Type A port 1 x 3.5mm audio port 1 x 3.5mm microphone port LED display for easy computer monitoring Push button switch with a 1.45 m (4.8 ft.) extension cable Computer-side hardware 2 sets of 80 cm (2.6 ft.) built-in combination cables with DVI, USB, audio, and microphone ports Works with most standard USB mouse and keyboard designs Support video quality of up to 1920 x 1200 resolution Supports Windows, Linux, and Mac operating systems |
| Dimensions | 3.5" x 2.5" x 1.0" |
| Weight | 431 g (15.2 oz.) |
| Package Contents | with 2 sets of cables |
| Shipping weight | 0.63 kg |
| Package size | 279 × 140 × 69 mm |
Questions about this item
How much heat does the TK-214I add to a desk when it runs all day?
The switch is USB bus powered with no fan, so it adds negligible heat and operates silently within a 0 °C to 40 °C range.
What cables or adapters must I already own to connect my computers to the TK-214I?
Nothing extra is required; the box includes two complete cable sets with DVI-I, USB Type-A, 3.5 mm audio and microphone plugs for both computers.
Will my older DVI-I monitors and USB 1.1 keyboards work through the TK-214I?
Yes — the console DVI port accepts DVI-I signals up to 1920 x 1200, and the USB 2.0 Type-A ports are backward compatible with USB 1.1 peripherals.
