TRENDnet
TRENDnet TK-209K (v2.0R) 2-Port USB KVM Switch Kit with Audio
Controls two computers from one VGA monitor, USB keyboard, mouse, microphone and speakers with push-button or hotkey switching at up to 2048 x 1536 resolution
- TypeD-Sub, USB
- Console Connectors1 x VGA /SVGA HDB 15-pin (Female) 2 x USB ports (Keyboard /
- Video Resolution2048 x 1536
- PC SelectionPush Buttons/Hot Keys
- Temperature0ºC to 40ºC(32ºF to 104ºF)
- Humidity0% to 90%,Non-Condensing

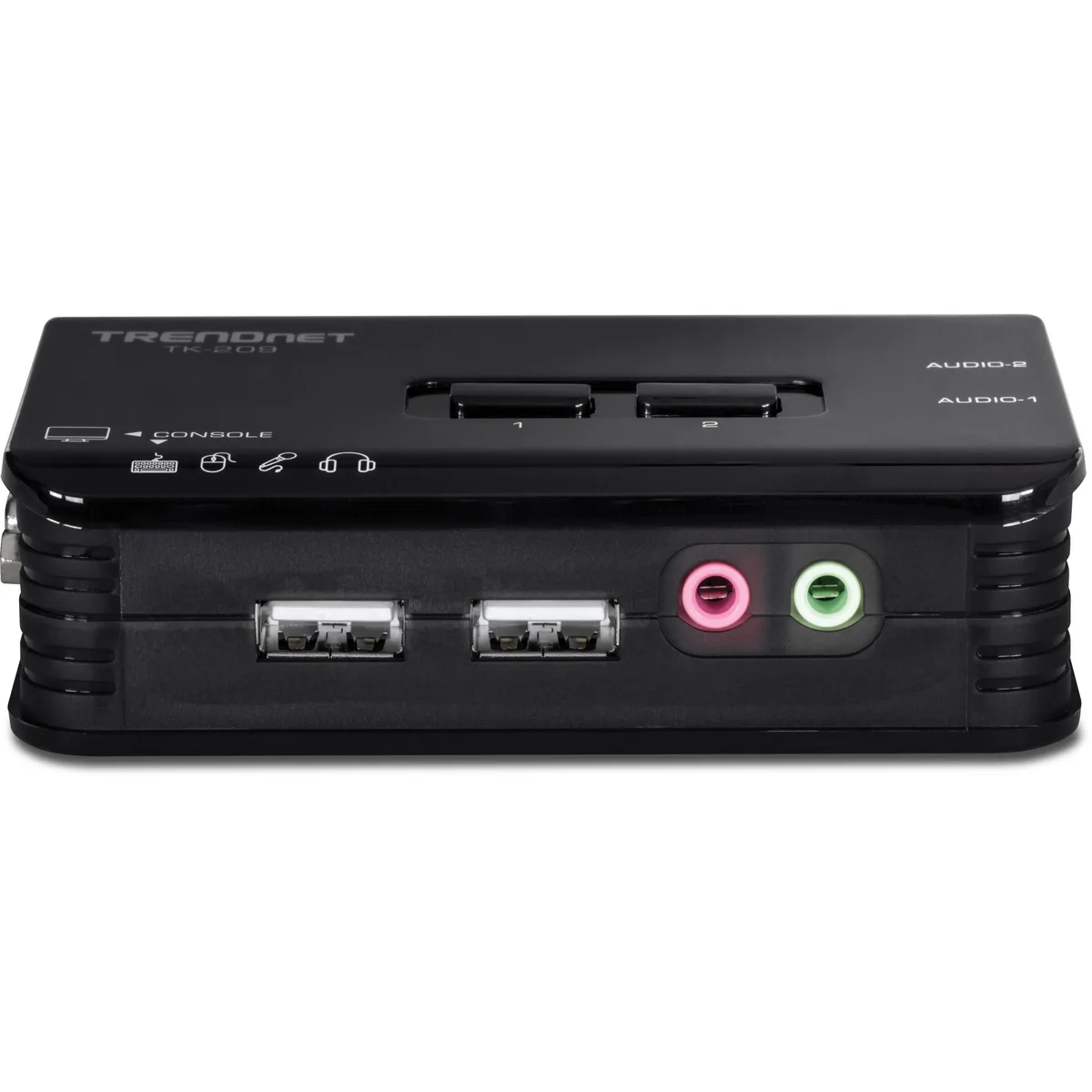

- Control two PCs with one console using front push buttons
- Crisp 2048 x 1536 VGA resolution at 60 Hz refresh
- Share microphone and speakers across both connected computers
- Bus powered operation removes the need for an external adapter
- All required 1.2 m KVM and audio cables included in the box
Two-Computer Desktop Control
The TRENDnet TK-209K (v2.0R) is a 2-port USB KVM switch kit designed for users who need to operate two PCs from a single VGA monitor, USB keyboard and mouse. It draws power from the connected computers, so no external adapter is required. The unit fits on a desk and includes all cables in the box.
Audio Sharing and Switching
Bundled 1.2 m KVM and audio cables let you share one microphone and speaker set between both machines, so you can listen to audio from one computer while working on the other. Front push buttons and hot-key commands provide instant switching, and an auto-scan mode with audible feedback cycles through attached systems automatically.
VGA Resolution and Cable Limits
The analogue VGA interface supports up to 2048 x 1536 at 60 Hz, which suits legacy displays but cannot carry digital signals or higher refresh rates. The fixed 1.2 m cable length restricts placement distance between the switch and each computer, and the switch only handles two systems, so environments needing three or more ports must look elsewhere.
Highlights
- Control two PCs with one console using front push buttons
- Crisp 2048 x 1536 VGA resolution at 60 Hz refresh
- Share microphone and speakers across both connected computers
- Bus powered operation removes the need for an external adapter
- All required 1.2 m KVM and audio cables included in the box
Specifications
| Brand | TRENDnet |
|---|---|
| Model | TK-209K (v2.0R) |
| Type | D-Sub, USB |

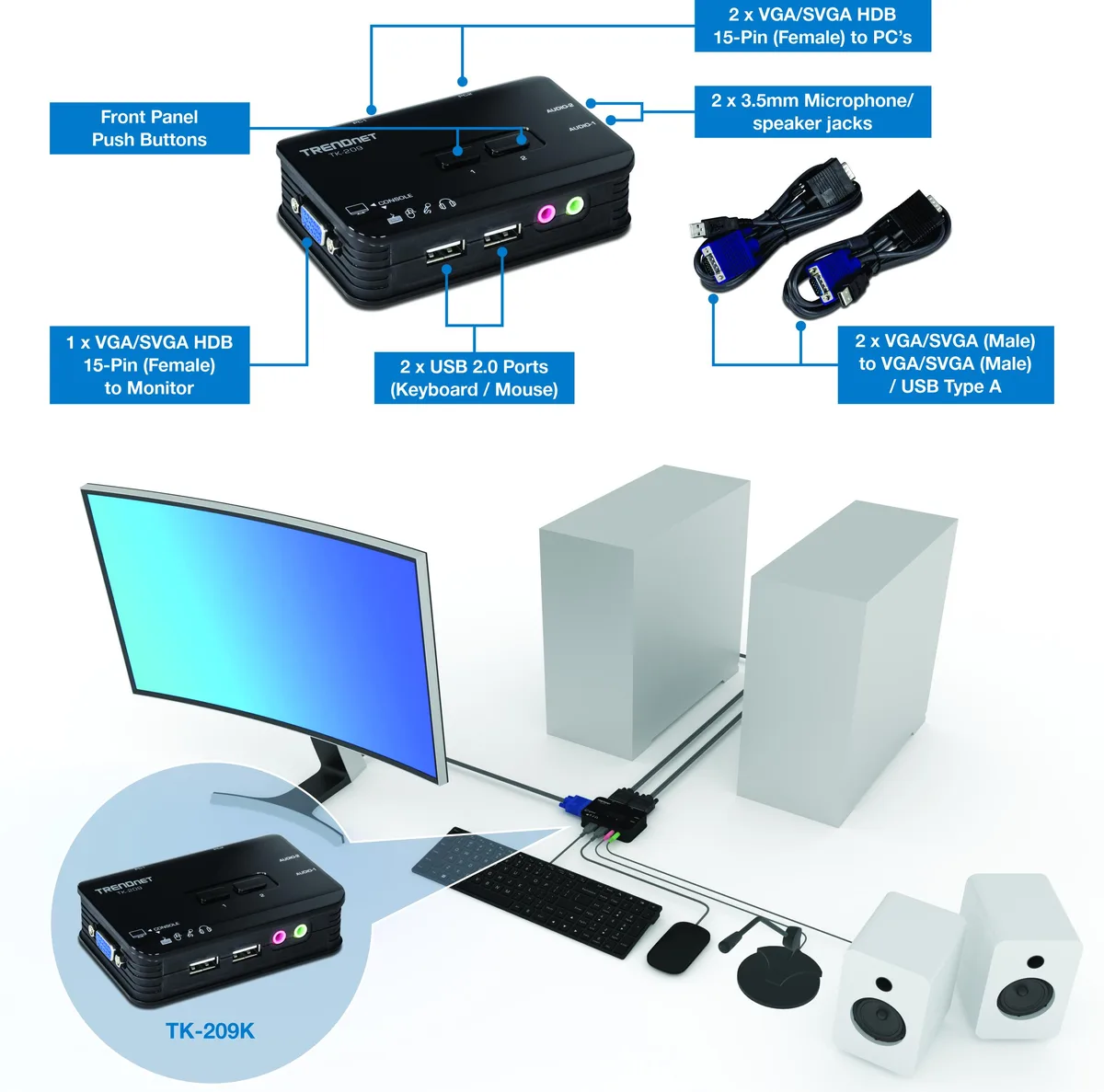

| Console Connectors | 1 x VGA /SVGA HDB 15-pin (Female) 2 x USB ports (Keyboard / Mouse) 2 x 3.5mm microphone/speaker jacks |
| Video Resolution | 2048 x 1536 |
| PC Selection | Push Buttons/Hot Keys |
| Temperature | 0ºC to 40ºC(32ºF to 104ºF) |
| Humidity | 0% to 90%,Non-Condensing |
| Features | Computers Control up to 2 computers with one set of console devices VGA This VGA KVM switch supports resolutions up to 2048 x 1536 with a 60Hz refresh rate Push Button Controls Use the front panel push buttons to switch between computers on the KVM switch Hot Keys This VGA KVM switch features keyboard hot key commands for switching between computers USB Mouse & Keyboard Supports traditional USB mouse and keyboard devices Audio Support This VGA KVM switch features 3.5mm speaker and microphone connections to switch between computers Included Cables This KVM kit includes two sets of KVM |
| Dimensions | 3.74" x 2.48" x 0.95" |
| Weight | 3.6 oz. |
| Package Contents | TK-209K Quick Installation Guide 2 x KVM Cables (1.2m/4 ft.) 2 x Audio Cables (1.2m/4 ft.) |
Questions about this item
What maintenance or replacement does the TK-209K need over time?
No user-serviceable parts are described; the bus-powered design has no external adapter or batteries to replace, so upkeep is limited to keeping cables and connectors clean.
What limit appears first during sustained use?
The operating temperature ceiling is 40 °C (104 °F) with non-condensing humidity up to 90 %, so thermal limits in a closed rack will be reached before any port or video constraint.
How much noise or heat does the switch produce when running all day?
The unit is passively cooled and bus powered with no fan, so it generates no audible noise and only minimal heat within the 0–40 °C rated range.
