TRENDnet
TRENDnet TK-1603R 16-Port USB KVM Switch
Controls up to 16 computers with one keyboard, monitor and mouse, supports USB and PS/2 console ports, auto-scan from 10 to 100 seconds, and 2048 x 1536 VGA resolution
- TypeDVI, PS/2, USB
- PC Connectors16 x VGA HDB 15-pin (female)
- Console Connectors1 x USB (Type A) / PS/2 (6-pin Mini Din) Mouse 1 x USB (Type
- Computer Connections16 Ports
- Monitor Connections1 Port
- Video Resolution2048 x 1536
- Control 16 computers from a single console
- Console port accepts USB or PS/2 keyboard and mouse
- Push-button and hot-key switching for fast access
- Programmable auto-scan interval from 10 to 99 seconds
- Supports VGA resolution up to 2048 x 1536
16-Port USB KVM Switch for Server Racks
The TRENDnet TK-1603R is a rack-mountable KVM switch that lets administrators control up to 16 computers or servers from a single keyboard, monitor and mouse. It supports USB and PS/2 console interfaces and USB-only connections on the PC side. The unit works with Windows, Linux and Mac operating systems.
Thermals Noise and Power Draw
The switch operates between 0 °C and 40 °C (32 °F to 104 °F) in non-condensing humidity up to 80 percent. It draws power from an included 9V DC 1A external adapter, so no internal fan or active cooling is required. Silent solid-state operation keeps noise at zero in normal use.
Bundled Accessories and Software Impact
The package includes the KVM switch, the external power adapter and a user manual. No driver installation is needed because the device uses plug-and-play USB and PS/2 interfaces on the console side. Hot-key and push-button switching, programmable auto-scan intervals from 10 to 99 seconds and LED status indicators work immediately after connection.
Highlights
- Control 16 computers from a single console
- Console port accepts USB or PS/2 keyboard and mouse
- Push-button and hot-key switching for fast access
- Programmable auto-scan interval from 10 to 99 seconds
- Supports VGA resolution up to 2048 x 1536
Specifications
| Brand | TRENDnet |
|---|---|
| Model | TK-1603R |
| Type | DVI, PS/2, USB |
| PC Connectors | 16 x VGA HDB 15-pin (female) |
| Console Connectors | 1 x USB (Type A) / PS/2 (6-pin Mini Din) Mouse 1 x USB (Type A) / PS/2 (6-pin Mini Din) Keyboard 1 x VGA HDB 15-pin (female) |
| Computer Connections | 16 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 2048 x 1536 |
| PC Selection | Push Buttons/Hot Keys |
| AutoScan Interval | 10-100 seconds (Programmable through Hot-Key) |
| Temperature | 0 °C~40 °C (32 °F~104 °F) |
| Humidity | 0%~80% (non-condensing) |
| Power Features | 9V DC 1A External Power Adapter |
| USB Features | with USB support |
| Features | 16-Port USB KVM Switch Supports Microsoft IntelliMouse, IntelliMouse Explorer, Logitech NetMouse, Optical Mouse, and more Supports Windows 98SE/ME/2000/XP/2003 Server, Linux, Mac OS and more High video quality- up to 2048 x 1536 VGA resolution Firmware upgradeable via PC port Auto-Scan for monitored PCs with adjustable scan interval from 10-99 seconds Keyboard status restored when switching between PCs LEDs display for easy status monitoring Beeping sound for port switching confirmation (enable/disable) Hot-Key or push button switching Plug & Play and Hot-Pluggable Standard 19" (1U) |
| Dimensions | 16.0" x 6.5" x 1.8" |
| Weight | 4.5 lbs. |

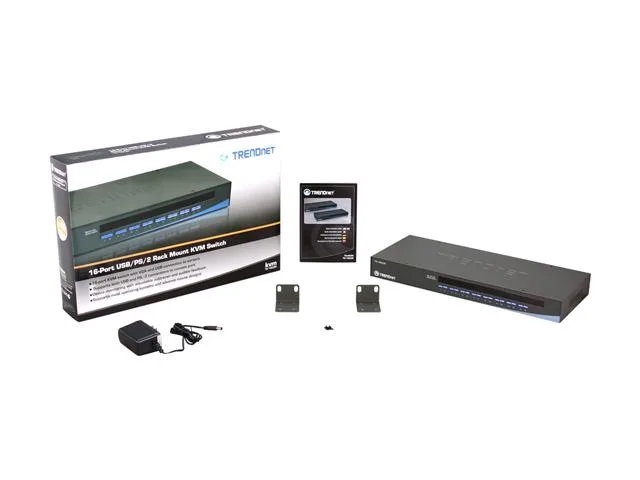

| Package Contents | KVM Switch Power Adapter User Manual |
| Shipping weight | 2.88 kg |
| Package size | 396 × 297 × 56 mm |
Questions about this item
How do I install the TK-1603R in a rack, and which connection step do people often miss?
Mount the 16.0" x 6.5" x 1.8" unit in a standard rack, connect the 9V DC 1A external power adapter first, then attach up to 16 computers via the VGA HDB 15-pin and USB cables, and finally plug the console keyboard, mouse, and monitor into the front ports; the step most often missed is powering the switch before connecting the computers.
What maintenance or replacement will the TK-1603R need over time?
The external 9V DC 1A power adapter is the only field-replaceable part; the switch itself has no fan, battery, or user-serviceable components, so maintenance is limited to keeping the vents clear and operating within the 0 °C–40 °C temperature and 0 %–80 % non-condensing humidity range.
What limit appears first when the TK-1603R runs continuously under full load?
The thermal limit of 40 °C ambient temperature is the first constraint; the metal chassis relies on passive cooling, so sustained operation in a poorly ventilated rack can push the unit past its rated operating temperature before any electronic limit is reached.
