Black rectangular UPoE splitter with Gigabit ports and terminal block

TRENDnet

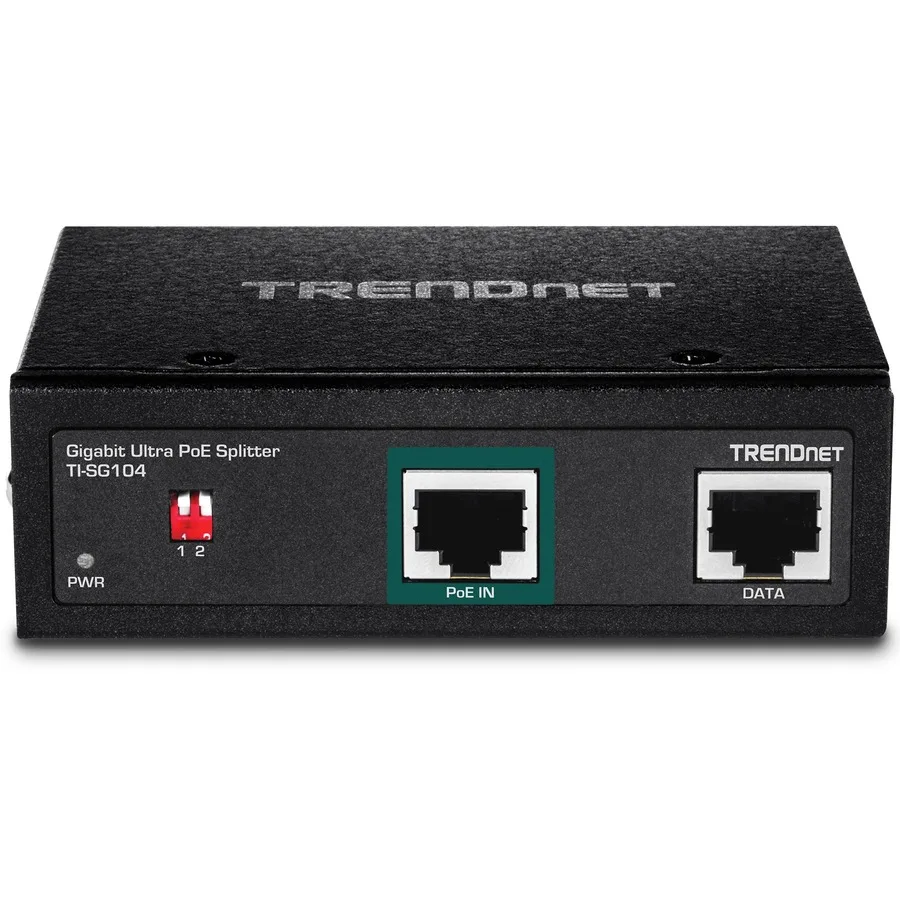

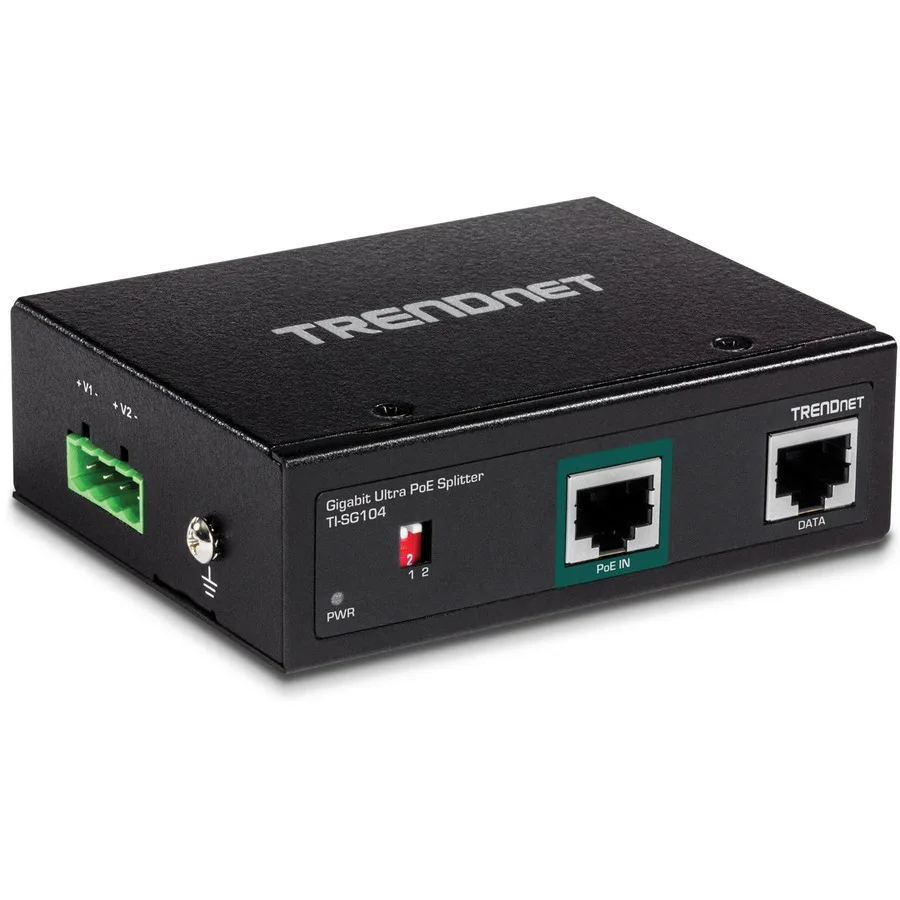

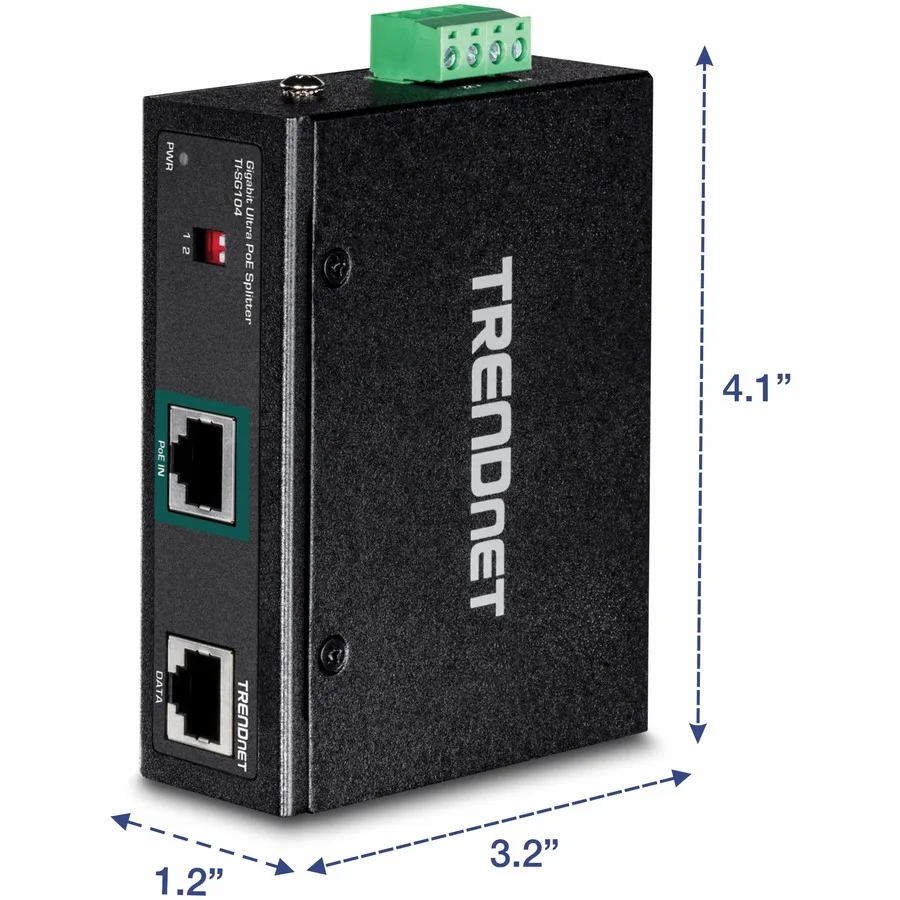

TRENDnet TI-SG104 UPoE Splitter 12V 16V 24V 48V 100m

SKU CH-0P13-Q5W4Z MPN TI-SG104

Splits a single Ultra PoE signal into separate gigabit data and dual DC power outputs at 12V, 16V, 24V or 48V to run non-PoE devices up to 100m away

  • TypeUPoE Splitter
  • ColorBlack
  • SpecificationsStandards: IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af
  • FeaturesPower a non-PoE device up to 100m (328 ft.) away from PSE Sp
  • Power non-PoE devices up to 100 metres from the PSE
  • Split gigabit PoE into separate power and data streams
  • One Ultra PoE source powers two devices simultaneously
  • Adjustable DIP-switch output at 12V, 16V, 24V or 48V
  • IEEE 802.3bt compatible for broad equipment interoperability

Industrial UPoE Splitter Function

The TRENDnet TI-SG104 splits a Gigabit Ultra PoE signal into separate power and data paths for non-PoE equipment. It delivers adjustable DC output at 12V, 16V, 24V or 48V through a dual terminal block. A single UPoE source can feed up to two devices over distances up to 100m. The unit mounts on DIN rail or wall for industrial deployments.

Suitable Installations and Limits

This splitter suits installers powering IP cameras, access points or sensors that lack native PoE but sit within 100m of a UPoE switch or injector. The four voltage settings cover common industrial gear without external adapters. Buyers needing more than two output devices or voltages outside the 12V to 48V range should look elsewhere.

Deciding Specification: Dual 4-Pin Terminal Block

The removable four-pin terminal block provides two independent DC outputs from one UPoE input, letting the splitter power two separate non-PoE devices simultaneously. If the project requires only a single powered device, a simpler single-output splitter may suffice.

Highlights

  • Power non-PoE devices up to 100 metres from the PSE
  • Split gigabit PoE into separate power and data streams
  • One Ultra PoE source powers two devices simultaneously
  • Adjustable DIP-switch output at 12V, 16V, 24V or 48V
  • IEEE 802.3bt compatible for broad equipment interoperability

Specifications

BrandTRENDnet
ModelTI-SG104
TypeUPoE Splitter
ColorBlack
SpecificationsStandards:
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at
IEEE 802.3bt compatible
Device Interface:
1 x Gigabit port
1 x Gigabit Ultra PoE in port

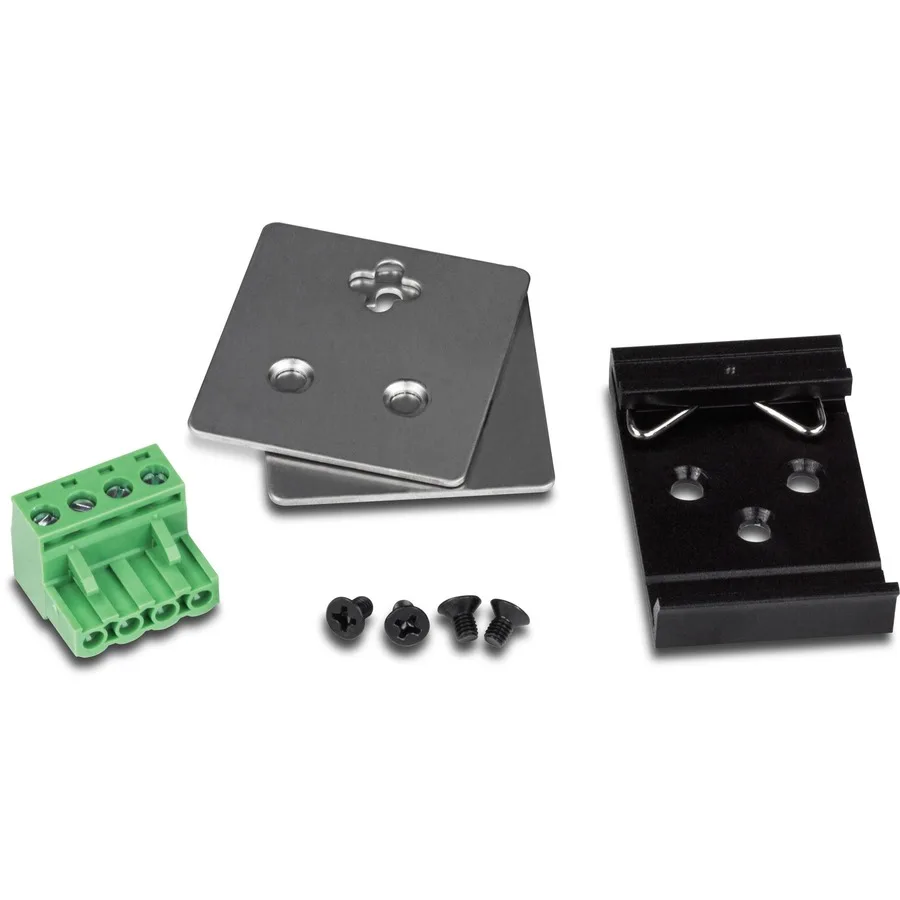

4-pin removable terminal block (dual DC output)
Adjustable output power DIP switch (48V, 24V, 16V, 12V)
LED indicator

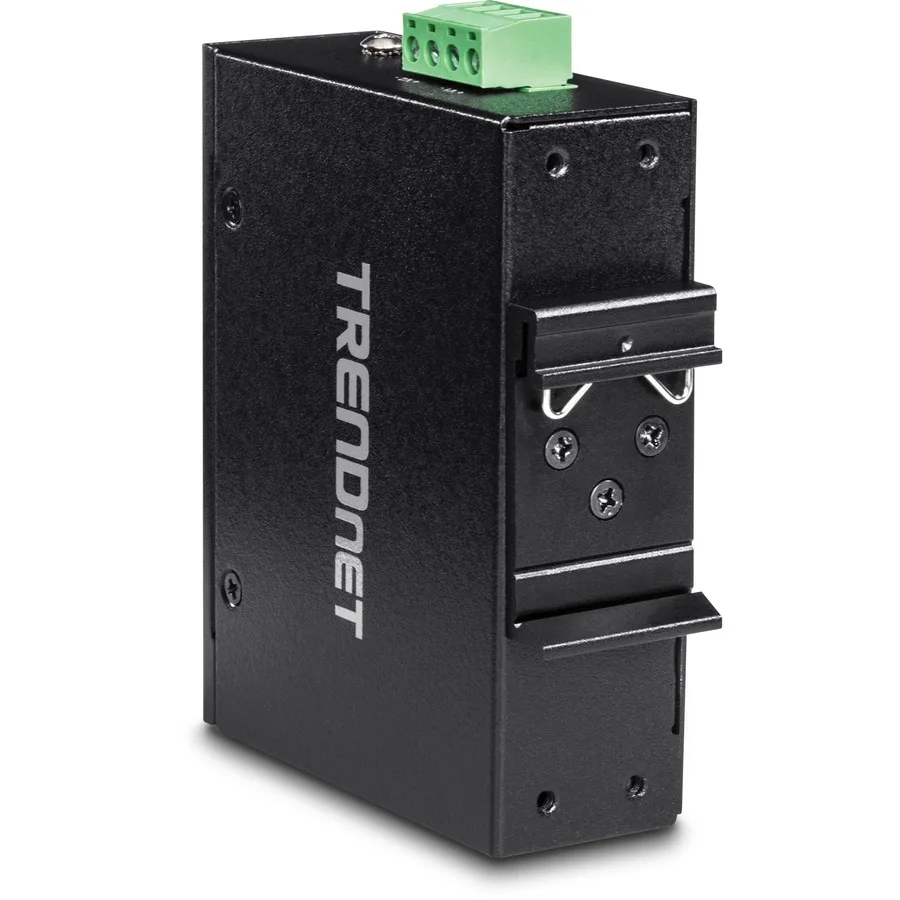

DIN-Rail mount
Wall mount
Grounding point
Data Transfer Rate:
Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)
Special Features:
Hardened components rated for extreme temperatures
Dual DC power output
Auto-Neg
FeaturesPower a non-PoE device up to 100m (328 ft.) away from PSE
Splits a gigabit PoE signal into separate power and data sources
A single Ultra PoE source can power up to two devices
Adjustable voltage output supports 12V, 16V, 24V or 48V devices
For best performance pair with UPoE switches or injectors
Save on installation and equipment cost
Full Duplex Gigabit speeds
IEEE 802.3bt compatible
Shipping weight0.91 kg
Package size178 × 152 × 76 mm

Questions about this item

What cables and accessories are included with the TI-SG104, and what must be purchased separately?

The splitter provides a Gigabit Ultra PoE input port, a Gigabit data output port and a 4-pin removable terminal block for dual DC power. You must supply the Ethernet cables, a UPoE switch or injector and the non-PoE devices to be powered.

Which DIP-switch voltage setting — 12V, 16V, 24V or 48V — should I select for my equipment?

Choose the setting that matches the rated input voltage of each connected non-PoE device; the DIP switch lets you select 12, 16, 24 or 48 volts to suit 12V cameras, 24V access points, 48V industrial gear, etc.

What does the 100 metre distance figure mean when the splitter is installed in a real network?

It indicates you can place a non-PoE device up to 100 metres (328 ft.) from the power sourcing equipment while still receiving both Gigabit data and DC power over a single Ethernet run.
