Compact IP30 metal switch with eight PoE+ ports and DIN rail mount

TRENDnet

TRENDnet TI-PG80 8-port industrial Gigabit PoE+ network switch

SKU CH-6KHN-CX4GZ MPN TI-PG80

Eight-port unmanaged switch delivers up to 30 W per PoE+ port with a 200 W budget and operates from -40 to 75 °C

  • Switch TypeSwitches
  • FormatIncludes DIN-rail and wall mounts Wall Mountable
  • StandardsIEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3af
  • Network Management TypeUnmanaged
  • Primary Ports8 x Gigabit PoE+ ports
  • Primary Port SpeedEthernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast
  • 8 Gigabit PoE+ ports power cameras and access points directly
  • 200 W PoE budget delivers up to 30 W per port for demanding devices
  • Hardened IP30 metal housing withstands dust and vibration in industrial settings
  • Operates from -40 °C to 75 °C for reliable service in extreme temperatures
  • DIN-rail and wall mounts included for flexible cabinet or wall installation

Industrial PoE+ switch for hardened networks

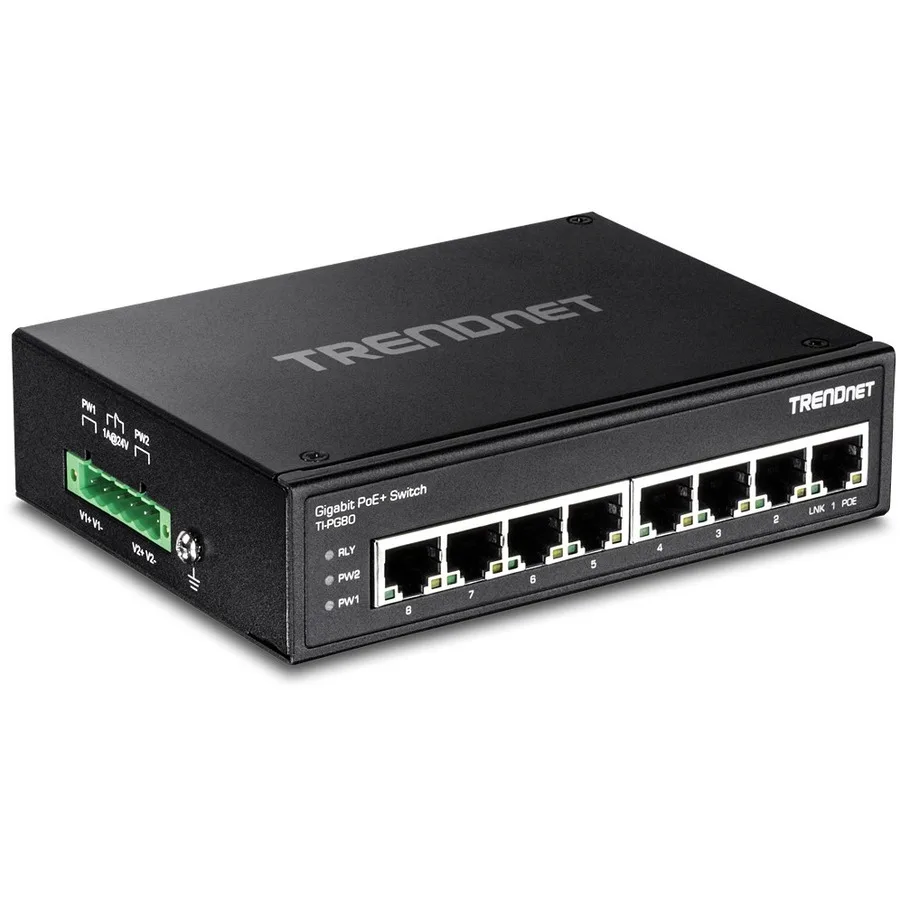

The TRENDnet TI-PG80 is an unmanaged 8-port Gigabit switch built for industrial use. It delivers up to 30 watts per port across eight PoE+ connections with a total 200 watt power budget. The IP30 rated metal housing operates from -40 to 75 degrees Celsius and mounts on DIN-rail or wall brackets. Dual redundant 48 to 56 volt DC inputs keep the link alive in harsh conditions.

200 watt budget and 16 Gbps switching capacity

Eight Gigabit ports share a 16 Gbps switching fabric and a 1 megabyte buffer with 9KB jumbo frame support. The 200 watt PoE budget powers cameras, access points or VoIP phones simultaneously, though the 5.76 watt base draw without powered devices leaves less headroom when every port runs at the 30 watt maximum. An 8K MAC table handles typical industrial device counts without overflow.

DIN-rail mounting and redundant DC power

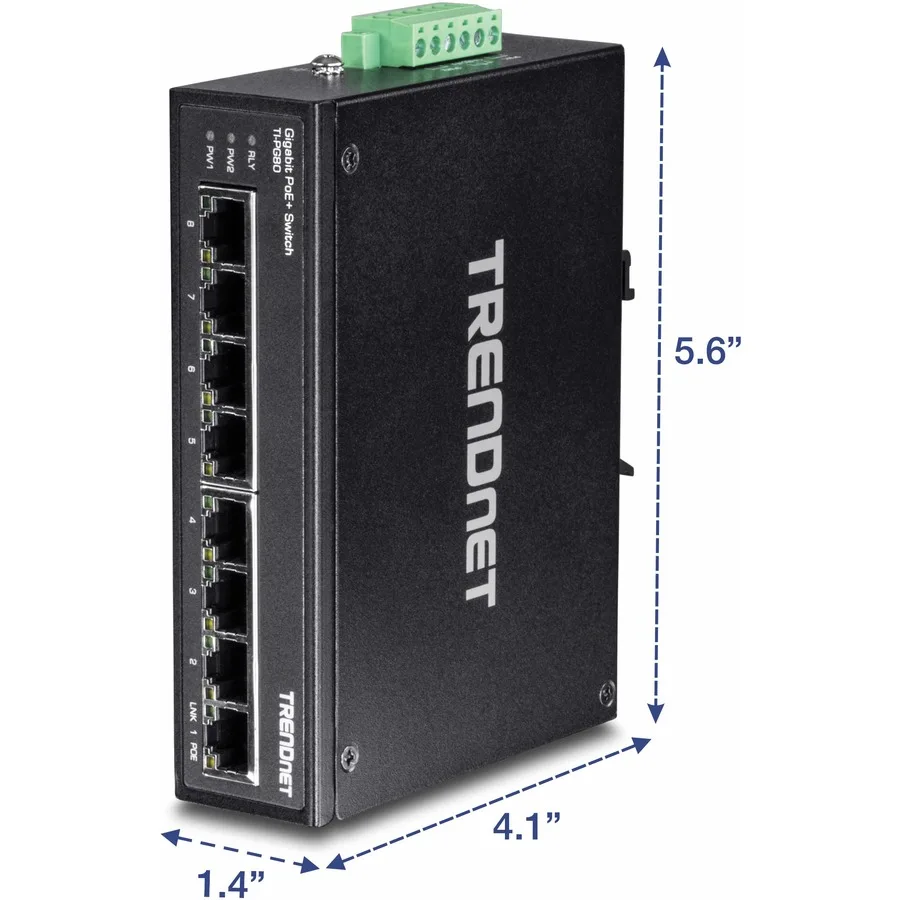

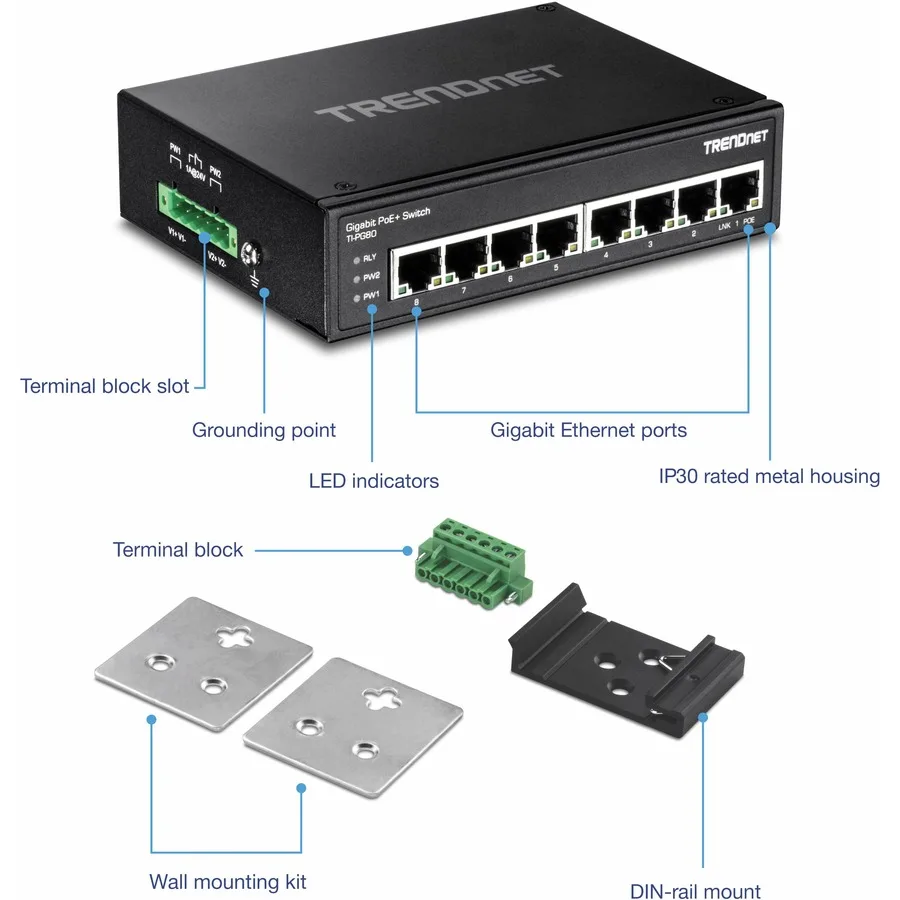

The compact 1.40 by 5.60 by 4.10 inch metal chassis weighs 1.22 lbs and fits standard DIN-rail or wall installations. Dual power terminals accept 48 to 56 volt DC with overload current protection, though a compatible TI-S24048 supply is sold separately. LED indicators show link, speed and PoE status at a glance. Fanless convection cooling suits dusty or vibration-prone cabinets where moving parts would fail.

Highlights

  • 8 Gigabit PoE+ ports power cameras and access points directly
  • 200 W PoE budget delivers up to 30 W per port for demanding devices
  • Hardened IP30 metal housing withstands dust and vibration in industrial settings
  • Operates from -40 °C to 75 °C for reliable service in extreme temperatures
  • DIN-rail and wall mounts included for flexible cabinet or wall installation

Specifications

BrandTRENDnet
ModelTI-PG80
Switch TypeSwitches
FormatIncludes DIN-rail and wall mounts
Wall Mountable
StandardsIEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3af PoE
IEEE 802.3at PoE+
Network Management TypeUnmanaged
Primary Ports8 x Gigabit PoE+ ports
Primary Port SpeedEthernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)
MAC Address Table8K
Jumbo Frames9KB
Buffer Memory1MB
PoEPoE budget: 200 Watts
Pin 1,2 for power+ and pin 3,6 for power- (mode A)
LEDsLED indicators
PowerInput: 48 - 56 V DC
Compatible power supply: TI-S24048 (sold separately)
Consumption: Max. 5.76 Watts (without PD)
Features• ETHERNET PORT INTERFACE: 8 x Gigabit PoE+ Ethernet ports
• FULL POE+ POWER BUDGET & SWITCHING CAPACITY: The Gigabit PoE+ switch supplies up to 30 Watts of PoE / PoE+ power per port with a 200 Watt PoE power budget and allows for a 16 Gbps switching capacity.

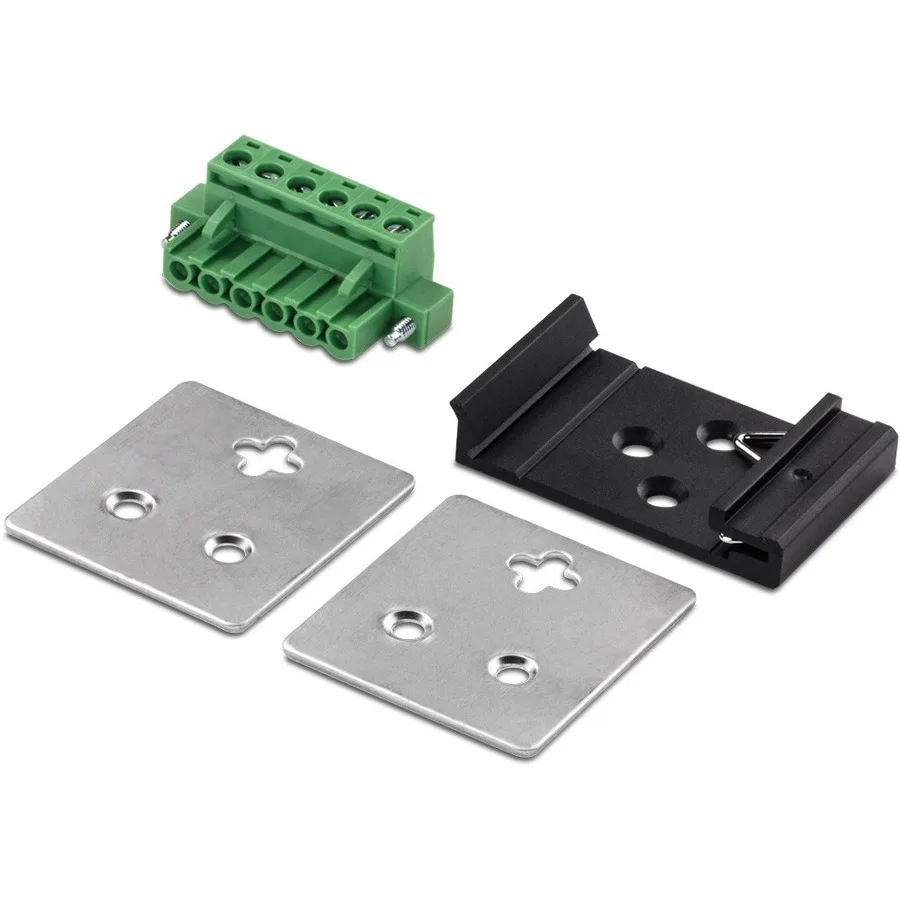

• DIN-RAIL & WALL MOUNT KIT: This 8-Port Gigabit PoE+ network switch comes with an integrated DIN-Rail mount and mounting hardware.
• EXTREME TEMPERATURE SWITCH: The metal hardened IP30 rated Gigabit PoE+ Ethernet switch is equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock,
Dimensions1.40" x 5.60" x 4.10"
Weight1.22 lbs.
TemperatureOperating Temperature: - 40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit)
HumidityMax. 95 % non-condensing
Shipping weight0.82 kg
Package size216 × 168 × 71 mm

Questions about this item

Will the 8 PoE+ ports auto-negotiate with my older 10/100 Mbps cameras and access points?

Yes, each port handles 10, 20, 100, 200 and 2000 Mbps duplex rates so legacy Fast Ethernet devices connect at their highest supported speed.

Which front-panel LEDs confirm the switch is passing traffic and delivering PoE+ power correctly?

The built-in LED indicators show link/activity per port and PoE status, letting you verify data flow and the up-to-30 W per-port power delivery at a glance.

Does the box include a power supply, or do I need to order the TI-S24048 separately?

The switch ships with DIN-rail and wall-mount brackets only; the compatible 48-56 V DC power supply (model TI-S24048) is sold separately.
