Metal industrial switch with DIN-rail mount four PoE+ ports one Gigabit port one SFP slot IP30 rated

TRENDnet

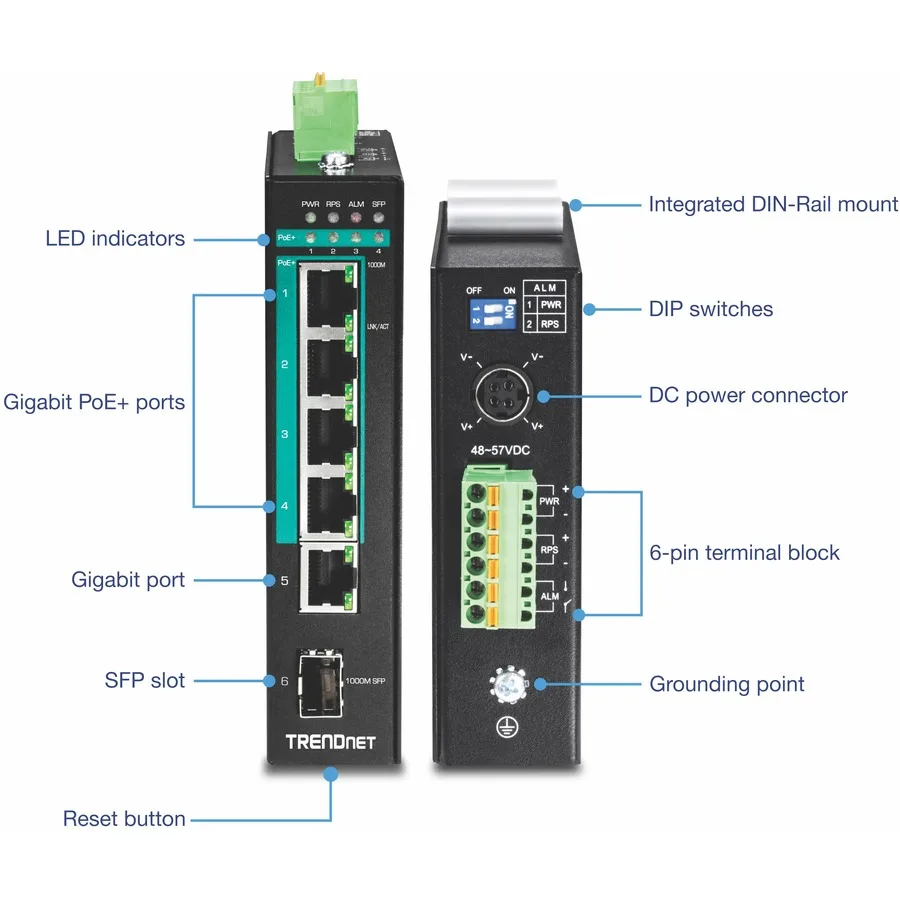

TRENDnet TI-PG541 5-Port Industrial Gigabit PoE+ DIN-Rail Switch

SKU CH-BYVX-FESST MPN TI-PG541

A hardened industrial Gigabit PoE+ switch with four powered ports, one SFP slot, 120 Watt power budget and -40 to 70 °C operation

  • FormatDIN Rail Mount
  • StandardsIEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3at
  • Network Management TypeUnmanaged
  • Primary Ports4 x Gigabit PoE+ ports 1 x Gigabit port 1 x Gigabit SFP slot
  • Primary Port SpeedEthernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast
  • MAC Address Table8K

Style Industrial Managed Layer

  • Industrial Managed Layer
  • Industrial Unmanaged
  • Industrial Wall-Mounted
  • Bundle
  • DIN-Rail Switch

Struck-through versions exist but are not stocked here.

  • Four Gigabit PoE+ ports deliver up to 30 W each for power-hungry devices
  • 120 W total PoE budget supports multiple cameras or access points simultaneously
  • IP30 metal enclosure operates from -40 °C to 70 °C for harsh industrial sites
  • DIN-rail mounting with included hardware enables quick cabinet installation
  • Redundant 48 V DC inputs with alarm relay protect against power-supply failure

Industrial DIN-Rail PoE+ Switch

The TRENDnet TI-PG541 is a hardened unmanaged switch built for industrial environments. It provides four Gigabit PoE+ ports, one Gigabit port, and one SFP slot with a 120 Watt power budget. The IP30 metal enclosure operates from -40 to 70 degrees Celsius and supports DIN-rail or wall mounting for harsh conditions.

Suits PoE deployments in extreme temperatures

This switch fits installations needing reliable power and data to cameras or access points in factories, transport, or outdoor sites. The wide temperature range and vibration resistance meet industrial demands. Buyers needing managed features like VLAN configuration, SNMP monitoring, or redundant ring protocols should look at managed alternatives.

120 Watt PoE+ budget powers four devices

The total 120 Watt budget delivers up to 30 Watts per port across the four PoE+ interfaces. This capacity determines how many high-draw devices such as PTZ cameras or heated enclosures can connect simultaneously. The required 48 V DC power adapter is sold separately and must be sourced to activate the PoE function.

Highlights

  • Four Gigabit PoE+ ports deliver up to 30 W each for power-hungry devices
  • 120 W total PoE budget supports multiple cameras or access points simultaneously
  • IP30 metal enclosure operates from -40 °C to 70 °C for harsh industrial sites
  • DIN-rail mounting with included hardware enables quick cabinet installation
  • Redundant 48 V DC inputs with alarm relay protect against power-supply failure

Specifications

BrandTRENDnet
Part NumberTI-PG541
FormatDIN Rail Mount
StandardsIEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3z
IEEE 802.3at
IEEE 802.3af
IEEE 802.3x
Network Management TypeUnmanaged
Primary Ports4 x Gigabit PoE+ ports
1 x Gigabit port
1 x Gigabit SFP slot
Primary Port SpeedEthernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)
SX/LX: 2000 Mbps (full duplex)
MAC Address Table8K
VLAN SupportYes
Jumbo Frames10KB
Buffer Memory512KB
ProtocolsTCP/IP
PoEYes
PoE Ports4 x Gigabit PoE+ ports
PoE Power Budget120 Watts (Max.)
PowerPower Adapter (48VDC3000, Sold Separately)
Input: 100 - 240 V AC, 50/60 Hz, 2 A
Output: 48 V DC, 3.34 A 160 watts max
Max Power ConsumptionPower Consumption
Min.: 10 Watts (standby)
Max.: 130 Watts
Dimensions135 x 100 x 30 mm (5.3 x 3.9 x 1.2 in.)
Weight500 g (1.2 lbs.)
TemperatureOperating Temperature: -40 to 70 degree Celsius (-40 to 158 degree Fahrenheit)
HumidityOperating Humidity: Max. 95 % non-condensing
FeaturesPerformance
Data RAM Buffer: 512 KB
Switching Fabric: 12 Gbps
MAC Address Table: 8 K entries
Jumbo Frame: 10 KB
Forwarding rate: 8.9 Mpps (64-byte packet size)
Special Features
Full PoE+ power to each PoE+ port
Hardened components rated for extreme temperatures
Dual redundant power inputs
Alarm output triggered by power failure
Auto-Negotiation
Auto store and forward architecture
Automatic address learning and address aging
ESD 8 KV and Surge 6 KV protection
Housing
IP30 metal case
Integrated DIN-rail mount
Grounding point
8 KV ESD protection
6 KV Surge protection
Package ContentsTI-PG541
Quick Installation Guide
DIN-Rail kit
Shipping weight0.91 kg
Package size239 × 188 × 66 mm

Questions about this item

How do I mount the TI-PG541 on a DIN rail and what step is often missed?

Clip the integrated DIN-rail bracket onto a standard 35 mm rail until it locks; the step often missed is connecting both 48 V DC redundant power inputs (adapters sold separately) so the alarm relay can monitor for power failure.

What maintenance will the TI-PG541 need over time?

No fan or filter exists; periodically check that the IP30 metal enclosure vents stay clear of dust, verify the dual 48 V DC power feeds remain secure, and confirm the alarm output wiring is intact for power-loss notification.

What limit appears first when all four PoE+ ports run at full load continuously?

The 120 W PoE power budget caps total output at 30 W per port across ports 1–4; once that budget is reached the switch cannot supply more power even though the 12 Gbps switching capacity remains available.
