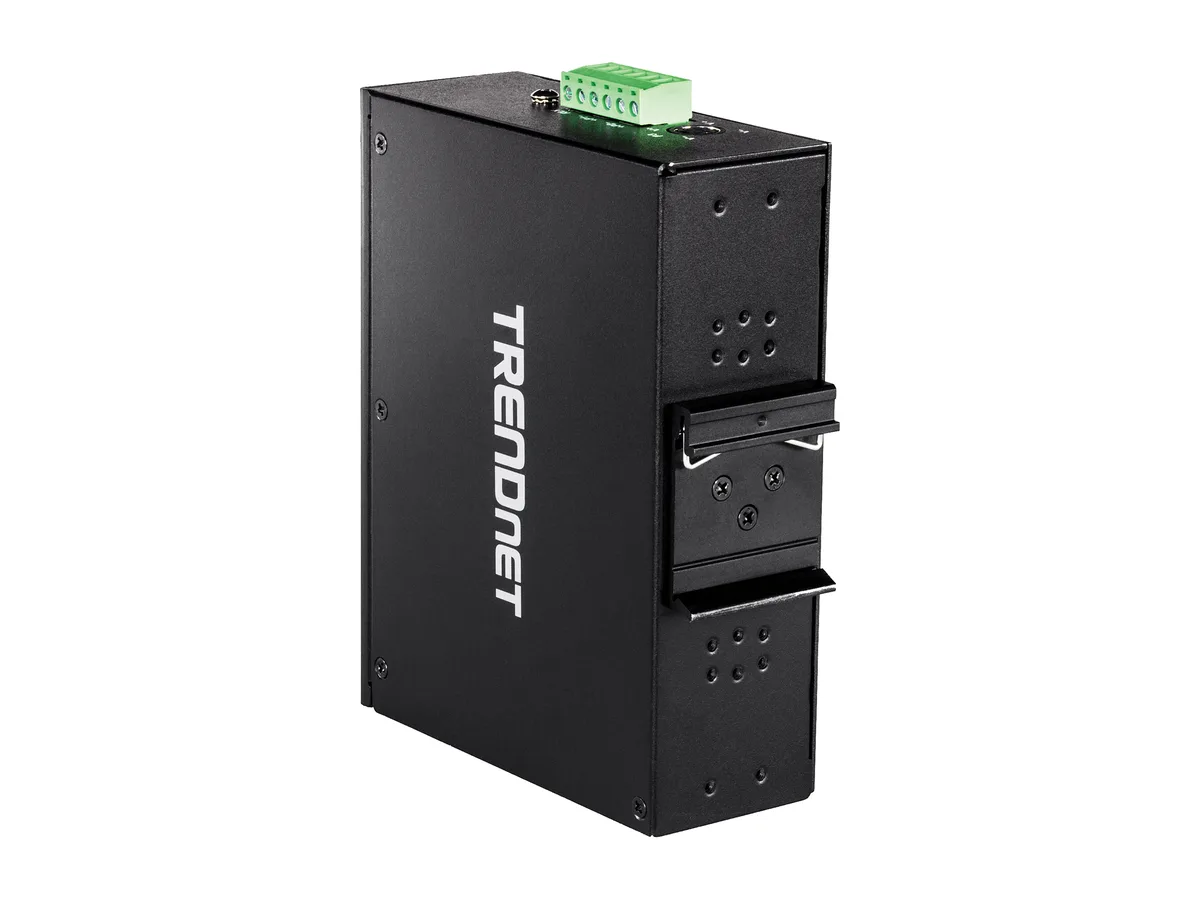

Black metal industrial switch with DIN-rail clips, eight PoE+ ports and two shared RJ-45/SFP ports

TRENDnet

TRENDnet TI-PG102 10-Port Industrial Gigabit PoE+ Network Switch

SKU CH-8C92-YXV4S MPN TI-PG102

Ten-port industrial Gigabit switch delivers 240 W PoE+ budget across eight powered ports plus two SFP uplinks in an IP30 metal housing rated for -40 to 75 °C

  • FormatIncludes DIN-rail and wall mounts
  • StandardsIEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x
  • Primary Ports8 x Gigabit PoE+ ports 2 x Gigabit RJ-45 / SFP shared ports
  • Primary Port SpeedEthernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast
  • MAC Address Table16K
  • Switching MethodAuto store and forward architecture

Style Industrial Managed

  • Industrial Managed
  • Rack Mountable
  • Smart
  • Unmanaged
  • Wide operating temperature range

Struck-through versions exist but are not stocked here.

  • Eight PoE+ ports deliver up to 30W each for powered devices
  • 240W total PoE budget supports multiple cameras or access points
  • 20Gbps switching capacity handles heavy traffic loads
  • IP30 metal housing operates from -40°C to 75°C
  • DIN-rail and wall mounts included for flexible installation

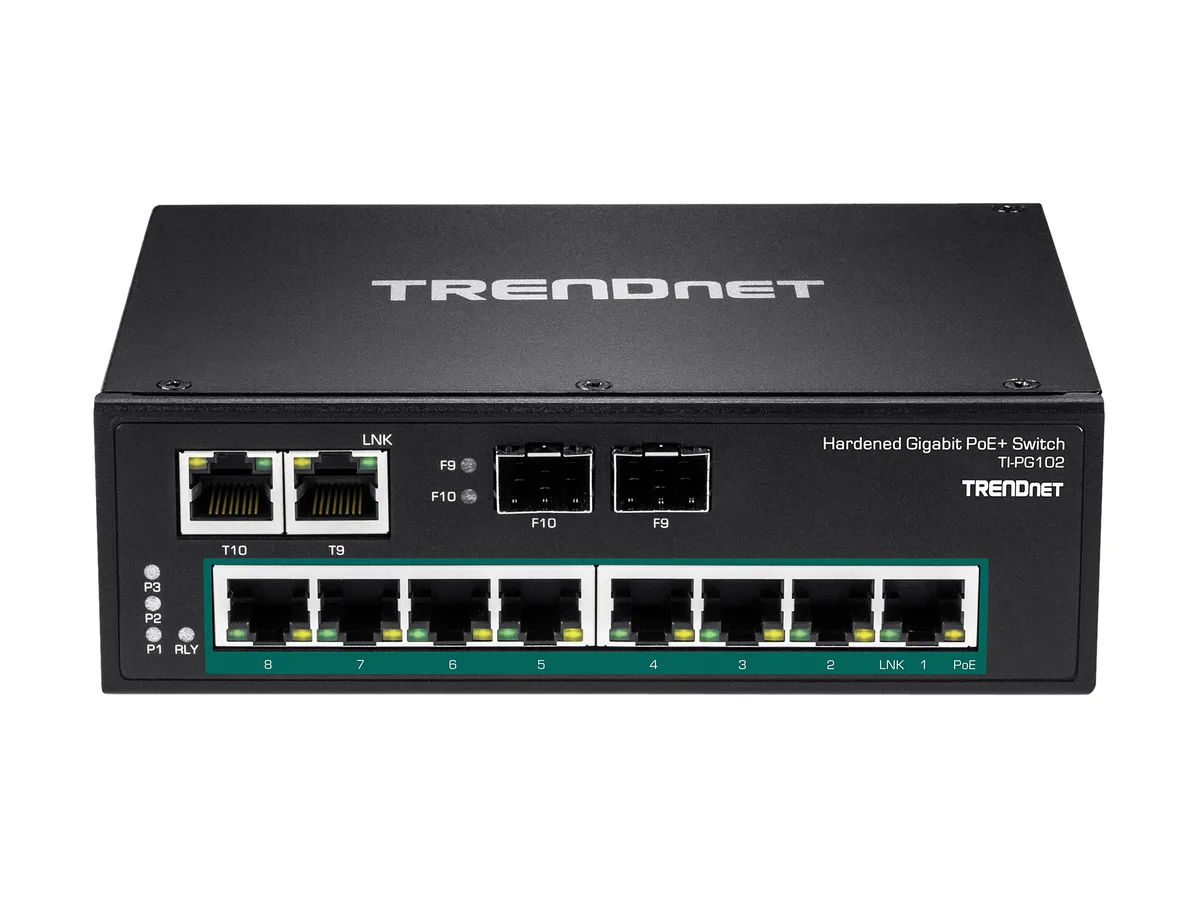

Industrial 10-Port Gigabit PoE+ Switch

The TRENDnet TI-PG102 is a hardened network switch built for industrial environments. It provides eight Gigabit PoE+ ports and two Gigabit RJ-45/SFP shared ports in an IP30-rated metal enclosure. The unit operates reliably across a wide temperature range of -40 to 75 degrees Celsius. It mounts on DIN-rail or wall surfaces for flexible deployment.

240 W PoE Budget and Port Capacity

The switch delivers up to 30 W per PoE+ port with a total power budget of 240 W, supporting eight powered devices simultaneously. Two additional shared ports handle uplinks or non-PoE connections without drawing from the PoE budget. A 16K MAC address table and 2 MB buffer manage traffic across all ten ports. The 20 Gbps switching capacity provides wire-speed forwarding for connected endpoints.

IEEE 802.3 Standards and Power Input

The switch complies with IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af and 802.3at standards for Ethernet, Fast Ethernet, Gigabit, flow control and PoE. It requires a 48 to 56 V DC external power supply, sold separately, with dual redundant inputs for reliability. Maximum consumption without powered devices is 5.67 W. Shared RJ-45/SFP ports limit simultaneous copper and fibre use on the same interface.

Highlights

  • Eight PoE+ ports deliver up to 30W each for powered devices
  • 240W total PoE budget supports multiple cameras or access points
  • 20Gbps switching capacity handles heavy traffic loads
  • IP30 metal housing operates from -40°C to 75°C
  • DIN-rail and wall mounts included for flexible installation

Specifications

BrandTRENDnet
ModelTI-PG102
FormatIncludes DIN-rail and wall mounts
StandardsIEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3z
IEEE 802.3x
IEEE 802.3af
IEEE 802.3at
Primary Ports8 x Gigabit PoE+ ports
2 x Gigabit RJ-45 / SFP shared ports
Primary Port SpeedEthernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)
MAC Address Table16K
Switching MethodAuto store and forward architecture
Buffer Memory2MB
PoEYes
PowerPower
Input: 48 - 56V DC
Compatible power supply: TI-S24048 (sold separately)
Consumption: 5.67W max. (without PD)
PoE
Per port up to 30W
PoE budget: 240 Watts
Features8 x Gigabit PoE+ ports
2 x Gigabit RJ-45 / SFP shared ports
240 W PoE power budget
20 Gbps switching capacity
Hardened IP30 rated metal switch
Includes DIN-rail and wall mounts
Operating temperature range of -40 to 75 degree Celsius (-40 to 167 degree Fahrenheit)

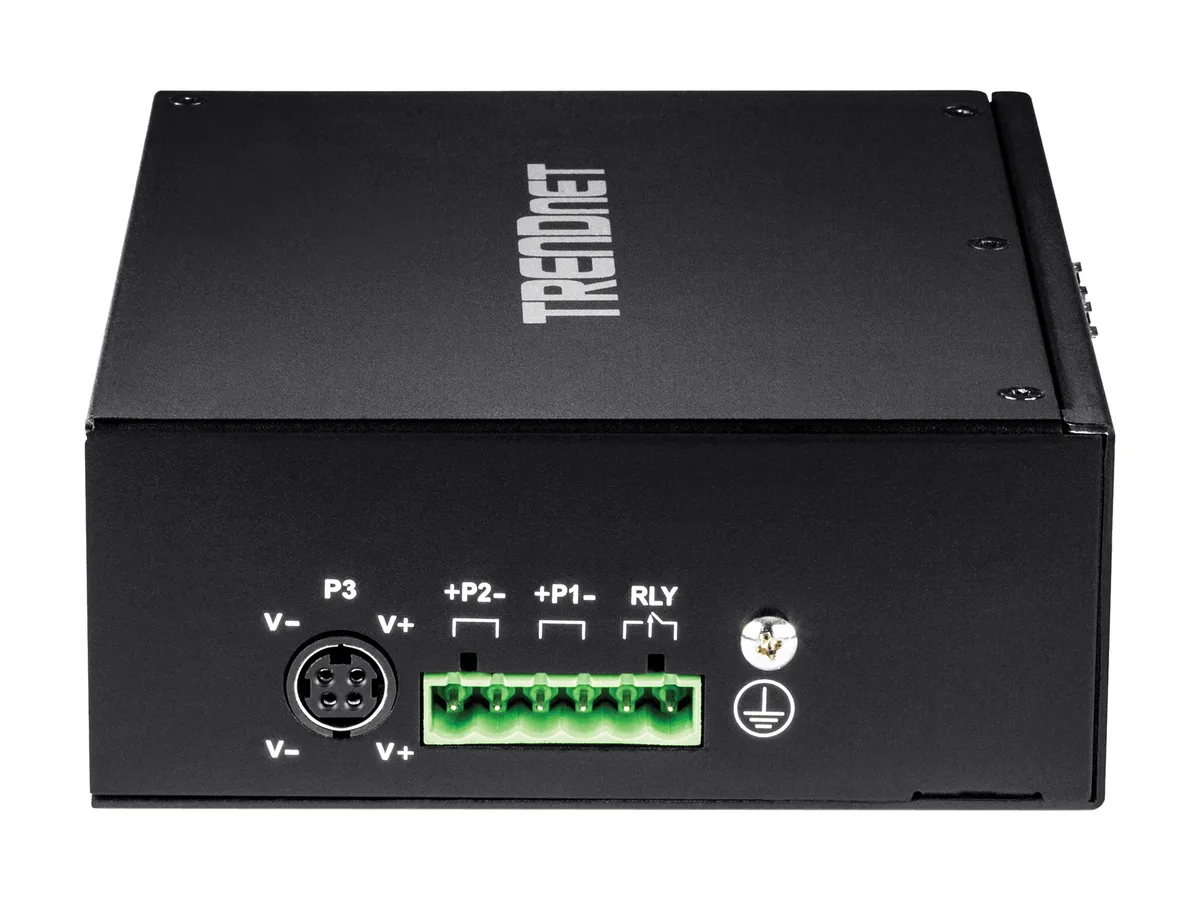

Dual redundant power inputs with overload current protection
Alarm output triggered by power failure
Power supply sold separately (models: TI-S24048 / 48V DC3000)
Dimensions1.89" x 6.10" x 4.72"
Weight0.98 lb.
Temperature-40 to 75 degree Celsius (-40 to 167 degree Fahrenheit)
HumidityMax. 95% non-condensing

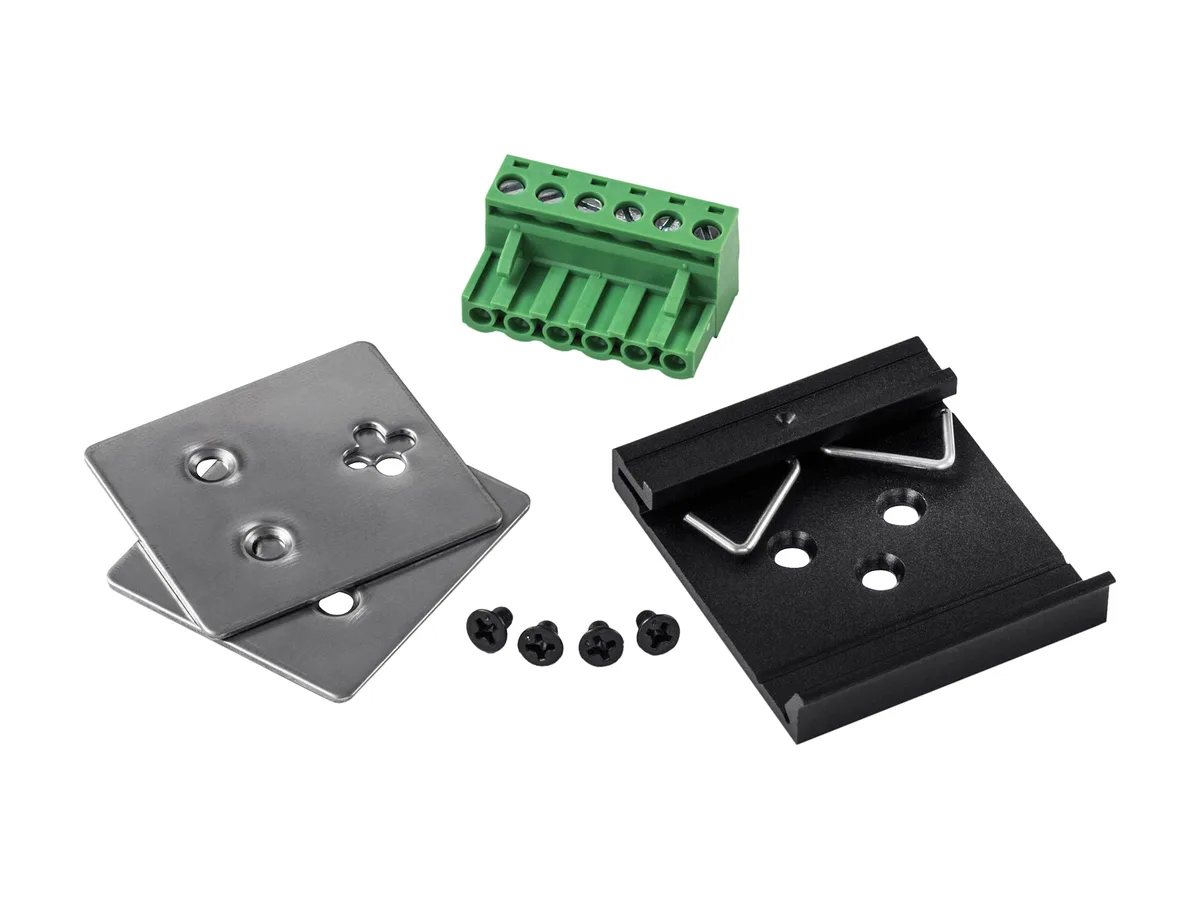

Package ContentsTI-PG102
Quick Installation Guide
Removable terminal block
DIN-rail and wall mount kit
Shipping weight0.72 kg
Package size218 × 160 × 66 mm

Questions about this item

Will the TI-PG102 work with my existing 10/100 Mbps cameras and sensors?

The eight PoE+ ports and two shared RJ-45 / SFP ports auto-negotiate down to 10 Mbps half duplex or 100 Mbps full duplex, so legacy Fast Ethernet devices connect without configuration.

How can I confirm the switch is operating correctly once powered up?

The unit draws a maximum of 5.67 W with no powered devices attached; LED indicators on each port show link, activity and PoE status, and the 16K MAC table fills as traffic passes.

What ships in the box and what must I source separately?

The package includes the TI-PG102, a quick installation guide, a removable terminal block and DIN-rail plus wall-mount hardware; a 48 – 56 V DC power supply such as the TI-S24048 is sold separately.
