Rugged IP30 metal mini switch with eight PoE+ ports and DIN-rail bracket

TRENDnet

TRENDnet TI-PELC80 8-Port Industrial Fast Ethernet PoE+ Switch

SKU CH-VJG2-7YZHW

Industrial 8-port Fast Ethernet PoE+ switch with 200 W budget, IP30 metal housing and -40 °C to 75 °C operation

  • Weight1.1600
  • Features• 8 x 10/100Mbps PoE+ ports • 200W PoE+ power budget • Harde

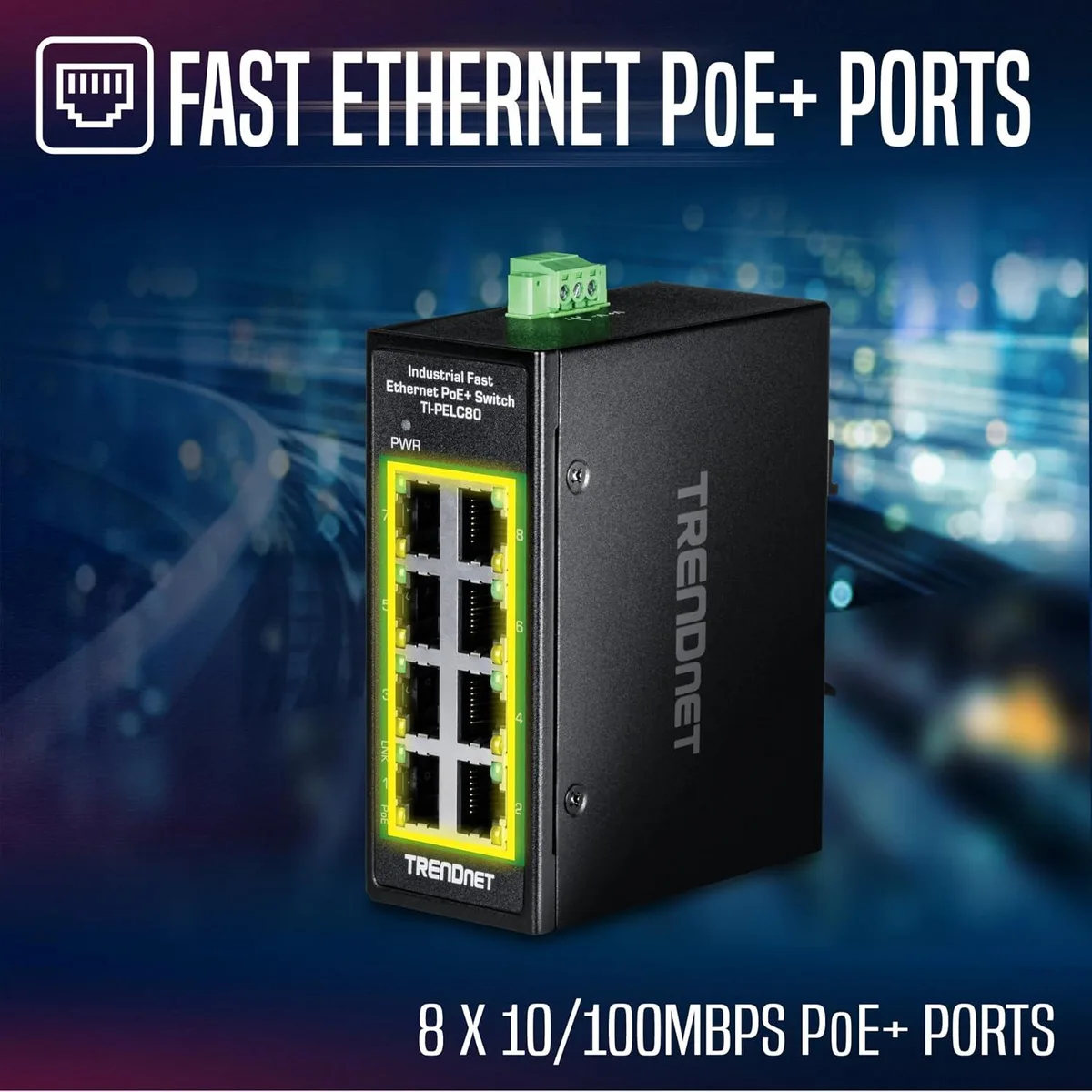

  • Powers eight devices with a single cable per device using 10/100Mbps PoE+ ports
  • Delivers up to 30W per port from a 200W total PoE+ budget
  • Withstands harsh environments in a hardened IP30-rated metal enclosure

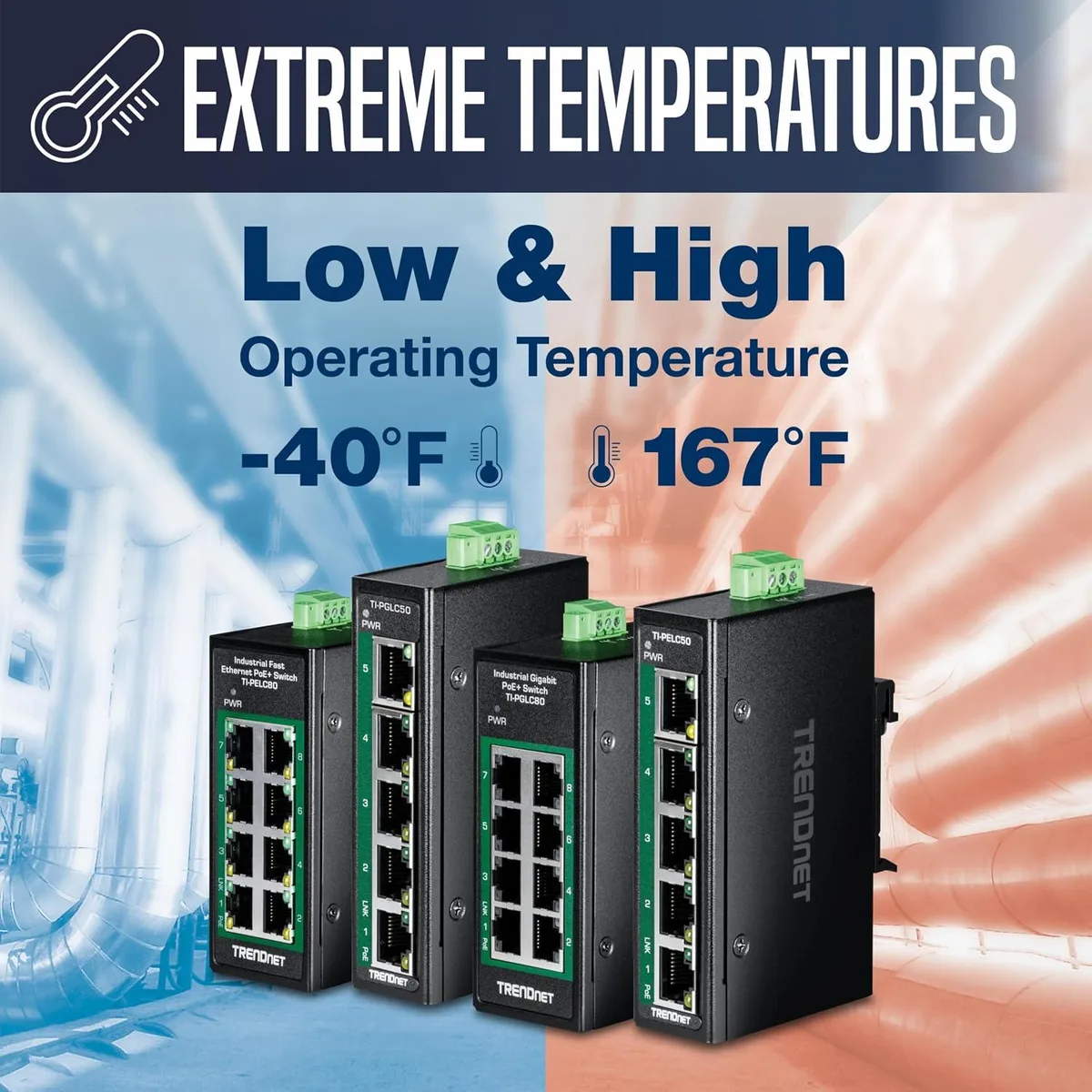

  • Operates reliably from -40°C to 75°C (-40°F to 167°F)
  • Mounts easily on DIN-Rail or wall with included brackets

Industrial Fast Ethernet PoE+ Switch

The TRENDnet TI-PELC80 is an eight-port industrial Fast Ethernet switch designed for deployments that require both data and power over a single cable. It suits installers and integrators building surveillance, access control or automation networks in harsh environments where a compact DIN-Rail or wall-mounted form factor is essential.

Sustained load behaviour

A 200W PoE+ power budget allows the switch to deliver up to 30W per port across all eight ports simultaneously without throttling. The hardened IP30 metal enclosure operates continuously from -40° to 75°C, and 1.6Gbps switching capacity handles aggregate traffic from multiple powered devices without congestion.

Deciding specification

The 200W PoE+ budget is the single figure that determines whether this switch can power your full complement of cameras, wireless access points or VoIP handsets. If the combined draw of your endpoints exceeds that budget, you will need a higher-capacity PoE switch or an additional power source.

Highlights

  • Powers eight devices with a single cable per device using 10/100Mbps PoE+ ports
  • Delivers up to 30W per port from a 200W total PoE+ budget
  • Withstands harsh environments in a hardened IP30-rated metal enclosure
  • Operates reliably from -40°C to 75°C (-40°F to 167°F)
  • Mounts easily on DIN-Rail or wall with included brackets

Specifications

BrandTRENDnet
ModelTI-PELC80
Weight1.1600
Features• 8 x 10/100Mbps PoE+ ports
• 200W PoE+ power budget
• Hardened IP30 rated metal mini switch
• Extreme operating temperature range of -40° – 75°C (-40° – 167°F)
• 1.6Gbps switching capacity
• Includes DIN-Rail mount and wall mount brackets
• Power supply sold separately (model: TI-S24052, TI-S24048)
• NDAA / TAA compliant (U.S. and Canada only)

Questions about this item

Does the 200 W PoE+ budget and 1.6 Gbps switching capacity make the TI-PELC80 run hot in a sealed cabinet?

The switch is fanless and rated for -40 °C to 75 °C operation, so it dissipates heat through its IP30 metal enclosure without active cooling.

The power supply is sold separately — which model do I need for the full 200 W PoE+ budget?

Use the TI-S24052 or TI-S24048 power supply to deliver the 200 W PoE+ budget across all eight ports.

Will the 10/100 Mbps ports slow down a Gigabit backbone switch I already have?

Each port negotiates at 10 or 100 Mbps; the 1.6 Gbps internal fabric forwards frames at line rate without blocking the uplink.
