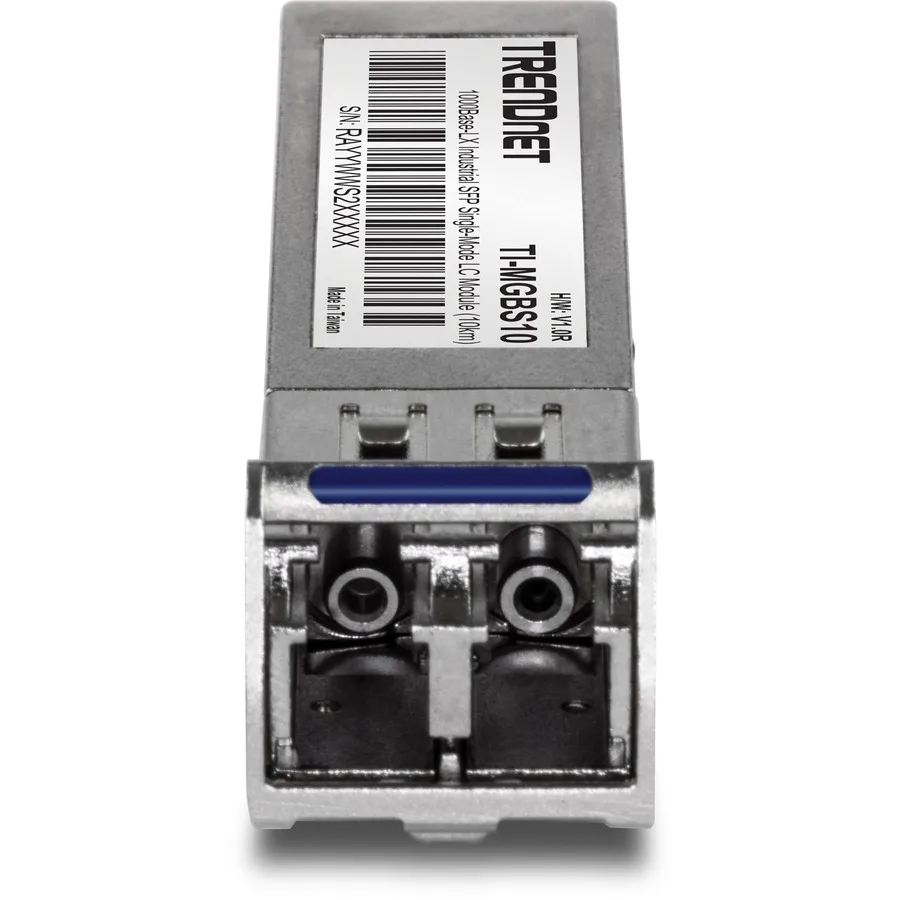

Compact SFP transceiver module with silver metal housing and LC fiber port

TRENDnet

TRENDnet TI-MGBS10 10km 1.25Gbps SFP transceiver

SKU CH-GAQ5-6XX0Y MPN TI-MGBS10

Single-mode LC SFP module transmits data up to 10 km at 1.25 Gbps and operates from -40 to 85 °C

  • StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z
  • Wavelength1310nm
  • ProtocolsTCP/IP
  • PortsLC
  • Max Distance10 km
  • Transfer Rate1.25 Gbps
  • Supports 1.25Gbps data rates for high-speed networking
  • Transmission distance up to 10km over single-mode fibre
  • Industrial temperature range -40°C to 85°C for harsh environments
  • Compliant with IEEE 802.3z and ANSI Fiber Channel standards
  • SFP MSA compliant for broad equipment compatibility

Industrial SFP transceiver for 10 km links

The TRENDnet TI-MGBS10 is a Small Form-Factor Pluggable module built for single-mode fibre connections up to 10 km. It operates at a 1310 nm wavelength and delivers data rates up to 1.25 Gbps, making it suited for industrial Gigabit Ethernet links. The module uses an LC duplex connector and complies with IEEE 802.3z, IEEE 802.3u and IEEE 802.3 standards.

Practical limits of the SFP MSA interface

The SFP form factor restricts use to equipment with an MSA-compliant cage, so it cannot be installed in fixed RJ45 ports or non-standard slots. Single-mode fibre requires matching transceivers at both ends, and the 10 km reach assumes clean, low-loss cabling; splices or dirty connectors will reduce the usable distance. Operating temperature spans -40 °C to 85 °C with up to 95 % non-condensing humidity, covering harsh cabinet environments.

The 10 km single-mode reach decides fit

If the fibre run between sites exceeds 10 km, this module will not maintain a reliable link and a longer-reach part is required. Conversely, for short campus or rack-to-rack runs a multi-mode transceiver would be more cost-effective. Buyers needing copper RJ45 connectivity or multi-mode fibre support should select a different module type.

Highlights

  • Supports 1.25Gbps data rates for high-speed networking
  • Transmission distance up to 10km over single-mode fibre
  • Industrial temperature range -40°C to 85°C for harsh environments
  • Compliant with IEEE 802.3z and ANSI Fiber Channel standards
  • SFP MSA compliant for broad equipment compatibility

Specifications

BrandTRENDnet
ModelTI-MGBS10
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z
Wavelength1310nm
ProtocolsTCP/IP
PortsLC
Max Distance10 km
Transfer Rate1.25 Gbps
Temperature-40 - 85 degrees Celsius (-40° - 185 degrees Fahrenheit)
HumidityMax. 95% non-condensing
FeatureCompliant with IEEE 802.3z Gigabit Ethernet
ANSI Fiber Channel compliant
Small Form-Factor Pluggable (SFP) and Multi-Source Agreement (MSA) compliant
Wide operating temperature range of -40 - 85 degrees Celsius (-40° - 185 degrees Fahrenheit)
Supports data rates of up to 1.25Gbps
Transmission distance of up to 10km (6.2 miles)
Low Electromagnectic Interference (EMI) design
Supports 1310nm single-mode network transmissions

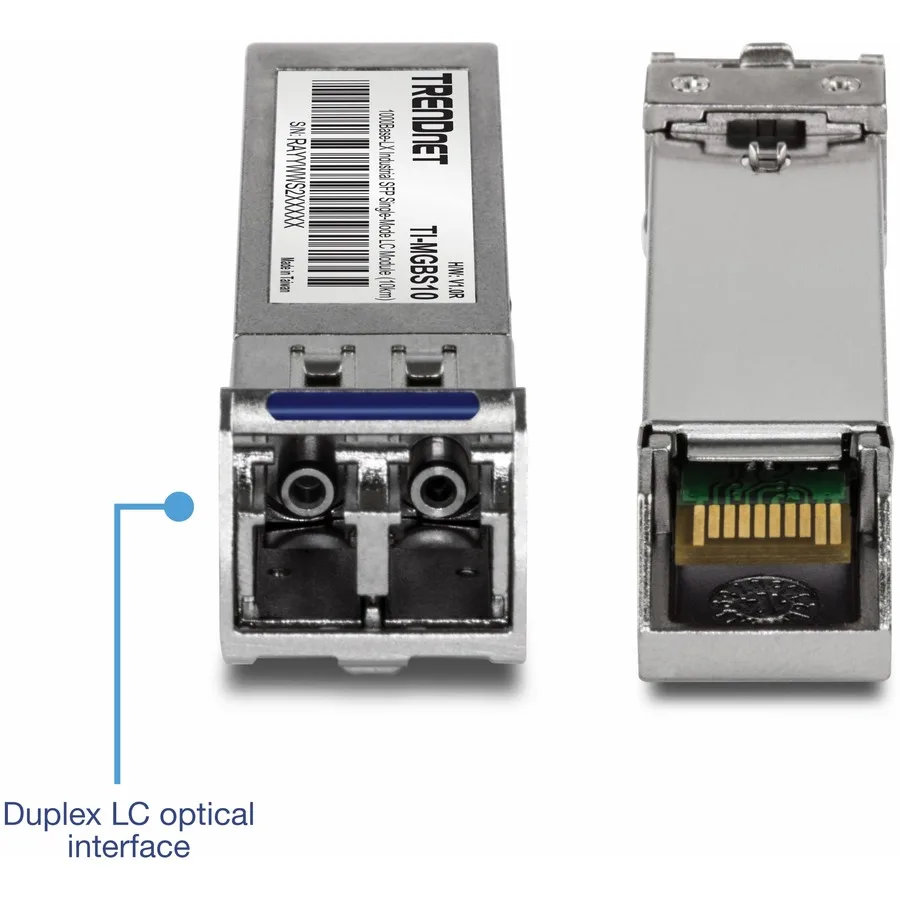

Duplex LC optical interface
Low power consumption
Optical Output Power: -3 to -3 dBm
Special Features:
Hot pluggable
Metal enclosure
Sensitivity: -23 dBm
Power Cons

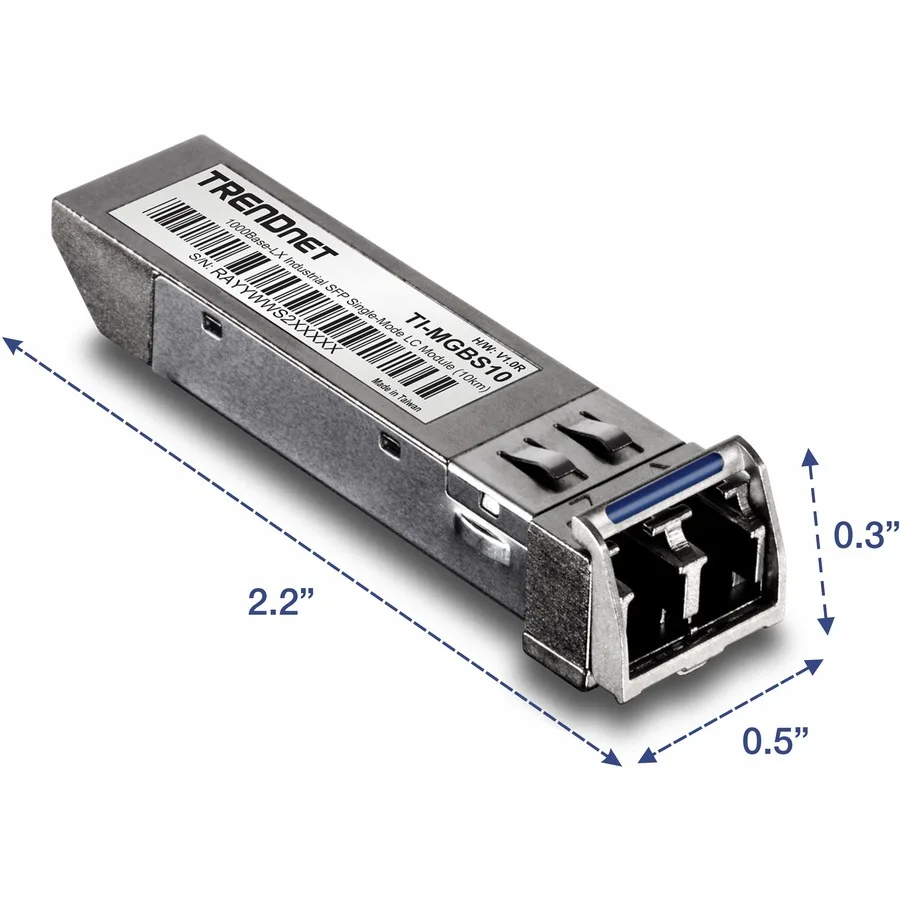

Dimensions2.20" x 0.50" x 0.30"
Weight0.04 lb.
Shipping weight0.07 kg
Package size142 × 74 × 48 mm

Questions about this item

Should I choose the 10km single-mode LC version or another distance option?

The TI-MGBS10 is a single-mode LC module rated for up to 10km (6.2 miles) at 1310nm. Select this version when your link spans up to 10km; shorter-reach or multi-mode needs require a different module.

What does the 1.25Gbps rate mean once the transceiver is installed in a switch?

The module supports data rates up to 1.25Gbps, compliant with IEEE 802.3z Gigabit Ethernet, so it will negotiate 1000Mbps full-duplex on a compatible SFP port.

Which SFP standard does this transceiver follow and what does that limit in practice?

It follows the SFP Multi-Source Agreement (MSA) and IEEE 802.3z, so it fits any MSA-compliant SFP cage and is capped at 1.25Gbps over single-mode fibre up to 10km.
