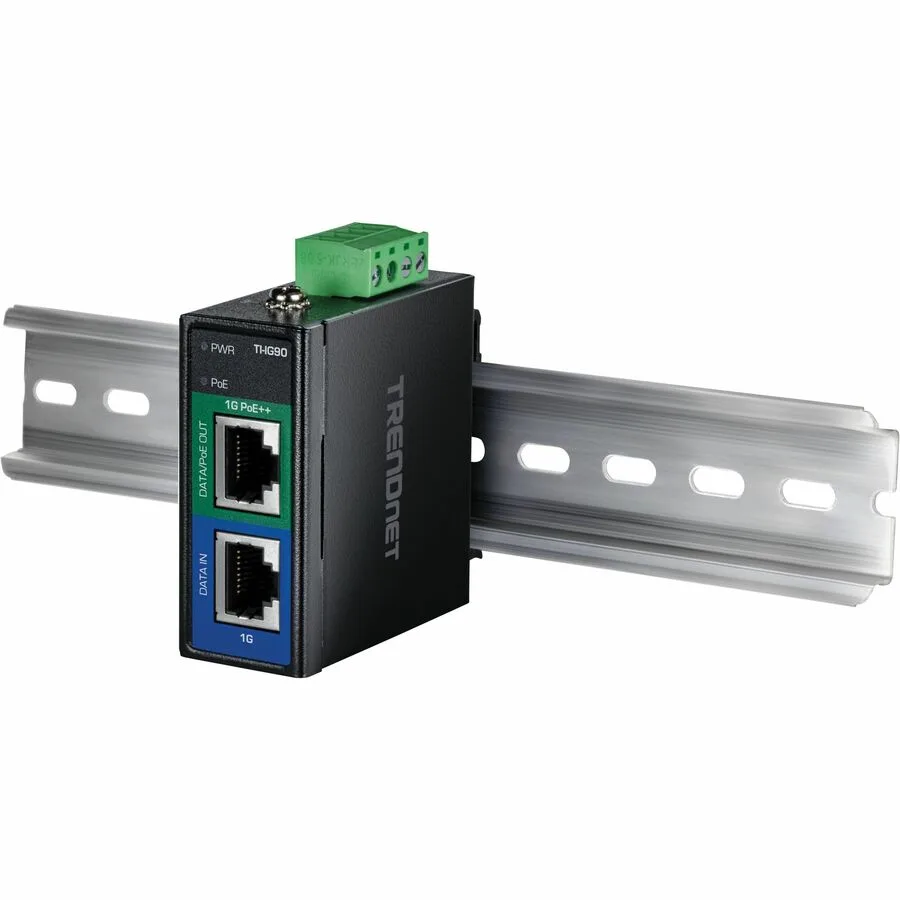

Compact black industrial PoE injector with DIN-rail clips and terminal block

TRENDnet

TRENDnet TI-IG90 90W Gigabit 4PPoE Injector

SKU CH-PPT3-F0NGA MPN TI-IG90

Hardened IP30-rated Gigabit injector delivers up to 90W 4PPoE over 100m with redundant 52-56V DC inputs and -40 to 75°C operation

  • TypePoE Injector
  • ColorBlack
  • SpecificationsStandards - IEEE 802.3 - IEEE 802.3u - IEEE 802.3ab - IEEE 8
  • FeaturesHardened IP30 rated Gigabit 4PPoE Injector PoE (15.4W), PoE+
  • Delivers up to 90W 4PPoE power for demanding devices
  • Extends network reach to 100m (328 ft.) over Gigabit Ethernet
  • Operates reliably from -40 to 75 °C (-40 to 167 °F)
  • Hardened IP30 metal housing with DIN-rail and wall mounts
  • Redundant 52-56 V DC inputs with overload current protection

Industrial 90W 4PPoE Injector

The TRENDnet TI-IG90 is a hardened Gigabit PoE injector built for industrial deployments. It delivers up to 90W of 4PPoE power alongside data to compatible devices such as wireless access points, IP cameras or VoIP phones. The unit operates reliably across a -40 to 75 °C temperature range and carries an IP30 rating for dust protection. It is designed for integrators and network engineers who need robust power injection in harsh environments.

Standards and distance limits

The injector complies with IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at and 802.3bt standards, supporting PoE, PoE+ and 4PPoE power classes. Data and power can reach a powered device up to 100m away over standard copper cabling. The DC input accepts 52 to 56 V from an external supply, with a maximum PoE consumption of 72W. Redundant power inputs provide overload current protection for continuous operation.

Mounting and power setup

A DIN-rail clip and wall-mount brackets are included, and a grounding point is provided for safe installation in cabinets or enclosures. The 4-pin removable terminal block simplifies wiring the DC supply, though the compatible TI-S12048 power supply must be purchased separately. LED indicators show link and power status for quick verification. Installers should ensure the source voltage stays within the 52 to 56 V window to avoid startup issues.

Highlights

  • Delivers up to 90W 4PPoE power for demanding devices
  • Extends network reach to 100m (328 ft.) over Gigabit Ethernet
  • Operates reliably from -40 to 75 °C (-40 to 167 °F)
  • Hardened IP30 metal housing with DIN-rail and wall mounts
  • Redundant 52-56 V DC inputs with overload current protection

Specifications

BrandTRENDnet
ModelTI-IG90
TypePoE Injector
ColorBlack
SpecificationsStandards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
Device Interface
- 1 x Gigabit port
- 1 x 4PPoE Gigabit port
- 4-pin removable terminal block
- LED indicators
- DIN-Rail mount
- Wall mount
- Grounding point
Power
- Input: 52 - 56 V DC
- Compatible power supply: TI-S12048 (sold separately)
- Max. consumption (PoE): 72W
Operating Temperature: - 40° - 75° C (-40° - 167° F)
Operating Humidity: Max. 95 % non-condensing
Dimensions (L x W x H): 104 x 82 x 32mm (4.10" x 3.20" x 1.20")
Weight: 154g (5.4 oz.)
FeaturesHardened IP30 rated Gigabit 4PPoE Injector
PoE (15.4W), PoE+ (30W), or 4PPoE (90W) power
Network a PoE device located up to 100m (328 ft.) away
Extreme -40 to 75 °C (-40 to 167 °F) operating temperature range
Redundant power inputs with overload current protection
Includes DIN-rail mount and wall mount
Power supply sold separately (model TI-S12048)
Shipping weight2.27 kg
Package size152 × 127 × 76 mm

Questions about this item

Should I pick the 15.4 W, 30 W or 90 W PoE mode for my device?

The injector auto-negotiates the class; it delivers up to 90 W over four pairs for 802.3bt devices, 30 W for 802.3at gear and 15.4 W for 802.3af equipment.

What does the 90 W headline mean once the unit is installed in a cabinet?

It supplies a full 90 W to a compatible powered device at up to 100 m while the injector itself draws a maximum of 72 W from the 52–56 V DC source.

Which Ethernet standard caps the data rate on the 4PPoE port?

The port complies with IEEE 802.3ab, so Gigabit speed is the practical limit regardless of the PoE class negotiated.
