Black metal industrial switch with eight Ethernet ports, DIN-rail and wall mounts, IP30 rated

TRENDnet

TRENDnet TI-G80 8-Port Industrial Gigabit DIN-Rail Switch

SKU CH-VS98-A4548 MPN TI-G80

Hardened 8-port Gigabit DIN-rail switch with 16 Gbps capacity, dual redundant 12–56 V DC inputs, IP30 metal housing rated for –40 to 75 °C, and alarm output on power failure

  • FormatIncludes DIN-rail and wall mounts Wall Mountable
  • StandardsIEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x
  • Network Management TypeUnmanaged
  • Primary Ports8 x Gigabit ports
  • Primary Port SpeedEthernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast
  • MAC Address Table8K
  • 8 Gigabit ports deliver 16 Gbps switching capacity
  • IP30 metal housing withstands harsh industrial conditions
  • Operates reliably from -40 to 75 °C
  • Dual redundant 12-56 V DC inputs with overload protection
  • DIN-rail and wall mounts included for flexible installation

Industrial 8-Port Gigabit Switch

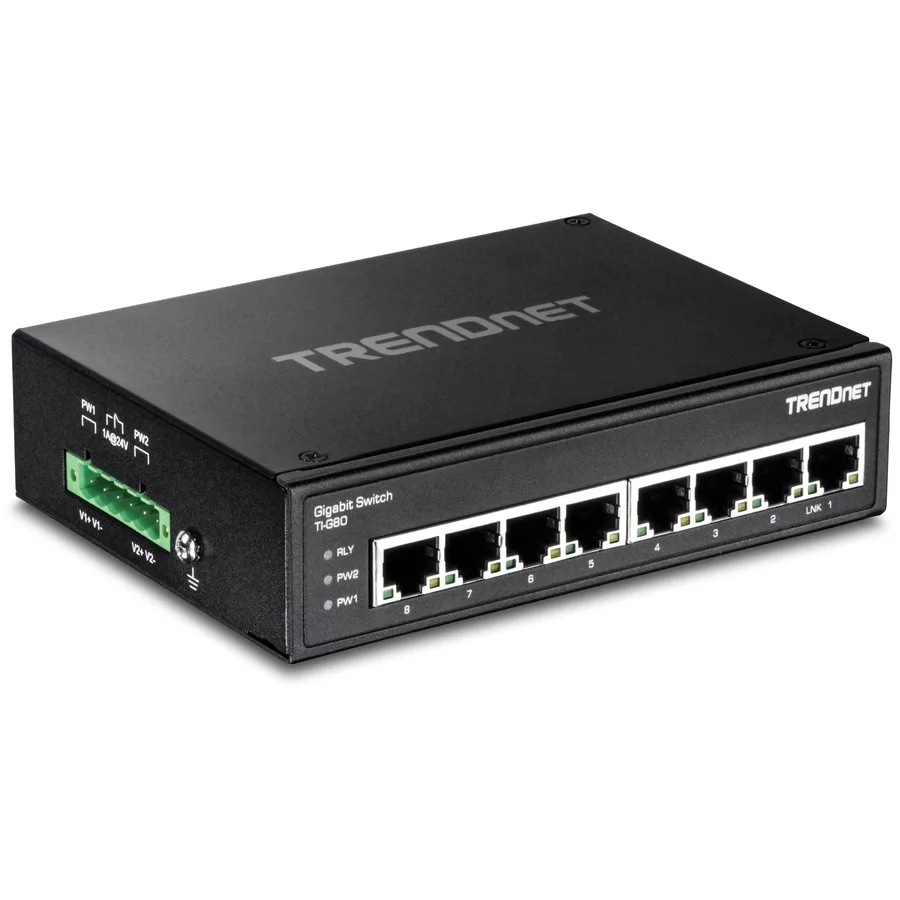

The TRENDnet TI-G80 is an unmanaged DIN-rail switch built for harsh environments. Eight Gigabit Ethernet ports provide 16 Gbps switching capacity in a hardened IP30-rated metal enclosure. It operates reliably from -40 to 75 degrees Celsius and meets NDAA and TAA compliance requirements.

Silent Operation and Low Power Draw

With no moving parts the switch runs completely silent in normal use. Maximum power consumption is 5 Watts while accepting 12 to 56 V DC through dual redundant inputs with overload current protection. An alarm output signals any power failure for immediate awareness.

Flexible Mounting and Redundant Power

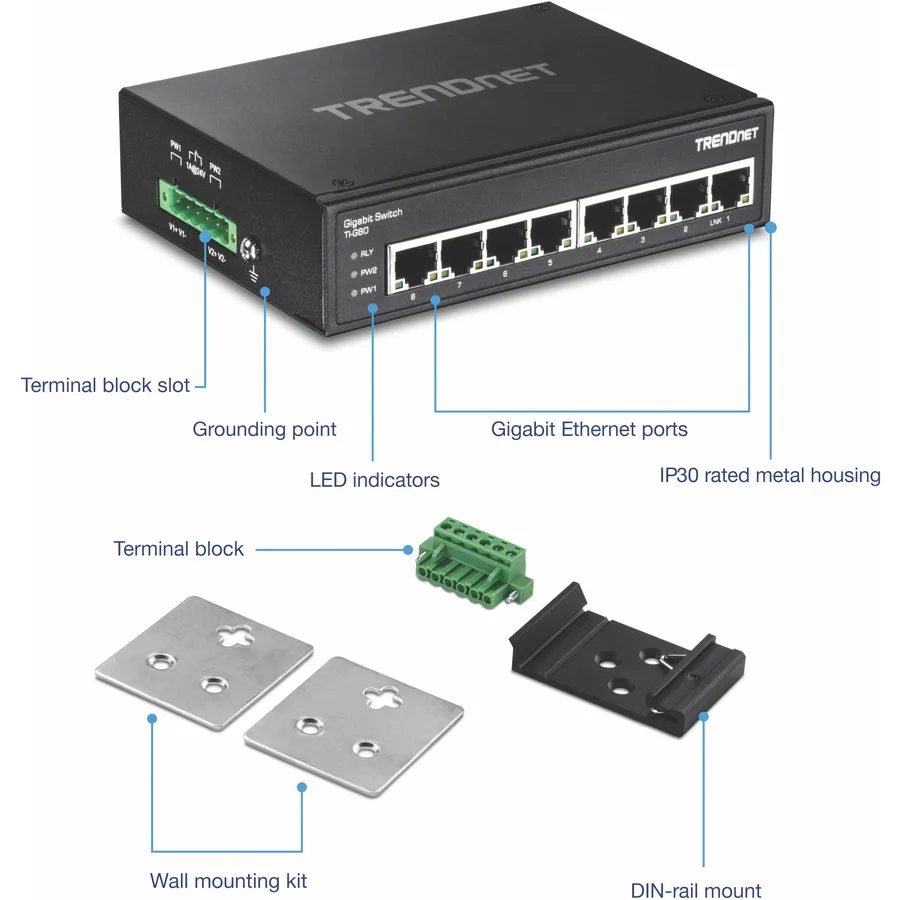

The compact metal housing measures 1.40 by 5.60 by 4.10 inches and weighs 1.10 lbs, fitting standard DIN rails or wall mounts included in the box. Dual DC power terminals allow a backup supply such as the compatible TI-M6024 to keep the network running if one source fails.

Highlights

  • 8 Gigabit ports deliver 16 Gbps switching capacity
  • IP30 metal housing withstands harsh industrial conditions
  • Operates reliably from -40 to 75 °C
  • Dual redundant 12-56 V DC inputs with overload protection
  • DIN-rail and wall mounts included for flexible installation

Specifications

BrandTRENDnet
ModelTI-G80
FormatIncludes DIN-rail and wall mounts
Wall Mountable
StandardsIEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
Network Management TypeUnmanaged
Primary Ports8 x Gigabit ports
Primary Port SpeedEthernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)
MAC Address Table8K
Buffer Memory1MB
ProtocolsTCP/IP
PowerInput: 12 - 56 V DC
Compatible power supply: TI-M6024 (sold separately)
Consumption: Max. 5 Watts
Features8 x Gigabit Ethernet ports
16 Gbps switching capacity
Hardened IP30 rated metal switch
Includes DIN-rail and wall mounts
Dual redundant power inputs with overload current protection
Alarm output triggered by power failure
Power supply sold separately (model TI-M6024)

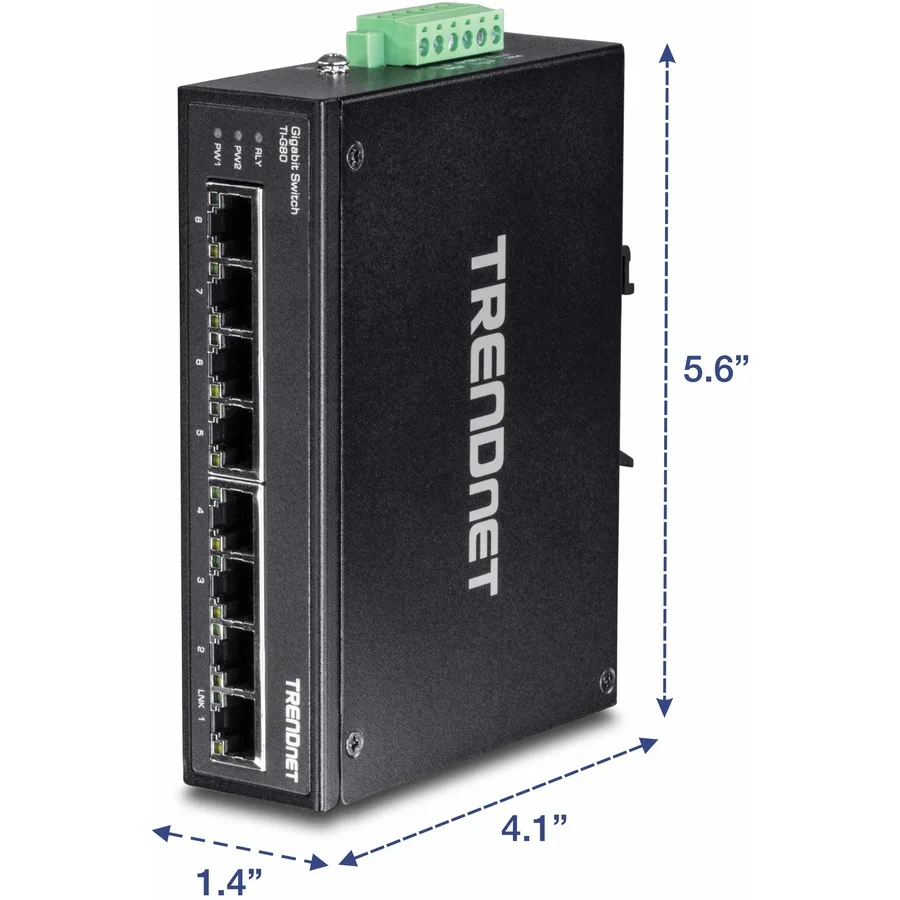

Dimensions1.40" x 5.60" x 4.10"
Weight1.10 lbs.
Temperature- 40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit)
HumidityMax. 95 % non-condensing
Shipping weight0.79 kg
Package size218 × 168 × 69 mm

Questions about this item

How do I mount the TI-G80 on a DIN rail?

Snap the included DIN-rail clip onto the switch, slide it onto a standard rail until it clicks, then tighten the set screw; the step often missed is securing that screw so vibration does not loosen the unit.

What maintenance or replacement will the TI-G80 need later?

The fanless, unmanaged design has no moving parts or firmware updates; only the external power supply (model TI-M6024, sold separately) may need replacement if its output drifts outside the 12-56 V DC range.

What limit appears first under sustained full load?

The 1 MB packet buffer and 8K MAC address table fill before the 16 Gbps switching fabric saturates, so bursty traffic from multiple 2000 Mbps ports can cause drops while the backplane still has headroom.
