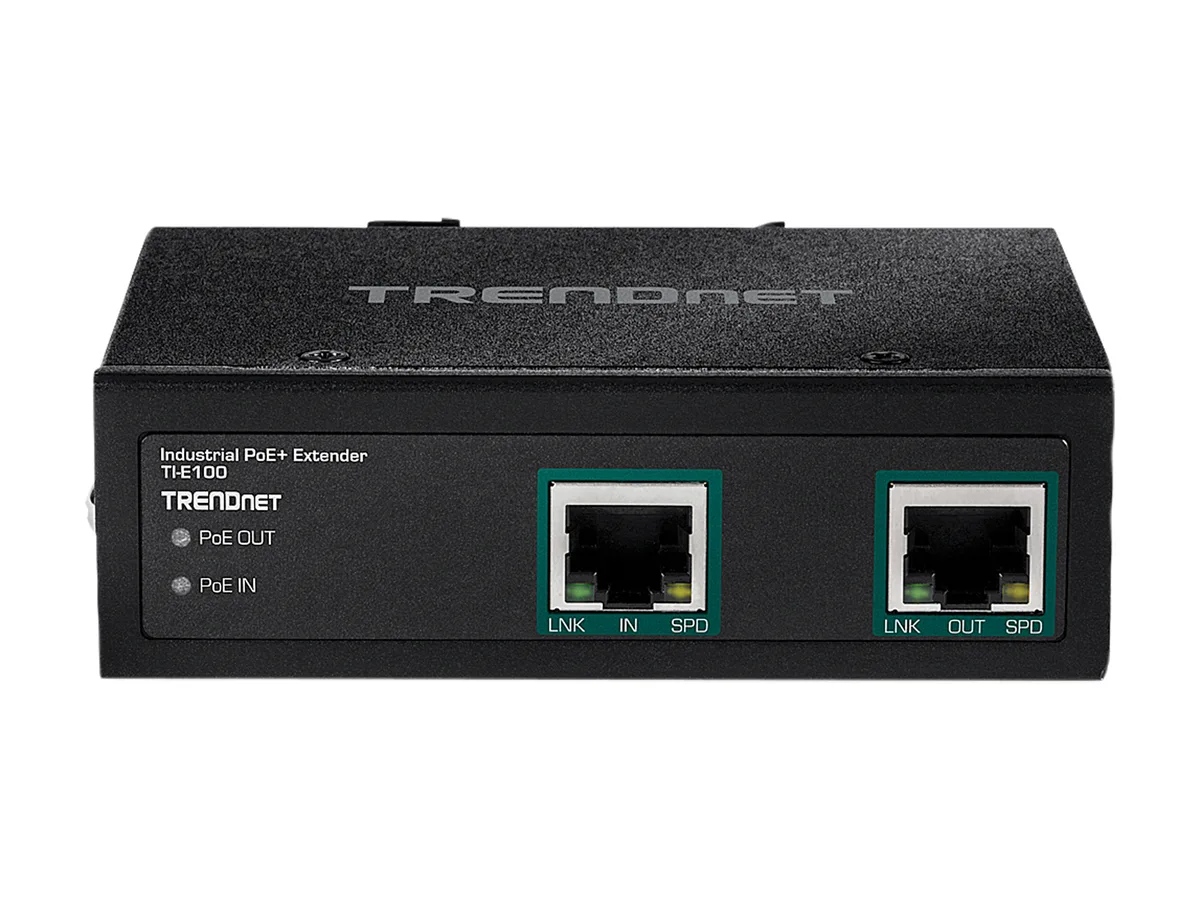

Black rectangular industrial PoE+ extender with DIN-Rail and wall mount options

TRENDnet

TRENDnet TI-E100 Industrial Gigabit PoE+ Extender

SKU CH-SWM6-2EF5A MPN TI-E100

Extends a PoE or PoE+ network connection up to 100 metres, with daisy-chaining for 300 metres total, in an IP30-rated industrial enclosure

  • TypePoE Extender
  • ColorBlack
  • SpecificationsStandards IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IE
  • FeaturesSpecial Features Extends a PoE/PoE+ network connection an ad
  • Extends PoE connections 100 meters without external power
  • Daisy-chain two units for 300 meter total reach
  • IP30 enclosure withstands -40 to 75 °C environments
  • Gigabit PoE+ in and out ports maintain full speed

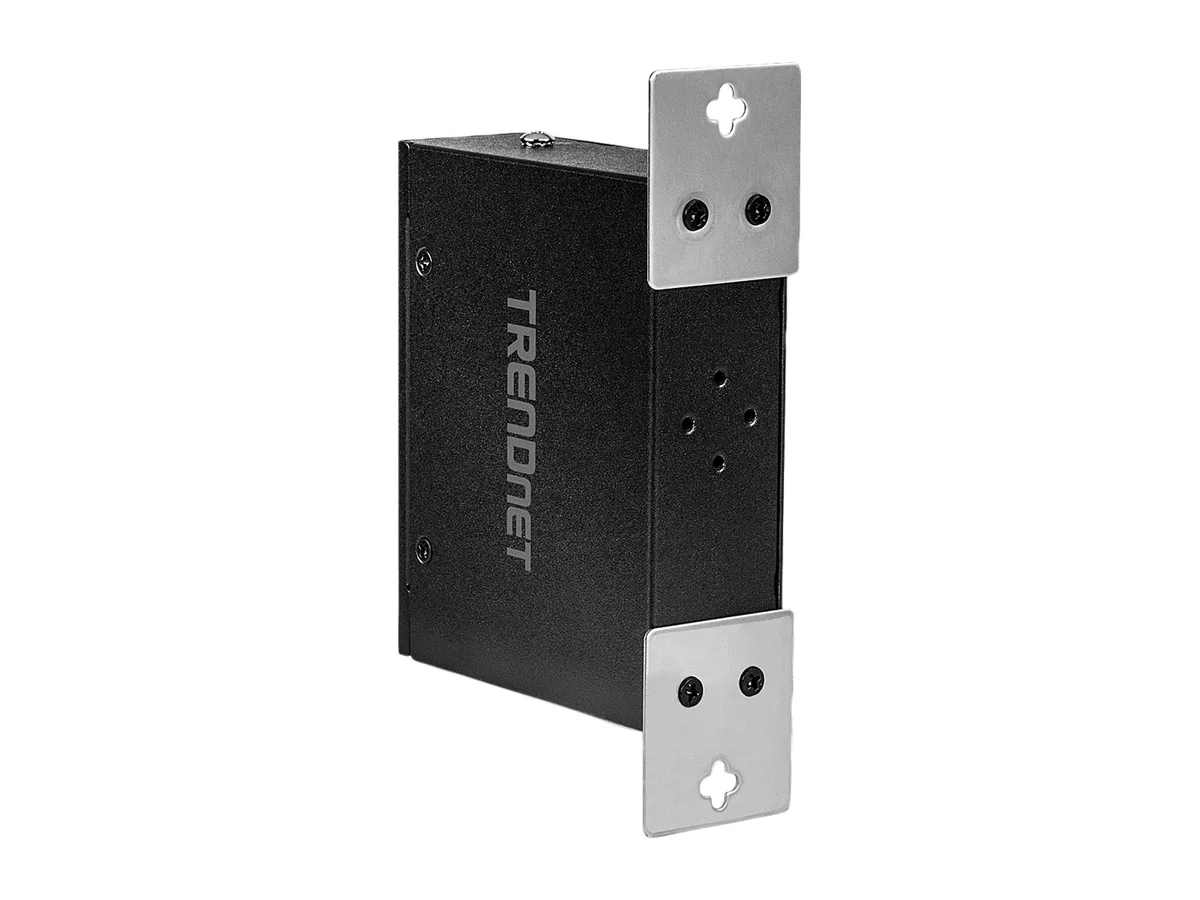

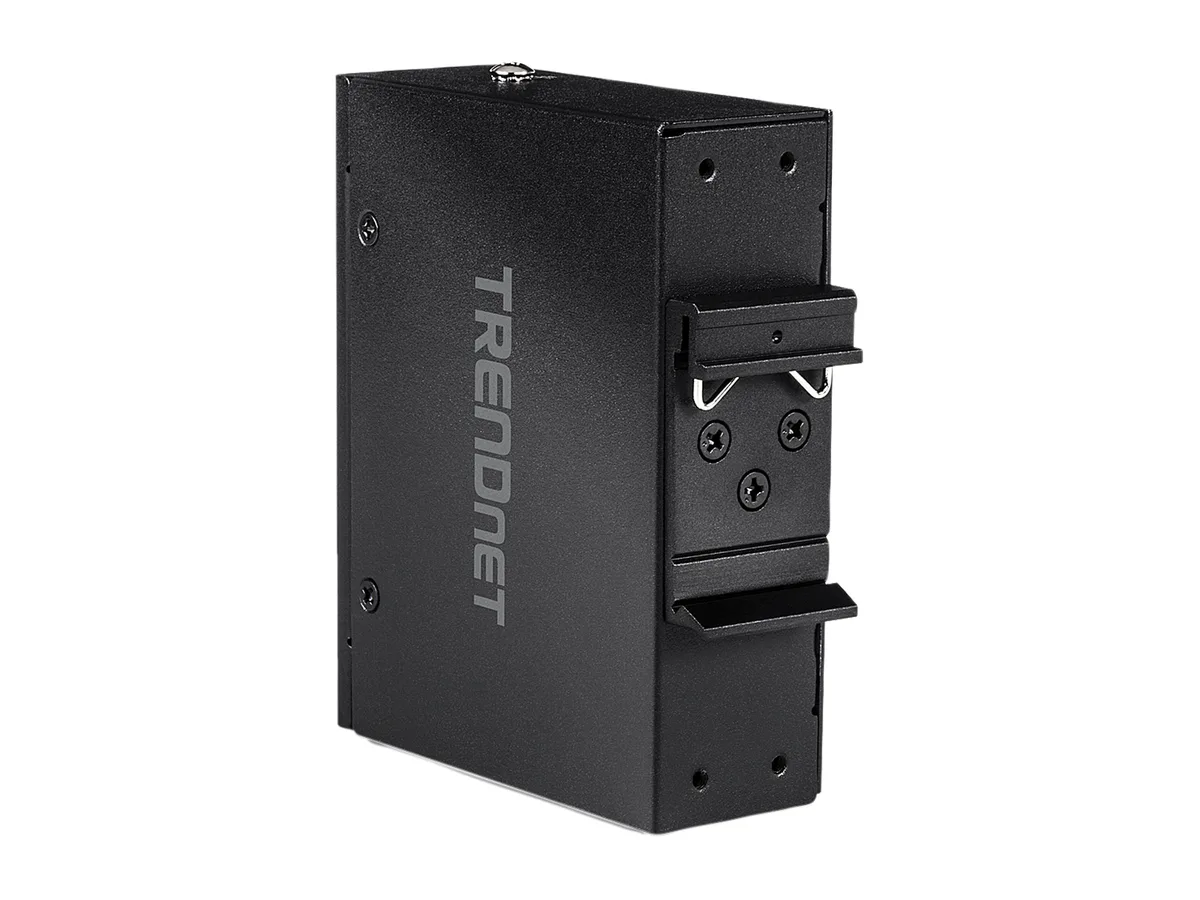

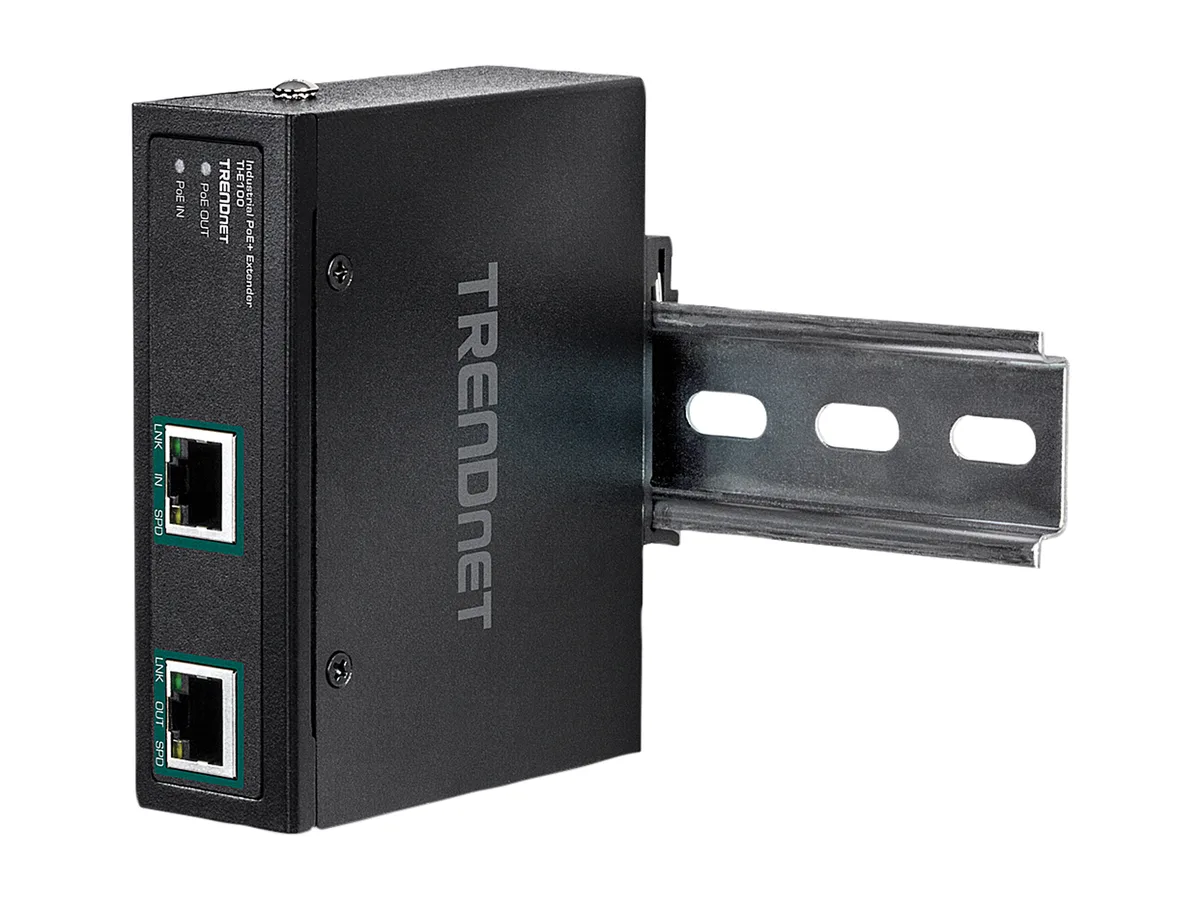

  • Wall or DIN-rail mounting fits industrial installations

Industrial PoE+ Range Extender

The TRENDnet TI-E100 is a Gigabit PoE+ extender built for industrial environments. It accepts a single PoE or PoE+ input and forwards both data and power to a remote device without needing a local power supply. The IP30-rated metal enclosure supports DIN-rail or wall mounting and operates across a wide temperature range of -40° to 75°C (-40° to 167°F).

Suited for remote camera or access-point installs

Installers who need to push a PoE connection beyond the standard 100m copper limit will find this unit fits the task. It adds up to 100m (328 ft.) per extender, and two units can be cascaded for a total reach of 300m (984 ft.) at 50V input. Buyers who require fibre uplink ports, managed switching features, or outdoor-rated enclosures should consider other product types.

Single-port Gigabit PoE+ passthrough

The decisive specification is the single Gigabit PoE+ input and single Gigabit PoE+ output port pair. This one-in, one-out architecture means each extender serves exactly one remote powered device. Projects that need to split power to multiple endpoints from a single cable run cannot use this device.

Highlights

  • Extends PoE connections 100 meters without external power
  • Daisy-chain two units for 300 meter total reach
  • IP30 enclosure withstands -40 to 75 °C environments
  • Gigabit PoE+ in and out ports maintain full speed
  • Wall or DIN-rail mounting fits industrial installations

Specifications

BrandTRENDnet
ModelTI-E100
Part NumberTI-E100
TypePoE Extender
ColorBlack
SpecificationsStandards
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at
Device Interface
1 x Gigabit PoE+ in port
1 x Gigabit PoE+ out port
LED indicators
DIN-Rail mount
Wall mount
Grounding point
Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit: 2000Mbps (full duplex)
Performance
Data RAM Buffer: 128KB
MAC Address Table: 2K
Jumbo Frame: 9KB
Housing
IP30 metal case
DIN-Rail mount
Wall mount
Grounding point
Contact 6kV, Air 8kV ESD protection
2kV surge protection
Operating Temperatur
FeaturesSpecial Features
Extends a PoE/PoE+ network connection an additional 100 meters
Cascade up to 2 units for a total distance of up to 300m (984 ft.) @50V power input
Cascade up to 3 units for a total distance of up to 400m (1312 ft.) @56V power input
ESD Contact 6kV/Air 8kV and Surge 2kV protection
PoE
Power input: 15.4W/30W/60W
Power output: 15.4W/30W
Max. consumption: 3.5W (no PoE)
Shipping weight0.45 kg
Package size152 × 127 × 64 mm

Questions about this item

What PoE standard must my existing switch or injector support to power the TI-E100?

The extender auto-detects IEEE 802.3af (15.4 W) or IEEE 802.3at (30 W) input, so your source equipment must comply with either standard.

If I keep an older 10/100 Mbps camera, will the TI-E100 still pass data and power to it?

Yes. The Gigabit PoE+ out port is backward compatible with IEEE 802.3 and 802.3u, so 10/100 devices receive both data and PoE/PoE+ power.

Which LED behaviour confirms the TI-E100 is extending the link correctly after installation?

The on-board LED indicators show power and link status; steady illumination on both ports means the extender has negotiated a valid PoE/PoE+ connection at up to 100 m.
