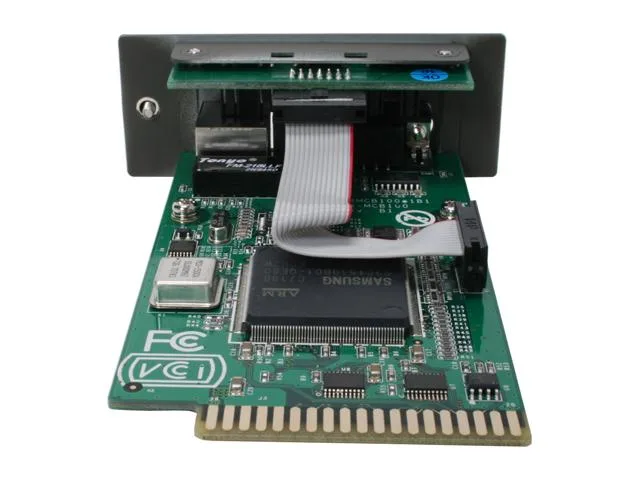

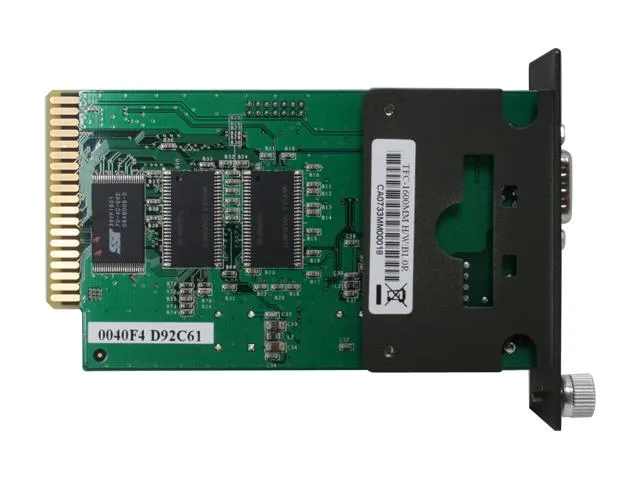

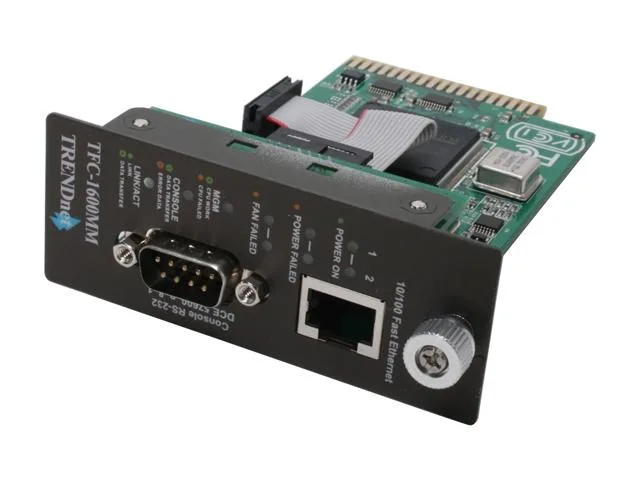

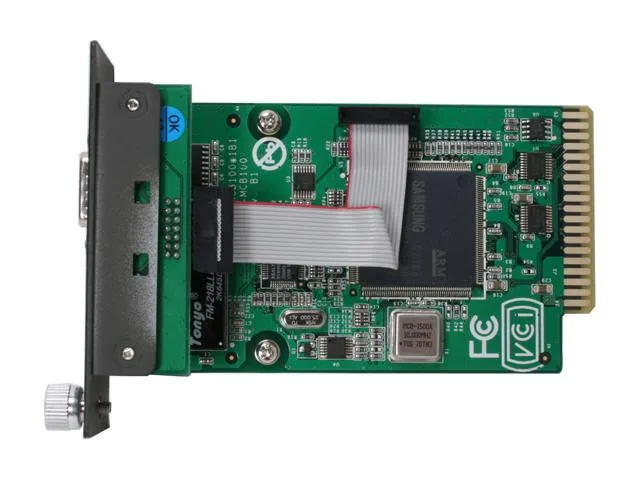

Compact rectangular network module with RJ45 and RS-232 ports, matte metal finish

TRENDnet

TRENDnet TFC-1600MM SNMP Management Module for TFC-1600 Chassis

SKU CH-ADDP-W18CD MPN TFC-1600MM

SNMP management module for the TFC-1600 chassis with web browser and command line interfaces, real-time converter monitoring, and fan and power supply status reporting

  • StandardsIEEE802.3, IEEE 802.3u
  • Ports1 x 10/100Mbps Fast Ethernet RJ45 port and 1 x RS-232 Consol
  • Feature1 x 10/100Mbps Fast Ethernet RJ45 port and 1 x RS-232 Consol
  • Weight0.85
  • SNMP reporting enables remote chassis monitoring
  • Real-time stats display converter speed and link activity
  • Dual management via web browser or console CLI
  • Gigabit port provides fast management connectivity
  • Fan and power supply status reported instantly

Management module for TFC-1600 chassis

The TFC-1600MM slides into a TFC-1600 fiber chassis and gives administrators SNMP and web-browser control over installed media converters and power supplies. It is aimed at network teams that need central visibility of link status, duplex state and converter speed without visiting each device.

Thermals and power reporting

The module polls the chassis cooling fan and power supply units, then surfaces real-time status through SNMP v1, v2c or v3 traps and a web dashboard. No external power adapter is required; the unit draws its supply from the chassis backplane.

Console and Ethernet access

A front-panel RS-232 console port offers a command-line interface for initial setup or out-of-band troubleshooting. The 10/100 Mbps RJ-45 management port enables browser-based configuration and remote monitoring from any workstation on the LAN.

Highlights

  • SNMP reporting enables remote chassis monitoring
  • Real-time stats display converter speed and link activity
  • Dual management via web browser or console CLI
  • Gigabit port provides fast management connectivity
  • Fan and power supply status reported instantly

Specifications

BrandTRENDnet
ModelTFC-1600MM
StandardsIEEE802.3, IEEE 802.3u
Ports1 x 10/100Mbps Fast Ethernet RJ45 port and 1 x RS-232 Console ports for management
Feature1 x 10/100Mbps Fast Ethernet RJ45 port and 1 x RS-232 Console ports for management
Web Browser Based Management via Ethernet port or Command Line Interface Management via RS-232 port
SNMP Agent
Provides media Link/Connection Speed/Duplex status for each module
Provides Cooling Fans and Power Supplies status
Weight0.85
Shipping weight0.29 kg
Package size229 × 171 × 48 mm

Questions about this item

How do I install the TFC-1600MM module into the TFC-1600 chassis, and which step is commonly missed?

Slide the module into an empty management slot until it clicks, then secure the retaining screws; the step often missed is connecting the RS-232 console cable before configuring the SNMP agent via the web browser.

What maintenance will the TFC-1600MM require over time?

The module itself has no moving parts, but it monitors the chassis cooling fan and power supply status; plan to replace those chassis components when the SNMP alerts report a degradation.

What is the first limitation I will hit when running the management module continuously?

The 10/100Mbps Fast Ethernet RJ45 management port caps bandwidth at 100Mbps, so heavy SNMP polling or sustained web-interface traffic will saturate that link before the module processor does.
