White square ceiling-mounted wireless access point with smooth matte finish and subtle brand logo

TRENDnet

TRENDnet TEW-925DAP AX5400 WiFi 6 PoE+ access point

SKU CH-C1HK-4YENZ MPN TEW-925DAP

Dual-band Wi-Fi 6 access point with PoE+ power and AX5400 speeds up to 4804 Mbps on 5 GHz and 573 Mbps on 2.4 GHz

  • WiFi GenerationWi-Fi 6
  • Frequency Band2.4GHz: 2.412 – 2.462GHz 5GHz: 5.150 – 5.250GHz, 5.745 – 5.8
  • StandardsIEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3at
  • Device ManagementManagement/Monitoring Web based management (HTTP/HTTPS) Comm
  • SecurityAccess Control Wireless encryption: WPA2/WPA3-RADIUS (Enterp
  • ChannelsWireless Channels 2.4GHz: FCC: 1–11 5GHz: FCC: 36, 40, 44, 4
  • AX5400 WiFi 6 delivers 4804Mbps on 5GHz and 573Mbps on 2.4GHz
  • PoE+ powers the AP over a single cable for simpler installs

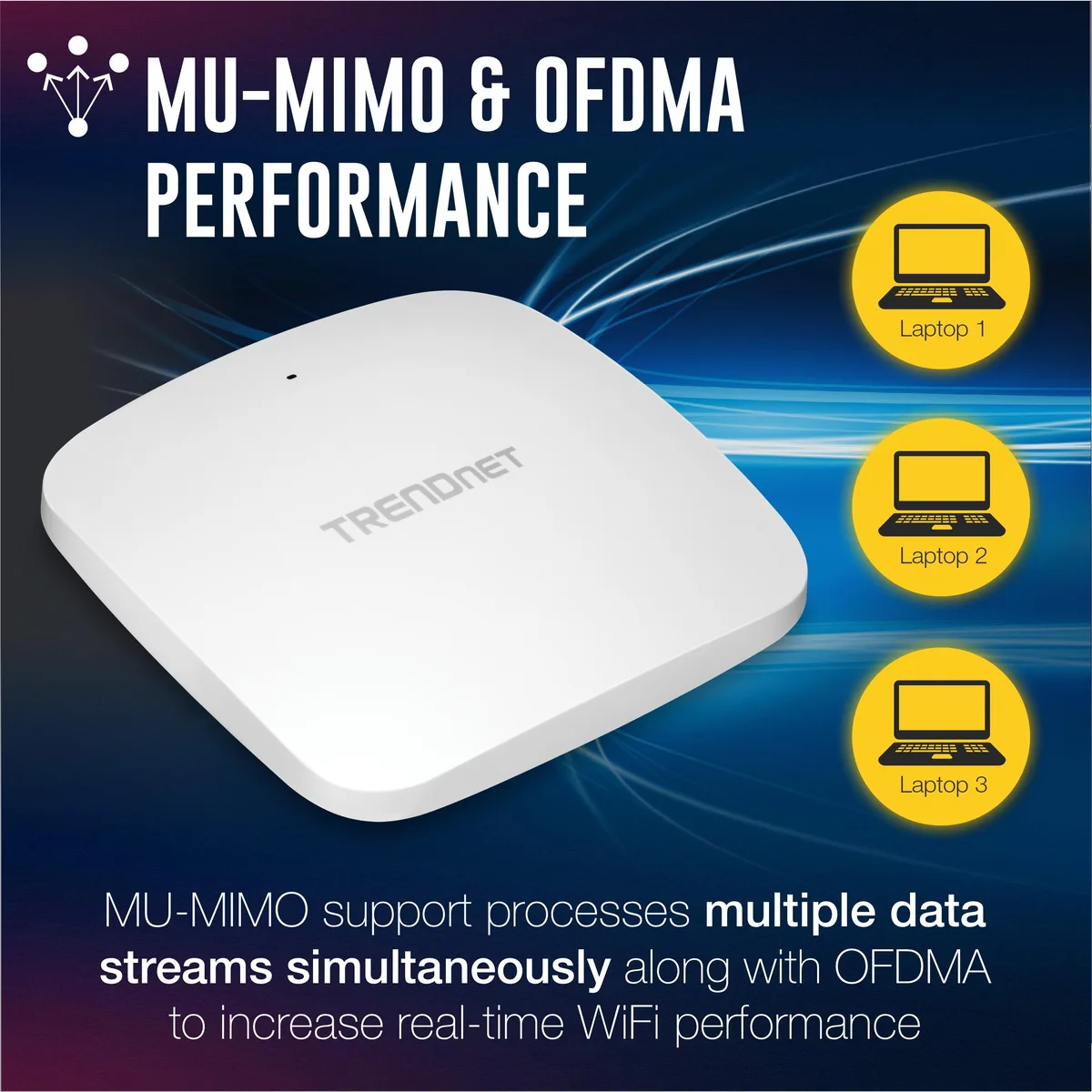

  • MU-MIMO handles many devices at once for smoother throughput
  • Up to 16 SSIDs with VLAN tagging segment traffic securely
  • NDAA and TAA compliant for regulated deployments

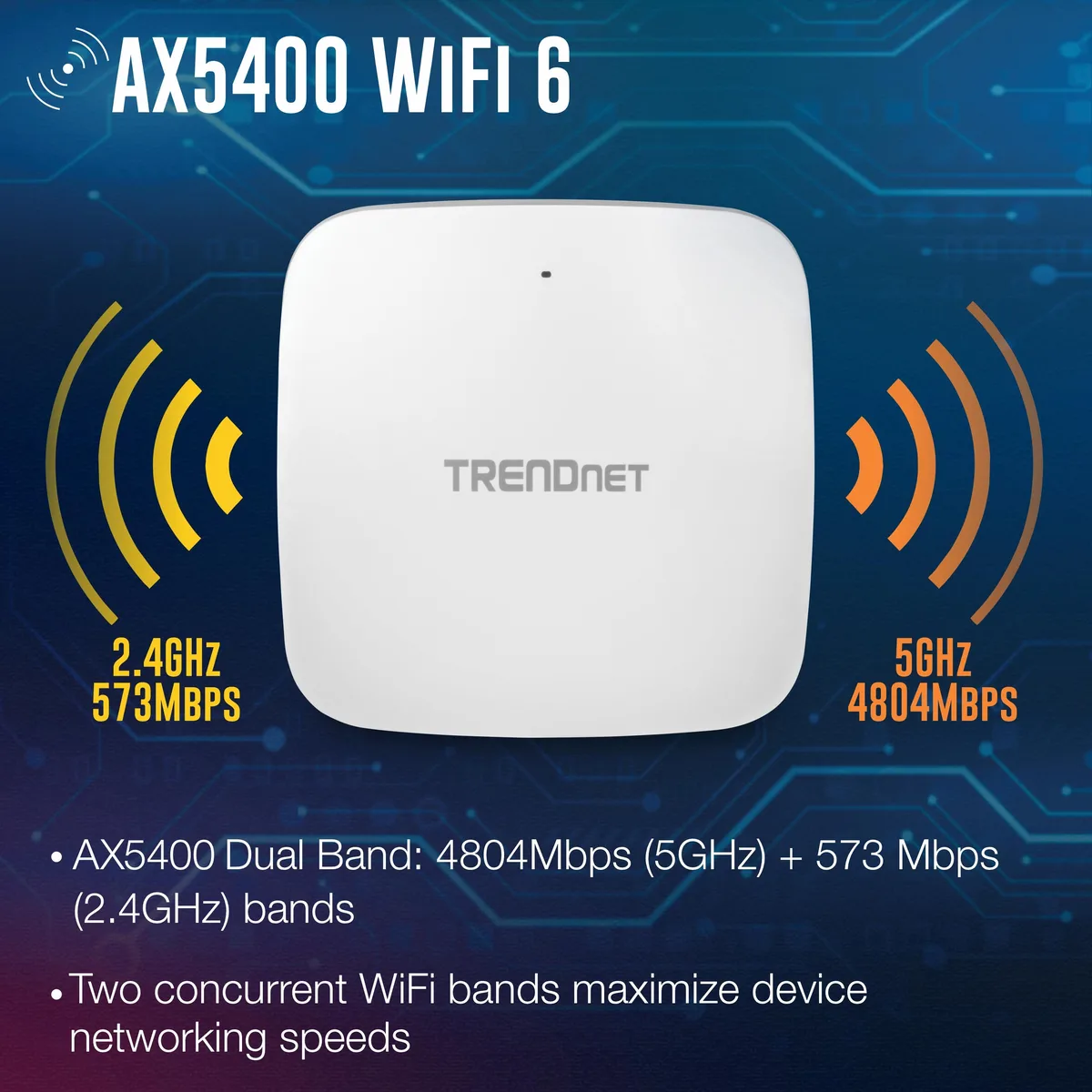

AX5400 Dual-Band WiFi 6 Access Point

The TEW-925DAP delivers concurrent 5 GHz and 2.4 GHz operation with combined data rates up to 4804 Mbps and 573 Mbps. It is built for indoor deployments that need high-density client support and simplified cabling through PoE+.

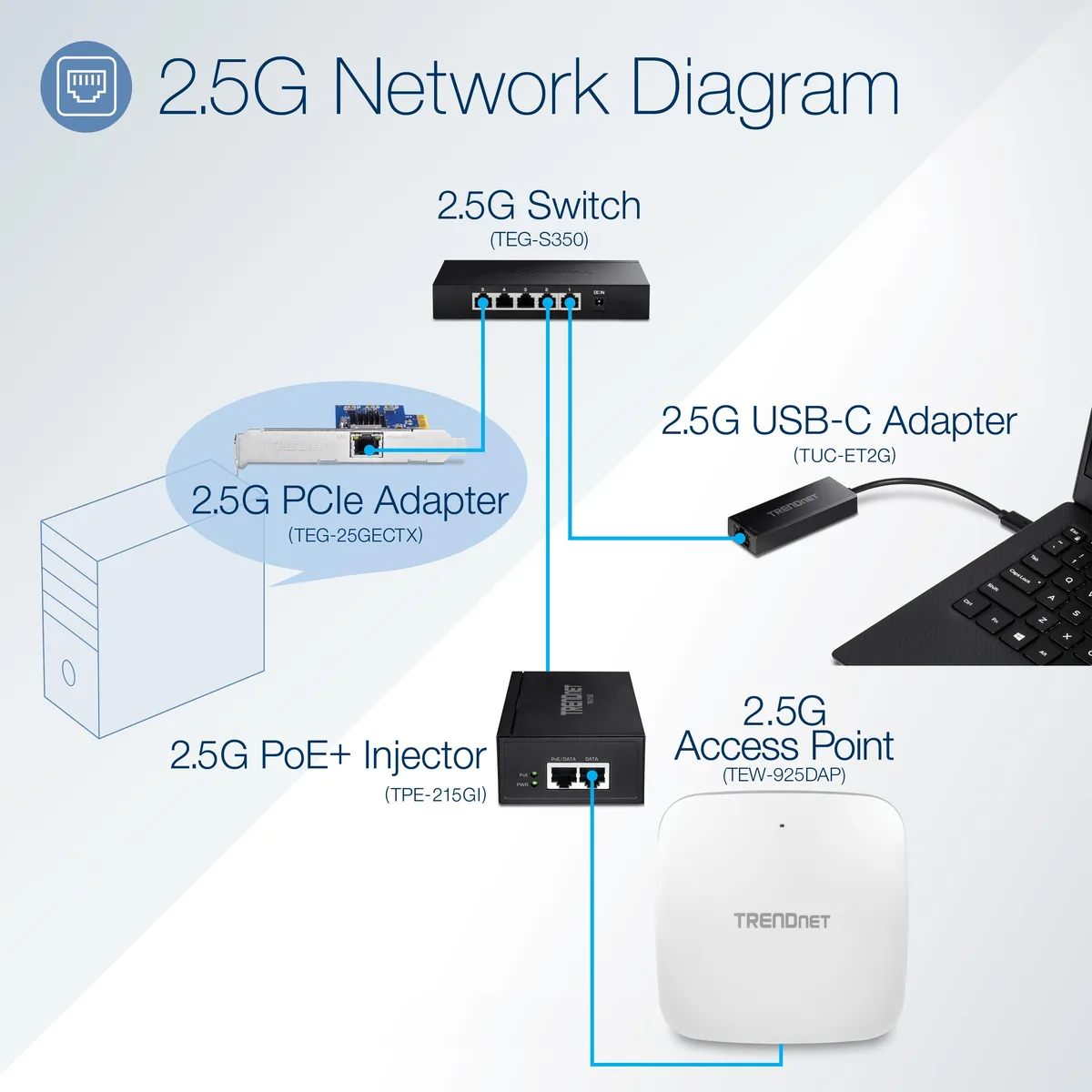

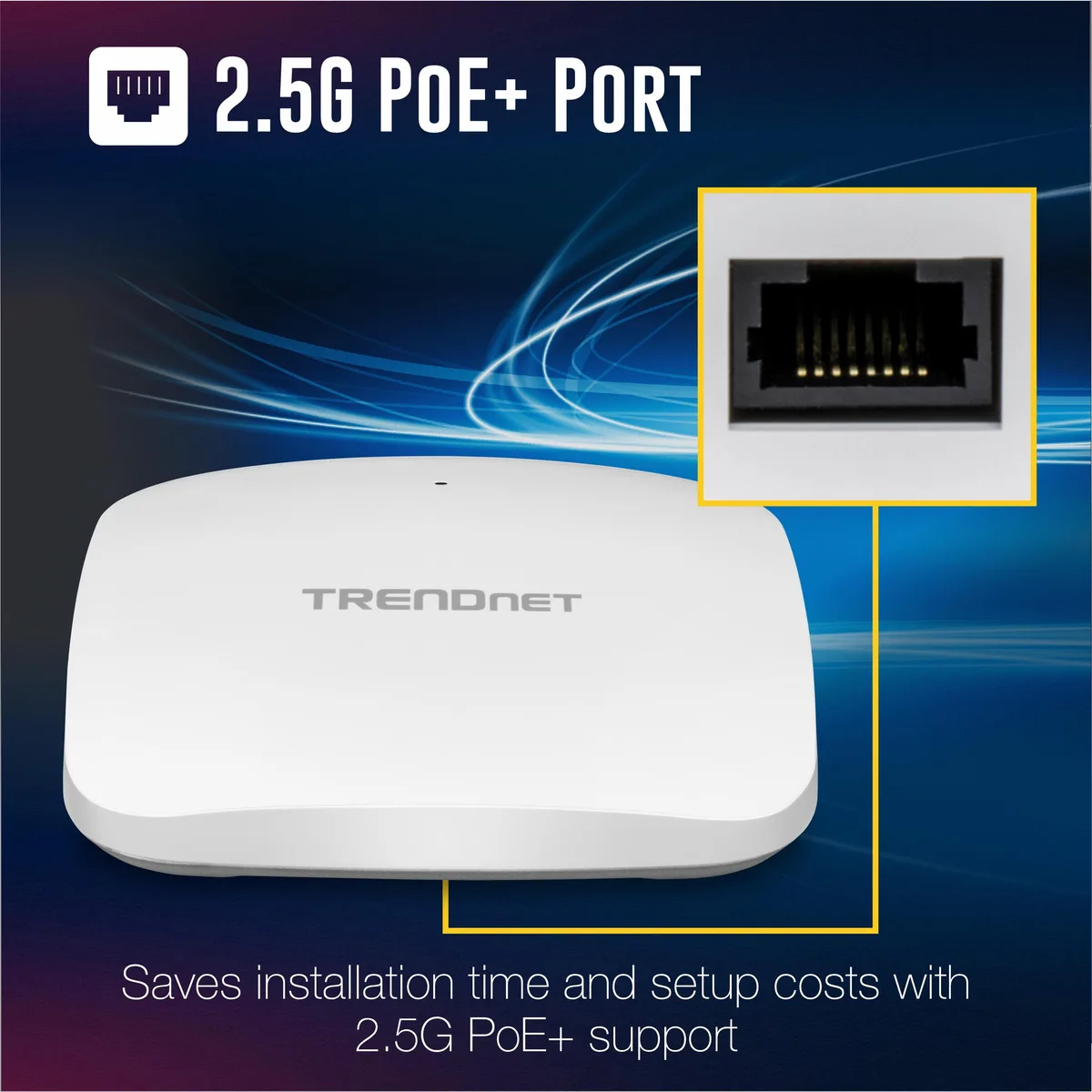

PoE+ Power and 2.5GbE Uplink Limits

The unit draws up to 18 W from an IEEE 802.3at Type 2 Class 4 source, so the switch or injector must budget that power per port. Its single 2.5GbE Ethernet interface caps total wired throughput, which can become a bottleneck when both radios run near peak capacity.

Sixteen SSIDs With Per-SSID VLAN Tagging

Up to eight SSIDs per band are available, each mapped to an 802.1Q VLAN for traffic segmentation. Environments that require more than sixteen distinct broadcast domains or per-client VLAN assignment beyond the SSID level will need additional access points.

Highlights

  • AX5400 WiFi 6 delivers 4804Mbps on 5GHz and 573Mbps on 2.4GHz
  • PoE+ powers the AP over a single cable for simpler installs
  • MU-MIMO handles many devices at once for smoother throughput
  • Up to 16 SSIDs with VLAN tagging segment traffic securely
  • NDAA and TAA compliant for regulated deployments

Specifications

WiFi GenerationWi-Fi 6
Frequency Band2.4GHz: 2.412 – 2.462GHz
5GHz: 5.150 – 5.250GHz, 5.745 – 5.825GHz
StandardsIEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3at
IEEE 802.3bz
IEEE 802.1Q
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11k**
IEEE 802.11n (up to 300Mbps)*
IEEE 802.11r**
IEEE 802.11v
IEEE 802.11ac (up to 1733Mbps)*
IEEE 802.11ax (up to 4804Mbps on 5GHz, up to 573Mbps on 2.4GHz)*
Device ManagementManagement/Monitoring
Web based management (HTTP/HTTPS)
Command Line Interface (Telnet/SSH)
SNMP v2c/v3
Spanning Tree Protocol (STP)
Event logging
Ping test
Traceroute
Schedule WiFi radio enable/disable
Ping watchdog/gateway connection monitor
Reboot & scheduled automatic reboot
Channel utilization scan
SecurityAccess Control
Wireless encryption: WPA2/WPA3-RADIUS (Enterprise), WPA2/WPA3-PSK (Personal)
MAC filter with scheduling
Maximum client limit
Client isolation
ChannelsWireless Channels
2.4GHz: FCC: 1–11
5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165
AntennaAntenna Gain
2.4GHz: 2 x 4.5 dBi internal
5GHz: 2 x 5 dBi internal
Receiver Sensitivity802.11a: -69 dBm (typical) @ 54Mbps
802.11b: -84 dBm (typical) @ 11Mbps
802.11g: -71 dBm (typical) @ 54Mbps
802.11n (2.4 GHz): -67 dBm (typical) @ 300Mbps
802.11n (5 GHz): -58 dBm (typical) @ 300Mbps
802.11ac: -57 dBm (typical) @ 1733Mbps
802.11ax (2.4GHz): -54 dBm (typical) @ 573Mbps
802.11ax (5GHz): -52 dBm (typical) @ 4804Mbps
Mounting LocationIndoor
Multiple SSIDsUp to 8 SSIDs per wireless band (16 total)
Power SupplyIEEE 802.3at Type 2 PoE+ PD Class 4
Input: 100 - 240V AC, 50/60Hz
Max Power Consumption18 W
BrandTRENDnet
ModelAX5400
Part NumberTEW-925DAP
Dimensions160 x 160 x 30mm (6.3 x 6.3 x 1.18 in.)
Weight600g (21.16 oz.)
FeaturesMU-MIMO
Band steering
802.1Q VLAN assignment per SSID
IPv4 static/DHCP address assignment
UPnP/Bonjour
Package ContentsTEW-925DAP
Quick Installation Guide
Network cable (0.5 m/1.64 ft.)
Mounting plates
Shipping weight9.60 kg
Package size160 × 160 × 30 mm

Questions about this item

Should I choose the 5 GHz band with 4804 Mbps or the 2.4 GHz band with 573 Mbps for my main devices?

The 5 GHz band delivers 4804 Mbps maximum speed and suits high-throughput devices close to the AP; the 2.4 GHz band provides 573 Mbps with better wall penetration for IoT or legacy clients.

What does the AX5400 label mean for real-world throughput on my laptop?

AX5400 combines the 5 GHz 4804 Mbps and 2.4 GHz 573 Mbps theoretical maxima; a single Wi-Fi 6 laptop typically connects to one band at a time, so expect up to 4804 Mbps link rate on 5 GHz under ideal conditions.

How does the 2.5 GbE PoE+ port limit the wireless speed I can achieve?

The 2.5 GbE wired uplink caps total traffic to and from the AP at 2.5 Gbps, which is lower than the 5 GHz radio's 4804 Mbps ceiling, so sustained throughput cannot exceed the wired link.
