TRENDnet TEW-923DAP AX3000 media bridge
Dual-band WiFi 6 access point and repeater with 2.5GBASE-T PoE+ LAN port delivering 2402Mbps on 5GHz and 573Mbps on 2.4GHz bands
- StandardsWireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax Encryption
- Frequency Band5 GHz/2.40 GHz
- InterfaceNetwork Band: Dual Band Wireless Transmission Speed: 2.91 Gb
- Weight1.7100
- Features• High performance AX3000 PoE+ access point • AX3000 Dual Ba
- Package ContentsAX3000 Dual Band WiFi 6 PoE+ Access Point Quick Installation
- AX3000 dual-band WiFi 6 delivers 2402 Mbps on 5 GHz and 573 Mbps on 2.4 GHz for fast wireless throughput
- 5 GBASE-T PoE+ LAN port provides high-speed wired connectivity and power over a single cable
- OFDMA and MU-MIMO technology enables simultaneous multi-device streams for smoother performance in busy environments
- WPA3 encryption support protects the network with the latest security standard
- Access Point and Repeater modes extend coverage or create new wireless zones from one device
AX3000 PoE+ media bridge

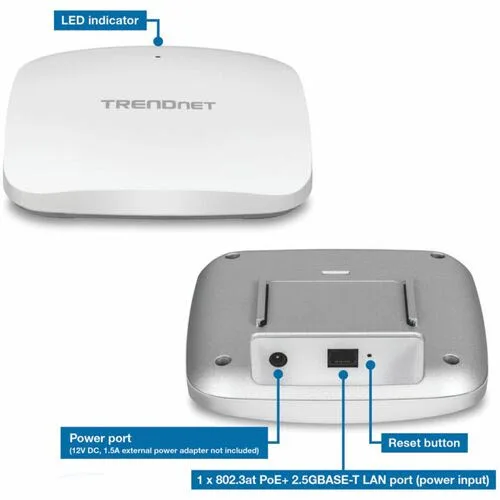

The TRENDnet TEW-923DAP is a dual-band WiFi 6 access point that also operates as a media bridge. It connects wired devices such as smart TVs or game consoles to a wireless network through its single 2.5GBASE-T PoE+ LAN port. The low-profile housing includes mounting plates for wall or ceiling installation.
Sustained multi-device throughput
OFDMA and MU-MIMO technologies process multiple data streams at once, keeping performance stable when many clients are active. The 2.4 GHz band delivers 573 Mbps and the 5 GHz band delivers 2402 Mbps for a combined 2.91 Gbit/s link rate. WPA3 encryption secures traffic without adding latency overhead.
2.5GBASE-T PoE+ uplink
The single RJ-45 port runs at 2.5 Gbit/s and accepts PoE+ power, so no separate adapter is needed. Buyers whose switch only provides 1 Gbit/s ports or standard PoE will not get the rated throughput or power budget.
Highlights
- AX3000 dual-band WiFi 6 delivers 2402 Mbps on 5 GHz and 573 Mbps on 2.4 GHz for fast wireless throughput
- 5 GBASE-T PoE+ LAN port provides high-speed wired connectivity and power over a single cable
- OFDMA and MU-MIMO technology enables simultaneous multi-device streams for smoother performance in busy environments
- WPA3 encryption support protects the network with the latest security standard
- Access Point and Repeater modes extend coverage or create new wireless zones from one device
Specifications
| Brand | TRENDnet |
|---|---|
| Model | TEW-923DAP |
| Part Number | TEW-923DAP |
| Standards | Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax Encryption Standard: WPA3-SAE WPA2-ENT WPA2-PSK WPA3-ENT |
| Frequency Band | 5 GHz/2.40 GHz |
| Interface | Network Band: Dual Band Wireless Transmission Speed: 2.91 Gbit/s Interfaces/Ports Number of Network (RJ-45) Ports: 1 PoE PD Port: Yes |
| Weight | 1.7100 |
| Features | • High performance AX3000 PoE+ access point • AX3000 Dual Band: 2402Mbps (5GHz) + 573Mbps (2.4GHz) bands • Two concurrent WiFi bands maximize device networking speeds • OFDMA and MU-MIMO technology boosts performance in a busy environment • Access Point and Repeater modes • Supports up to WPA3 encryption • 1 x 2.5GBASE-T PoE+ LAN port • Low-profile blends into most environments • Includes wall / ceiling mounting plate • NDAA / TAA compliant (U.S. and Canada only) |
| Package Contents | AX3000 Dual Band WiFi 6 PoE+ Access Point Quick Installation Guide Network Cable (0.5m / 1.64 ft.) Mounting Plates |
| Shipping weight | 0.66 kg |
| Package size | 269 × 170 × 41 mm |
Questions about this item
Does the TEW-923DAP run hot or draw much power when it operates 24/7?
The unit is powered through its single 2.5GBASE-T PoE+ port, so it adds no separate power adapter and draws only what the PoE+ supply provides.
What must I already own for this access point to work?
You need a PoE+ injector or a PoE+ switch port and a standard Ethernet cable; the box includes a 0.5 m cable and mounting hardware.
Will the 2.5GBASE-T port slow down if I connect it to my older gigabit switch?
The port auto-negotiates, so it will link at 1 Gbps with a gigabit switch and still pass WiFi 6 traffic at up to 2402 Mbps on 5 GHz and 573 Mbps on 2.4 GHz.
