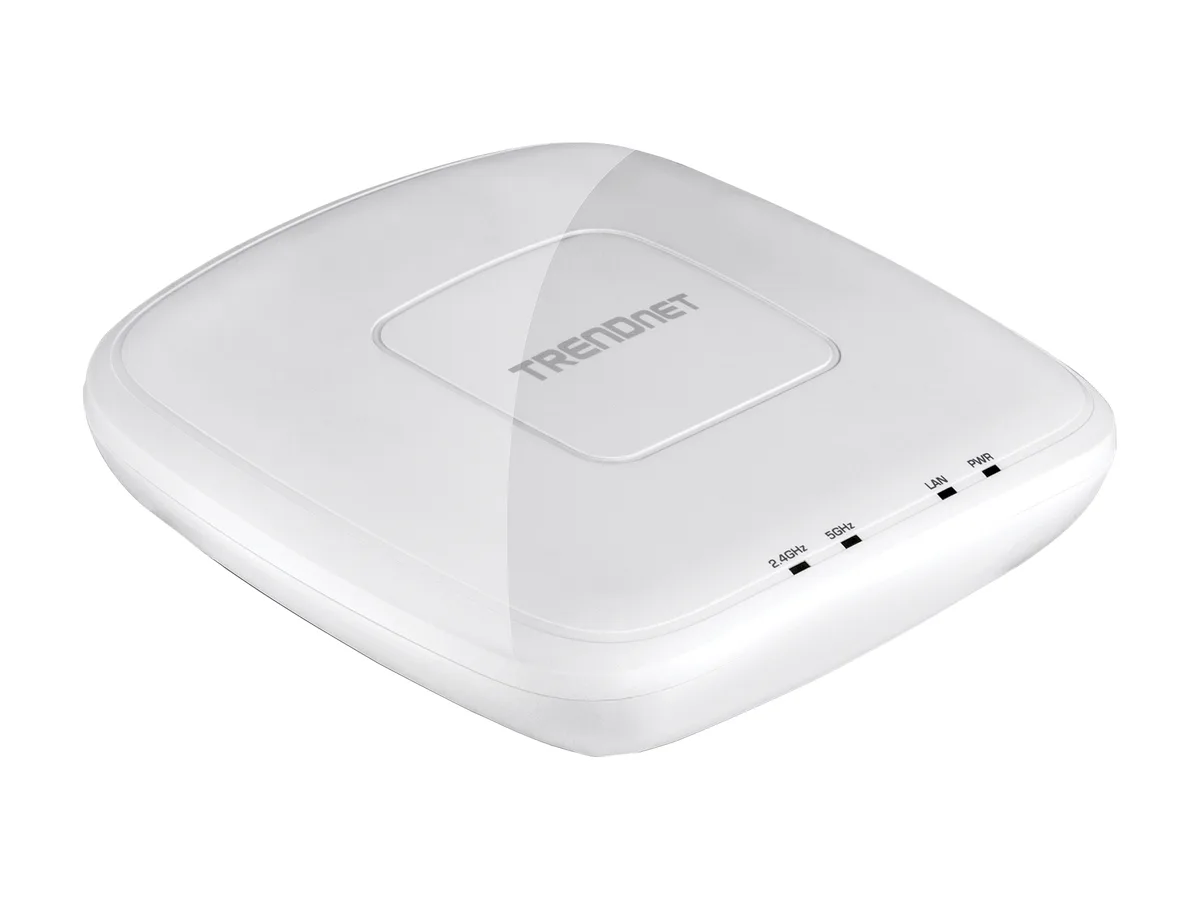

White square low-profile access point with four internal antennas and a gigabit PoE port

TRENDnet

TRENDnet TEW-821DAP AC1200 Dual Band PoE access point

SKU CH-YXVK-KR8ZA MPN TEW-821DAP

Dual-band PoE access point delivers concurrent 867 Mbps WiFi AC and 300 Mbps WiFi N with multiple operating modes and included management software

  • StandardsIEEE 802.1Q IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab
  • Wireless Data RatesUp to 1.2Gbps
  • Frequency Band2.4 GHz: 2.412 - 2.472 GHz 5 GHz: 5.180 – 5.8525 GHz
  • Antenna2.4 GHz: 2x 4dBi 5 GHz: 2x 4dBi
  • Receiver Sensitivity802.11a: FCC: 24 dBm, CE: 22 dBm (Max.) /-65 dBm (typical) @
  • ModulationDBPSK/DQPSK/CCK for DSSS technique BPSK/QPSK/16-QAM/64-QAM/2
  • Dual-band AC1200 delivers 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz simultaneously
  • Gigabit PoE port powers the unit over the network cable, no separate outlet needed
  • Six operating modes including AP, Client, WDS and Repeater suit many deployment scenarios
  • Windows software controller manages multiple units with QoS, band steering and captive portal
  • Low-profile housing with included mounting bracket blends into ceilings or walls

AC1200 PoE access point for commercial Wi-Fi

The TEW-821DAP is a dual-band wireless access point that delivers concurrent 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz. It supports access point, client, WDS and repeater modes for flexible network design. The integrated PoE Gigabit LAN port simplifies deployment by carrying data and power over a single cable. A Windows-based software controller manages multiple units from one interface.

Check PoE infrastructure and mounting surface

Verify that your network switch or injector supplies IEEE 802.3af power over Ethernet to the single Gigabit port. Confirm the mounting location offers a flat wall or ceiling area for the included bracket and cable guard. Ensure the ambient temperature stays between 0°C and 40°C with non-condensing humidity below 95 percent. The unit requires a 12 V DC, 1 A supply if PoE is unavailable.

Low-profile housing with integrated mounting bracket

The compact enclosure measures 1.80 inches high by 7.30 inches wide and deep, weighing 1.01 lbs, so it blends into most ceilings and walls. Four fixed 4 dBi antennas (two per band) provide omnidirectional coverage without external adjustment. The captive mounting plate includes a cable guard that protects the Ethernet connection from strain. A 1.5 metre network cable and power adapter are supplied for non-PoE installations.

Highlights

  • Dual-band AC1200 delivers 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz simultaneously
  • Gigabit PoE port powers the unit over the network cable, no separate outlet needed
  • Six operating modes including AP, Client, WDS and Repeater suit many deployment scenarios
  • Windows software controller manages multiple units with QoS, band steering and captive portal
  • Low-profile housing with included mounting bracket blends into ceilings or walls

Specifications

BrandTRENDnet
ModelTEW-821DAP
StandardsIEEE 802.1Q
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3af
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n (up to 300 Mbps)
IEEE 802.11ac (up to 867 Mbps)
Wireless Data RatesUp to 1.2Gbps
Frequency Band2.4 GHz: 2.412 - 2.472 GHz
5 GHz: 5.180 – 5.8525 GHz
Antenna2.4 GHz: 2x 4dBi
5 GHz: 2x 4dBi
Receiver Sensitivity802.11a: FCC: 24 dBm, CE: 22 dBm (Max.) /-65 dBm (typical) @ 54 Mbps
802.11b: FCC: 23 dBm (Max.), CE: 10 dBm (Max) /-83 dBm (typical) @ 11 Mbps
802.11g: 19 dBm (Max.), CE: 12 dBm (Max.) /-65 dBm (typical) @ 54 Mbps
802.11n: FCC: 19 dBm (Max.), CE: 12 dBm (Max.) /-64 dBm (typical) @ 300 Mbps 2.4 GHz
802.11n: FCC: 24 dBm, CE: 22 dBm (Max.)/-61 dBm (typical) @ 300 Mbps 5 GHz
802.11ac: FCC: 15 dBm, CE: 22 dBm (Max.)/-51 dBm (typical) @ 867 Mbps
ModulationDBPSK/DQPSK/CCK for DSSS technique
BPSK/QPSK/16-QAM/64-QAM/256-QAM for OFDM technique
System RequirementsWindows 8.1, 8, 7, Vista, XP
Interface1 x PoE Gigabit LAN port
Power Supply12 V / 1A consumption: 9.6 Watts Max
Temperature0°C - 40°C (32°F - 104°F)
Humidity95% Maximum, Non-Condensing
Dimensions1.80" x 7.30" x 7.30"(H x W x D)
Weight1.01 lbs.
FeaturesHigh performance AC1200 PoE access point
AC1200: concurrent 867 Mbps WiFi AC + 300 Mbps WiFi N bands
Access Point, Client, WDS AP, WDS Bridge, WDS Station, and Repeater modes
Included software controller aides WiFi network management
Gigabit PoE LAN port
Off-white low profile housing blends into the environment
Mounting plate
Package ContentsTEW-821DAP
5 ft. (1.5 m) network cable
CD-ROM (Utility and User’s Guide)
Quick Installation Guide
Power adapter (12V DC, 1A)
Mounting bracket
Shipping weight0.99 kg
Package size305 × 236 × 84 mm

Questions about this item

Does the TEW-821DAP ship with a network cable and a power adapter, or must they be purchased separately?

The box contains a 1.5 m network cable and a 12 V, 1 A power adapter, along with the access point, a mounting bracket, a CD-ROM and a quick installation guide.

Which band should I prioritise for high-throughput clients, the 867 Mbps AC band or the 300 Mbps N band?

Connect modern devices to the 5 GHz band for up to 867 Mbps WiFi AC performance; legacy 2.4 GHz clients operate at up to 300 Mbps WiFi N.

What does the AC1200 label mean for real-world throughput on the Gigabit PoE LAN port?

AC1200 indicates concurrent 867 Mbps on 5 GHz plus 300 Mbps on 2.4 GHz; the Gigabit PoE port can carry the combined wireless traffic to the wired network.
