TRENDnet

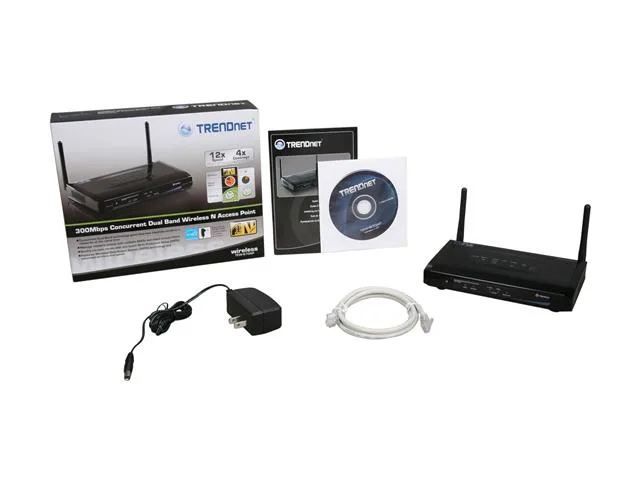

TRENDnet TEW-670AP 300Mbps dual-band Wireless N access point
Concurrent dual-band Wireless N access point delivers up to 300Mbps with separate 2.4GHz and 5GHz networks, four SSIDs per band, WPA2-RADIUS security and a 10/100Mbps Ethernet port
- StandardsIEEE 802.3/3u, IEEE 802.11a/b/g/n
- Device ManagementWeb-Based
- Wireless Data RatesUp to 300Mbps
- Security64/128-bit WEP, WPA-PSK(TKIP)/WPA2-PSK(AES), WPA/WPA2-RADIUS
- Frequency Band2.412 ~ 2.484GHz 5.150~5.250GHz; 5.725~5.825GHz (FCC) 5.150~
- Channels2.4GHz : 1~11 (FCC), 1~13 (ETSI) 5GHz : following local regu
- Concurrent dual-band creates separate 2.4GHz and 5GHz networks
- Up to 300Mbps wireless N speed for high-bandwidth tasks
- Web-based management with multiple SSID and VLAN support
- WPA2-RADIUS encryption plus WPS button for secure, easy device pairing
- 10/100Mbps Ethernet port with Auto-MDIX for flexible wired uplinks
Dual-band Wireless N access point
The TRENDnet TEW-670AP creates concurrent 2.4GHz and 5GHz wireless networks with data rates up to 300Mbps. It supports IEEE 802.11a/b/g/n standards and offers web-based management for configuration. This access point suits small businesses or home offices needing separate bands for different traffic types.
Sustained operation on two frequency bands
Concurrent dual-band operation keeps the 2.4GHz and 5GHz radios active simultaneously, spreading client load across both frequencies. MIMO antenna technology with two 3dBi fixed dipole and two 4dBi internal antennas helps reduce dead spots during continuous use. The unit operates within a 0°C to 45°C temperature range and up to 85% non-condensing humidity.
Check your network infrastructure first
A wired Ethernet connection is required for the single 10/100Mbps WAN port to link the access point to your existing router or switch. The device needs a 12V DC, 1A external power adapter, included in the box, and a power outlet nearby. Ensure your clients support 802.11a/b/g/n to use both frequency bands.
Highlights
- Concurrent dual-band creates separate 2.4GHz and 5GHz networks
- Up to 300Mbps wireless N speed for high-bandwidth tasks
- Web-based management with multiple SSID and VLAN support
- WPA2-RADIUS encryption plus WPS button for secure, easy device pairing
- 10/100Mbps Ethernet port with Auto-MDIX for flexible wired uplinks
Specifications
| Brand | TRENDnet |
|---|---|
| Model | TEW-670AP |
| Standards | IEEE 802.3/3u, IEEE 802.11a/b/g/n |
| Device Management | Web-Based |
| Wireless Data Rates | Up to 300Mbps |
| Security | 64/128-bit WEP, WPA-PSK(TKIP)/WPA2-PSK(AES), WPA/WPA2-RADIUS Multiple SSID and SSID isolation support WPS |
| Frequency Band | 2.412 ~ 2.484GHz 5.150~5.250GHz; 5.725~5.825GHz (FCC) 5.150~5.250MHz (ETSI) |
| Channels | 2.4GHz : 1~11 (FCC), 1~13 (ETSI) 5GHz : following local regulations |
| Antenna | 2 x 3dBi fixed dipole antennas 2 x 4dBi internal antennas |
| Receiver Sensitivity | 802.11a: -70dBm (typical) 802.11b: -87dBm (typical) 802.11g: -70dBm (typical) 802.11n: -64dBm (typical) |
| Modulation | OFDM: BPSK, QPSK, 16-QAM, 64-QAM DBPSK, DQPSK, CCK |
| System Requirements | Windows, Linux, and Mac |
| Interface | Ethernet Port |
| LEDs | Power, 2.4GHz WLAN, 5GHz WLAN, WPS, ETHERNET |
| WAN Ports | 1 x 10/100Mbps Auto-MDIX port |
| Power Supply | 12V DC, 1A external power adapter |
| Temperature | 0°C - 45°C (32°F - 113°F) |
| Humidity | Max. 85% (non-condensing) |
| Dimensions | 6.7" x 4.4" x 1.0" |
| Features | WPS Button: Wi-Fi Protected Setup (WPS) with other WPS compliant devices WDS: Enable/disable Wireless Distribution System support User isolation support (AP mode) and MAC address filter controls Wi-Fi Multimedia (WMM) QoS data prioritization Easy setup via Web browser using the latest versions of Internet Explorer, FireFox, and Safari. |
| Shipping weight | 1.13 kg |
| Package size | 254 × 210 × 70 mm |
Questions about this item
How much power does the TEW-670AP draw when running continuously?
The unit ships with a 12V DC 1A external power adapter, so maximum draw is 12 watts. It operates from 0°C to 45°C with no fan, so heat output stays low in a ventilated spot.
What wired connection must already exist for this access point to join the network?
You need a free 10/100 Mbps Ethernet port on your router or switch; the TEW-670AP has a single WAN port with Auto-MDIX so a standard patch cable is all that is required.
Will the 5 GHz radio on the TEW-670AP work with older 802.11a devices I still use?
Yes. The 5 GHz band supports IEEE 802.11a/n on channels 5.150–5.250 GHz and 5.725–5.825 GHz, so legacy 802.11a clients can associate alongside newer 802.11n gear.
