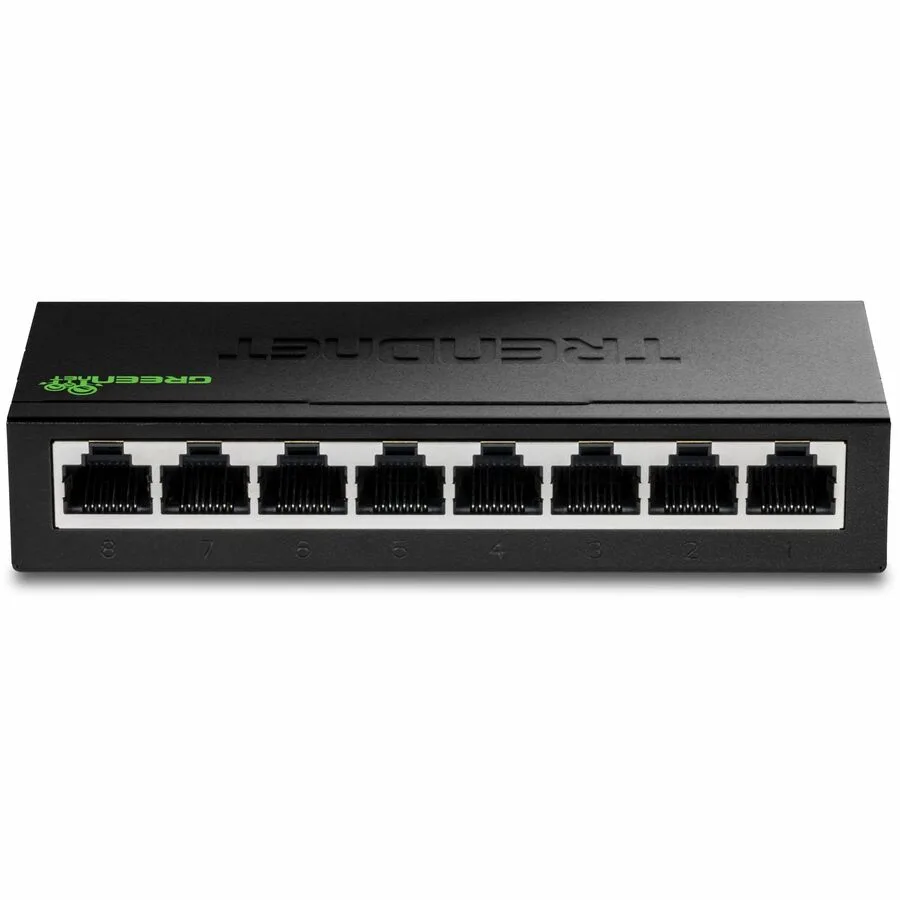

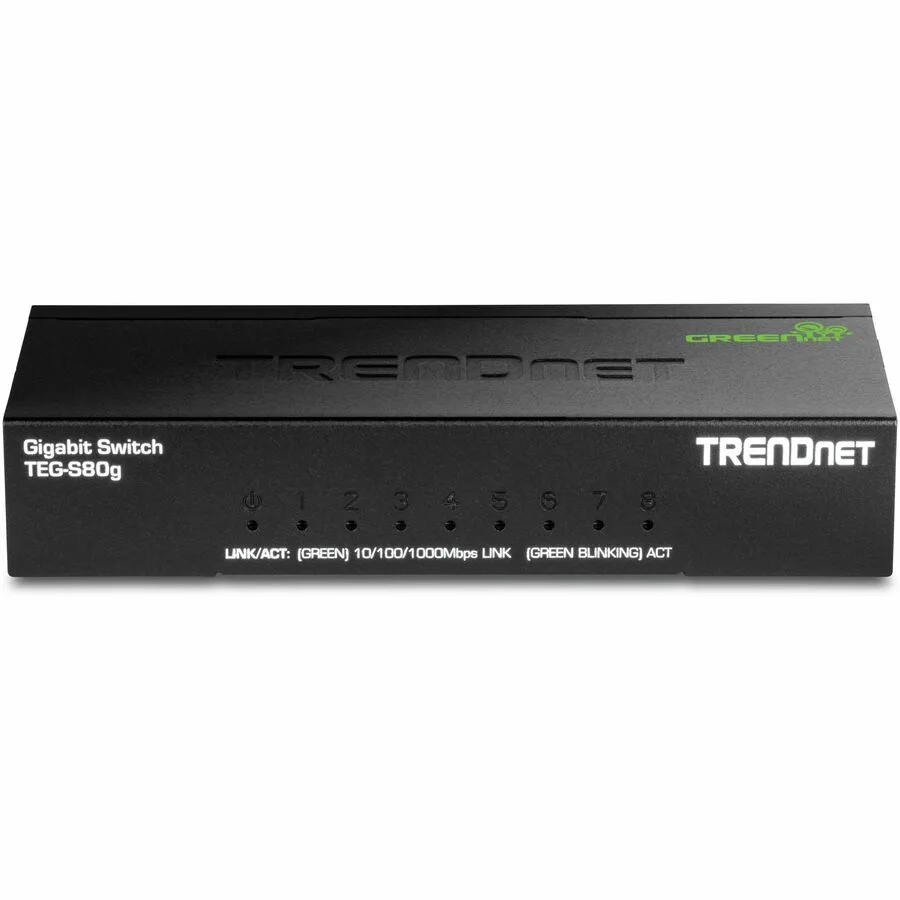

Black metal desktop switch with eight RJ45 ports

TRENDnet

TRENDnet TEG-S80G 8-port Gigabit network switch

SKU CH-MD9H-E4XCH MPN TEG-S80G

Connects eight wired devices at Gigabit speed with 16 Gbps switching capacity, fanless metal housing and up to 70% energy savings

  • StandardsIEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3az
  • Network Management TypeUnmanaged
  • Primary Ports8 x RJ45
  • Primary Port Speed10/100/1000Mbps
  • MAC Address Table8K
  • Jumbo Frames9KB

Model TEG-S80g

Struck-through versions exist but are not stocked here.

  • 8 Gigabit ports deliver wired speed to every device
  • 16 Gbps switching fabric handles full duplex traffic without bottlenecks
  • GREENnet technology cuts power use by up to 70 percent

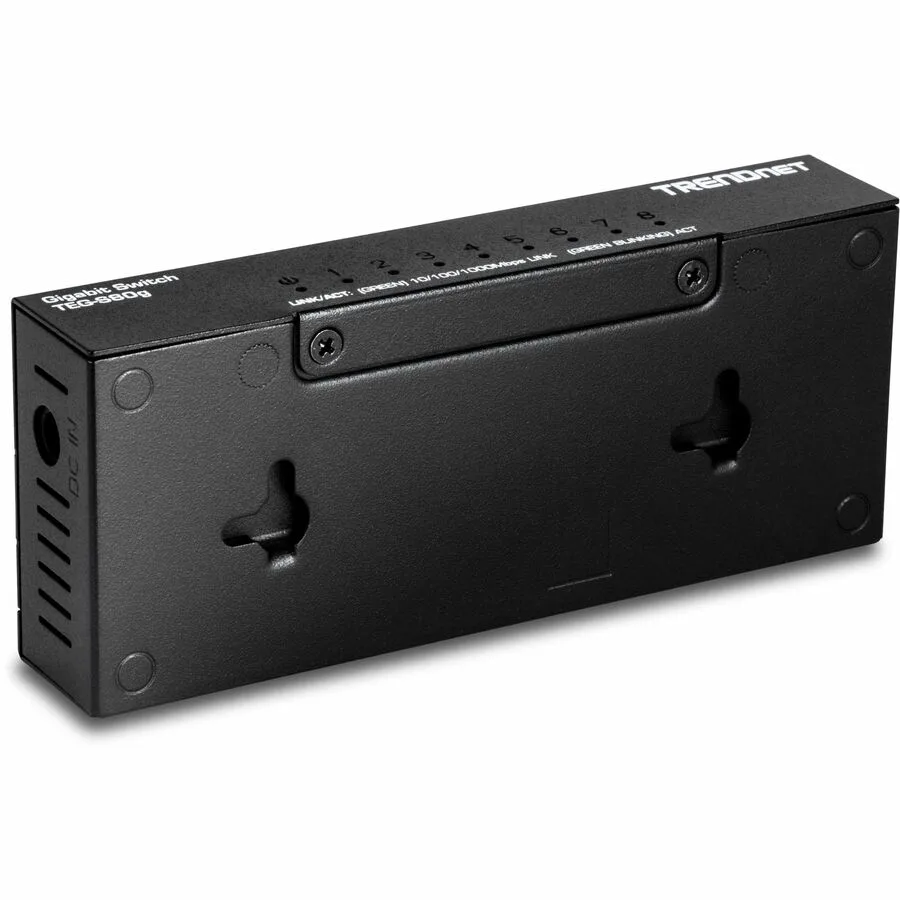

  • Fanless metal housing runs silent and mounts on a wall
  • Plug and play setup needs no configuration software

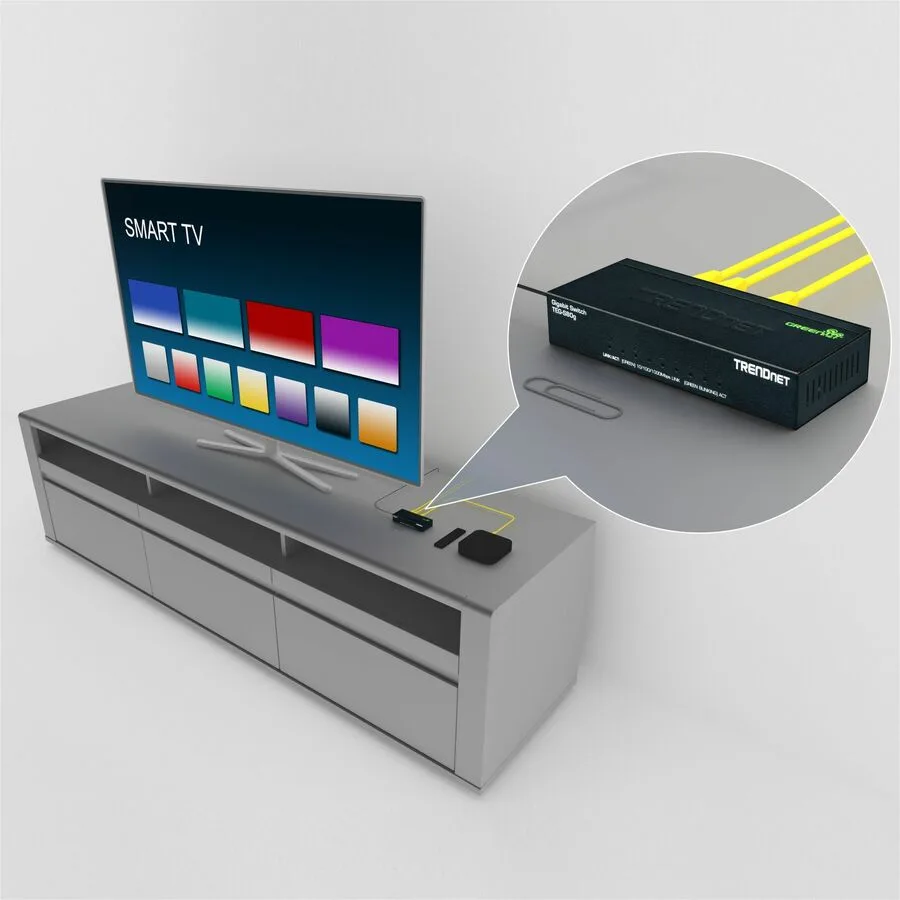

Desktop Gigabit switch for small networks

The TRENDnet TEG-S80G is an unmanaged 8-port Gigabit switch built for home offices and small businesses that need a simple wired upgrade. Eight RJ45 ports run at 10/100/1000Mbps and support jumbo frames up to 9KB. A 16 Gbps switching fabric handles full duplex traffic without blocking. Plug and play installation requires no configuration.

Fanless metal housing with GREENnet efficiency

The unit operates silently because it has no fan, relying on a sturdy metal case for passive cooling. GREENnet technology adjusts power per port based on link status and cable length, delivering up to 70% energy savings versus conventional designs. Maximum draw is 3.5 Watts from the included 5V DC adapter, which accepts 90-260V AC input. Operating temperature range is 0 to 40 degree Celsius.

16 Gbps switching capacity decides fit

The 16 Gbps non-blocking fabric is the single figure that determines whether this switch matches your throughput needs. It provides wire-speed forwarding across all eight Gigabit ports simultaneously. Networks that aggregate multiple 1 Gbps uplinks or run heavy local backup traffic should verify this capacity against their peak load before buying.

Highlights

  • 8 Gigabit ports deliver wired speed to every device
  • 16 Gbps switching fabric handles full duplex traffic without bottlenecks
  • GREENnet technology cuts power use by up to 70 percent
  • Fanless metal housing runs silent and mounts on a wall
  • Plug and play setup needs no configuration software

Specifications

BrandTRENDnet
ModelTEG-S80G
StandardsIEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3az
Network Management TypeUnmanaged
Primary Ports8 x RJ45
Primary Port Speed10/100/1000Mbps
MAC Address Table8K
Jumbo Frames9KB
Buffer Memory256KB
ProtocolsTCP/IP
PowerInput: 90-260V AC, 50/60 Hz, 0.2A
Output: 5V DC, 1A
Consumption: 3.5 Watts (max.)

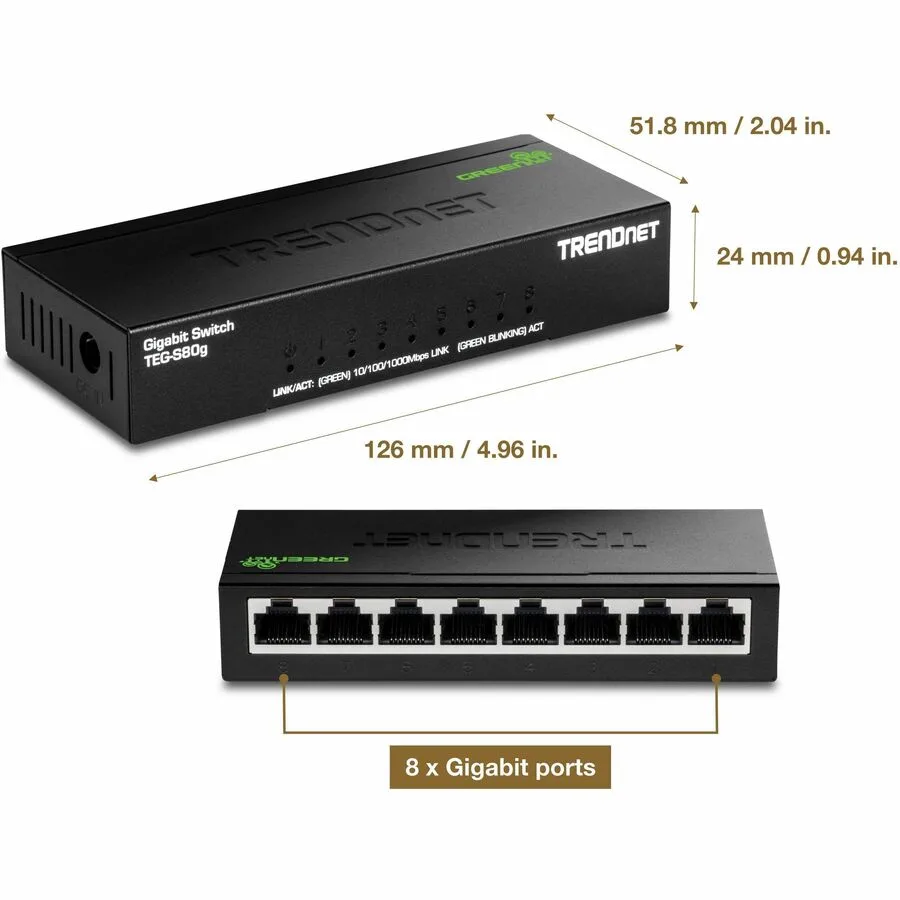

Dimensions1.10" x 5.90" x 3.80
Weight0.80 lb.
TemperatureOperating Temperature: 0 ~ 40 degree Celsius (32 ~ 104 degree Fahrenheit)
Humidity90% Maximum, Non-condensing
FeaturesPlug and Play installation
8 x Gigabit ports
16 Gbps switching fabric
Up to 70% energy savings with GREENnet technology
Sturdy metal switch
Package ContentsTEG-S80g
Quick Installation Guide
Power adapter (5V DC, 1A)
Shipping weight0.36 kg
Package size145 × 142 × 58 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the TEG-S80G and which step is often missed?

Connect the supplied 5V DC power adapter to a 90-260V AC outlet, then plug devices into the 8 RJ45 ports; the step often missed is allowing airflow around the fanless metal case so the 3.5W maximum consumption stays within the 0-40°C operating range.

What maintenance or replacement will the TEG-S80G need later?

No user-serviceable parts exist; keep the ventilation slots clear of dust and verify the power adapter continues to deliver 5V DC at 1A — if the adapter fails, replace it with an equivalent 5V 1A unit.

What limit appears first on the TEG-S80G under sustained heavy traffic?

The 16Gbps switching fabric and 256KB buffer handle wire-speed gigabit frames; the first bound reached is the 8K MAC address table, after which new source addresses cannot be learned until entries age out.
