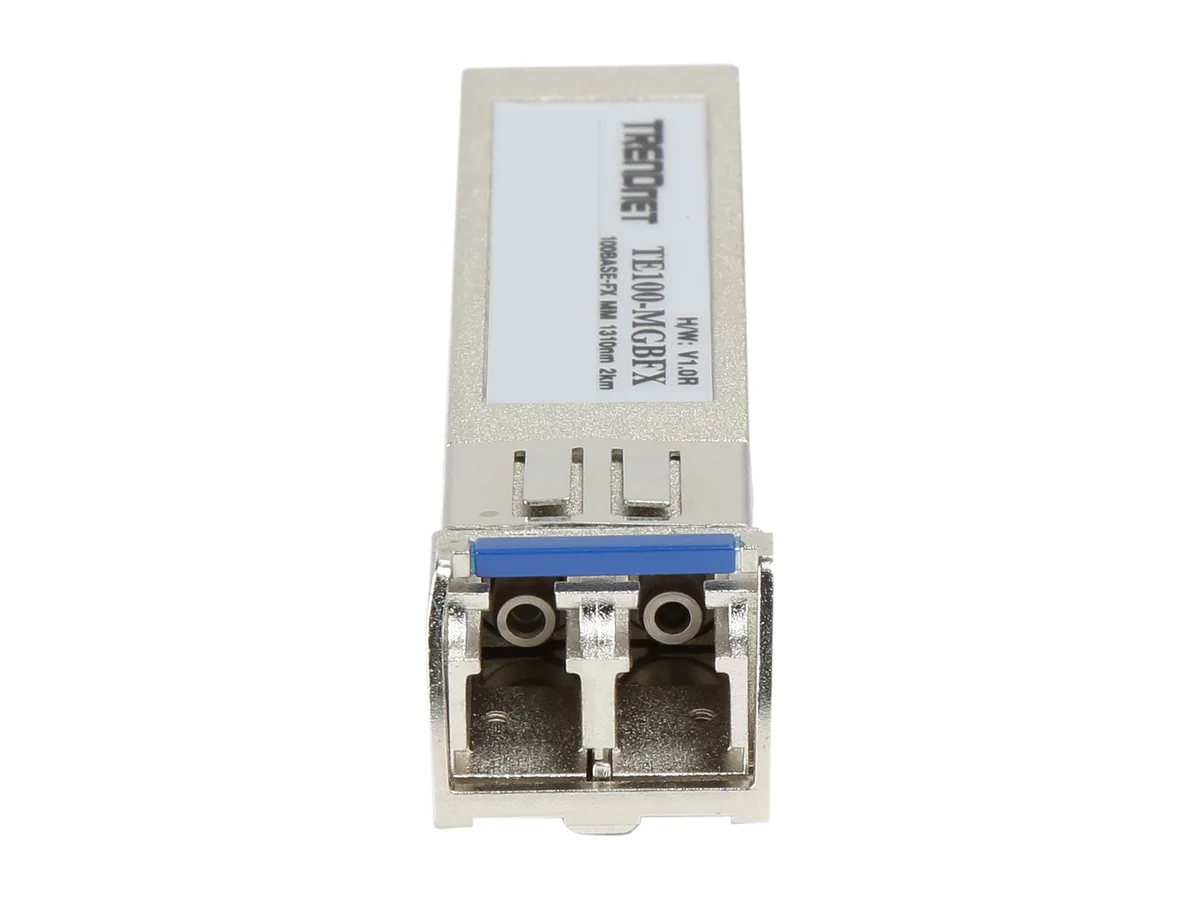

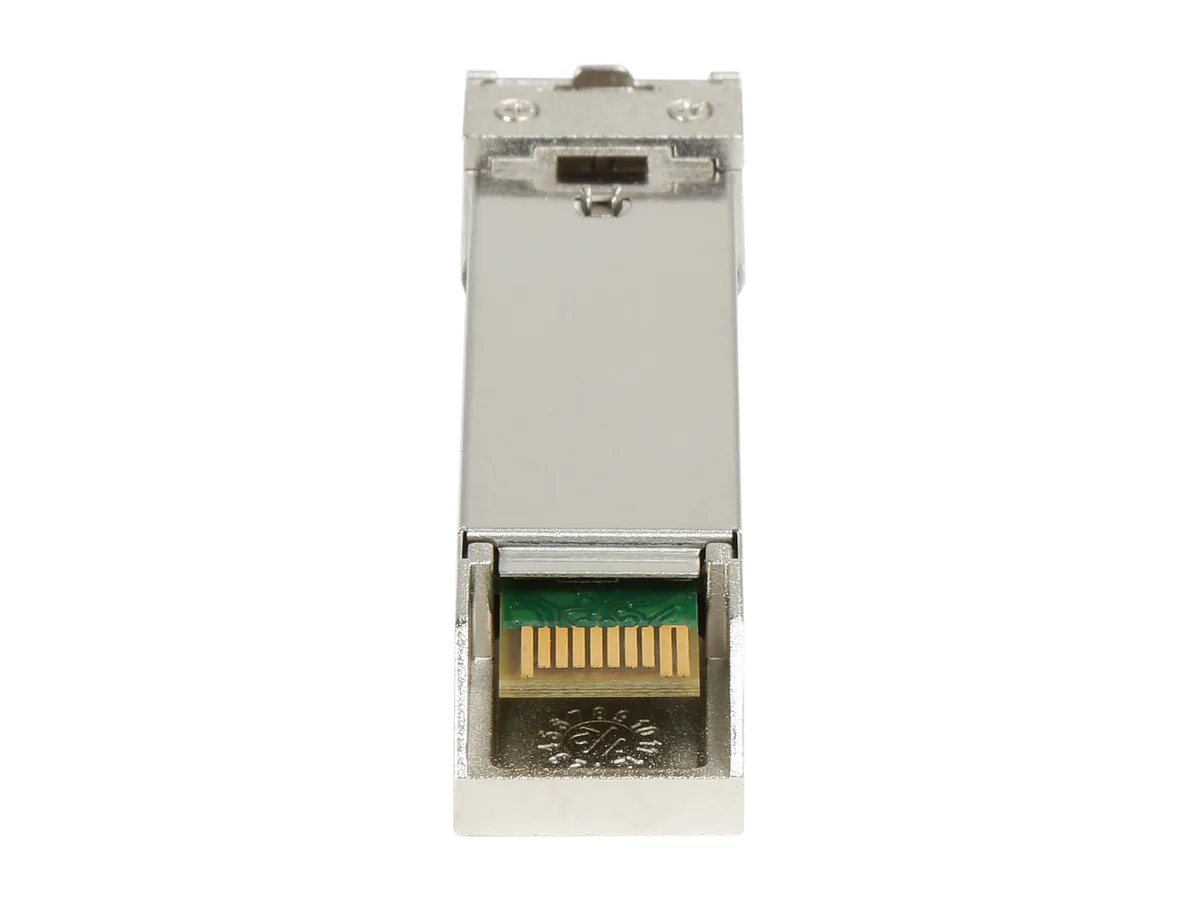

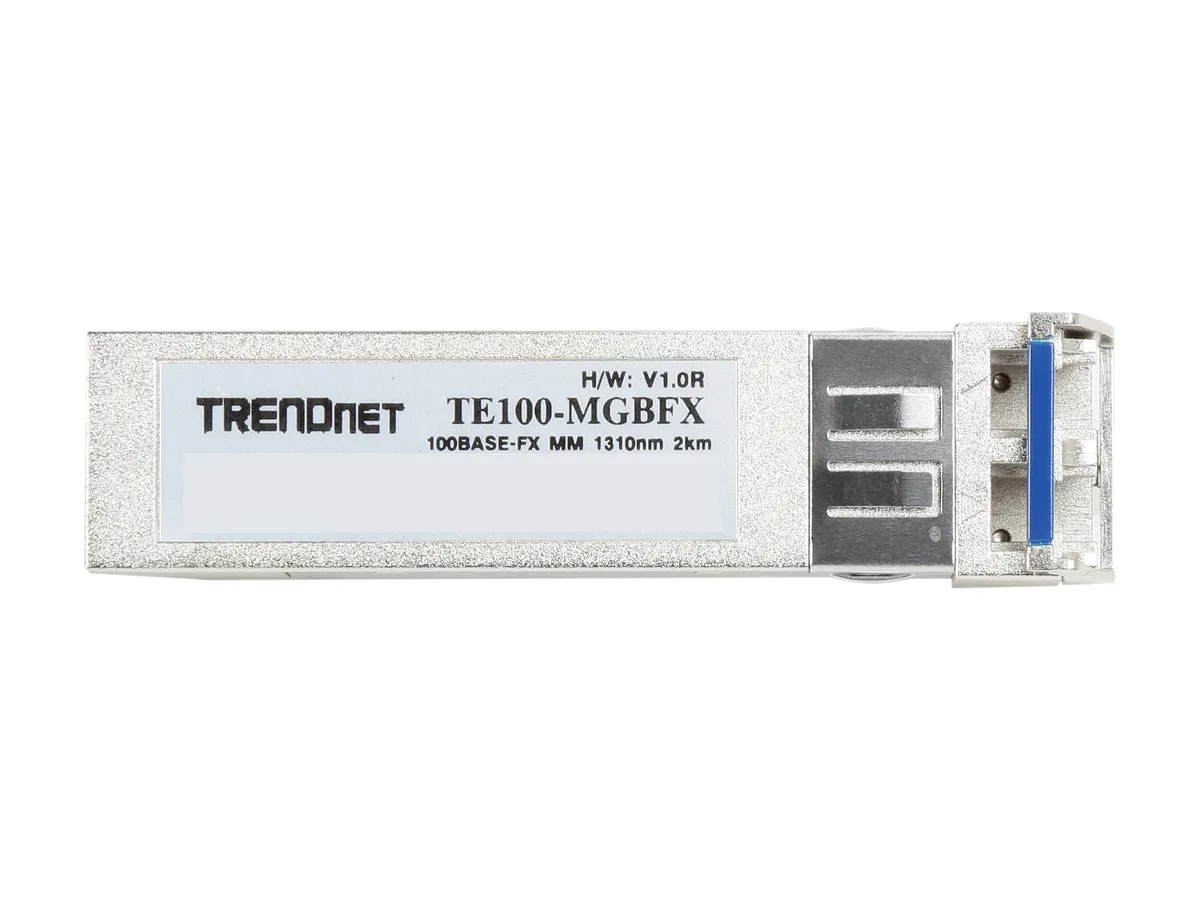

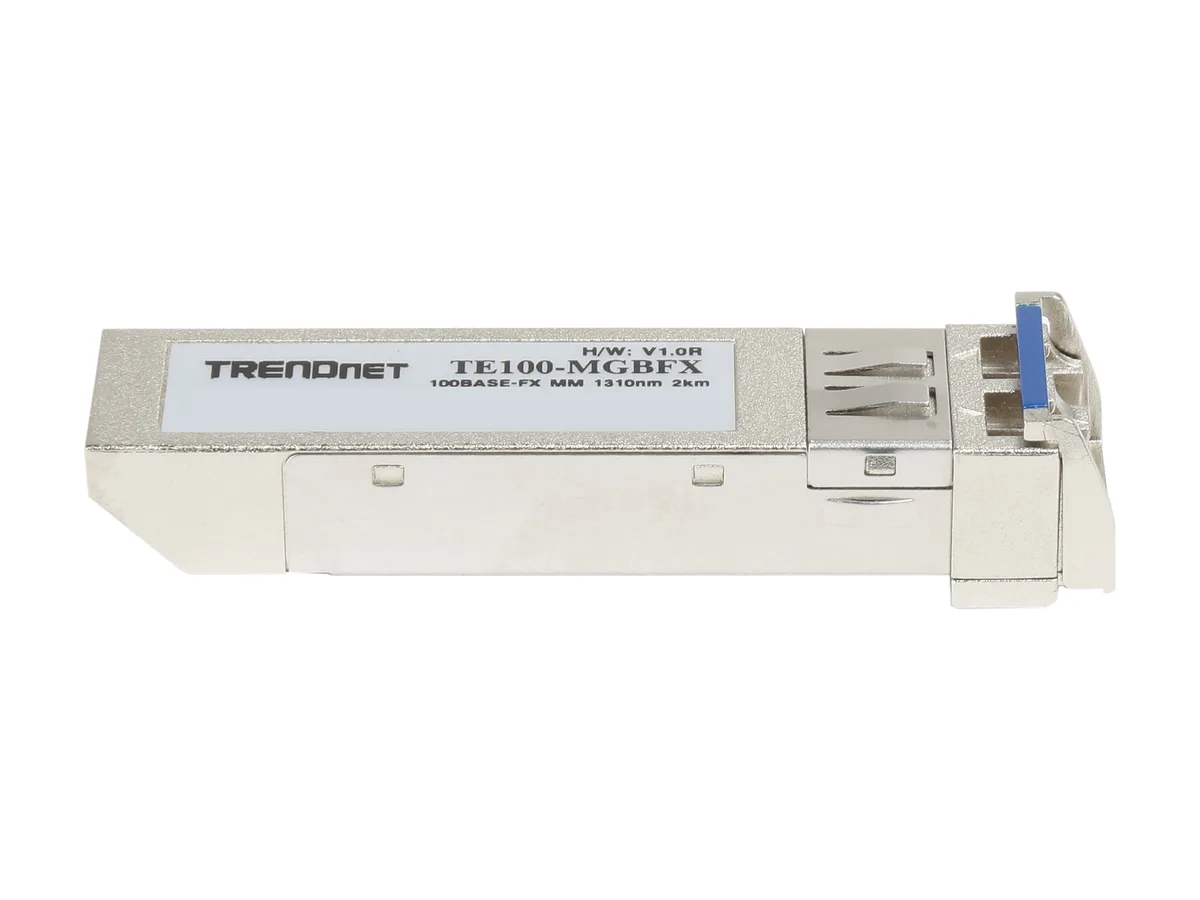

Small rectangular SFP module with duplex LC ports and metal housing

TRENDnet

TRENDnet TE100-MGBFX SFP transceiver 1310 nm 2 km

SKU CH-X34A-7S6BT MPN TE100-MGBFX

A 100 Mbps SFP transceiver for 1310 nm multi-mode fibre up to 2 km with duplex LC connectors

  • StandardsIEEE 802.3U
  • Network Media50 / 125 um or 62.5 / 125um
  • Wavelength1310 nm Multi-Mode connection type
  • PortsDuplex-LC Type
  • Max DistanceUp to 2 km (1.2 miles)
  • TemperatureOperating: 0 degree ~ 40 degree C (32 degree ~ 104 degree F)
  • Extends network links up to 1.2 miles using 1310 nm multi-mode fiber
  • Fits standard SFP slots for hot-pluggable 100 Mbps Fast Ethernet upgrades
  • Duplex-LC connector supports 50/125 or 62.5/125 µm fiber for flexible cabling
  • Operates reliably from 32 °F to 104 °F with max 90 % non-condensing humidity
  • Low 3.3 V power draw with LVPECL I/O reduces system energy use

Fast Ethernet SFP transceiver

The TRENDnet TE100-MGBFX is an SFP module built for 100 Mbps Fast Ethernet links over multi-mode fibre. It uses a 1310 nm wavelength and Duplex-LC connectors to reach distances up to 2 km. The module complies with IEEE 802.3U and fits any standard SFP slot.

Ideal for short-range fibre links

Network operators extending LAN segments between switches or media converters at Fast Ethernet speeds will find this transceiver a direct fit. It supports 50/125 µm and 62.5/125 µm fibre and operates from 0 to 40 °C. Buyers needing Gigabit or 10 Gigabit throughput, single-mode reach beyond 2 km, or wavelengths other than 1310 nm must select a different module.

100 Mbps speed rating

The decisive specification is the 100 Mbps data rate defined by the Fast Ethernet standard. This module will not negotiate higher speeds, so the host port must be configured for 100BASE-FX. Confirm the switch or router port supports this rate before purchasing.

Highlights

  • Extends network links up to 1.2 miles using 1310 nm multi-mode fiber
  • Fits standard SFP slots for hot-pluggable 100 Mbps Fast Ethernet upgrades
  • Duplex-LC connector supports 50/125 or 62.5/125 µm fiber for flexible cabling
  • Operates reliably from 32 °F to 104 °F with max 90 % non-condensing humidity
  • Low 3.3 V power draw with LVPECL I/O reduces system energy use

Specifications

BrandTRENDnet
ModelTE100-MGBFX
StandardsIEEE 802.3U
Network Media50 / 125 um or 62.5 / 125um
Wavelength1310 nm Multi-Mode connection type
PortsDuplex-LC Type
Max DistanceUp to 2 km (1.2 miles)
TemperatureOperating: 0 degree ~ 40 degree C (32 degree ~ 104 degree F)
Storage: -10 degree ~ 70 degreeC (14 degree ~ 158 degreeF)
HumidityMax. 90% (non-condensing)
FeatureCompatible with standard SFP (Mini-GBIC) slots
Supports 100 Mbps connection speeds
Industry standard SFP connector type
Compliant with Fast Ethernet standard
Supports 1310 nm Multi-Mode network transmissions
Compatible with Duplex-LC fiber connector types
Supports fiber connections for distances up to 2 km (1.2 miles)
Different Low Voltage positive-coupled logic (LVPECL) inputs and outputs
Power consumption: 3.3V
Hot pluggable
Shipping weight0.07 kg
Package size130 × 84 × 53 mm

Questions about this item

What speed does the IEEE 802.3U standard cap this SFP at?

The module complies with IEEE 802.3U, which limits the link to 100 Mbps Fast Ethernet.

What fibre cores and connector does the TE100-MGBFX need to fit?

It uses a duplex LC interface and works with 50/125 µm or 62.5/125 µm multi-mode fibre.

How is this transceiver installed and what step is often missed?

Insert the hot-pluggable SFP into a standard Mini-GBIC slot until it clicks, then attach the duplex LC cables; the latch must click to seat the module properly.
