Metal 12-port Cat6A shielded patch panel with gold RJ-45 ports, wall-mount brackets

TRENDnet

TRENDnet TC-P12C6AS (V1.0R) 12-port Cat6A shielded patch panel

SKU CH-C1AM-8XKDX MPN TC-P12C6AS (V1.0R)

A shielded 12-port Cat6A patch panel with gold-plated RJ-45 contacts for 10G copper links and Krone 110 termination

  • TypeOther
  • SpecificationsStandards ANSI/TIA/EIA-568-B.2-1 EN50173-1: 2002 ISO/IEC 118
  • Features10G-Ready 12-port patch panel Cat6A patch panels deliver a s
  • 10G-ready 12 ports for high-speed copper networks
  • Shielded construction blocks EMI and crosstalk
  • 50 micron gold-plated RJ-45 contacts ensure reliable signal
  • Krone 110 termination with T568A/B colour coding
  • Meets ANSI/TIA-568-B.2-1, ISO/IEC 11801 and EN50173-1 standards

12-Port Cat6A Shielded Patch Panel

This 12-port Cat6A shielded patch panel provides structured cabling termination for commercial networks. It supports 10G-ready performance with shielded construction to reduce EMI and crosstalk. The panel is wall-mountable and compatible with Cat5e, Cat6 and Cat6A cabling.

Who This Suits

Network installers and IT managers deploying 10-gigabit copper links will benefit from the shielded design and Krone 110 punch-down termination. Buyers who need higher port density or rack-mount form factors should look at other models.

Deciding Specification

The panel delivers 12 RJ-45 ports with 50-micron gold-plated contacts and T568A/T568B colour-coded wiring. This port count and shielding level determine whether it matches your cable plant and bandwidth requirements.

Highlights

  • 10G-ready 12 ports for high-speed copper networks
  • Shielded construction blocks EMI and crosstalk
  • 50 micron gold-plated RJ-45 contacts ensure reliable signal
  • Krone 110 termination with T568A/B colour coding
  • Meets ANSI/TIA-568-B.2-1, ISO/IEC 11801 and EN50173-1 standards

Specifications

BrandTRENDnet
ModelTC-P12C6AS (V1.0R)
TypeOther
SpecificationsStandards
ANSI/TIA/EIA-568-B.2-1
EN50173-1: 2002
ISO/IEC 11801 2nd edition: 2002
Interface

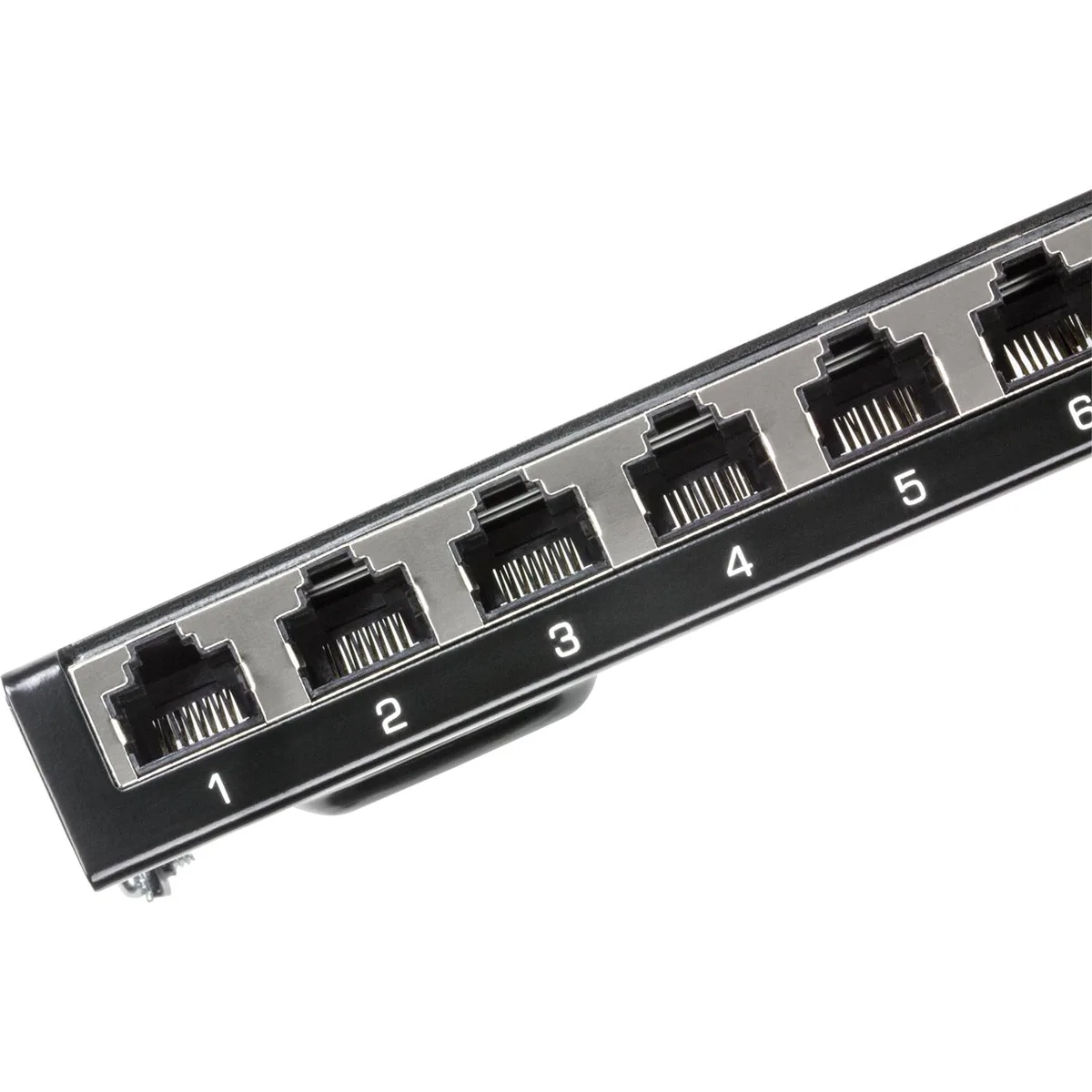

12 x RJ-45 ports with 50 micron gold-plated 8P/8C contacts

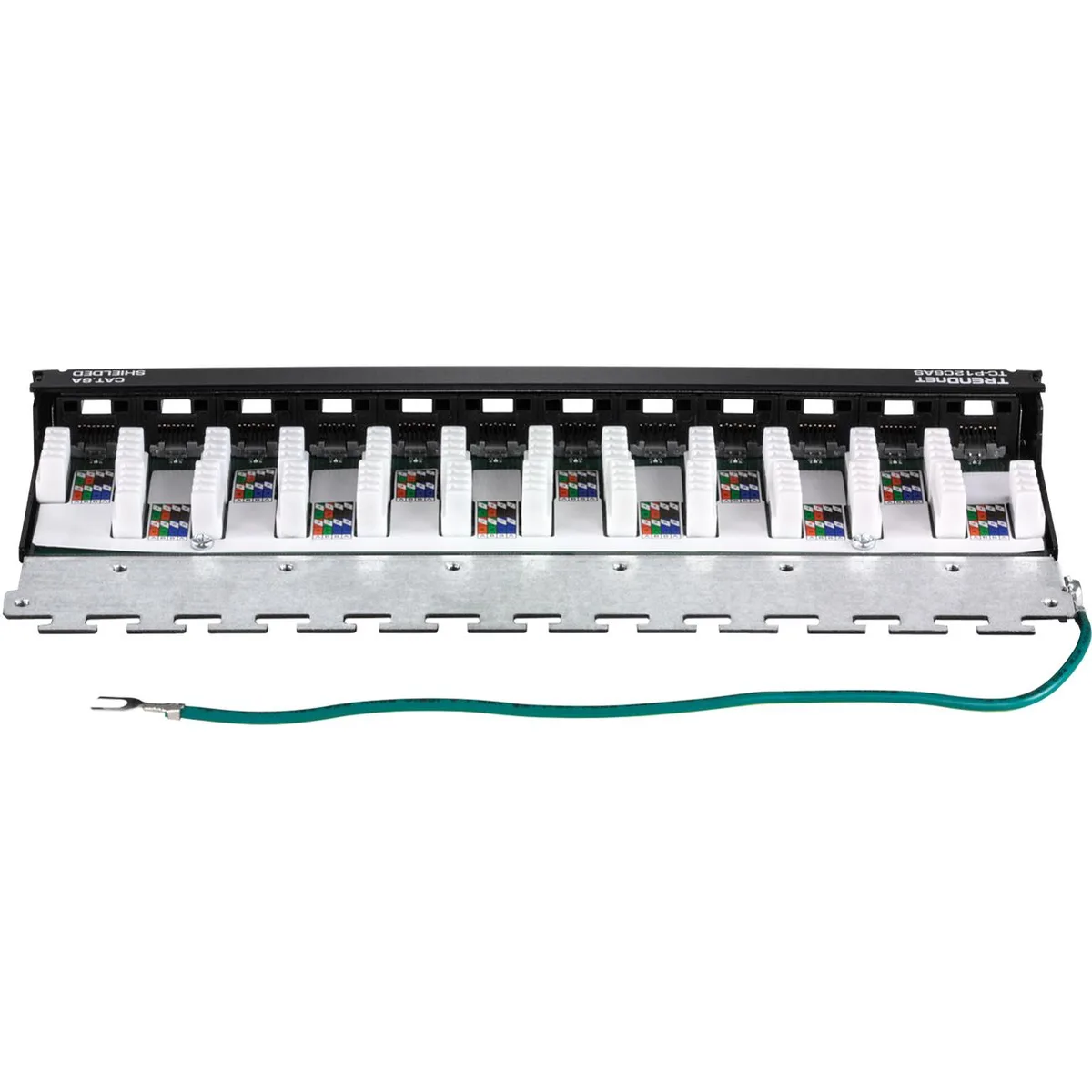

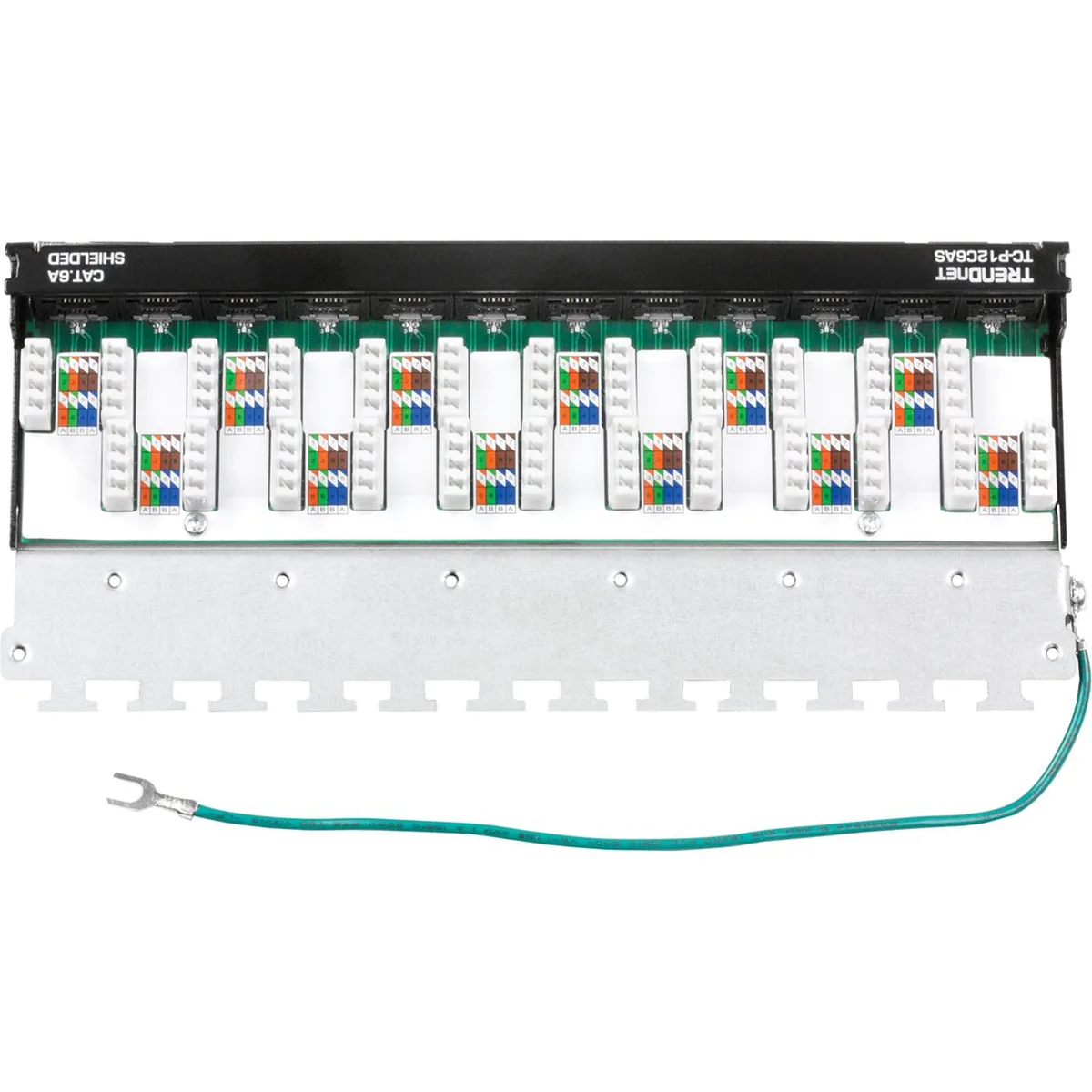

T568A/T568B wiring for Krone 110 termination with color-coded wiring diagram
90 degree IDC terminals
Compatible with 22 - 26 AWG solid or stranded wire

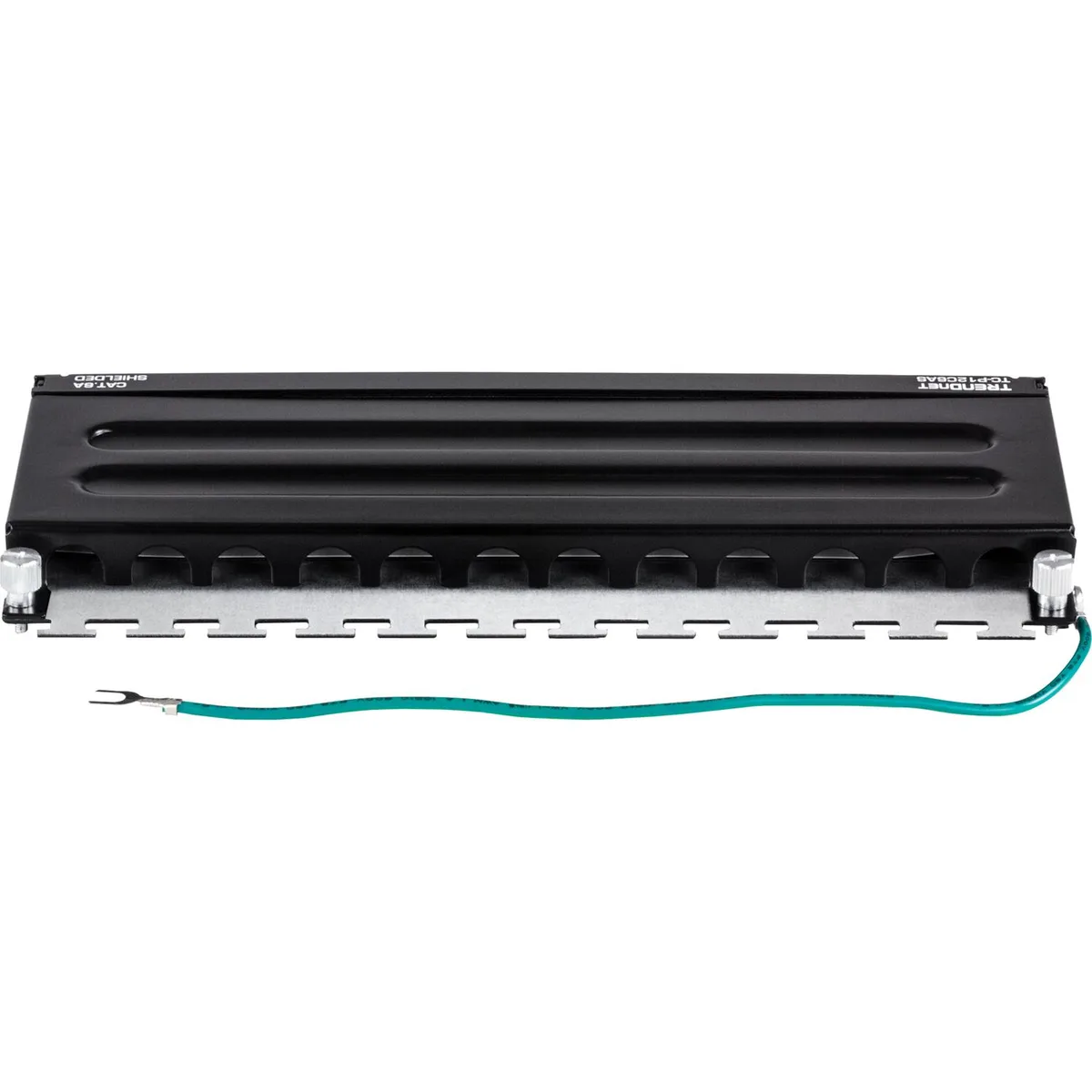

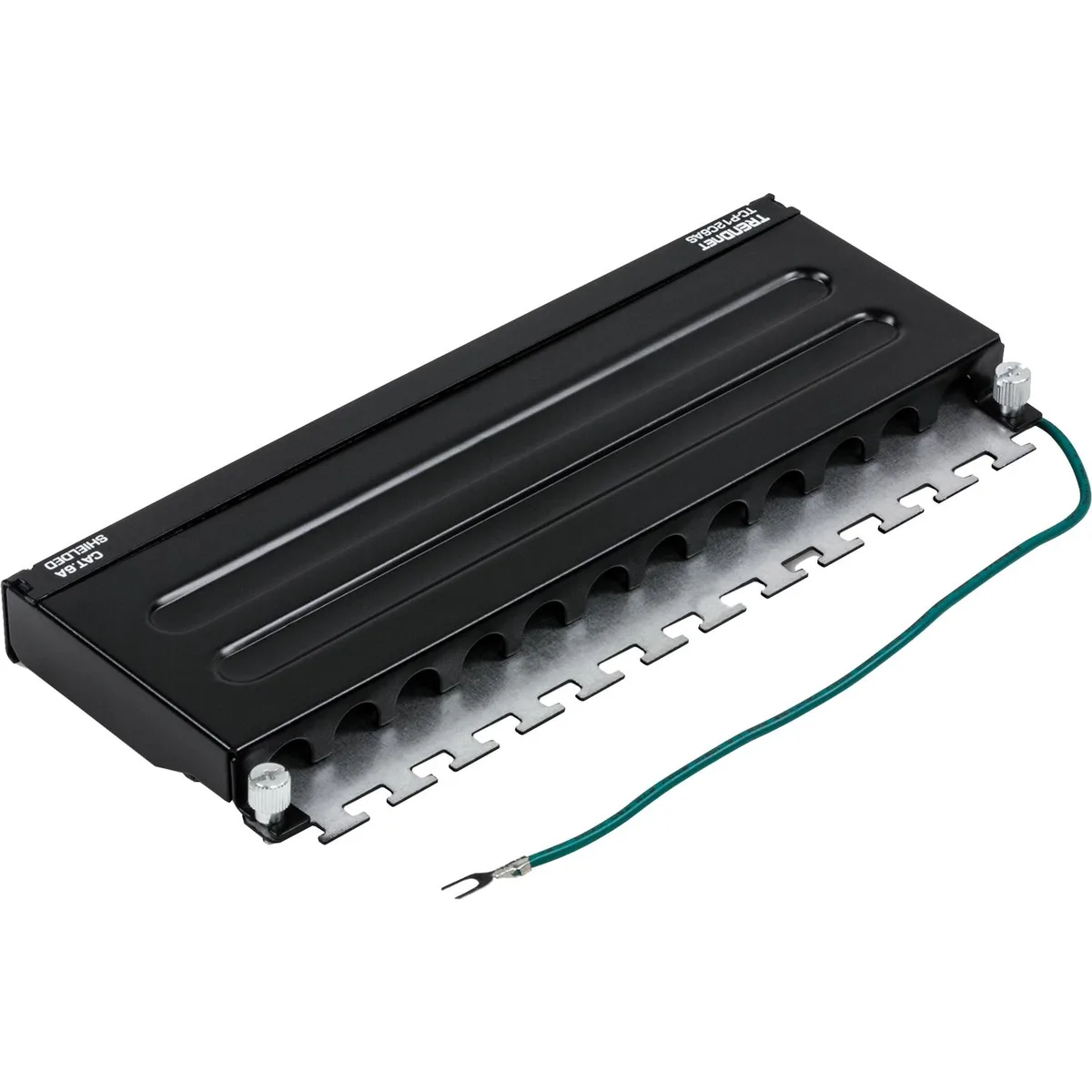

Integrated cable management
SPCC steel construction
18 AWG grounding wire with screw terminal
Mounting Options: Wall mountable
Electrical Specification
Insulation resistance: >= 500 M Ohms
Dielectric Withstand Voltage: 500V DC
Contact resistance: <= 35 M Ohms
Current rating: 1.5A at 20 d
Features10G-Ready 12-port patch panel
Cat6A patch panels deliver a steady connection to copper gigabit & 10G
switches
Shielded design to eliminate EMI and crosstalk
Compatible with Cat5e, Cat6 and Cat6A cabling
Wall mountable metal housing
Color-coded labeling for T568A and T568B wiring schemes
110 IDC type terminal blocks (use 110 or Krone type tool)
Use with TRENDnet TC-PDT Punch Down Tool (sold separately)
Supports ANSI/EIA/TIA 568-B.2-1, ISO/IEC 11801, and EN50173-1
90 degree angle type
Shipping weight1.36 kg
Package size330 × 152 × 76 mm

Questions about this item

Should I choose the 12-port Cat6A shielded model or a smaller Cat6A panel for my rack?

The TC-P12C6AS provides 12 RJ-45 ports with shielded construction to reduce EMI and crosstalk on Cat6A links. A smaller panel would limit you to fewer terminated cables in the same wall-mount footprint.

What does the 10G-Ready label mean once the panel is installed in a real network?

It confirms the panel meets Cat6A performance so 10 Gbps Ethernet can run over the terminated copper links when paired with compatible switches and cabling.

Does the 110 Krone termination cap the wiring standard I can use?

The panel supports both T568A and T568B colour-coded wiring on the 110 Krone blocks, so you can follow either standard without limitation.
