TRENDnet SW201ABG 2-Port HDMI KVM Switch 4K60Hz
Share one monitor, keyboard, mouse and four USB devices between two computers with 4K 60 Hz video and push-button or wired remote switching
- TypeUSB
- PC ConnectorsHdmi, Usb
- Console ConnectorsHdmi, Usb
- Computer ConnectionsUSB 2.0
- Monitor Connections4 Ports
- PC SelectionPush Buttons
- Share one monitor between two computers with push-button or wired remote switching
- View 4K at 60 Hz with backward compatibility to 1080p and 720p
- Connect four USB peripherals such as keyboard, mouse, printer and scanner
- Switch instantly without unplugging cables using front-panel button or desk remote
- Works with Windows, Mac OS and Linux across a wide range of USB devices

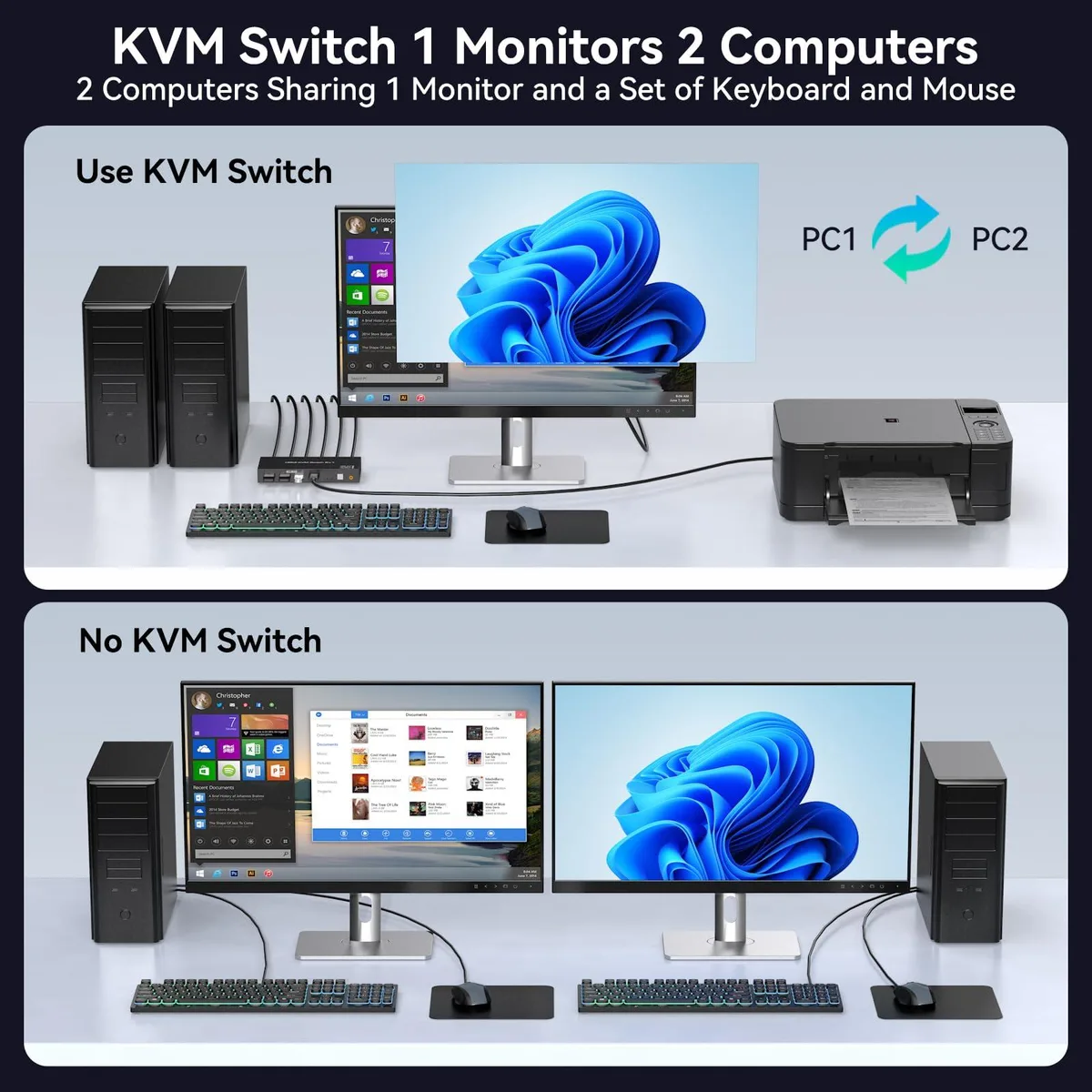

Two-computer HDMI KVM switch
This new TRENDnet SW201ABG lets two computers share one HDMI monitor, a keyboard, a mouse and up to four USB peripherals. Switching is done by a front-panel push button or the included wired remote controller. The unit supports 4K at 60 Hz and is backward compatible with 4K at 30 Hz, 1080p and 720p. No software drivers are required for Windows, Mac OS or Linux.
Sustained 4K60 operation
The switch maintains a stable 4K 60 Hz signal during extended sessions as long as both connected computers and the monitor support that resolution and HDMI 2.0 cables are used. USB 2.0 peripheral traffic passes through without added latency, so printers, scanners and storage devices remain responsive over long periods. Audio and microphone channels switch cleanly alongside the video and USB paths.
Check cables and port count

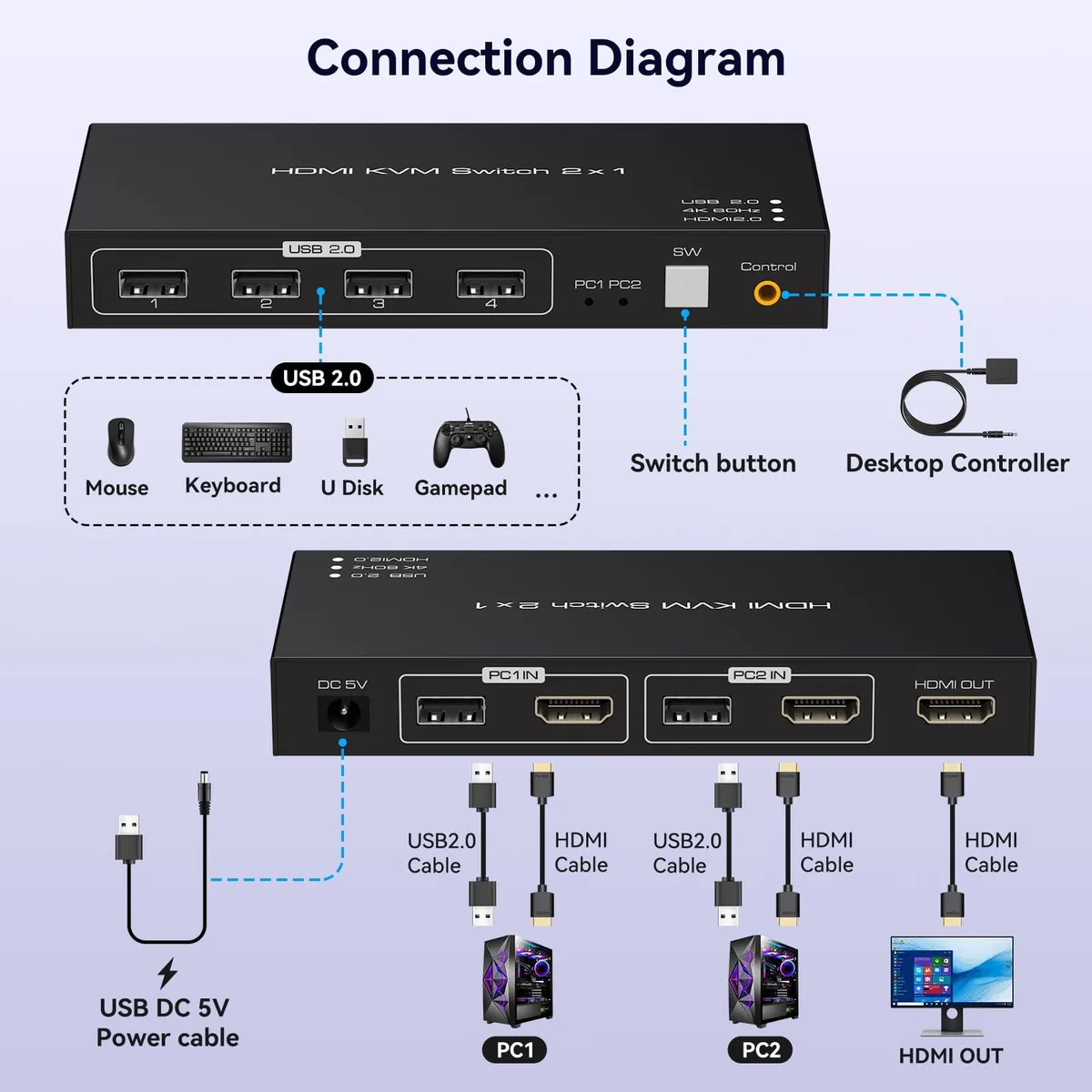

Verify that each computer provides an HDMI output and a USB 2.0 port for the KVM connection, and that the monitor accepts HDMI input at the desired resolution. Four USB devices can be attached to the console side; if more are needed a separate hub will be required. The unit measures 14.33in wide, 12.83in high and 9.06in deep, so confirm desk or rack space before ordering.
Highlights
- Share one monitor between two computers with push-button or wired remote switching
- View 4K at 60 Hz with backward compatibility to 1080p and 720p
- Connect four USB peripherals such as keyboard, mouse, printer and scanner
- Switch instantly without unplugging cables using front-panel button or desk remote
- Works with Windows, Mac OS and Linux across a wide range of USB devices
Specifications
| Brand | TRENDnet |
|---|---|
| Series | SW201ABG |
| Model | SW201ABG |
| Part Number | SW201ABG |
| Type | USB |
| PC Connectors | Hdmi, Usb |
| Console Connectors | Hdmi, Usb |
| Computer Connections | USB 2.0 |
| Monitor Connections | 4 Ports |
| PC Selection | Push Buttons |
| Monitors Supported | VGA DDC, DDC2, DDC2B |
| Audio Features | Offers audio and microphone switching |
| USB Features | with USB support |
| SplitterOnly | VGA Monitor Splitter only |
| Application | Hdmi, Usb, HDMI, USB, push_button |
| Features | Hdmi, Usb, HDMI, USB, push_button, 2 |
| Dimensions | 14.33in W x 12.83in H x 9.06in D |
Questions about this item
Does the SW201ABG generate noticeable heat or noise when left running all day?
The SW201ABG is a passive KVM switch with no fan or active cooling, so it produces no audible noise and minimal heat during continuous operation.
What cables must I already own to connect two computers and one monitor to the SW201ABG?
You need two HDMI cables and two USB 2.0 cables — one set per computer — plus an HDMI cable for the monitor; the package includes two USB cables for the PC links.
Will the SW201ABG work with an older 1080p monitor and USB 2.0 peripherals I plan to keep?
Yes, the switch is backward compatible with 1080p and 720p resolutions and supports standard USB 2.0 devices such as keyboards, mice, printers and flash drives.
