TRENDnet KVM203DH 3-Monitor 2-Computer KVM Switch
Shares three monitors and four USB 3.0 peripherals between two computers at up to 8K 60 Hz or 4K 144 Hz
- PC SelectionPush Buttons
- SplitterOnlyVGA Monitor Splitter only
- ApplicationPC, Laptop, Apple TV, PS3/PS4, Xbox, HDMI Monitor, DisplayPo
- FeaturesPC, Laptop, Apple TV, PS3/PS4, Xbox, HDMI Monitor, DisplayPo
- Dimensions14.33in W x 12.83in H x 9.06in D
- Package Contentswith Built-in Cables
- Share 3 monitors between 2 computers via HDMI and DisplayPort
- Switch instantly using front buttons or wired remote with LED status
- Connect 4 USB 3.0 peripherals at up to 5 Gbps data speed
- Drive one 8K 60 Hz or 4K 144 Hz display per output
- Built-in cables simplify installation for PC laptop console setups
Triple-monitor KVM for two computers

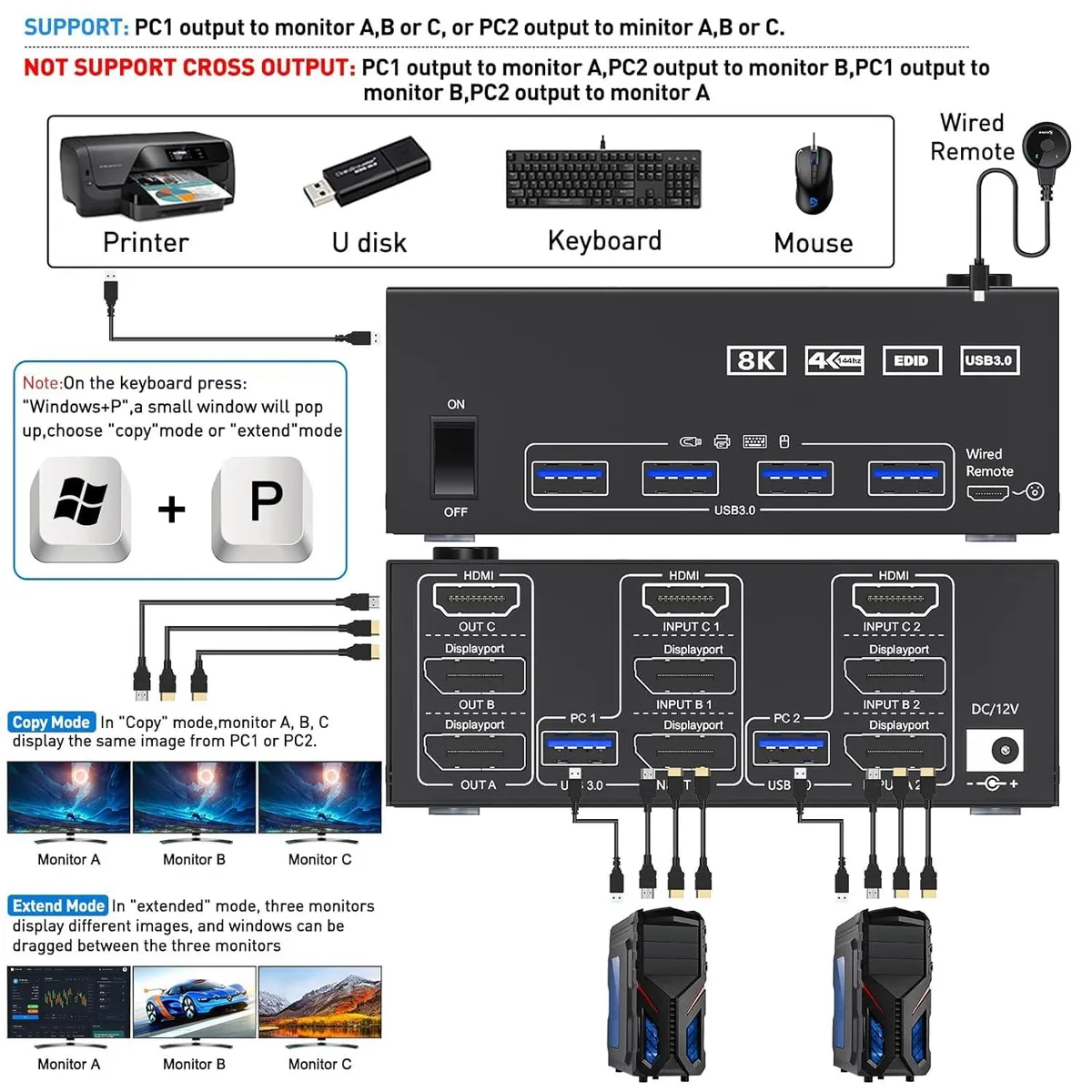

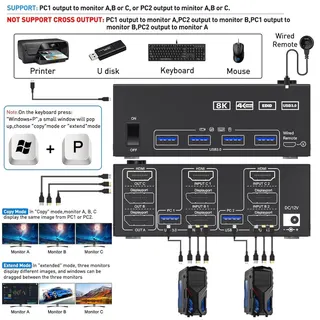

The TRENDnet KVM203DH lets two PCs or laptops share three displays and four USB 3.0 peripherals. Each system connects through two DisplayPort inputs and one HDMI input, while the output side drives two DisplayPort monitors and one HDMI monitor. A push-button panel and a wired remote both switch the active computer, with LEDs showing the current selection.
Check your graphics outputs and cables
Every computer must provide two DisplayPort 1.4 ports and one HDMI 2.1 port to use all three video paths. Monitors must match with two DisplayPort and one HDMI inputs. To reach 8K 60 Hz you need 8K-capable cables, GPUs and displays on every link; the HDMI path does not support 4K at 144 Hz or 120 Hz.
Replaces separate switch and dock setups
Instead of juggling multiple video switches and a USB hub, this single unit handles triple-head video and 5 Gbps USB 3.0 sharing. The jump is worth it when you run two workstations or a workstation plus a console and want one keyboard, mouse and printer set across three screens without re-plugging.
Highlights
- Share 3 monitors between 2 computers via HDMI and DisplayPort
- Switch instantly using front buttons or wired remote with LED status
- Connect 4 USB 3.0 peripherals at up to 5 Gbps data speed
- Drive one 8K 60 Hz or 4K 144 Hz display per output
- Built-in cables simplify installation for PC laptop console setups
Specifications
| Brand | TRENDnet |
|---|---|
| Series | KVM203DH |
| Model | KVM203DH |
| Part Number | KVM203DH |
| PC Selection | Push Buttons |
| SplitterOnly | VGA Monitor Splitter only |
| Application | PC, Laptop, Apple TV, PS3/PS4, Xbox, HDMI Monitor, DisplayPort Monitor, 4K Monitor, 8K Monitor |
| Features | PC, Laptop, Apple TV, PS3/PS4, Xbox, HDMI Monitor, DisplayPort Monitor, 4K Monitor, 8K Monitor |
| Dimensions | 14.33in W x 12.83in H x 9.06in D |
| Package Contents | with Built-in Cables |
Questions about this item
What cables come with the KVM203DH and what must I provide?
The unit ships with built-in cables; you must supply one HDMI cable, two DisplayPort cables and one USB 3.0 cable per computer to connect the inputs.
Should I pick the DisplayPort 1.4 or HDMI 2.1 path for 4K 144 Hz?
Use the DisplayPort 1.4 inputs; they support 4K at 144 Hz while the HDMI 2.1 input is limited to 4K at 60 Hz.
What does the 8K 60 Hz headline figure mean for my actual setup?
8K at 60 Hz (7680 × 4320) is the maximum output; achieving it requires every computer, cable and monitor in the chain to support that resolution.
