TRENDnet KVM switch 2 monitors Displayport HDMI 4K@144Hz USB3.0
Share two monitors and four USB 3.0 peripherals between two computers with 4K@144Hz DisplayPort and HDMI switching via front buttons or wired remote
- TypeUSB
- PC ConnectorsPlug In
- Console ConnectorsPlug In
- Computer ConnectionsUSB 2.0
- Monitor Connections4 Ports
- PC SelectionPush Buttons
- Share two computers across two monitors at 4K 144 Hz via HDMI 2.1 and DP 1.4
- Four USB 3.0 ports transfer peripheral data at 5 Gbps for keyboard, mouse and drives
- Switch instantly with front-panel buttons or the included wired remote for a tidy desk

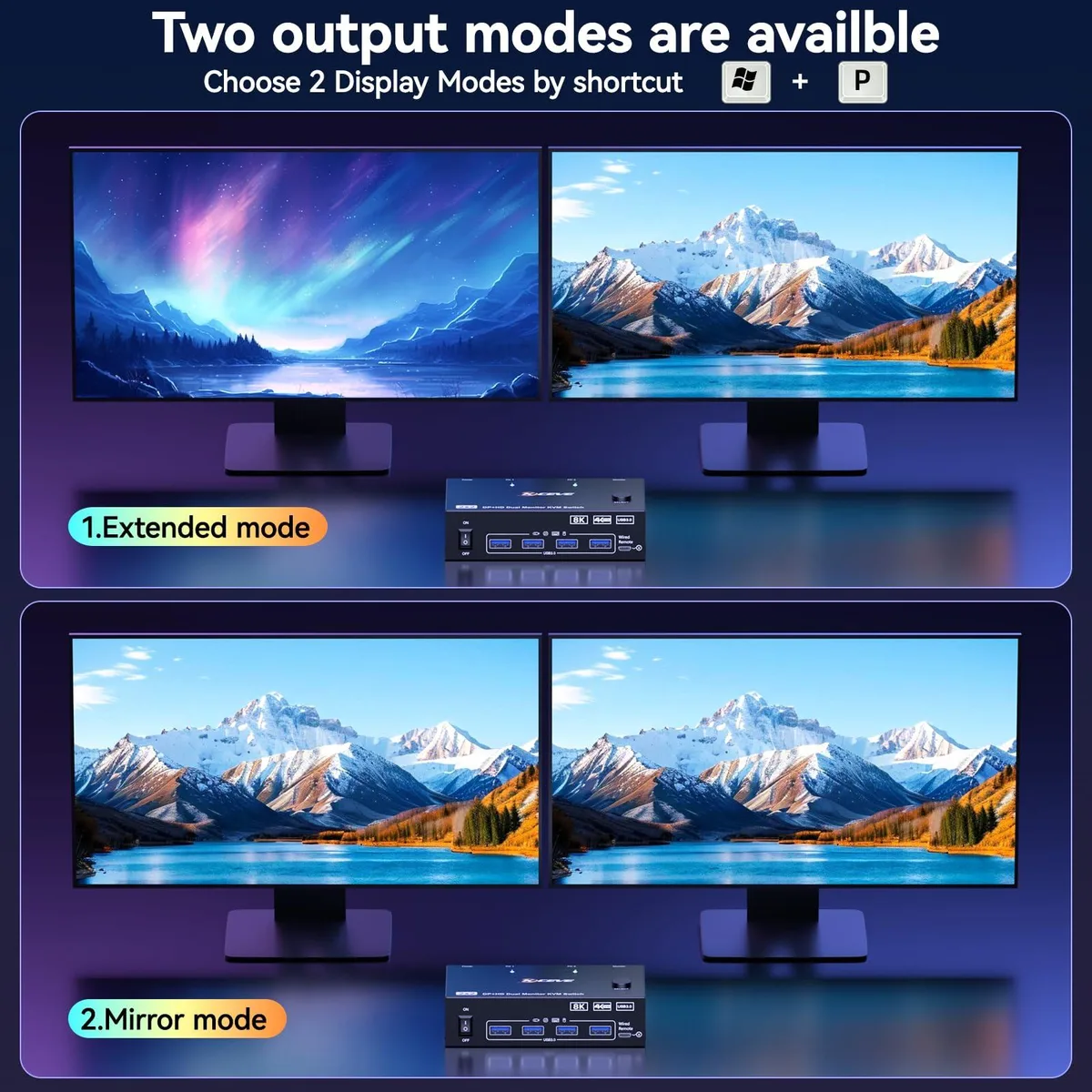

- Driver-free operation on Windows, Mac and Linux keeps both displays active in extended or mirrored mode
- Package includes KVM unit, two USB 3.0 cables, wired remote and 12 V power adapter
Dual-computer dual-monitor KVM
This TRENDnet KVM switch connects two computers to two monitors simultaneously, supporting extended and mirrored display modes. It provides four USB 3.0 ports for sharing peripherals such as keyboard, mouse, printer and external storage. Switching is handled by front-panel push buttons or the included wired remote, with LED indicators showing the active system. The unit is driver-free for Windows, Mac and Linux environments.
Replaces manual cable swapping
The switch eliminates the need to physically reconnect DisplayPort and HDMI cables when moving between two workstations. Each computer requires one DisplayPort, one HDMI and one USB connection to the switch for full dual-monitor operation. The jump is worth it when you run two systems side by side and need instant, zero-latency switching without unplugging devices or losing monitor signal sync.
Handles 4K at 144 Hz and 8K at 60 Hz
The HDMI 2.1 and DisplayPort 1.4 interfaces support resolutions up to 8K@60Hz and 4K@144Hz, limited by the graphics cards, monitors and cables in use. Four USB 3.0 ports deliver 5 Gbps bandwidth for high-speed peripheral sharing. The 12 V power adapter ensures stable operation for both video channels and all USB ports under full load.
Highlights
- Share two computers across two monitors at 4K 144 Hz via HDMI 2.1 and DP 1.4
- Four USB 3.0 ports transfer peripheral data at 5 Gbps for keyboard, mouse and drives
- Switch instantly with front-panel buttons or the included wired remote for a tidy desk
- Driver-free operation on Windows, Mac and Linux keeps both displays active in extended or mirrored mode
- Package includes KVM unit, two USB 3.0 cables, wired remote and 12 V power adapter
Specifications
| Brand | TRENDnet |
|---|---|
| Series | 12 cm |
| Model | KVM switch 2 monitors Displayport HDMI |
| Part Number | KVM switch 2 monitors Displayport HDMI |
| Type | USB |
| PC Connectors | Plug In |
| Console Connectors | Plug In |
| Computer Connections | USB 2.0 |
| Monitor Connections | 4 Ports |
| PC Selection | Push Buttons |
| Monitors Supported | VGA DDC, DDC2, DDC2B |
| Audio Features | Offers audio and microphone switching |
| USB Features | with USB support |
| SplitterOnly | VGA Monitor Splitter only |
| Application | Plug In, Displayport HDMI, remote |
| Features | Plug In, Displayport HDMI, remote, 2, IP54 |
| Dimensions | 14.33in W x 12.83in H x 9.06in D |
| Package Contents | with Built-in Cables |
Questions about this item
What desk space do the 14.33in W x 12.83in H x 9.06in D dimensions of this TRENDnet KVM switch require?
The unit measures 14.33 inches wide, 12.83 inches high and 9.06 inches deep, so allow at least that footprint plus cable clearance on your desk or shelf.
How do I connect both computers so the switch works correctly, and what step is often missed?
Each computer must plug in one DisplayPort cable, one HDMI cable and one USB 3.0 cable simultaneously; omitting any of the three breaks video or USB sharing.
When should I expect to replace the included 12V power adapter on this dual-monitor KVM?
The external 12V adapter powers the switch and USB 3.0 ports; replace it if the unit loses power, LEDs flicker or USB devices disconnect under load.
