TRENDnet KVM-4KHD-01 HDMI KVM Switch 2 Monitors 2 Computers 4K@60Hz 4 USB 3.0 Ports
Shares two HDMI monitors and four USB 3.0 devices between two computers at up to 4K@60Hz with a wired remote
- TypeUSB
- PC ConnectorsPlug In
- Console ConnectorsPlug In
- Computer ConnectionsUSB 2.0
- Monitor Connections4 Ports
- PC SelectionPush Buttons
- Share two monitors and four USB 3.0 devices between two computers via front-panel buttons or wired remote
- Dual-display 4K at 60 Hz with HDMI 2.0 and HDCP 2.2/1.4 for sharp video and gaming
- Four USB 3.0 ports deliver up to 5 Gbps transfer, backward compatible with USB 2.0/1.1/1.0
- Operates without an external power supply for a cleaner desk setup
- Supports mirror and extended display modes switched by button or remote control

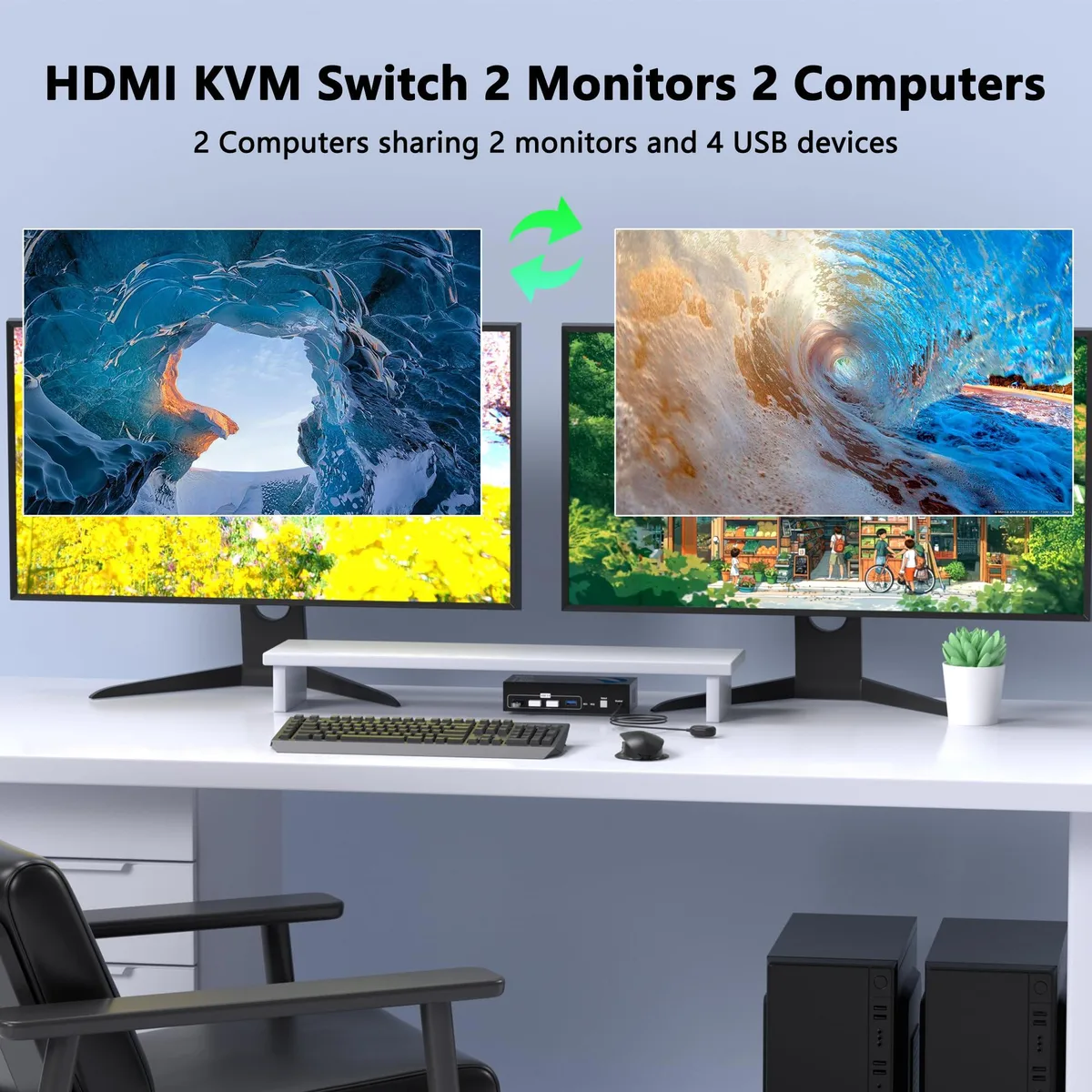

Dual-computer dual-monitor KVM

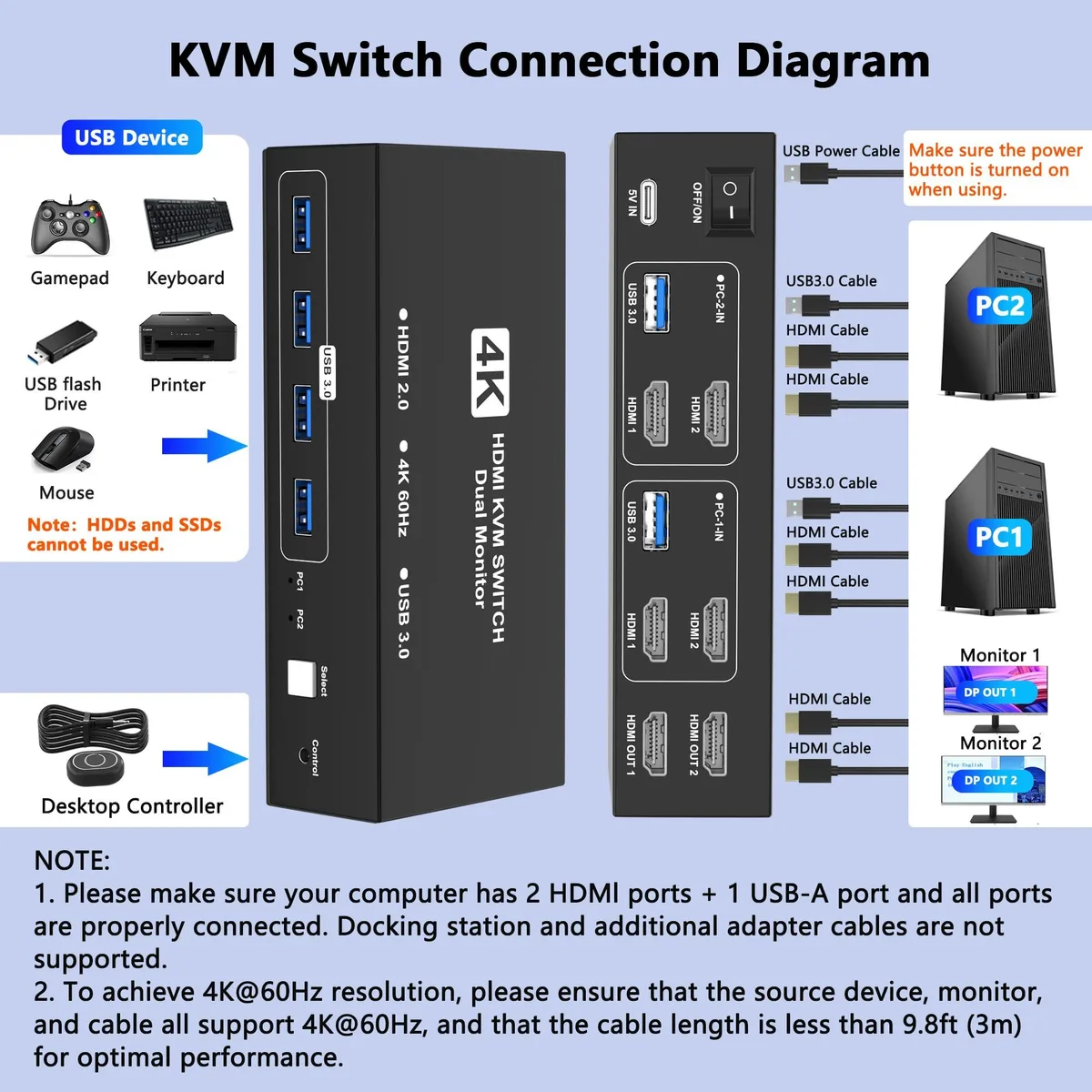

This KVM switch lets two computers share two HDMI monitors and four USB 3.0 peripherals. Switching is handled by front-panel buttons or the included wired remote controller. Each computer must connect with two HDMI cables and one USB cable for dual-screen operation. Docking stations and adapter cables are not supported.
4K@60Hz video and 5Gbps USB
Video resolution reaches 4K@60Hz and is backward compatible with 4K@30Hz and 1080P@60Hz. The unit complies with HDMI 2.0 and HDCP 2.2/1.4 and supports 3D content. Four USB 3.0 ports deliver up to 5Gbps data transfer and work with USB 2.0, 1.1 and 1.0 devices. HDDs and SSDs cannot be used on these ports.
HDMI cable length and power limits
For reliable 4K@60Hz output the HDMI cables should not exceed 9.8ft (3 meters). The switch draws power from the connected computers and requires no separate power supply. Both computers must support dual-screen output natively; the KVM cannot add that capability. Mirror and extended display modes (AAA, ABB, ABC) are available.
Highlights
- Share two monitors and four USB 3.0 devices between two computers via front-panel buttons or wired remote
- Dual-display 4K at 60 Hz with HDMI 2.0 and HDCP 2.2/1.4 for sharp video and gaming
- Four USB 3.0 ports deliver up to 5 Gbps transfer, backward compatible with USB 2.0/1.1/1.0
- Operates without an external power supply for a cleaner desk setup
- Supports mirror and extended display modes switched by button or remote control
Specifications
| Brand | TRENDnet |
|---|---|
| Model | ?KVM-4KHD-01 |
| Part Number | ?KVM-4KHD-01 |
| Type | USB |
| PC Connectors | Plug In |
| Console Connectors | Plug In |
| Computer Connections | USB 2.0 |
| Monitor Connections | 4 Ports |
| PC Selection | Push Buttons |
| Monitors Supported | VGA DDC, DDC2, DDC2B |
| Audio Features | Offers audio and microphone switching |
| Power Features | Requires no additional power supply |
| USB Features | with USB support |
| SplitterOnly | VGA Monitor Splitter only |
| Application | Plug In |
| Features | Plug In, 13, IP20 |
| Dimensions | 14.33in W x 12.83in H x 9.06in D |
| Package Contents | with Built-in Cables |
Questions about this item
Will the 4K@60Hz dual-monitor output still work if one of my older displays only supports 1080p@60Hz?
Yes, the switch is backward compatible with 1080p@60Hz and 4K@30Hz, so mixed-resolution monitors will still display correctly.
How can I confirm the switch is delivering 5Gbps USB 3.0 speeds to my peripherals after setup?
Connect a USB 3.0 flash drive and check the transfer rate in your OS; speeds up to 5Gbps indicate the USB 3.0 link is active.
Which cables are included and which must I buy separately for a two-computer, two-monitor installation?
The box includes the KVM unit, two USB 3.0 cables, one USB power cable and a wired remote; you must supply four HDMI cables yourself.
