TRENDnet KS204V 4-Port VGA USB KVM Switch
Controls four computers with one VGA monitor, three USB 2.0 peripherals, and audio via push-button or desktop controller, no external power needed
- TypeUSB
- PC ConnectorsPlug In
- Console ConnectorsPlug In
- Computer ConnectionsUSB 2.0
- Monitor Connections4 Ports
- PC SelectionPush Buttons
- Control 4 computers from one monitor, keyboard and mouse set
- Switch instantly with front-panel push buttons or wired desktop controller
- Supports up to 1920 x 1440 VGA resolution with DDC2B auto-detection
- Shares three USB 2.0 peripherals such as printer, scanner or drive
- Operates without external power supply for a clutter-free desk
Four-computer VGA KVM switch

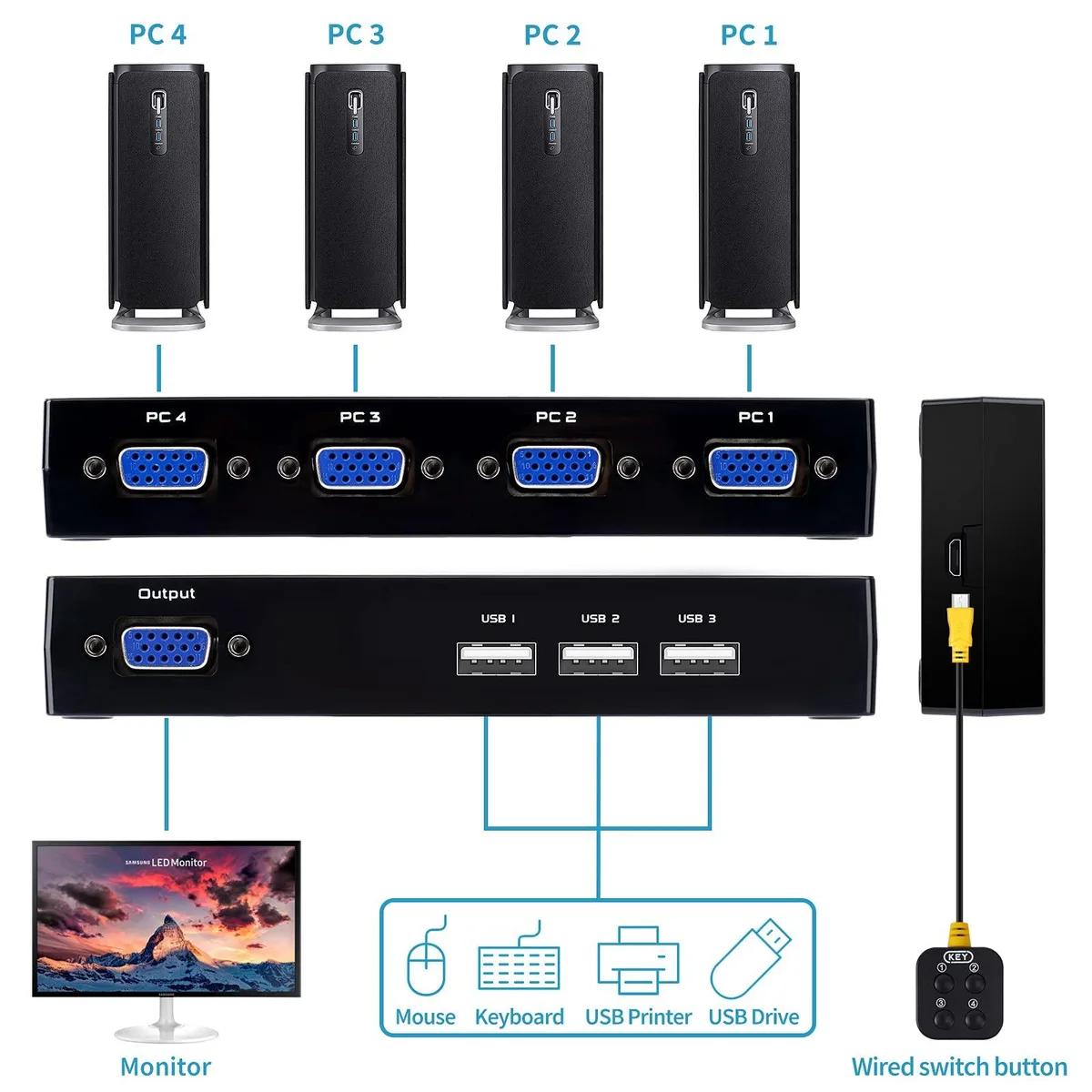

The TRENDnet KS204V lets one VGA monitor, keyboard, mouse and up to three USB 2.0 peripherals control four separate computers or laptops. It targets offices, classrooms and home studios that need to toggle between multiple systems without extra displays or cable clutter.
Single-console build integration

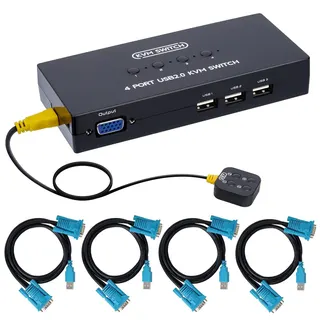

The unit occupies a 14.33in by 12.83in by 9.06in footprint on the desk and draws all power from the connected computers, so no external adapter is required. Four integrated 2-in-1 VGA and USB cables run directly to each host, freeing the console ports for a shared printer, scanner or external drive.
Wired remote and front-panel switching

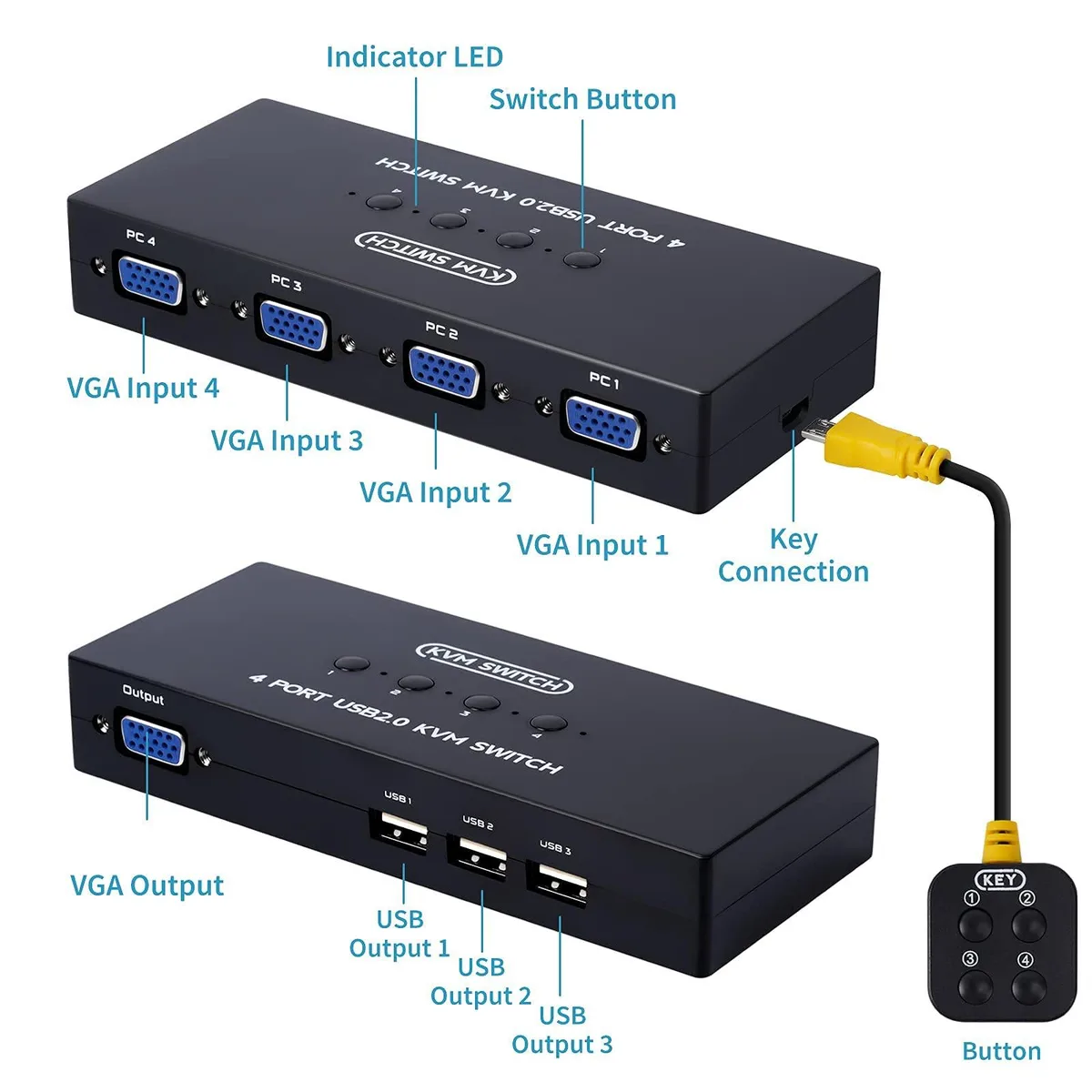

A tethered desktop controller with LED indicators lets users change the active system without reaching the main box, while push buttons on the chassis provide a fallback method. Audio and microphone channels follow the same switch, so headsets stay connected to the selected computer. Not suited for setups that need DVI, HDMI or DisplayPort video, or for illuminated mechanical keyboards that exceed the USB port power budget.
Highlights
- Control 4 computers from one monitor, keyboard and mouse set
- Switch instantly with front-panel push buttons or wired desktop controller
- Supports up to 1920 x 1440 VGA resolution with DDC2B auto-detection
- Shares three USB 2.0 peripherals such as printer, scanner or drive
- Operates without external power supply for a clutter-free desk
Specifications
| Brand | TRENDnet |
|---|---|
| Series | 4 Port VGA KVM |
| Model | KS204V |
| Part Number | KS204V |
| Type | USB |
| PC Connectors | Plug In |
| Console Connectors | Plug In |
| Computer Connections | USB 2.0 |
| Monitor Connections | 4 Ports |
| PC Selection | Push Buttons |
| Monitors Supported | VGA DDC, DDC2, DDC2B |
| Audio Features | Offers audio and microphone switching |
| Power Features | Requires no additional power supply |
| USB Features | with USB support |
| SplitterOnly | VGA Monitor Splitter only |
| Application | Plug In, USB |
| Features | Plug In, USB, 4, IP54, Push Button |
| Dimensions | 14.33in W x 12.83in H x 9.06in D |
| Package Contents | with Built-in Cables |
Questions about this item
What maximum resolution does the KS204V support for the shared VGA monitor?
The KS204V supports a maximum resolution of 1920 x 1440 on the shared VGA monitor.
Does the KS204V need an external power adapter when all four computers and three USB devices are connected?
No, the KS204V draws all required power from the connected computers via the USB 2.0 links and needs no external power adapter.
Which cables must the buyer already have to connect four computers to the KS204V?
The package includes four integrated 2-in-1 KVM cables (VGA + USB 2.0), so no extra cables are required for the four computer connections.
