TRENDnet HDDP KVM-4K KVM Switch 2×2 4K@60Hz USB 3.0
A dual-monitor KVM switch lets two computers share two screens and four USB 3.0 ports at up to 4K 60 Hz
- TypeUSB
- PC ConnectorsUsb,hdmi,displayport
- Console ConnectorsUsb,hdmi,displayport
- Computer ConnectionsUSB 2.0
- Monitor Connections4 Ports
- PC SelectionPush Buttons
- Share two monitors and four USB devices between two computers
- Switch instantly via front-panel buttons or wired remote controller
- View crisp 4K video at 60 Hz on both displays
- Transfer files at up to 5 Gbps through four USB 3.0 ports
- Supports mirror and extended desktop modes for flexible workflows

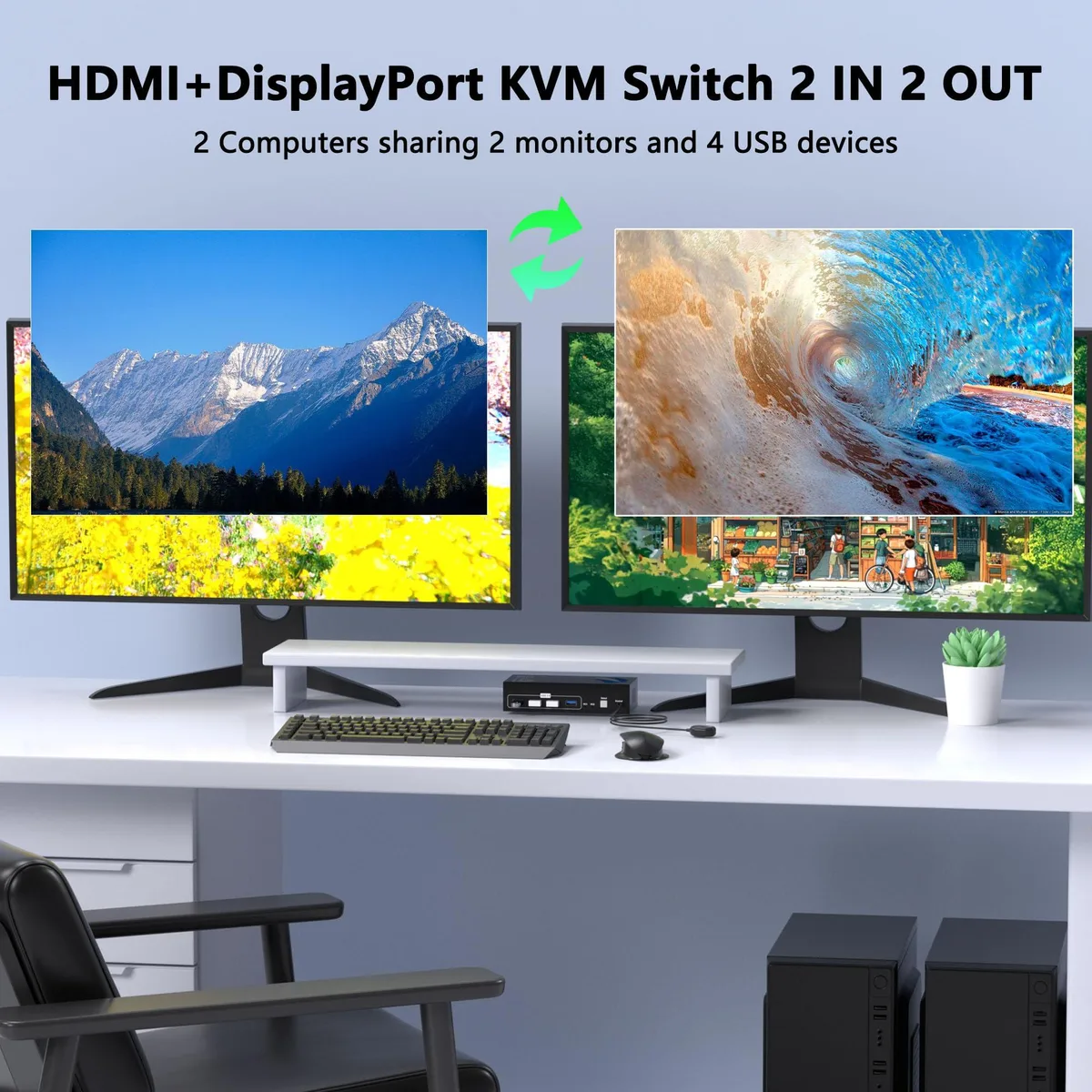

Dual-computer dual-monitor KVM
The TRENDnet HDDP KVM-4K lets two computers share two monitors and four USB devices. It is built for users who need to control both systems from a single keyboard and mouse. Switching is handled by front-panel push buttons or the included wired remote controller. The unit ships with built-in cables, two USB 3.0 cables, a USB power cable and a user manual.
Metal chassis with front-panel controls
The switch measures 14.33in W x 12.83in H x 9.06in D and carries an IP20 rating. Each computer must connect with one HDMI cable, one DisplayPort cable and one USB cable to enable dual-screen operation. Docking stations and adapter cables are not supported. Four USB 3.0 ports deliver up to 5Gbps data transfer and are backward compatible with USB 2.0, 1.1 and 1.0, though HDDs and SSDs cannot be used.
4K@60Hz dual-display support
The KVM supports resolutions up to 4K@60Hz and is backward compatible with 4K@30Hz and 1080P@60Hz. It works with HDMI 2.0, HDCP 2.2/1.4 and 3D content. To achieve 4K@60Hz output, the computer, cables and monitors must all support that rate, and cable length should stay under 9.8ft. The switch offers mirror mode (AAA) and extended modes (ABB and ABC).
Highlights
- Share two monitors and four USB devices between two computers
- Switch instantly via front-panel buttons or wired remote controller
- View crisp 4K video at 60 Hz on both displays
- Transfer files at up to 5 Gbps through four USB 3.0 ports
- Supports mirror and extended desktop modes for flexible workflows
Specifications
| Brand | TRENDnet |
|---|---|
| Model | HDDP KVM-4K |
| Part Number | HDDP KVM-4K |
| Type | USB |
| PC Connectors | Usb,hdmi,displayport |
| Console Connectors | Usb,hdmi,displayport |
| Computer Connections | USB 2.0 |
| Monitor Connections | 4 Ports |
| PC Selection | Push Buttons |
| Monitors Supported | VGA DDC, DDC2, DDC2B |
| Audio Features | Offers audio and microphone switching |
| USB Features | with USB support |
| SplitterOnly | VGA Monitor Splitter only |
| Application | Usb,hdmi,displayport, HDMI, DisplayPort, USB |
| Features | Usb,hdmi,displayport, HDMI, DisplayPort, USB, 13, IP20 |
| Dimensions | 14.33in W x 12.83in H x 9.06in D |
| Package Contents | with Built-in Cables |
Questions about this item
What video interfaces and maximum refresh rate does the HDDP KVM-4K support?
It handles HDMI 2.0 and DisplayPort inputs with HDCP 2.2/1.4 and 3D, delivering up to 4K@60Hz when the computer, cables and monitors all support that rate.
What are the unit's dimensions and what cables must be provided by the user?
The switch measures 14.33in W x 12.83in H x 9.06in D and ships with two USB 3.0 cables, a USB power cable and a wired remote; HDMI and DisplayPort cables are not included.

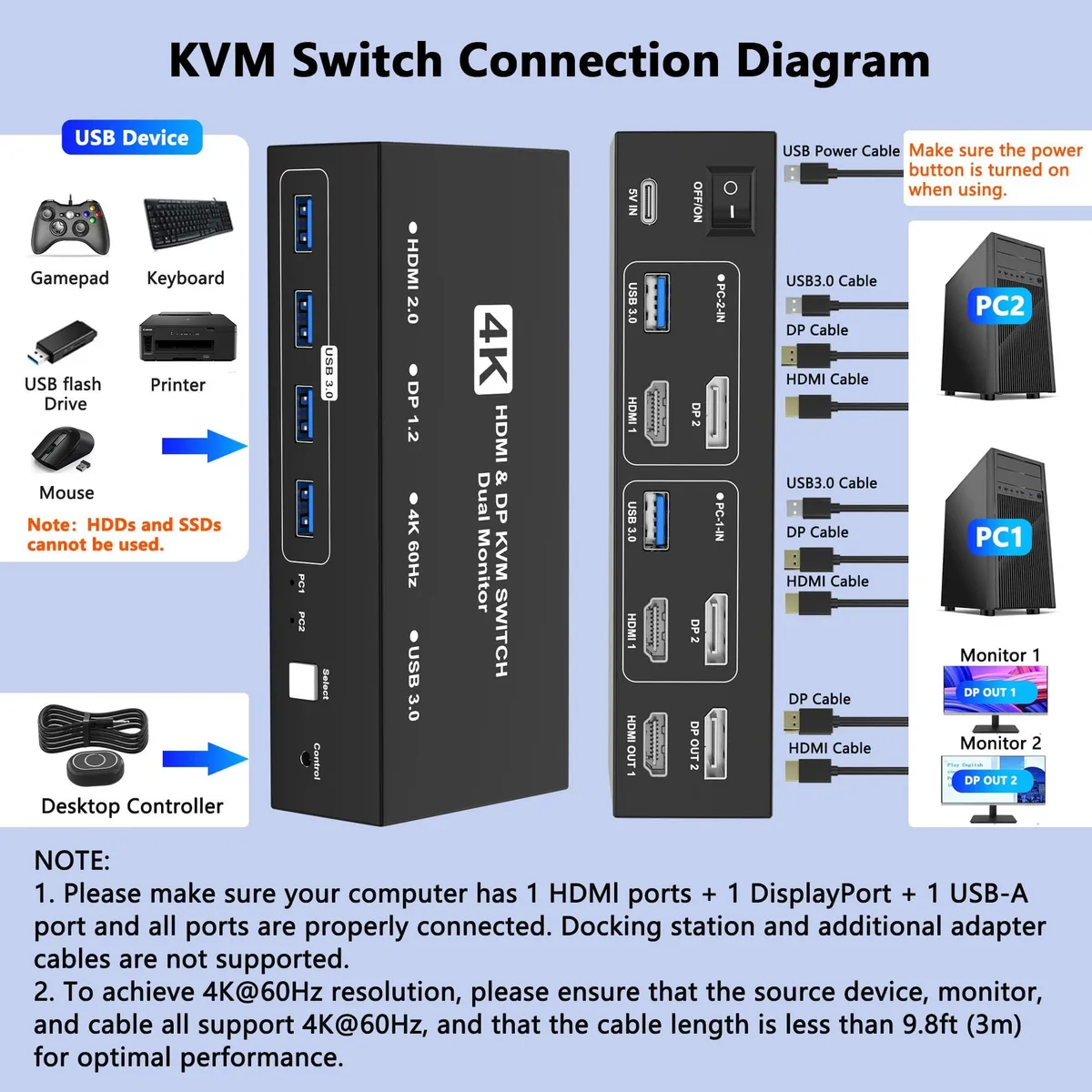

How do you connect each computer for dual-screen operation and which step is commonly missed?
Each PC needs one HDMI cable, one DisplayPort cable and one USB cable plugged into the corresponding ports, and the power button on the KVM must be turned on before use.
