TRENDnet 401UK 4-Port VGA KVM Switch 1080p Desktop Controller
Share one VGA monitor and three USB 2.0 peripherals across four computers with driver-free 1920 x 1440 video and a wired desktop controller
- TypeUSB
- PC ConnectorsVga
- Console ConnectorsVga
- Computer ConnectionsUSB 2.0
- Monitor Connections4 Ports
- PC SelectionPush Buttons
- Share 3 USB 2.0 peripherals across 4 PCs
- Switch systems via front buttons or wired desktop controller
- Supports video up to 1920 x 1440 including 1080p
- Driver-free plug-and-play with Windows 11 10 8 7 Mac Linux Chrome OS
- Includes 4 combined USB VGA cables and desktop controller

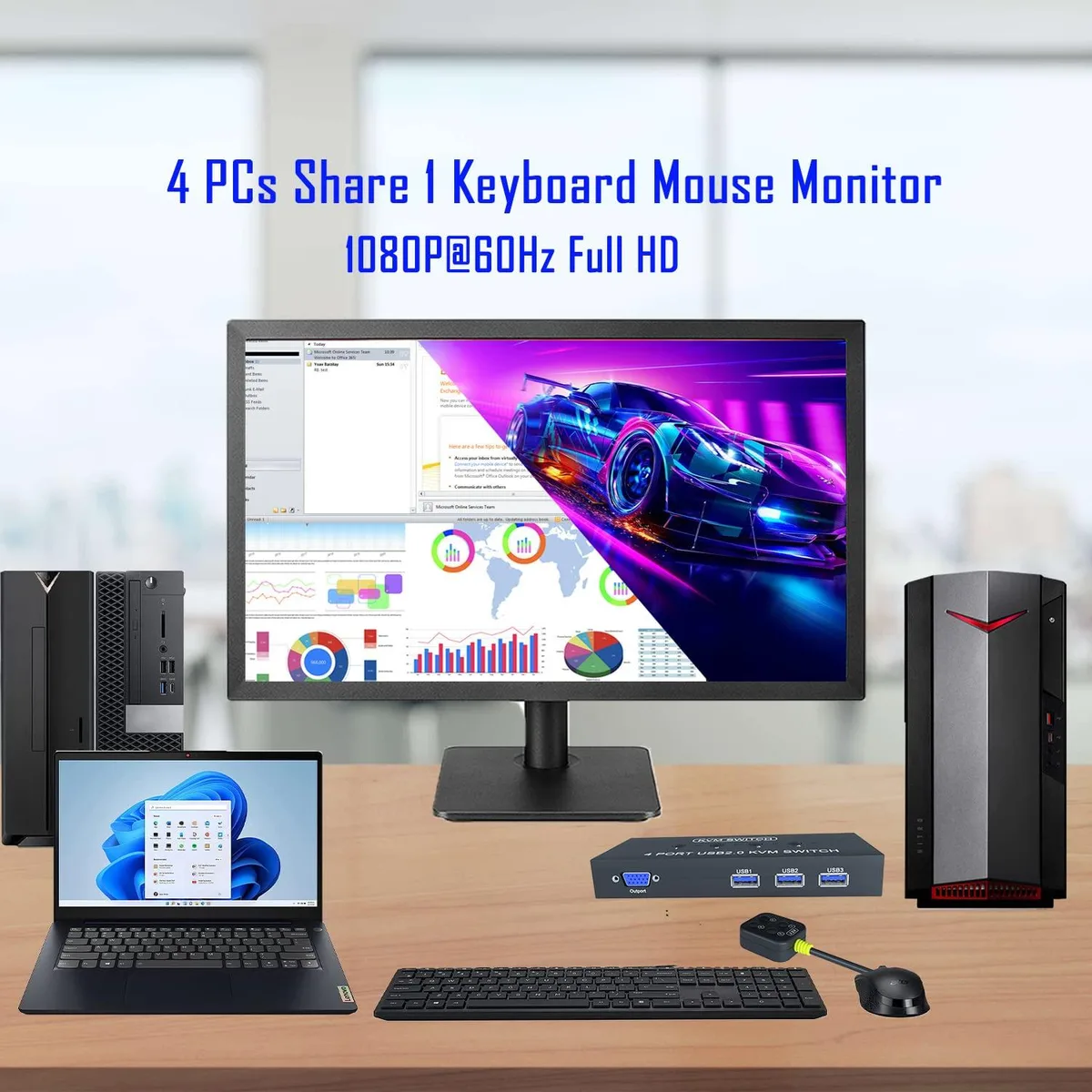

4-Port VGA KVM for Multi-PC Workspaces
The TRENDnet 401UK lets one VGA monitor, keyboard, mouse and two other USB 2.0 peripherals control four separate computers. It targets office staff, classroom technicians and lab users who need to manage several legacy PCs without extra displays or cable clutter. The switch draws power from the connected USB ports so no external adapter is required.
Four Computers at 1920x1440 Maximum
Video resolution tops out at 1920x1440, covering 1080p and lower VGA modes with automatic display recognition. The three USB 2.0 ports share keyboards, mice, printers, scanners or flash drives across the active system. Bandwidth is limited to USB 2.0 speeds, so high-throughput storage or modern docking stations will not work through this switch.

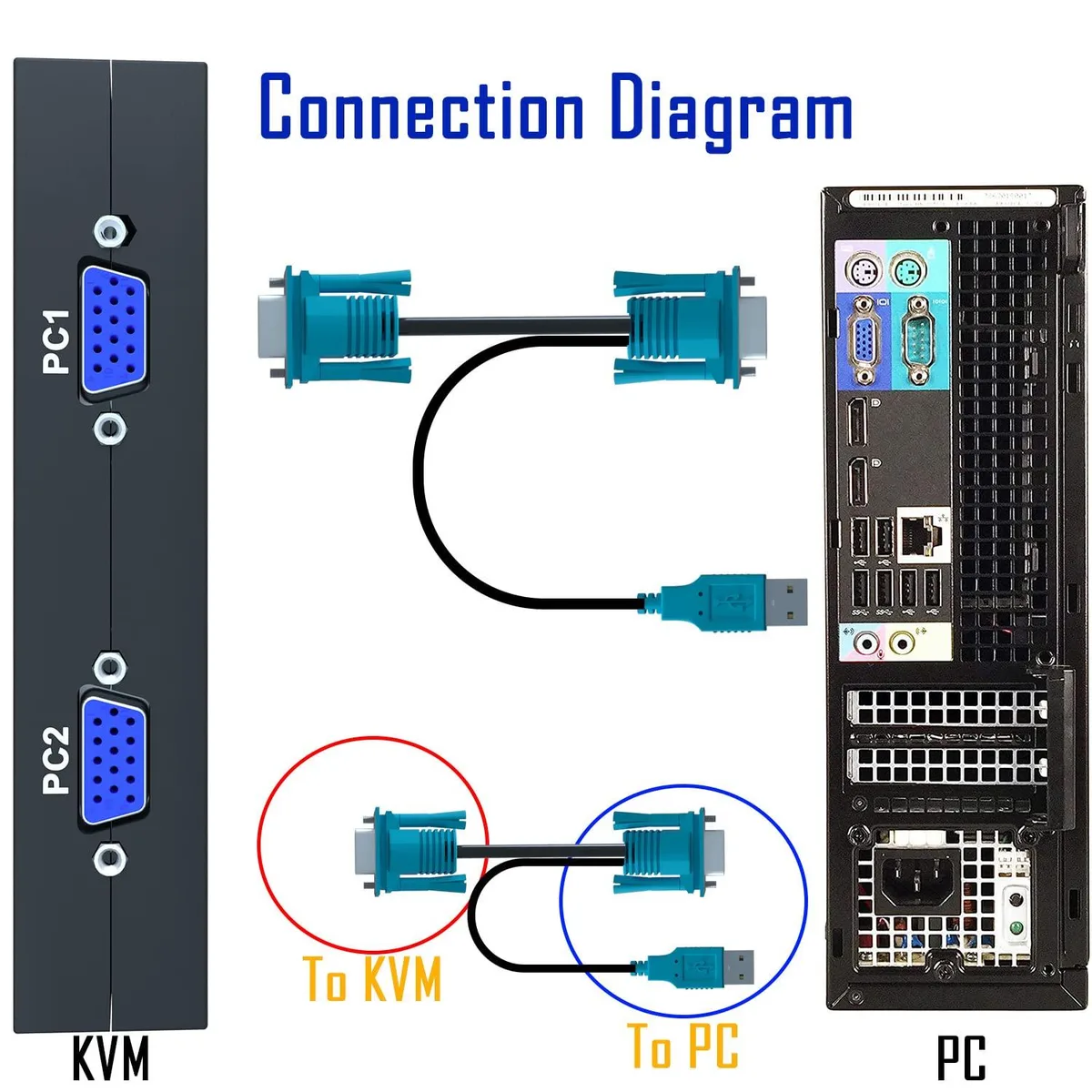

Desktop Controller and Four Cables Included
A wired desktop controller provides push-button switching away from the main unit, keeping the switch itself tucked out of sight. Four combined VGA-and-USB cables ship in the box, each splitting to a USB 2.0 plug and a VGA plug on the computer side and a single VGA plug on the switch side. The kit contains no software, drivers or audio cables beyond the built-in microphone and speaker switching.
Highlights
- Share 3 USB 2.0 peripherals across 4 PCs
- Switch systems via front buttons or wired desktop controller
- Supports video up to 1920 x 1440 including 1080p
- Driver-free plug-and-play with Windows 11 10 8 7 Mac Linux Chrome OS
- Includes 4 combined USB VGA cables and desktop controller
Specifications
| Brand | TRENDnet |
|---|---|
| Series | 4p |
| Model | 401UK |
| Part Number | 401UK |
| Type | USB |
| PC Connectors | Vga |
| Console Connectors | Vga |
| Computer Connections | USB 2.0 |
| Monitor Connections | 4 Ports |
| PC Selection | Push Buttons |
| Monitors Supported | VGA DDC, DDC2, DDC2B |
| Audio Features | Offers audio and microphone switching |
| Power Features | Requires no additional power supply |
| USB Features | with USB support |
| SplitterOnly | VGA Monitor Splitter only |
| Application | Vga, Free Control, touch |
| Features | Vga, Free Control, touch, 3, IP54, Push Button |
| Dimensions | 14.33in W x 12.83in H x 9.06in D |
Questions about this item
Will the 401UK let me keep using my older VGA monitor while I connect four PCs?
Yes — the switch accepts four VGA inputs from the PCs and outputs a single VGA signal to your existing monitor, supporting resolutions up to 1920x1440 including 1080P.
How can I confirm the 401UK is switching video and USB correctly after I plug everything in?
Press the push buttons on the front panel or use the wired desktop controller; the active-port LED will light and your keyboard, mouse and shared USB 2.0 device will immediately follow the selected computer.
The box says four KVM cables are included — do I need to buy any extra cables for a typical four-PC setup?
No; the package supplies the switch, a wired desktop controller and four combined USB 2.0-plus-VGA cables, so each computer connects with a single cable and no separate power adapter is required.
