Small green circuit board with white dome sensor and three pins

Transway's Marketplace

Transway's Marketplace HC-SR501 PIR Motion Sensor Detector Module

SKU CH-313X-MSVGR

Detects motion up to 7 metres with adjustable sensitivity, delay and trigger modes on a 3.3 V TTL output

  • TypeAccessories
  • Adjustable sensitivity and delay tailor detection to any space
  • DC 4.5-20V supply fits common microcontroller boards
  • 3-7 m range covers typical room dimensions
  • 3 V TTL output connects directly to logic-level pins
  • Operates from -20 to +80 °C for harsh environments

Motion sensor for automation projects

The HC-SR501 is a pyroelectric infrared detector module designed for smart home and security automation. It operates on a DC supply between 4.5V and 20V and provides a 3.3V TTL output signal. The board measures 3.2 cm by 2.4 cm by 1.8 cm and functions across a temperature range from -20 to +80 degrees Celsius. It is supplied as a single unit ready for integration.

Adjustable detection distance and delay

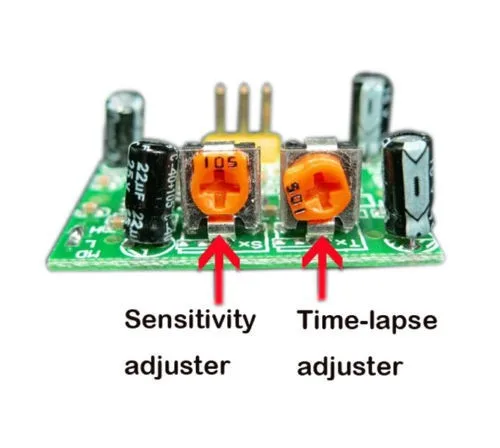

The module detects motion at distances from 3 to 7 metres with a configurable delay time between 5 and 200 seconds. Sensitivity and holding time are adjusted via onboard potentiometers. A jumper selects between repeatable and non-repeatable trigger modes, with repeat trigger set as the default. Blockade time is fixed at 2.5 seconds.

Suits hobbyists and prototype builds

This sensor suits developers adding motion detection to microcontroller projects or simple security circuits. Buyers needing weatherproof enclosures, wireless connectivity or certified safety ratings should look at alternative devices. The bare PCB requires an external enclosure for permanent installation. No mounting hardware or cables are included.

Highlights

  • Adjustable sensitivity and delay tailor detection to any space
  • DC 4.5-20V supply fits common microcontroller boards
  • 3-7 m range covers typical room dimensions
  • 3 V TTL output connects directly to logic-level pins
  • Operates from -20 to +80 °C for harsh environments

Specifications

TypeAccessories

Questions about this item

How far will the HC-SR501 actually detect movement once it is mounted?

The module detects motion from 3 to 7 metres away and you can trim the sensitivity to suit the room size.

What voltage does the 3.3 V TTL output expect from the supply rail?

It runs on anything from 4.5 V up to 20 V DC and still delivers a clean 3.3 V logic signal.

Will the 3.2 cm by 2.4 cm board fit inside a standard junction box?

At 3.2 cm long, 2.4 cm wide and 1.8 cm high it slides into most small enclosures without modification.
