Two white plug-in adapters, one taller with side ports, one compact, both matte finish

TP-Link

TP-Link TL-WPA7517 KIT AV1000 powerline networking kit

SKU CH-00VV-9CCPA MPN TL-WPA7517 KIT

Extends wired and dual-band wireless networks over electrical wiring at up to 1000 Mbps with Gigabit Ethernet ports

  • StandardsHomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3
  • InterfaceTL-WPA7517: 1 Gigabit Ethernet Port TL-PA7017: 1 Gigabit Eth
  • LEDsPower, Powerline, Ethernet, Wi-Fi (2.4GHz), Wi-Fi (5GHz)
  • System RequirementWindows 10/8.1/8/7/Vista/XP, Mac OS, Linux
  • TemperatureOperating Temperature: 0°C~40°C (32°F~104°F) Operating Humid
  • DimensionsTL-WPA7517: 2.70" x 1.40" x 4.90" (69.5 x 35 x124.1 mm) TL-P
  • AV1000 powerline delivers up to 1000 Mbps over 300 metres
  • Dual-band AC750 Wi-Fi adds 433 Mbps on 5 GHz and 300 Mbps on 2.4 GHz
  • Gigabit Ethernet ports connect consoles, TVs and NAS at full wired speed

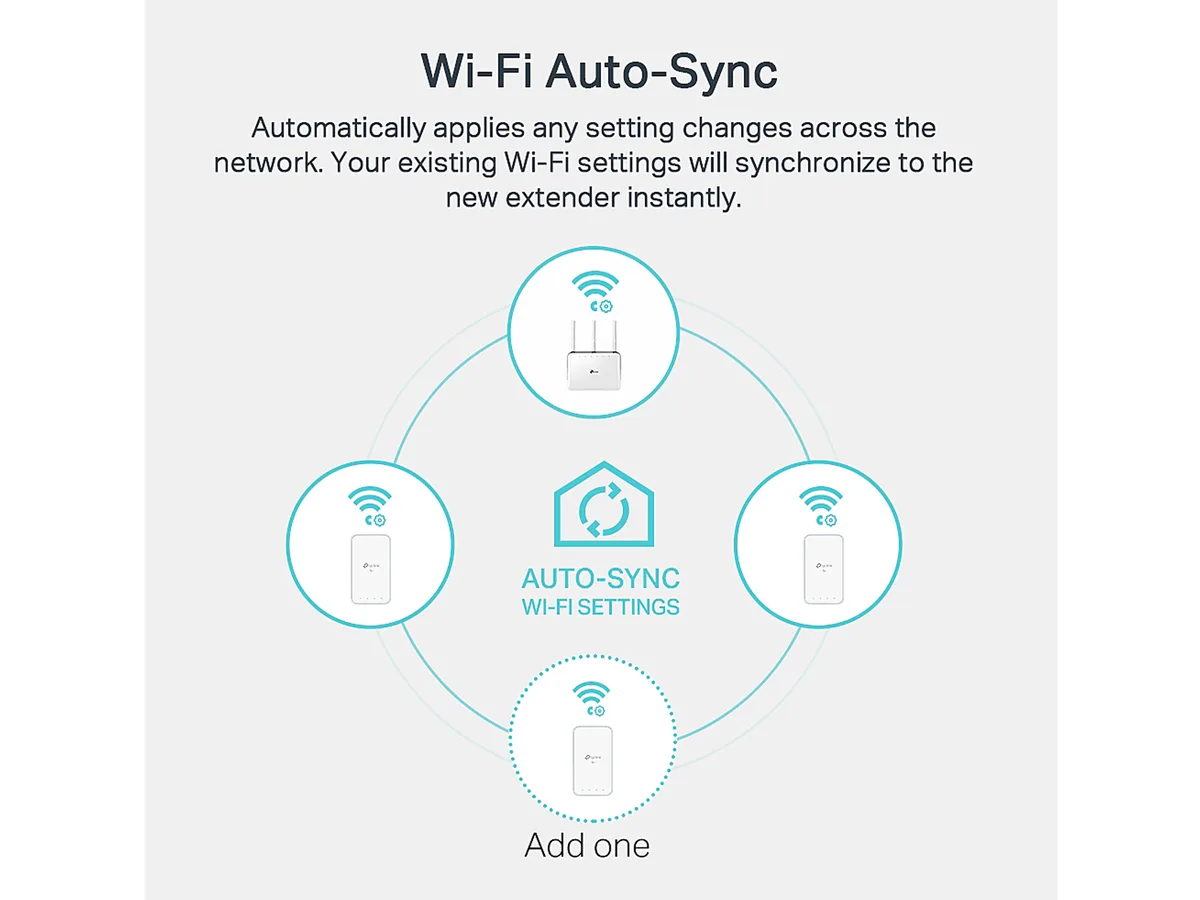

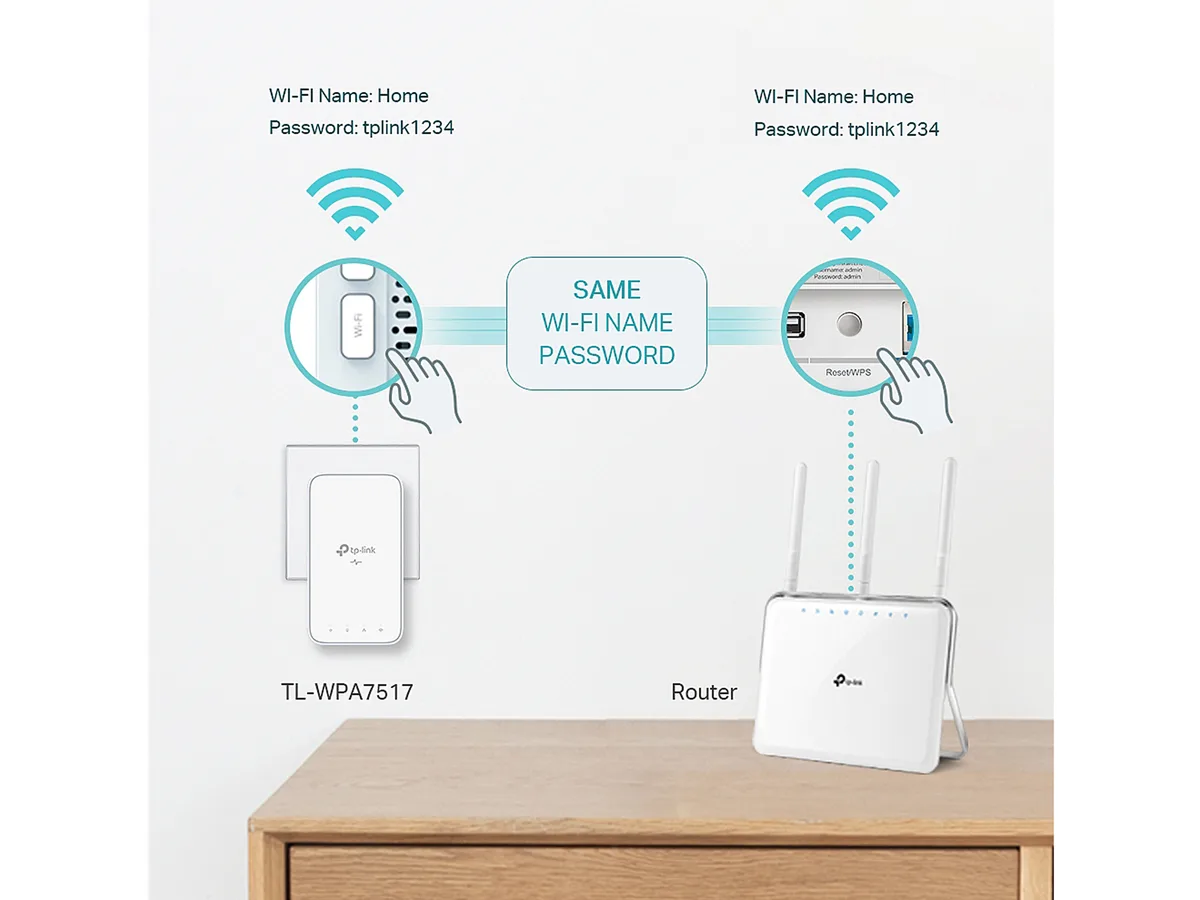

  • Wi-Fi Clone and Wi-Fi Move copy router settings across the powerline network in seconds
  • Plug, pair and play setup creates a secured network without configuration software

AV1000 Powerline Wi-Fi Kit

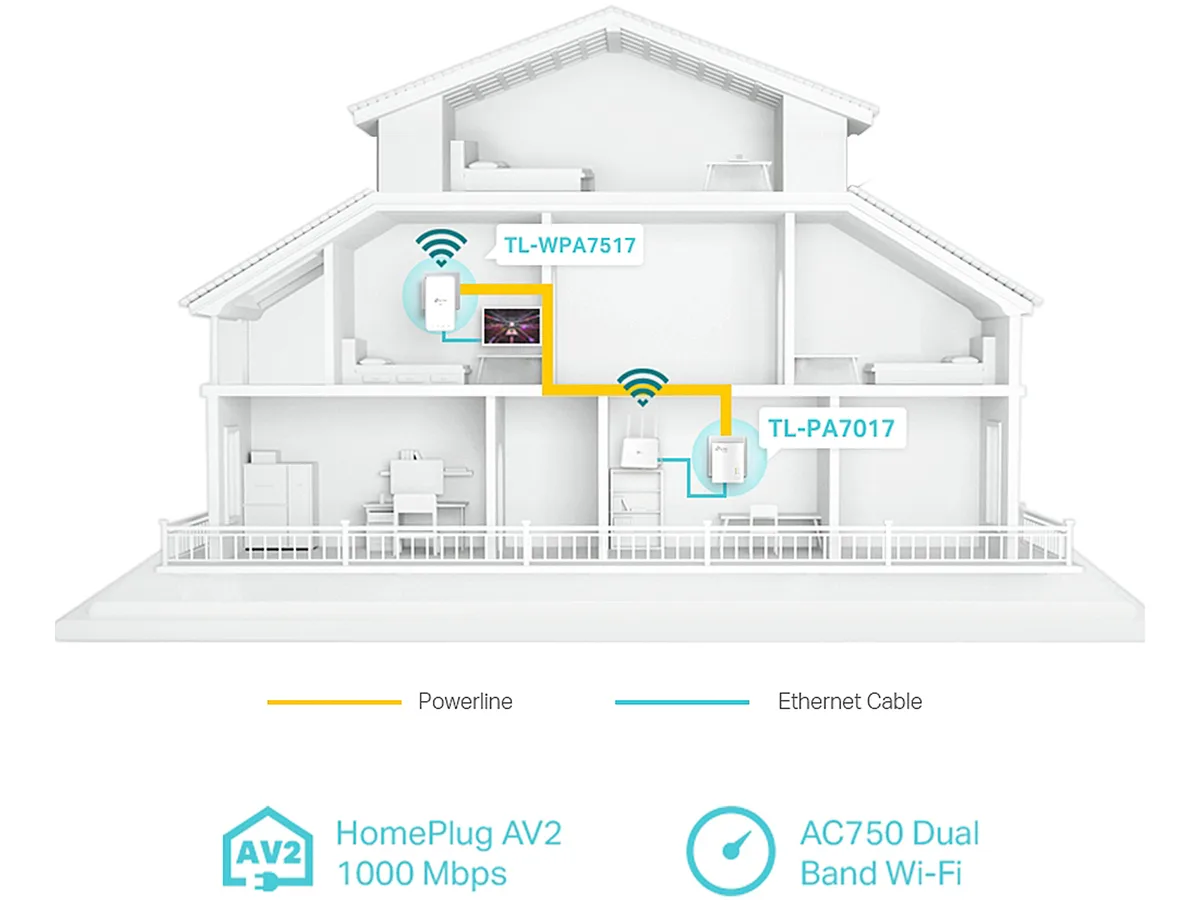

This kit combines a HomePlug AV2 powerline adapter with a dual-band Wi-Fi access point to extend a wired and wireless network over existing electrical wiring. It delivers up to 1000 Mbps powerline throughput and AC750 Wi-Fi across 2.4 GHz and 5 GHz bands. The package includes two adapters and two Ethernet cables for immediate setup.

Check your electrical circuit and outlets

Both adapters must share the same electrical circuit for the powerline link to function across up to 300 metres of wiring. Ensure you have a free mains socket near the router for the TL-PA7017 unit and another at the target location for the TL-WPA7517 unit. Verify that your router provides a spare Gigabit Ethernet port for the initial connection.

Suits homes needing wired and wireless extension

Ideal for households that want to add a Gigabit Ethernet port and dual-band Wi-Fi to a room without running new cables. Less suited for users who require multiple wired ports at the remote end or who need mesh roaming features across several access points.

Highlights

  • AV1000 powerline delivers up to 1000 Mbps over 300 metres
  • Dual-band AC750 Wi-Fi adds 433 Mbps on 5 GHz and 300 Mbps on 2.4 GHz
  • Gigabit Ethernet ports connect consoles, TVs and NAS at full wired speed
  • Wi-Fi Clone and Wi-Fi Move copy router settings across the powerline network in seconds
  • Plug, pair and play setup creates a secured network without configuration software

Specifications

BrandTP-Link
ModelTL-WPA7517 KIT
StandardsHomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b/g/n (2.4GHz), IEEE 802.11a/n/ac (5GHz)
InterfaceTL-WPA7517: 1 Gigabit Ethernet Port
TL-PA7017: 1 Gigabit Ethernet Port
LEDsPower, Powerline, Ethernet, Wi-Fi (2.4GHz), Wi-Fi (5GHz)
System RequirementWindows 10/8.1/8/7/Vista/XP, Mac OS, Linux
TemperatureOperating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% non-condensing

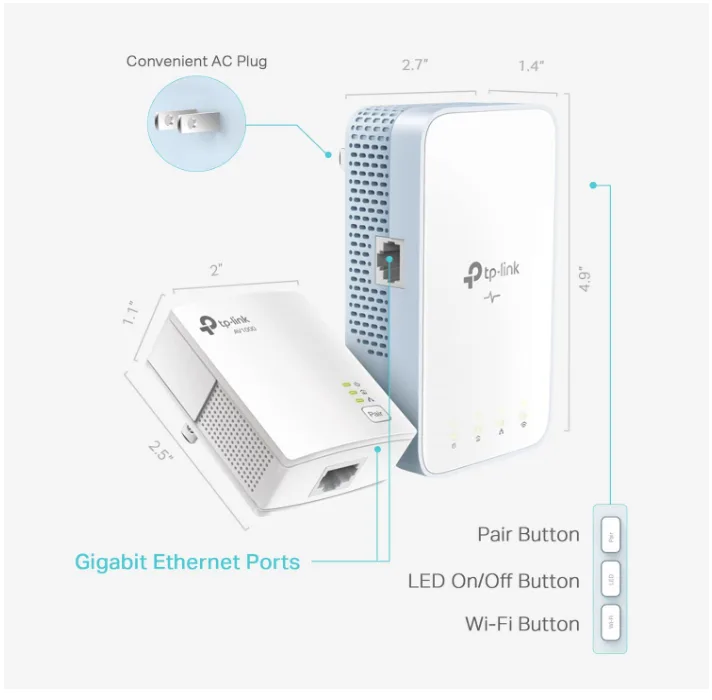

DimensionsTL-WPA7517: 2.70" x 1.40" x 4.90" (69.5 x 35 x124.1 mm)
TL-PA7017: 2.00" x 1.10" x 2.60" (52 x 28.5 x 65 mm)
Package ContentsAV1000 Powerline Wi-Fi Kit: TL-WPA7517 & TL-PA7017
Ethernet Cable x 2
Quick Installation Guide
Shipping weight0.59 kg
Package size230 × 188 × 99 mm

Questions about this item

What comes in the TL-WPA7517 KIT box and what must I provide?

The kit includes the TL-WPA7517 and TL-PA7017 adapters, two Ethernet cables and a Quick Installation Guide. No extra hardware is required to start.

Which adapter handles Wi-Fi and which is the wired base unit?

The TL-WPA7517 provides dual-band Wi-Fi (433 Mbps on 5 GHz and 300 Mbps on 2.4 GHz) plus one Gigabit Ethernet port; the TL-PA7017 is a single Gigabit Ethernet port adapter with no Wi-Fi.

What real-world speed can I expect from the AV1000 powerline link?

The HomePlug AV2 link is rated up to 1000 Mbps over electrical wiring up to 300 meters; actual throughput depends on circuit quality and interference.
