TP-Link
TP-Link TL-WA855RE N300 wireless range extender 300Mbps 2.4GHz 1 port
Extends 2.4 GHz Wi-Fi coverage up to 300 Mbps with two external antennas and a 10/100 Ethernet port for wired devices
- StandardsIEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Frequency Band2.4 GHz - 2.4835 GHz
- Wireless Data RatesUp to 300Mbps
- Security64 / 128 / 152-bit WEP WPA-PSK / WPA2-PSK
- WPA/WPA2WPA2
- Antenna2 x External
- Extends Wi-Fi up to 800 square feet with N300 2.4 GHz coverage

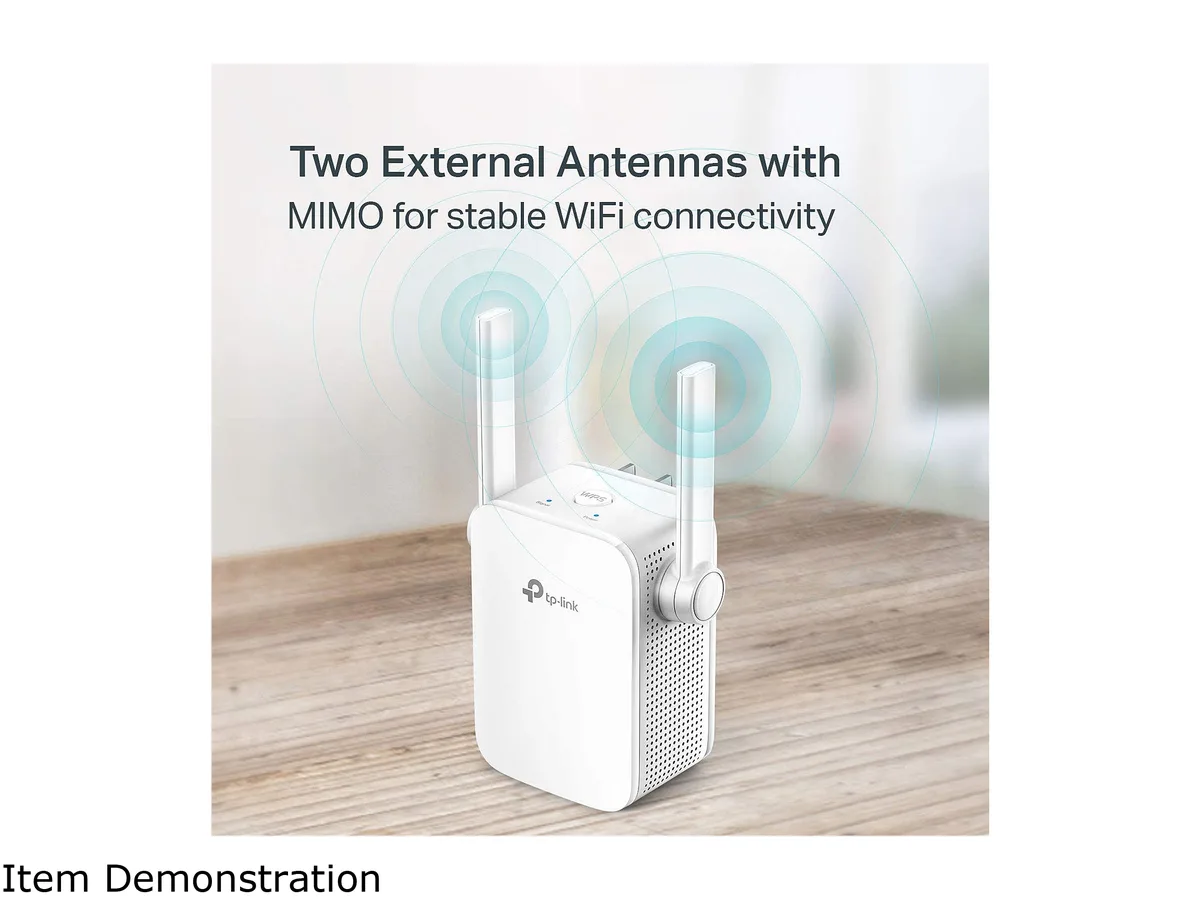

- Delivers up to 300 Mbps wireless speed via two external antennas

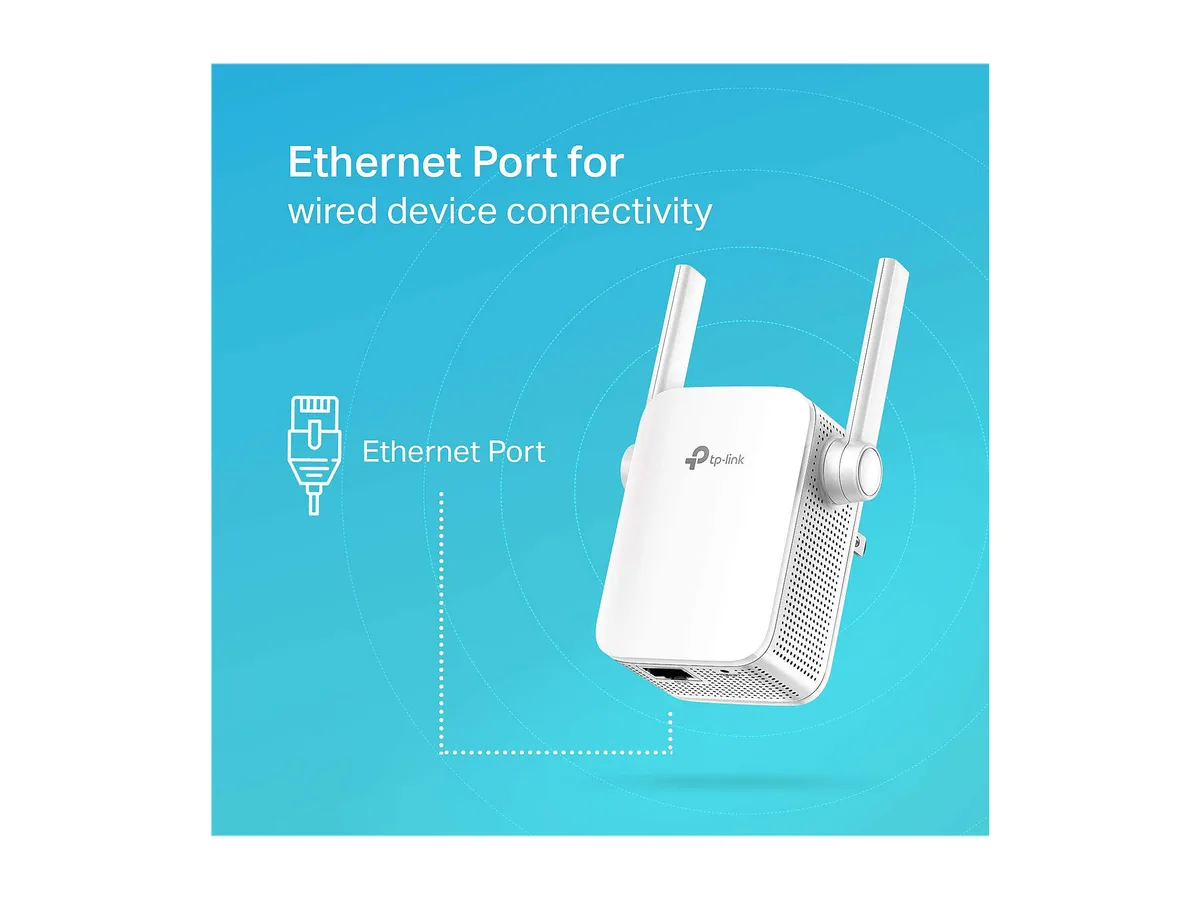

- Adds a 10/100M Ethernet port for wired device connectivity

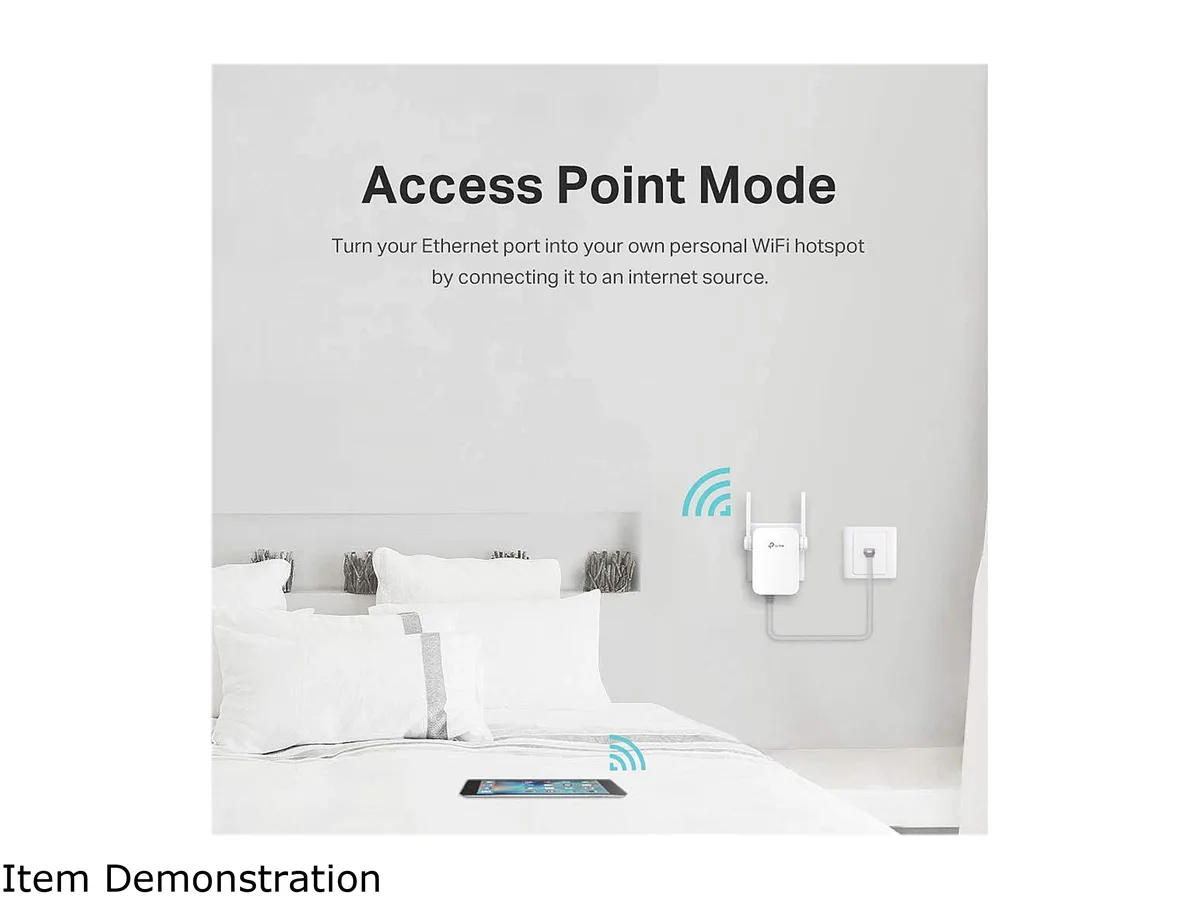

- Switches to AP mode to create a new wireless access point

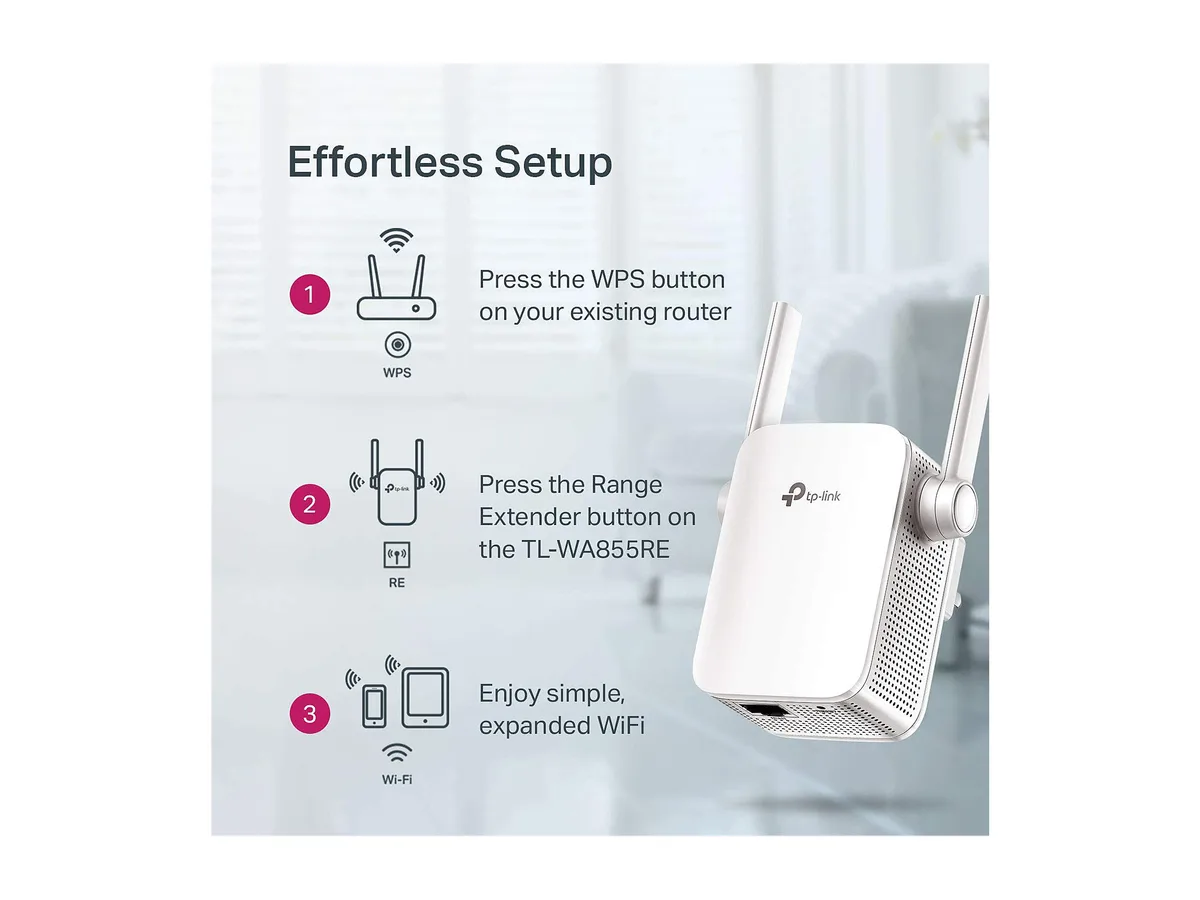

- Simple two-tap setup with smart indicator for optimal placement

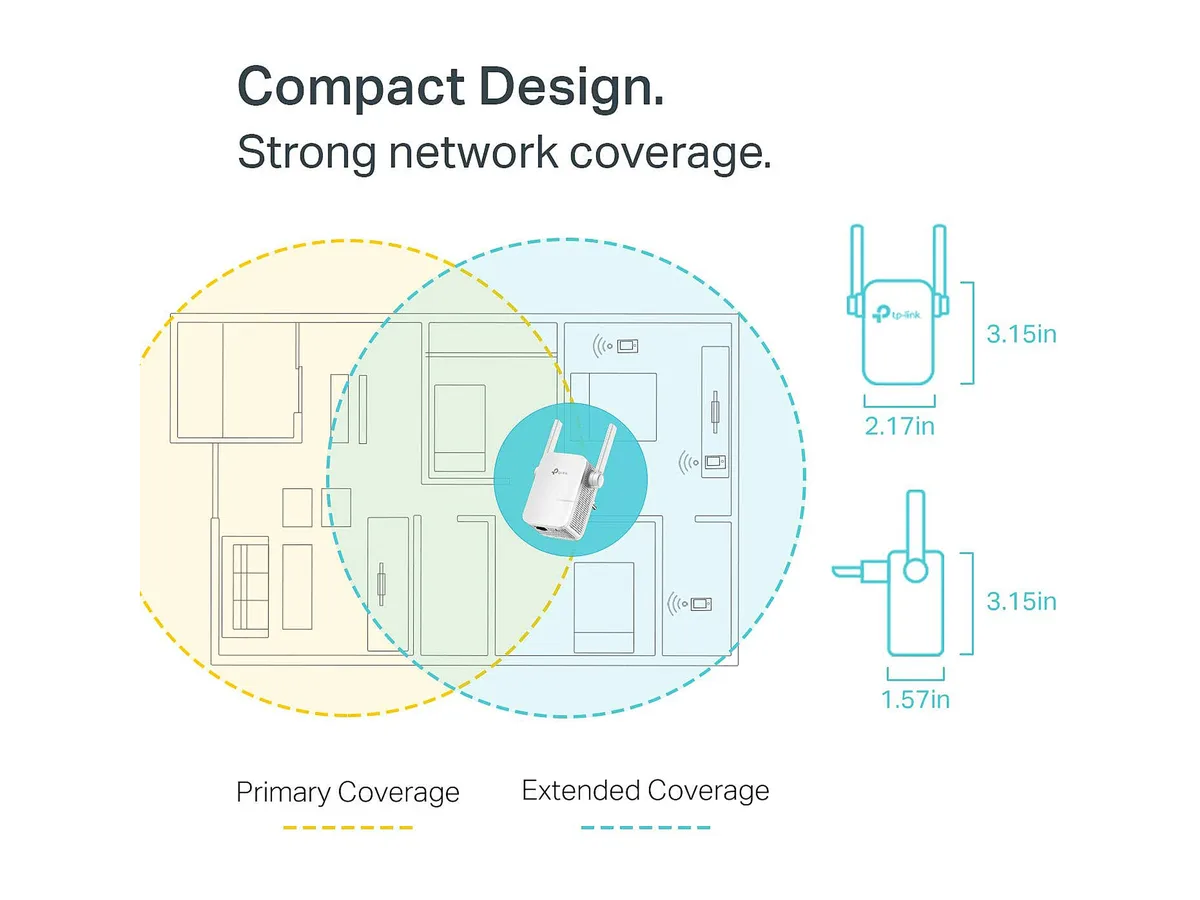

Extend 2.4 GHz coverage up to 800 sq ft
This single-band N300 extender repeats a 2.4 GHz signal at up to 300 Mbps using two external antennas. It supports range-extender and access-point modes and includes one 10/100 Mbps Ethernet port for wired devices. The unit plugs directly into a wall outlet and draws about 3 W.
Plug into any wall outlet near the existing router
No extra cabling or power adapter is required beyond the built-in prongs. The Ethernet port lets a smart TV, game console or desktop connect by wire while the extender handles the wireless hop back to the main router. Setup uses the RE button or a web interface on Windows, Mac, Linux or older systems.
Maintains link under continuous streaming loads
The receiver sensitivity figures show consistent thresholds down to 270 Mbps across a range of data rates, indicating stable demodulation during sustained traffic. Operating temperature is rated 0 °C to 40 °C, so the device stays within spec during prolonged use in typical indoor conditions.
Highlights
- Extends Wi-Fi up to 800 square feet with N300 2.4 GHz coverage
- Delivers up to 300 Mbps wireless speed via two external antennas
- Adds a 10/100M Ethernet port for wired device connectivity
- Switches to AP mode to create a new wireless access point
- Simple two-tap setup with smart indicator for optimal placement
Specifications
| Brand | TP-Link |
|---|---|
| Model | TL-WA855RE |
| Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency Band | 2.4 GHz - 2.4835 GHz |
| Wireless Data Rates | Up to 300Mbps |
| Security | 64 / 128 / 152-bit WEP WPA-PSK / WPA2-PSK |
| WPA/WPA2 | WPA2 |
| Antenna | 2 x External |
| Transmit Power | < 20 dBm (EIRP) |
| Receiving Sensitivity | 270M: <-68 dBm @ 10% PER 130M: <-68 dBm @ 10% PER 108M: <-68 dBm @ 10% PER 54M: <-68 dBm @ 10% PER 11M: <-68 dBm @ 8% PER 6M: <-68 dBm @ 10% PER 1M: <-68 dBm @ 8% PER |
| Operating Mode | Range Extender, AP Mode |
| Interface | Ethernet Port |
| Ports | 1 x 10/100M |
| Button | RE (Range Extender) Button, Reset Button |
| Power | About 3W |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, Mac OS, NetWare, UNIX or Linux. |
| Dimensions | 2.60" x 2.00" x 1.30" |
| Weight | 0.62 |
| Features | Boosts your existing Wi-Fi coverage to deliver fast and reliable wired and wireless connectivity External antennas for faster and more reliable Wi-Fi Supports AP mode which creates a new Wi-Fi Access point Easily expand wireless coverage at a push of the Range Extender button Set the Power Schedule for the range extender for power-saving Tether App allows easy access and management with your mobile devices remotely Works with Any Wi-Fi Router |
| Operating Temperature | Operating Temperature: 0 degree C ~ 40 degree C (32 degree F ~ 104 degree F) Storage Temperature: -40 degree C ~ 70 degree C (-40 degree F ~ 158 degree F) |
| Operating Humidity | Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
| Package Contents | 300Mbps Wi-Fi Range Extender TL-WA855RE RJ-45 Ethernet Cable Quick Installation Guide |
| Shipping weight | 0.26 kg |
| Package size | 159 × 102 × 83 mm |
Questions about this item
What is the maximum wireless data rate the TL-WA855RE can sustain?
The extender supports up to 300Mbps on the 2.4GHz band under the IEEE 802.11n standard.
How much power does the unit draw and what is its rated operating temperature range?
It consumes about 3W and is rated for 0°C to 40°C (32°F to 104°F) during operation.
Which wired device can I connect to the single Ethernet port?
The 10/100M Fast Ethernet port accepts any device with an RJ-45 connection such as a smart TV, game console or PC.
