Silver metal desktop switch with eight RJ45 ports on the front face

TP-Link

TP-Link TL-SG2008 V3 8-port Gigabit Smart network switch

SKU CH-YGY9-Q7YVR MPN TL-SG2008 V3

An 8-port Gigabit Smart switch with VLAN, QoS, ACL security and fanless metal housing for silent desktop or rack mounting

  • FormatDesktop
  • StandardsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 8
  • Network Management TypeSmart
  • Primary Ports8 x RJ45
  • Primary Port Speed10/100/1000Mbps
  • Primary Port Type8 x 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MD
  • Eight gigabit ports deliver high-speed wired connections
  • Fanless design ensures silent operation in noise-sensitive areas
  • Metal casing provides durability and blocks static interference
  • Centralised Omada SDN cloud management simplifies network monitoring
  • QoS and IGMP snooping optimise voice and video traffic

8-Port Gigabit Smart Switch

The TP-Link TL-SG2008 V3 is a desktop switch with eight RJ45 ports that auto-negotiate at 10, 100 or 1000 Mbps. It supports IEEE 802.3 standards and offers Smart management features including VLAN groups, QoS with eight priority queues, ACLs, 802.1X authentication and SNMP monitoring. A fanless metal chassis provides silent operation from 0 to 40 °C.

Small Business and Quiet Environments

This switch suits offices or home labs that need managed Layer 2 features without fan noise. It fits networks requiring VLAN segmentation, port security, storm control and IGMP snooping for voice or video traffic. Buyers who need Power over Ethernet for attached devices should look elsewhere, as this model does not supply PoE power.

Build Integration

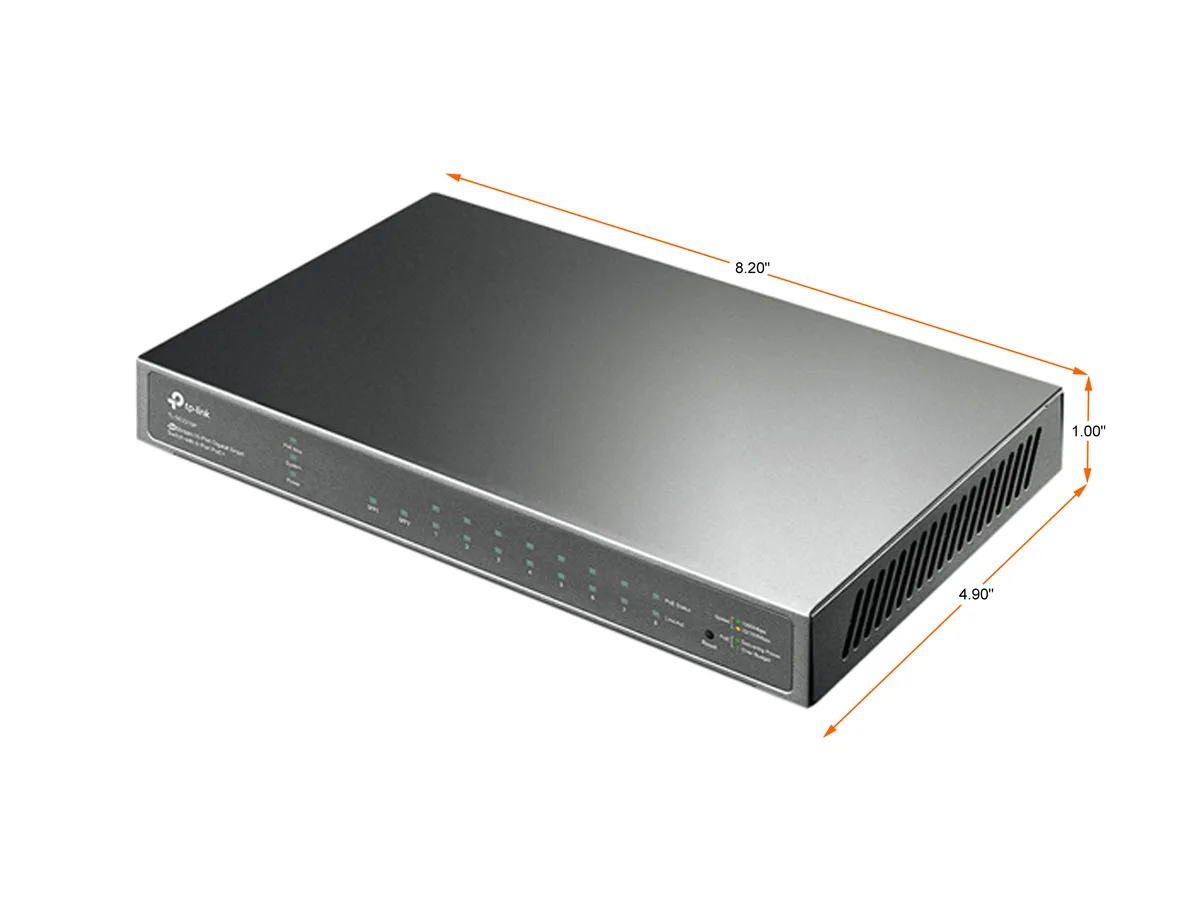

The unit measures 1.00 x 8.20 x 4.90 inches and runs from a 12 VDC 1 A external adapter, so a free mains socket is required. Its compact desktop format frees rack space for other gear. Eight gigabit ports connect PCs, APs, cameras or a server directly, while trunk links carry tagged VLANs to a core switch or router.

Highlights

  • Eight gigabit ports deliver high-speed wired connections
  • Fanless design ensures silent operation in noise-sensitive areas
  • Metal casing provides durability and blocks static interference
  • Centralised Omada SDN cloud management simplifies network monitoring
  • QoS and IGMP snooping optimise voice and video traffic

Specifications

BrandTP-Link
SeriesJetStream
ModelTL-SG2008 V3
FormatDesktop
StandardsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Network Management TypeSmart
Primary Ports8 x RJ45
Primary Port Speed10/100/1000Mbps
Primary Port Type8 x 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
MAC Address Table8K
VLAN SupportVLAN Group
- Max. 4K VLAN Groups
802.1Q tag VLAN
MAC VLAN
Protocol VLAN
GVRP
Voice VLAN
Jumbo Frames9KB
SecurityAAA
802.1X
- Port based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and accountability
IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
IP Source Guard
- 253 Entries
- Source IP+Source MAC
IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
DoS Defend
Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
Port Isolation
Secure we
PoEYes
SNMPYes
QoS802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
- Port/Flow based Rating Limit
Smoother Performance
Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control
Port MirroringYes
Power12 VDC/1 A
External Adapter or
Obtain Power from
PoE Source
Dimensions1.00" x 8.20" x 4.90"
TemperatureOperating Temperature: 0°C~40°C (32°F~104°F);
Storage Temperature: -40°C~70°C (-40°F~158°F)
HumidityOperating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Package ContentsTL-SG2008
Power Adapter
Installation Guide
Rubber Feet
Shipping weight0.91 kg
Package size278 × 227 × 69 mm

Questions about this item

What type of power adapter does the TL-SG2008 V3 need to operate?

It requires a 12 VDC 1 A external adapter, which is included, or it can draw power from a PoE source if your upstream switch provides one.

Will my 10/100 Mbps devices slow down the gigabit ports on this switch?

No, each of the eight RJ45 ports auto-negotiates to 10, 100 or 1000 Mbps, so legacy 10/100 gear runs at its own speed without affecting gigabit links.

How can I confirm the switch is passing traffic correctly after I connect it?

Check the per-port LEDs: a solid light shows a valid link at the negotiated speed, and blinking indicates data activity on that port.
