TP-Link

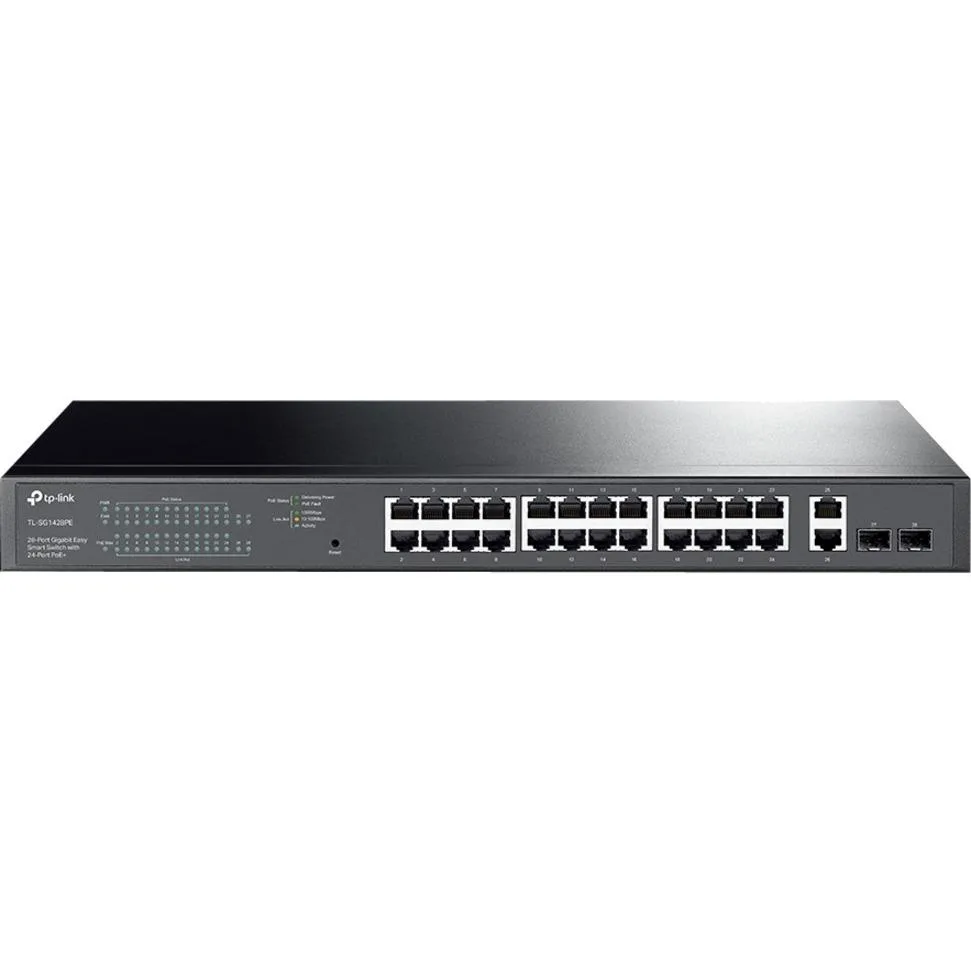

TP-Link TL-SG1428PE 28-port Gigabit network switch 24 PoE+ 250W
A 19-inch rack-mountable switch with 24 PoE+ ports and a 250 W power budget for IP cameras and access points
- Format19" 1U rack mountable
- StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x IEEE 802.
- Network Management TypeWeb-Based GUI Easy Smart Configuration Utility
- Uplink Interface26 10/100/1000 Mbps RJ45 Ports 2 Gigabit SFP Ports
- Primary Ports24 x RJ45
- VLAN SupportSupport up to 32 VLANs simultaneously (out of 4K VLAN IDs) M
- 24 PoE+ ports deliver up to 30 W each for cameras and access points
- 250 W total PoE budget powers multiple high-draw devices simultaneously
- Two SFP uplink ports add fibre connectivity for longer runs
- Web GUI and Easy Smart Utility simplify VLAN, QoS and link aggregation setup
- PoE Auto Recovery restarts frozen powered devices without manual intervention
28-Port Gigabit PoE+ Switch
The TP-Link TL-SG1428PE is a 19-inch 1U rack-mountable switch delivering 24 Gigabit RJ45 ports with PoE+ support and two additional Gigabit SFP uplink ports. It provides a total PoE power budget of 250 W across all powered ports, compliant with IEEE 802.3at and 802.3af standards. Management is handled through a web-based GUI or the Easy Smart Configuration Utility.
Suits PoE deployments needing managed features
This switch fits small to medium business surveillance, wireless access point clusters, or VoIP phone systems where central power and VLAN segmentation are required. It supports up to 32 simultaneous VLANs, IGMP Snooping for IPTV optimisation, static link aggregation, and QoS with four priority queues. Buyers needing Layer 3 routing, full CLI access, or a higher PoE budget per port should look elsewhere.
Rack-mount core with fiber uplinks
The unit mounts in a standard 19-inch rack using the included kit or sits on a desktop with supplied rubber feet. Two SFP ports accept fiber modules for longer uplinks or inter-switch links, freeing the copper ports for endpoint devices. PoE Auto Recovery monitors powered devices and reboots unresponsive ports automatically. The switch operates from 100-240 V AC and draws 27 W without PoE load.
Highlights
- 24 PoE+ ports deliver up to 30 W each for cameras and access points
- 250 W total PoE budget powers multiple high-draw devices simultaneously
- Two SFP uplink ports add fibre connectivity for longer runs
- Web GUI and Easy Smart Utility simplify VLAN, QoS and link aggregation setup
- PoE Auto Recovery restarts frozen powered devices without manual intervention
Specifications
| Brand | TP-Link |
|---|---|
| Model | TL-SG1428PE |
| Format | 19" 1U rack mountable |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
| Network Management Type | Web-Based GUI Easy Smart Configuration Utility |
| Uplink Interface | 26 10/100/1000 Mbps RJ45 Ports 2 Gigabit SFP Ports |
| Primary Ports | 24 x RJ45 |
| VLAN Support | Support up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Jumbo Frames | 9KB |
| Buffer Memory | 4.1 Mbit |
| PoE | Standard: 802.3at/802.3af compliant PoE+ Ports: 24 Ports Power Supply: 250 W |
| QoS | Support Port-based 802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| Layer | IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention PoE Auto Recovery |
| Power | 100-240V AC, 50/60 Hz 27 W (no power device connected) 304.7 W (with 250W power device connected) |
| Dimensions | 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm) |
| Temperature | Operating Temperature: 0°C~50°C (32°F~122°F) Storage Temperature: -40°C~70°C (-40°F~158°F) |
| Humidity | Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Package Contents | TL-SG1428PE Power Cord Installation Guide Rackmount Kit Rubber Feet |
| Shipping weight | 3.90 kg |
| Package size | 528 × 335 × 102 mm |
Questions about this item
What cables and power source are needed to connect 24 PoE+ devices to the 24 RJ45 ports?
Use Cat5e or better Ethernet cables for each device; the switch draws 100-240V AC from the included power cord and supplies up to 250 W total PoE+ power across the 24 ports.
Will the two Gigabit SFP uplink ports work with my existing 10/100 Mbps copper switches?
The SFP ports accept Gigabit fibre modules; for copper uplinks you can use the 26 RJ45 ports which auto-negotiate 10/100/1000 Mbps speeds with legacy gear.
How can I confirm the 250 W PoE budget is actually powering my cameras after installation?
Log into the web-based GUI or Easy Smart Configuration Utility to view real-time per-port PoE status, power consumption, and the PoE Auto Recovery logs.
