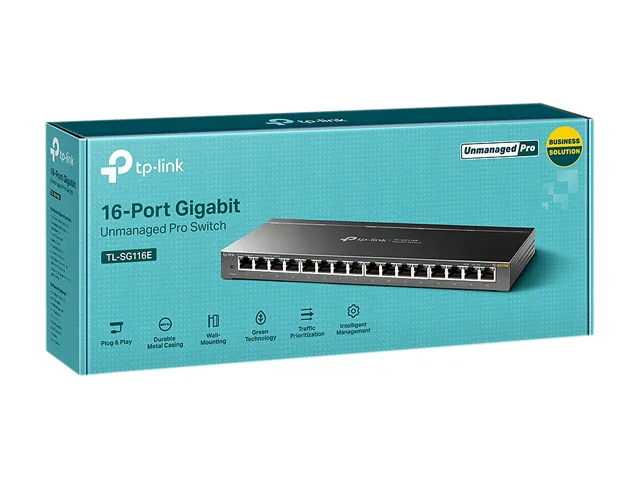

Metal desktop switch with 16 RJ45 ports on the front panel

TP-Link

TP-Link TL-SG116E 16-port Gigabit network switch

SKU CH-YDDD-2B0M5 MPN TL-SG116E

A 16-port Gigabit switch with web-managed QoS, VLAN and IGMP features in a metal desktop or wall-mount case

  • Switch Typeunmanaged
  • Format16 Port, Enhanced Features
  • StandardsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 80
  • Network Management TypeUnmanaged
  • Uplink InterfaceRJ45
  • Primary Ports16 x RJ45
  • Plug-and-play deployment with no configuration required
  • 16 Gigabit RJ45 ports for high-speed wired connections
  • Sturdy metal casing protects internal components
  • Web interface and utility enable QoS, VLAN and IGMP management
  • Green technology reduces power consumption to 9.3 W maximum

16-Port Gigabit Switch for Home and Small Business

The TL-SG116E provides 16 RJ45 ports operating at 10/100/1000Mbps for wired network expansion. It suits home offices and small businesses needing reliable connectivity without complex setup. The metal casing protects internal components while supporting desktop or wall-mount placement. An external 9V DC 0.6A power adapter supplies up to 9.3W maximum consumption.

Plug-and-Play Deployment with Auto MDI/MDI-X

Installation requires no configuration; simply connect devices and the switch auto-negotiates link speed on every port. Auto MDI/MDI-X crossover eliminates the need for special uplink cables. The web interface and downloadable utility add QoS, VLAN, IGMP Snooping and Link Aggregation when needed. Misconfigured VLAN tags or exceeding the 8K MAC table are the typical issues that disrupt traffic.

IEEE 802.3 Standards Define Practical Limits

The switch complies with IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1q and 802.1p for twisted-pair Gigabit Ethernet. Jumbo frames up to 9KB and 4.1MB buffer memory handle larger packets, but total throughput cannot exceed the 1000Mbps per port ceiling. No PoE support means attached devices need their own power. The unmanaged core limits advanced routing or stacking capabilities.

Highlights

  • Plug-and-play deployment with no configuration required
  • 16 Gigabit RJ45 ports for high-speed wired connections
  • Sturdy metal casing protects internal components
  • Web interface and utility enable QoS, VLAN and IGMP management
  • Green technology reduces power consumption to 9.3 W maximum

Specifications

BrandTP-Link
ModelTL-SG116E
Part NumberTL-SG116E
Switch Typeunmanaged
Format16 Port, Enhanced Features
StandardsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Network Management TypeUnmanaged
Uplink InterfaceRJ45
Primary Ports16 x RJ45
Primary Port Speed10/100/1000Mbps
Primary Port TypeRJ45
MAC Address Table8K
VLAN SupportYes
Jumbo Frames9KB
Buffer Memory4.1MB
ProtocolsTCP/IP
PoE16 Port, Enhanced Features
QoSYes
PoE Ports16 Port / Enhanced Features
PowerPower Supply: External Power Adapter(Output: 9V DC / 0.6A)
Power Consumption: Maximum: 9.3W
Dimensions1.00" x 11.30" x 4.40"
Weight3.05
TemperatureOperating Temperature: 0 ~ 40 degree Celsius (32 ~ 104 degree Fahrenheit)
Storage Temperature: -40 ~ 70 degree Celsius (-40 ~ 158 degree Fahrenheit)
HumidityOperating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Features16 x 10/100/1000 Mbps RJ45 ports
Plug and play, with no configuration required
Durable metal casing of superior quality and professional appearance
Intelligent management via a web user interface and downloadable utility
Green technology reduces power consumption
Package ContentsTL-SG116E
Power Cord
Installation Guide
Rubber Feet
Shipping weight1.36 kg
Package size414 × 170 × 71 mm

Questions about this item

How do I confirm the TL-SG116E is operating correctly after connecting devices?

Check that each of the 16 RJ45 port LEDs lights up at 1000 Mbps when a Gigabit device is linked, and verify traffic flows through the web utility or management utility.

What comes in the box with the TL-SG116E and what must I source separately?

The package includes the switch, an external 9V DC 0.6A power adapter and mounting hardware; Ethernet cables for the 16 ports are not supplied.

Which version of the TL-SG116E should I choose for a small business needing VLAN and QoS?

The single TL-SG116E model already provides 16 Gigabit ports with VLAN, QoS, IGMP snooping and link aggregation, so no other capacity or version exists to select.
