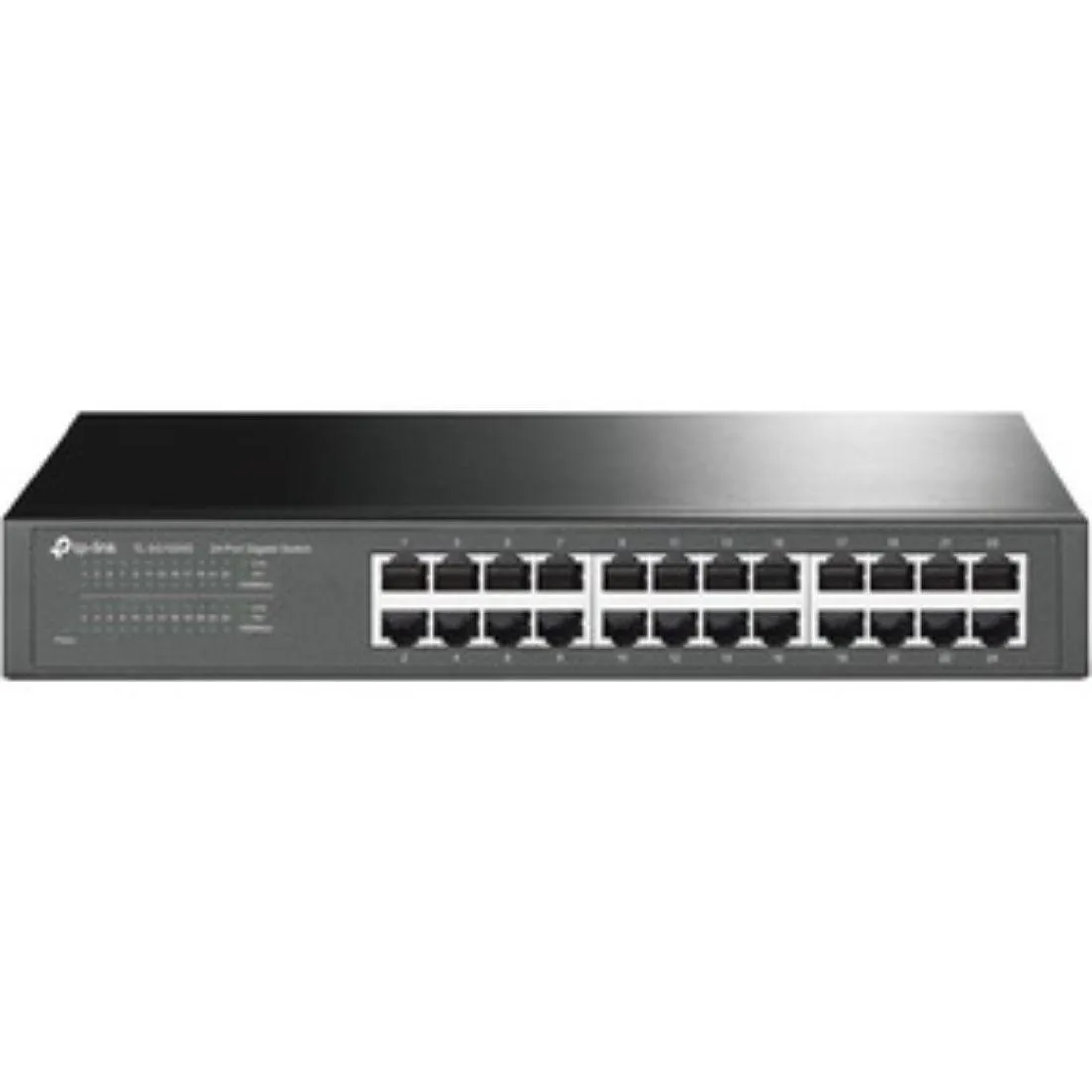

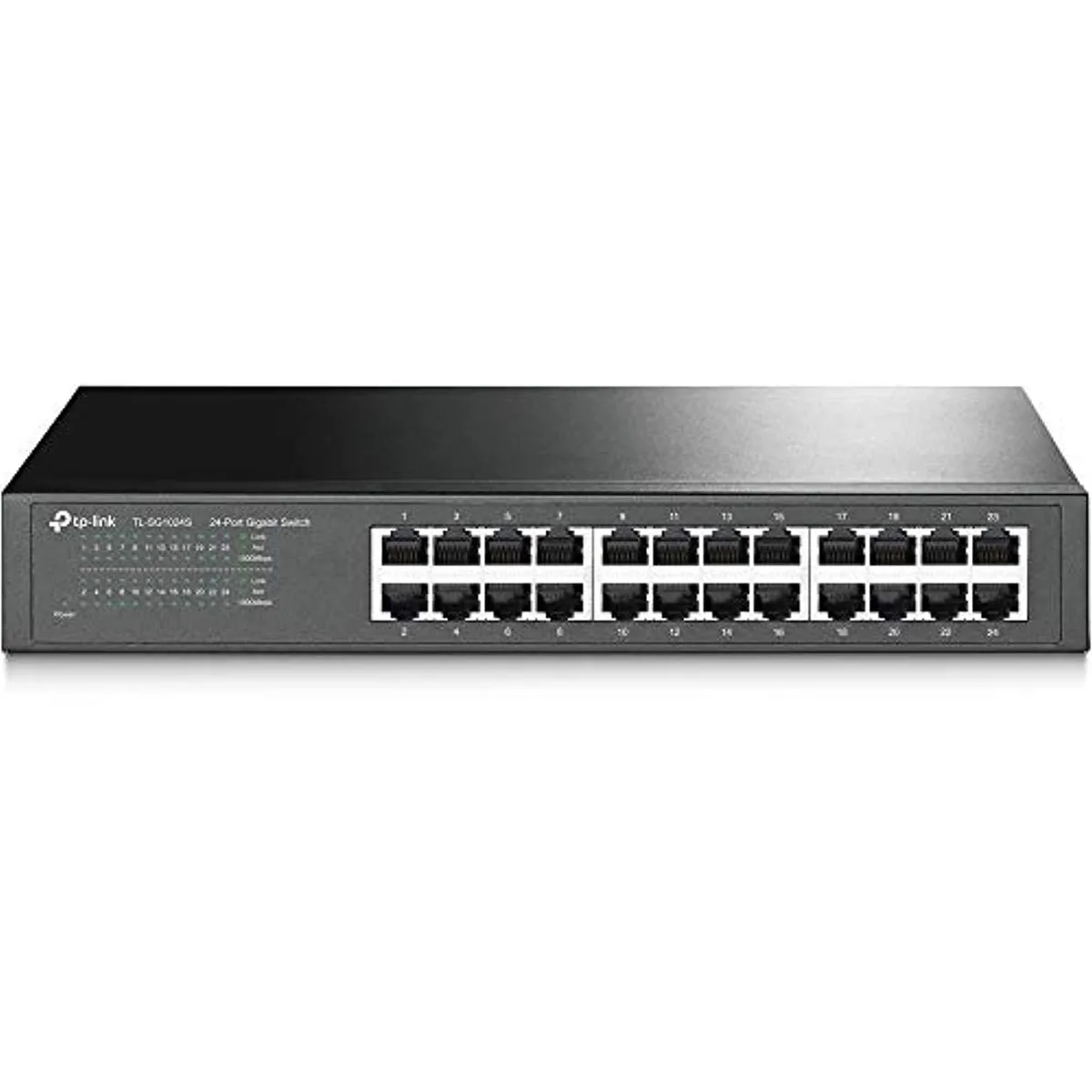

Silver metal network switch with 24 RJ45 ports on front panel

TP-Link

TP-Link TL-SG1024S 24-port Gigabit network switch

SKU CH-WQSK-PBYVY MPN TL-SG1024S

A 24-port Gigabit desktop or rackmount switch with fanless quiet operation and plug-and-play setup

  • Switch Typedesktop
  • FormatDesktop / Rackmount
  • StandardsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
  • Network Management TypeUnmanaged
  • Primary Ports24 x 10/100/1000 Mbps RJ45 Ports (Auto Negotiation / Auto MD
  • Primary Port Speed10/100/1000Mbps
  • 24 Gigabit ports expand wired network capacity
  • Fanless design keeps operation silent in any setting
  • Energy-efficient technology lowers power draw to 13.1 W
  • Plug-and-play setup needs no software or configuration
  • Desktop or rack-mount format fits diverse installations

24-Port Gigabit Desktop Rackmount Switch

The TL-SG1024S is an unmanaged 24-port Gigabit Ethernet switch for small business networks that need a simple capacity upgrade. It supports desktop or rackmount installation and operates without a fan for silent operation. All ports handle 10/100/1000 Mbps speeds with auto negotiation and auto MDI/MDIX.

Suits Fixed Wired Networks Not VLANs

This switch suits offices adding wired endpoints where plug-and-play deployment is required and no configuration is needed. It does not serve buyers who need VLAN segmentation, link aggregation, SNMP monitoring or any managed switching features. It also does not suit deployments that require PoE power delivery to connected devices.

24 RJ45 Ports Store and Forward Switching

The single specification that decides fit is the 24 RJ45 ports running at 10/100/1000 Mbps with store-and-forward switching and an 8K MAC address table. This port count and forwarding method determine whether the switch matches the network scale and traffic profile.

Highlights

  • 24 Gigabit ports expand wired network capacity
  • Fanless design keeps operation silent in any setting
  • Energy-efficient technology lowers power draw to 13.1 W
  • Plug-and-play setup needs no software or configuration
  • Desktop or rack-mount format fits diverse installations

Specifications

BrandTP-Link
ModelTL-SG1024S
Switch Typedesktop
FormatDesktop / Rackmount
StandardsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Network Management TypeUnmanaged
Primary Ports24 x 10/100/1000 Mbps RJ45 Ports (Auto Negotiation / Auto MDI / MDIX)
Primary Port Speed10/100/1000Mbps
MAC Address Table8K
Switching MethodStore and Forward
Jumbo Frames10KB
PowerPower Supply: 100-240V AC, 50/60 Hz
Power Consumption: Maximum: 13.1W (220V / 50 Hz)
Features24 x 10/100/1000 Mbps ports
Innovative energy-efficient technology saves power consumption
Supports MAC address self-learning, Auto MDI / MDIX and Auto negotiation
Plug & play design
Dimensions1.70" x 11.60" x 7.10"
Weight4.7
TemperatureOperating Temperature: 0 ~ 40 degree Celsius (32 ~ 104 degree Fahrenheit)
Storage Temperature: -40 ~ 70 degree Celsius (-40 ~ 158 degree Fahrenheit)
HumidityOperating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Package Contents24-Port Gigabit Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
Shipping weight2.20 kg
Package size401 × 241 × 79 mm

Questions about this item

What cables and devices must I already have to connect to the 24 RJ45 ports on this switch?

You need Ethernet cables with RJ45 connectors and devices that support 10, 100 or 1000 Mbps speeds. The switch auto-negotiates speed and MDI/MDIX, so any standard Cat5e or better patch cable works without crossover wiring.

Will my older 10 Mbps and 100 Mbps equipment work alongside the gigabit ports on this TL-SG1024S?

Yes. Each of the 24 ports supports IEEE 802.3i and 802.3u, so legacy 10BASE-T and 100BASE-TX devices connect and run at their rated speeds while gigabit devices use 802.3ab on the same switch.

How can I confirm the switch is operating correctly after I power it on and plug in cables?

The front-panel LEDs show link and activity for every port. A solid light means a valid 10/100/1000 Mbps link; blinking indicates traffic. With no fans, silent operation and LEDs on connected ports confirm normal function.
