Silver metal rackmount switch with 24 front RJ45 ports

TP-Link

TP-Link TL-SG1024DE 24-port Gigabit smart network switch

SKU CH-991N-C7S72 MPN TL-SG1024DE

A 24-port Gigabit smart switch with VLAN, QoS, IGMP snooping and link aggregation in a rack-mountable metal chassis

  • FormatRackmount
  • StandardsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 80
  • Network Management TypeSmart
  • Primary Ports24 x RJ45
  • Primary Port Speed10/100/1000Mbps
  • MAC Address Table8K
  • 24 Gigabit ports enable fast file transfers
  • 9K Jumbo frames boost large-data throughput
  • Port mirroring, loop prevention and cable diagnostics simplify monitoring
  • VLAN support segments traffic for better security
  • IGMP snooping optimises multicast traffic

24-Port Gigabit Smart Switch

The TP-Link TL-SG1024DE is a 24-port Gigabit smart managed switch built for small to medium business networks. It delivers 24 RJ45 ports running at 10/100/1000Mbps with a store-and-forward switching method and an 8K MAC address table. The unit supports both desktop and rackmount installation in a sturdy metal housing with shielded ports.

Upgrade from Unmanaged Switches

This switch replaces basic unmanaged hardware when you need VLAN segmentation, QoS traffic prioritisation, IGMP snooping or port mirroring for monitoring. The jump is worth it when growing traffic requires link aggregation, loop prevention or cable diagnostics without moving to a fully managed Layer 3 platform. It adds smart features while keeping configuration simple through a web interface.

Capacity and Headroom

The 512KB buffer and 9KB jumbo frame support handle large data transfers and bursty workloads across all 24 ports simultaneously. Maximum power draw is 14.86W at 220V, aided by energy-efficient technology that reduces consumption. It operates reliably from 0 to 40°C. Buyers needing 10G uplinks, Layer 3 routing or PoE power delivery should look elsewhere.

Highlights

  • 24 Gigabit ports enable fast file transfers
  • 9K Jumbo frames boost large-data throughput
  • Port mirroring, loop prevention and cable diagnostics simplify monitoring
  • VLAN support segments traffic for better security
  • IGMP snooping optimises multicast traffic

Specifications

BrandTP-Link
ModelTL-SG1024DE
FormatRackmount
StandardsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Network Management TypeSmart
Primary Ports24 x RJ45
Primary Port Speed10/100/1000Mbps
MAC Address Table8K
Switching MethodStore and Forward
VLAN SupportYes
Jumbo Frames9KB
Buffer Memory512KB
ProtocolsTCP/IP
Layer2
Port MirroringYes
PowerPower Supply: 100-240V AC, 50/60 Hz
Power Consumption Maximum: 14.86W (220V / 50 Hz)
Features24 x 10/100/1000 Mbps RJ45 ports
Provides network monitoring, traffic prioritization and VLAN features
Innovative energy-efficient technology reduces power output by up to 18%
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and management utility simplify configuration
Dimensions1.70" x 11.60" x 7.10"
Weight4.8
TemperatureOperating Temperature: 0 ~ 40 degree Celsius (32 ~ 104 degree Fahrenheit)
Storage Temperature: -40 ~ 70 degree Celsius (-40 ~ 158 degree Fahrenheit)
HumidityOperating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing

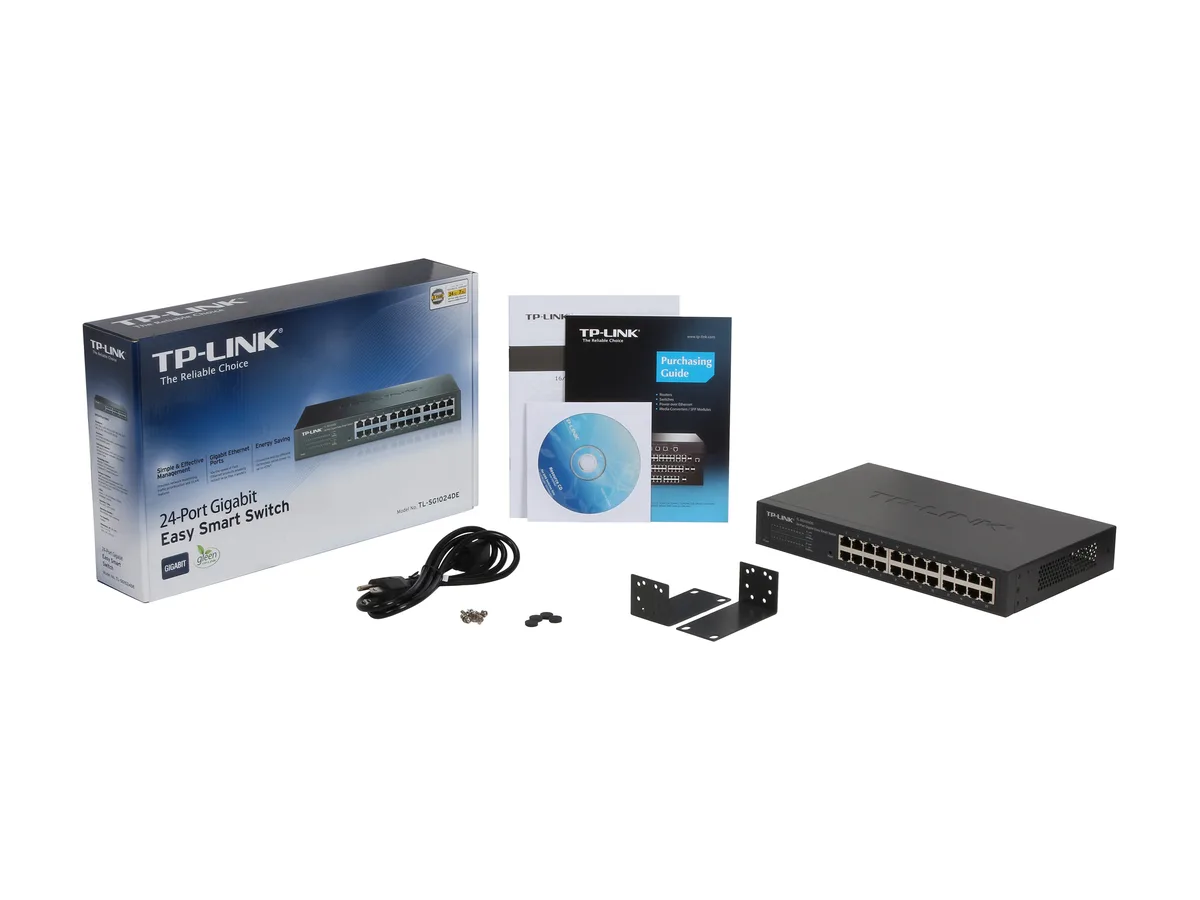

Package ContentsTL-SG1024DE, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet
Shipping weight2.39 kg
Package size401 × 246 × 79 mm

Questions about this item

What rack depth and height does the TL-SG1024DE require?

The switch measures 1.70" high, 11.60" deep and 7.10" wide, fitting a standard 1U rack space with room for cable management at the rear.

Which step do users often miss when enabling VLANs on this smart switch?

After creating VLANs in the web interface, each port must be assigned as tagged or untagged and the configuration saved before the segmentation takes effect.

What component typically needs attention after several years of continuous operation?

The internal 100-240V AC power supply is the only field-replaceable part; fans are absent so dust buildup on the metal chassis is the main long-term concern.
