Silver metal 1U rackmount switch with 24 RJ45 ports

TP-Link

TP-Link TL-SG1024 24-port Gigabit network switch

SKU CH-H239-2ZY2P MPN TL-SG1024

A 24-port Gigabit unmanaged switch in a 1U rack-mount steel case with fanless operation

  • FormatRackmount
  • StandardsIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
  • Network Management TypeUnmanaged
  • Primary Ports24 x RJ45
  • Primary Port Speed10/100/1000Mbps
  • MAC Address Table8K

Class 24 port Gigabit Rack

  • 24 Gigabit RJ45 ports handle heavy local traffic
  • Fanless steel chassis runs silently in offices or studios
  • 19-inch rackmount format fits standard 1U cabinets
  • Energy-efficient design limits draw to 13.1 W at 220 V
  • 8K MAC table and 10 KB jumbo frames boost throughput

24-Port Gigabit Rackmount Switch

The TP-Link TL-SG1024 is a 1U unmanaged switch with 24 RJ45 ports that operate at 10/100/1000Mbps. It fits a standard 19-inch rack and uses a fanless steel chassis for silent operation. Small offices and branch sites can expand wired connectivity without configuring software.

Fanless Steel Chassis Under Sustained Load

The switch draws a maximum of 13.1W at 220V while forwarding traffic through its 8K MAC address table using store-and-forward switching. IEEE 802.3x flow control and back-pressure mechanisms regulate congestion during continuous full-duplex or half-duplex streams. Operating temperatures from 0 to 40°C are handled without moving parts.

Upgrade From Smaller Desktop Switches

Replacing a 5-port or 8-port desktop unit with this 24-port model removes the need for daisy-chained uplinks and reclaims rack space. The jump is worthwhile when port count, rackmount form factor and silent operation are required together. Buyers needing managed features such as VLANs or SNMP should look elsewhere.

Highlights

  • 24 Gigabit RJ45 ports handle heavy local traffic
  • Fanless steel chassis runs silently in offices or studios
  • 19-inch rackmount format fits standard 1U cabinets
  • Energy-efficient design limits draw to 13.1 W at 220 V
  • 8K MAC table and 10 KB jumbo frames boost throughput

Specifications

BrandTP-Link
ModelTL-SG1024
FormatRackmount
StandardsIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Network Management TypeUnmanaged
Primary Ports24 x RJ45
Primary Port Speed10/100/1000Mbps
MAC Address Table8K
Switching MethodStore and Forward
Jumbo Frames10KB
QoSYes

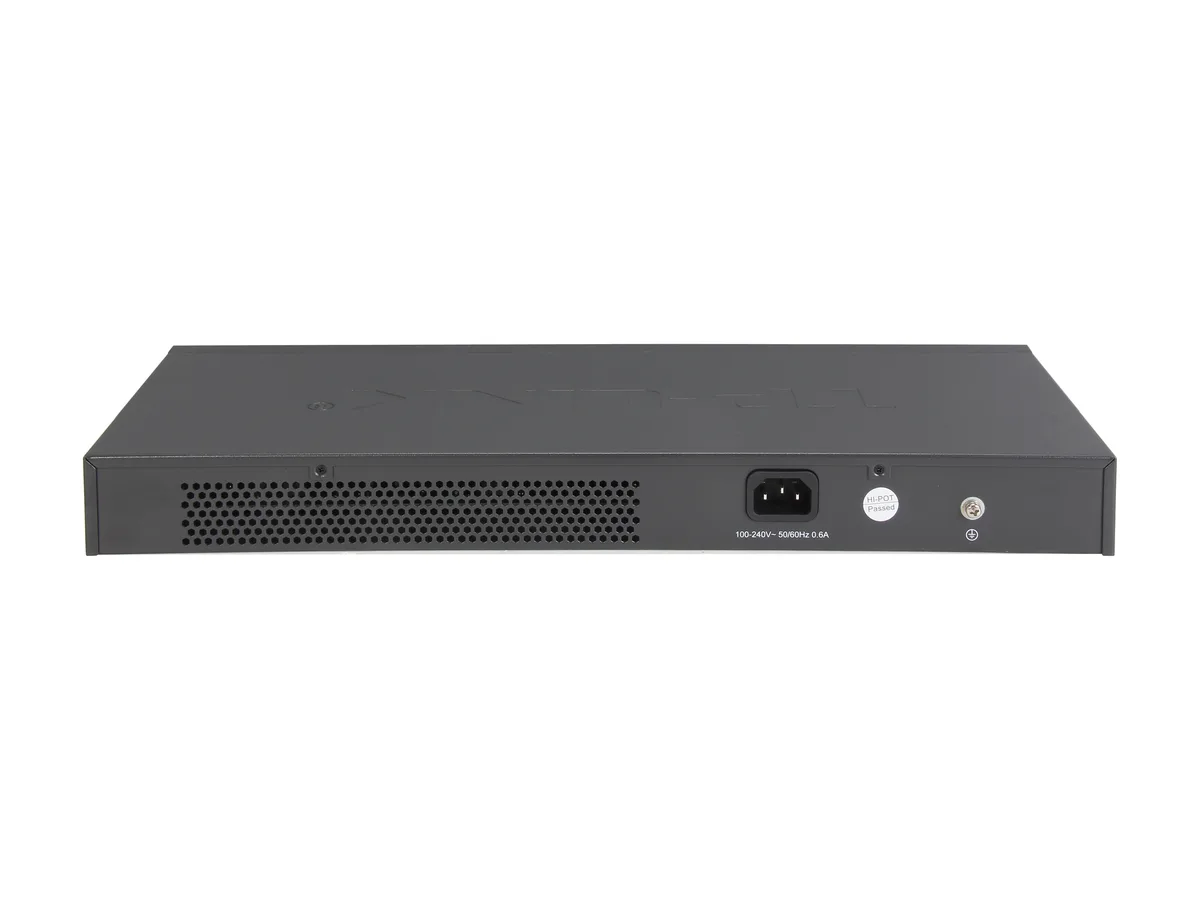

PowerPower Supply: 100-240V AC, 50/60 Hz
Power Consumption Maximum: 13.1W (220V / 50 Hz)
Dimensions1.70" x 17.30" x 7.10"
Weight5.4
TemperatureOperating Temperature: 0 ~ 40 degree Celsius (32 ~ 104 degree Fahrenheit)
Storage Temperature: -40 ~ 70 degree Celsius (-40 ~ 158 degree Fahrenheit)
HumidityOperating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Features24 x 10/100/1000 Mbps RJ45 ports
Innovative energy-efficient technology saves power consumption
Supports MAC address self-learning and auto MDI / MDIX
Standard 19-inch rack-mountable steel case

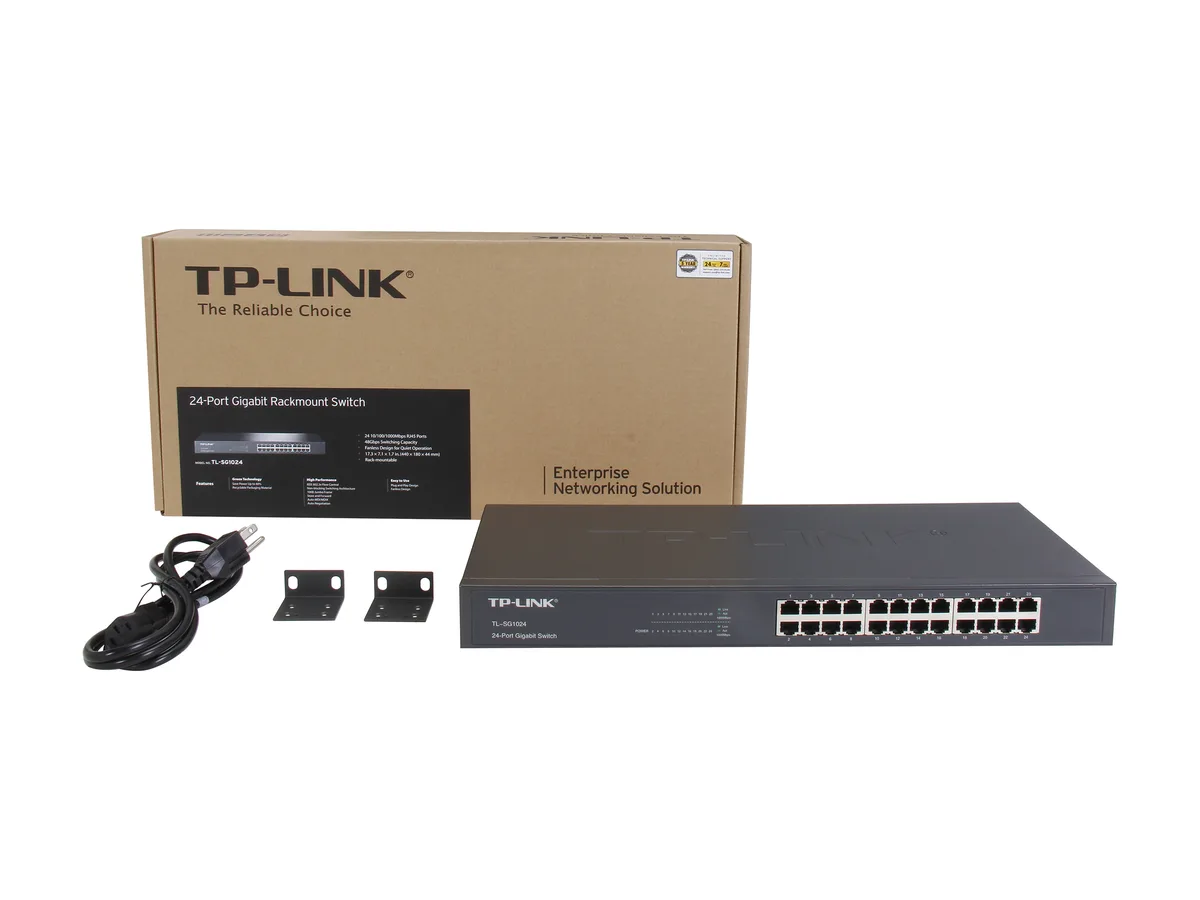

Package Contents24-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
Shipping weight2.54 kg
Package size528 × 253 × 84 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat does the TL-SG1024 add to a rack when running all day?

Maximum power draw is 13.1W at 220V and the fanless design means no airflow noise, so heat output stays low in a 0 to 40°C operating range.

What cables and rack hardware do I need before installing this switch?

You supply up to 24 Cat5e or better RJ45 patch cables; the box includes a power cord, rackmount brackets, screws and rubber feet for 19-inch racks.

Will my older 10Mbps and 100Mbps devices work on the TL-SG1024 without manual setup?

Yes, every port auto-negotiates 10/100/1000Mbps and supports auto MDI/MDIX so legacy gear connects plug-and-play.
