Silver metal rackmount switch with sixteen RJ45 ports and front indicator lights

TP-Link

TP-Link TL-SG1016PE 16-port Gigabit PoE+ network switch

SKU CH-HEP4-MGWVB MPN TL-SG1016PE

16-port Gigabit switch with eight PoE+ ports delivering up to 30 W each and a 150 W total power budget for access points, IP cameras or phones

  • FormatRackmount
  • StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802
  • Network Media16 10/100/1000Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX
  • Network Management TypeSmart
  • Uplink Ports8
  • Uplink InterfaceRJ45
  • Powers up to 8 devices with 30 W per port from a 150 W PoE+ budget
  • 16 Gigabit RJ45 ports with auto-negotiation for high-speed wired connections
  • Easy smart management via web interface for VLAN, QoS and IGMP snooping
  • PoE auto recovery restarts unresponsive powered devices without manual intervention
  • Plug-and-play operation requires no software installation or configuration

16-Port Gigabit PoE+ Switch

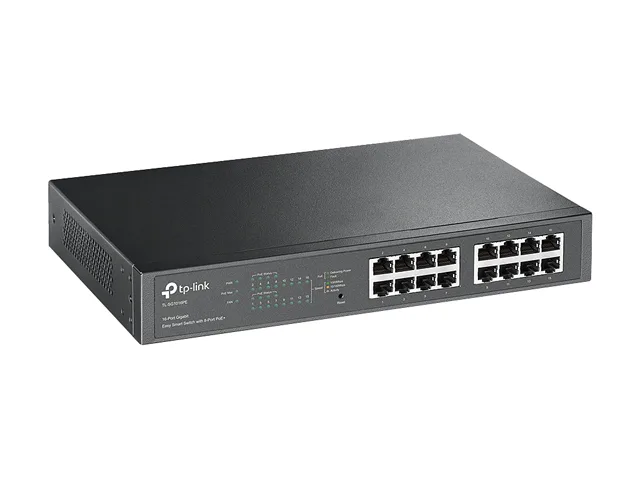

The TP-Link TL-SG1016PE delivers sixteen 10/100/1000 Mbps RJ45 ports in a rackmount metal chassis. Eight ports support IEEE 802.3at/af PoE+ with up to 30 W per port and a 150 W total power budget. It is built for small businesses needing to power wireless access points, IP cameras or VoIP phones over a single cable. Easy Smart management adds VLAN, QoS, IGMP Snooping and LAG without complex configuration.

Metal Build Shielded Ports

The sturdy metal housing protects internal components and provides shielded RJ45 ports for reliable signal integrity. Sixteen auto-negotiating ports support Auto MDI/MDIX so straight or crossover cables work interchangeably. Eight PoE+ ports and eight non-PoE Gigabit ports allow mixed device deployments. Plug-and-play operation means the switch forwards traffic immediately while the web interface remains available for deeper tuning.

Upgrade From Unmanaged PoE

This switch replaces basic unmanaged PoE switches when traffic segmentation or prioritised voice and video streams become necessary. The 150 W budget supports more high-power devices than entry-level models limited to 802.3af. PoE Auto Recovery reboots unresponsive powered devices automatically reducing manual intervention. Buyers who need more than eight PoE+ ports or a higher total power budget should consider a larger PoE switch.

Highlights

  • Powers up to 8 devices with 30 W per port from a 150 W PoE+ budget
  • 16 Gigabit RJ45 ports with auto-negotiation for high-speed wired connections
  • Easy smart management via web interface for VLAN, QoS and IGMP snooping
  • PoE auto recovery restarts unresponsive powered devices without manual intervention
  • Plug-and-play operation requires no software installation or configuration

Specifications

BrandTP-Link
SeriesProSafe
ModelTL-SG1016PE
Part NumberTL-SG1016PE
FormatRackmount
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Network Media16 10/100/1000Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX
Network Management TypeSmart
Uplink Ports8
Uplink InterfaceRJ45
Uplink Speed10/100 Mbps
Uplink Speed/Type16 10/100/1000Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX
Primary Port Count16
Primary Ports16 x RJ45
Primary Port Speed10/100/1000Mbps
Primary Port Type16 10/100/1000Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX
Management Interface16 10/100/1000Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX
Management FeatureTL-SG1016PE
MAC Address Table8K
Switching MethodStore and Forward
VLAN SupportYes
Jumbo Frames9KB
Packet Forwarding Rate32000 megabits_per_second
Buffer Memory4.1MB
IPv4 Features16 Port w/ 8 PoE+ Port, 150W
ProtocolsTCP/IP
PoEYes
SNMPNo
QoSYes
Layer1
Layer 2 Features16 10/100/1000Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX, 32000 megabits_per_second, 16
Layer 3 FeaturesTL-SG1016PE
Port MirroringYes
Cabling16 10/100/1000Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX
PoE Power Budget16 Port w/ 8 PoE+ Port, 150W

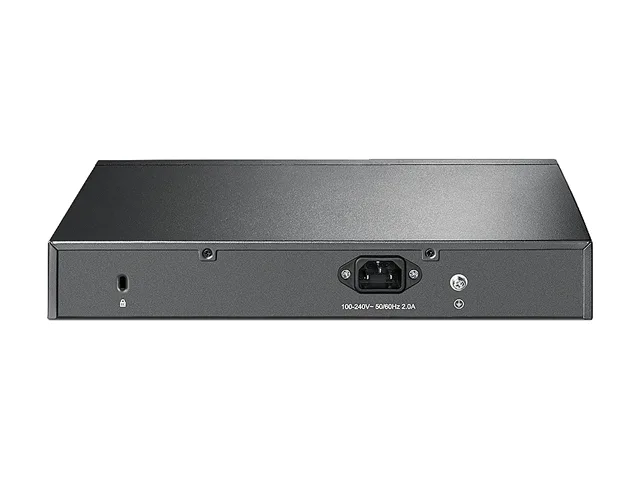

PowerPower Supply: 100-240V AC, 50/60 Hz
Power Consumption: Maximum: 124.4W (220V / 50 Hz)
PoE Ports (RJ45):
Standard: 802.3 at compliant
PoE Ports: Port 1 - Port 8
PoE Power Budget: 110W
Max Power Consumption0.5 amps, 120 volts
Dimensions1.70" x 11.60" x 7.10"
Weight5.35
Certificationon_product_combined_cancer_reproductive, not_applicable
Max Heat Dissipation40 watts
TemperatureOperating Temperature: 0 ~ 40 degree Celsius (32 ~ 104 degree Fahrenheit)
Storage Temperature: -40 ~ 70 degree Celsius (-40 ~ 158 degree Fahrenheit)
HumidityOperating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Features16 x 10/100/1000 Mbps RJ45 ports
Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
Works with IEEE 802.3af/at compliant devices, expanding home and office networks
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and management utility simplify configuration

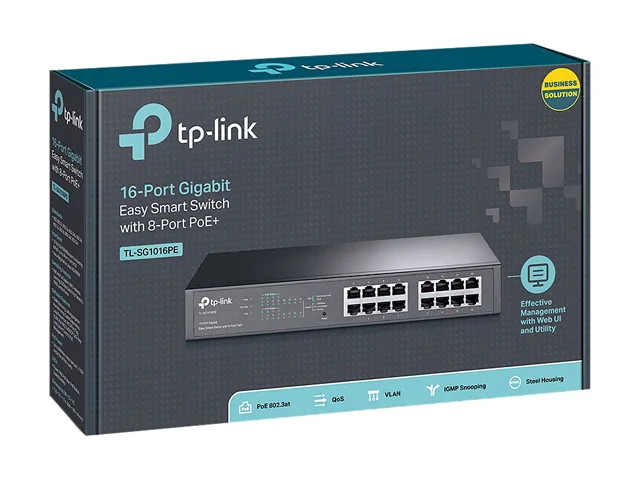

Package ContentsTL-SG1016PE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Fee
Disclaimeron_product_combined_cancer_reproductive
Shipping weight2.40 kg
Package size399 × 251 × 81 mm

Questions about this item

Which PoE standard do the 8 powered ports follow and what is the per-port limit?

The eight PoE+ ports comply with 802.3at and 802.3af, each delivering up to 30W within the 150W total budget.

What physical format does the switch use and how is it secured in a rack?

The metal chassis is rackmountable and includes mounting brackets for a standard equipment rack.

How is the switch first configured and which step is commonly missed?

Connect the switch to a PC, open the web interface at the default address, then enable the desired VLANs and QoS policies — skipping VLAN setup leaves all ports in the default VLAN.
