Silver metal desktop switch with sixteen RJ45 ports on the front

TP-Link

TP-Link TL-SG1016DE 16-port Gigabit network switch

SKU CH-3B5Z-D6JEV MPN TL-SG1016DE

A 16-port Gigabit smart switch with VLAN, QoS and jumbo-frame support for managed desktop or rackmount networks

  • FormatDesktop
  • StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802
  • Network Management TypeSmart
  • Uplink PortsNone
  • Primary Ports16 x RJ45
  • Primary Port Speed10/100/1000Mbps
  • 16 Gigabit RJ45 ports enable instant large file transfers
  • Smart management adds VLAN, QoS and IGMP Snooping for traffic control
  • 9 KB Jumbo frames boost throughput on big data moves
  • Energy-efficient design cuts power use by up to 18 %
  • Port Mirroring and Loop Prevention simplify network monitoring

16-port Gigabit Easy Smart Switch

The TP-Link TL-SG1016DE is a 16-port Gigabit Easy Smart switch designed for small to medium networks needing basic management. It provides sixteen RJ45 ports running at 10/100/1000Mbps and supports up to 128 VLANs simultaneously. The switch suits administrators who want traffic segmentation and monitoring without the complexity of a fully managed platform.

Sustained load behaviour

Under continuous traffic the switch uses store-and-forward switching with a 512KB buffer and 8K MAC address table. Jumbo frames up to 9KB improve large data transfer efficiency while IEEE 802.3x flow control prevents packet loss. Maximum power draw is 11.73W at 220V and the energy-efficient design reduces power output by up to 18% during lighter periods.

Pre-installation checks

Verify that your rack or desktop space accommodates the 1.70" x 11.60" x 7.10" metal chassis and that the 100-240V AC power input matches your supply. The operating temperature range is 0 to 40°C so ensure adequate ventilation. No uplink ports are included so plan your uplink connections using the standard Gigabit ports.

Highlights

  • 16 Gigabit RJ45 ports enable instant large file transfers
  • Smart management adds VLAN, QoS and IGMP Snooping for traffic control
  • 9 KB Jumbo frames boost throughput on big data moves
  • Energy-efficient design cuts power use by up to 18 %
  • Port Mirroring and Loop Prevention simplify network monitoring

Specifications

BrandTP-Link
ModelTL-SG1016DE
FormatDesktop
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Network Management TypeSmart
Uplink PortsNone
Primary Ports16 x RJ45
Primary Port Speed10/100/1000Mbps
MAC Address Table8K
Switching MethodStore and Forward
VLAN SupportSupports up to 128 VLANs simultaneously (out of 4K VLAN IDs)
MTU / Port / Tag VLAN
Jumbo Frames9KB
Buffer Memory512KB
ProtocolsTCP/IP
Port MirroringYes
PowerPower Supply: 100-240V AC, 50/60 Hz
Power Consumption: Maximum: 11.73W (220V / 50 Hz)
Features16 10/100/1000 Mbps RJ45 ports
Provides network monitoring, traffic prioritization and VLAN features
Innovative energy-efficient technology reduces power output by up to 18%
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and management utility simplify configuration
Dimensions1.70" x 11.60" x 7.10"
Weight4.05
TemperatureOperating Temperature: 0 ~ 40 degree Celsius (32 ~ 104 degree Fahrenheit)
Storage Temperature: -40 ~ 70 degree Celsius (-40 ~ 158 degree Fahrenheit)
HumidityOperating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing

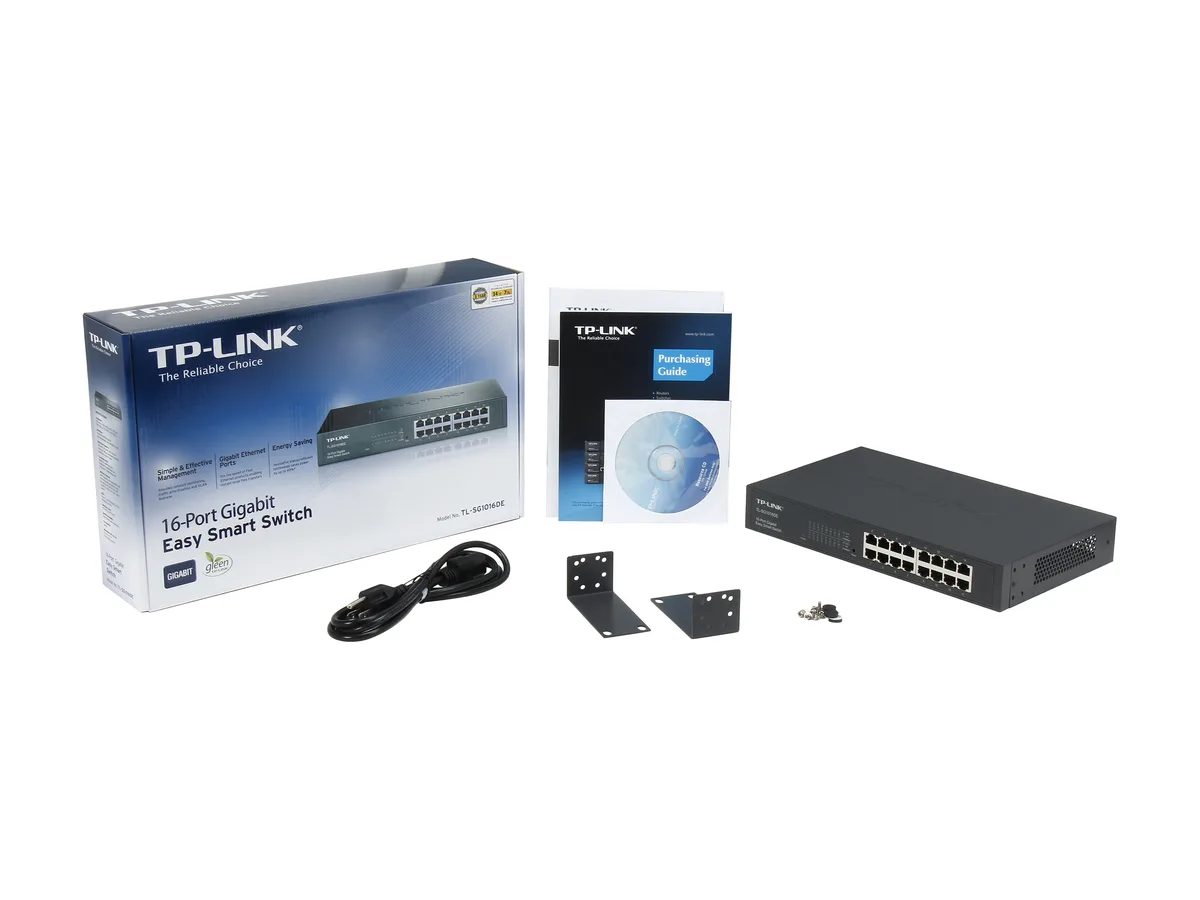

Package ContentsTL-SG1016DE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
Shipping weight2.22 kg
Package size401 × 249 × 81 mm

Questions about this item

How much heat and power does the TL-SG1016DE produce when running continuously?

Maximum power draw is 11.73W at 220V, and the switch operates from 0 to 40°C without a fan, so it stays cool and quiet all day.

What cables and devices must I already have to use the 16 RJ45 ports?

You need Ethernet cables with RJ45 connectors and devices that support 10/100/1000Mbps speeds; the switch itself includes an internal 100-240V AC power supply.

Will my older 10/100Mbps gear slow down the gigabit ports on this switch?

Each port auto-negotiates to 10, 100 or 1000Mbps, so legacy devices run at their rated speed without affecting the gigabit connections.
