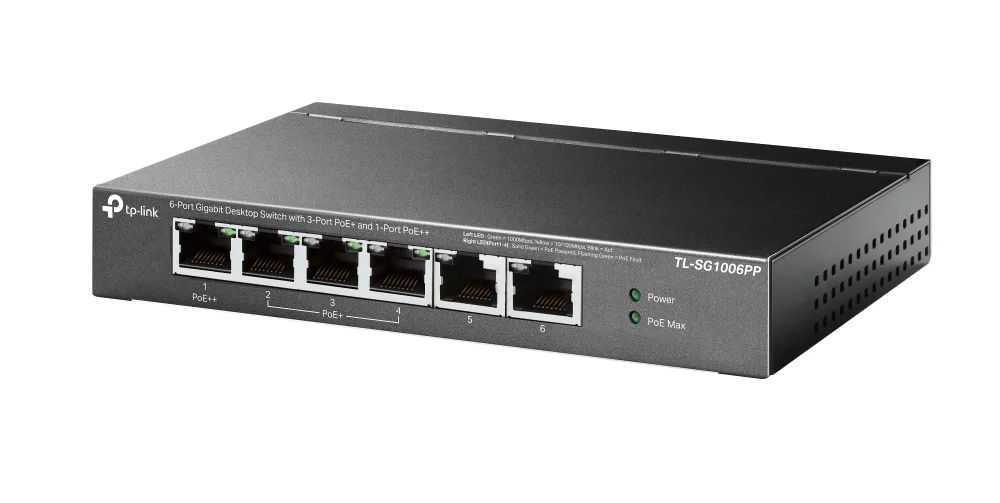

Compact black desktop switch with six RJ45 ports and external power adapter

TP-Link

TP-Link TL-SG1006PP 6-port Gigabit PoE network switch

SKU CH-MPB5-RAYGW MPN TL-SG1006PP

Six-port Gigabit switch supplies 64 W total PoE budget with one 60 W PoE++ and three 30 W PoE+ ports

  • FormatDesktop
  • Primary Ports6 x RJ45
  • Primary Port Speed10/100/1000Mbps
  • Primary Port Type6 x 10/100/1000Mbps RJ45 Ports
  • MAC Address Table4K
  • PoEPort 1 compliances with 802.3af/at/bt; Ports 2-4 compliance
  • Powers four PoE devices with up to 64 W total budget
  • One port delivers up to 60 W for high-power equipment
  • Extend mode reaches 250 m at 10 Mbps for long cable runs
  • Auto-recovery button reboots unresponsive PoE devices automatically
  • Plug-and-play desktop switch needs no software configuration

Six-port Gigabit switch with mixed PoE classes

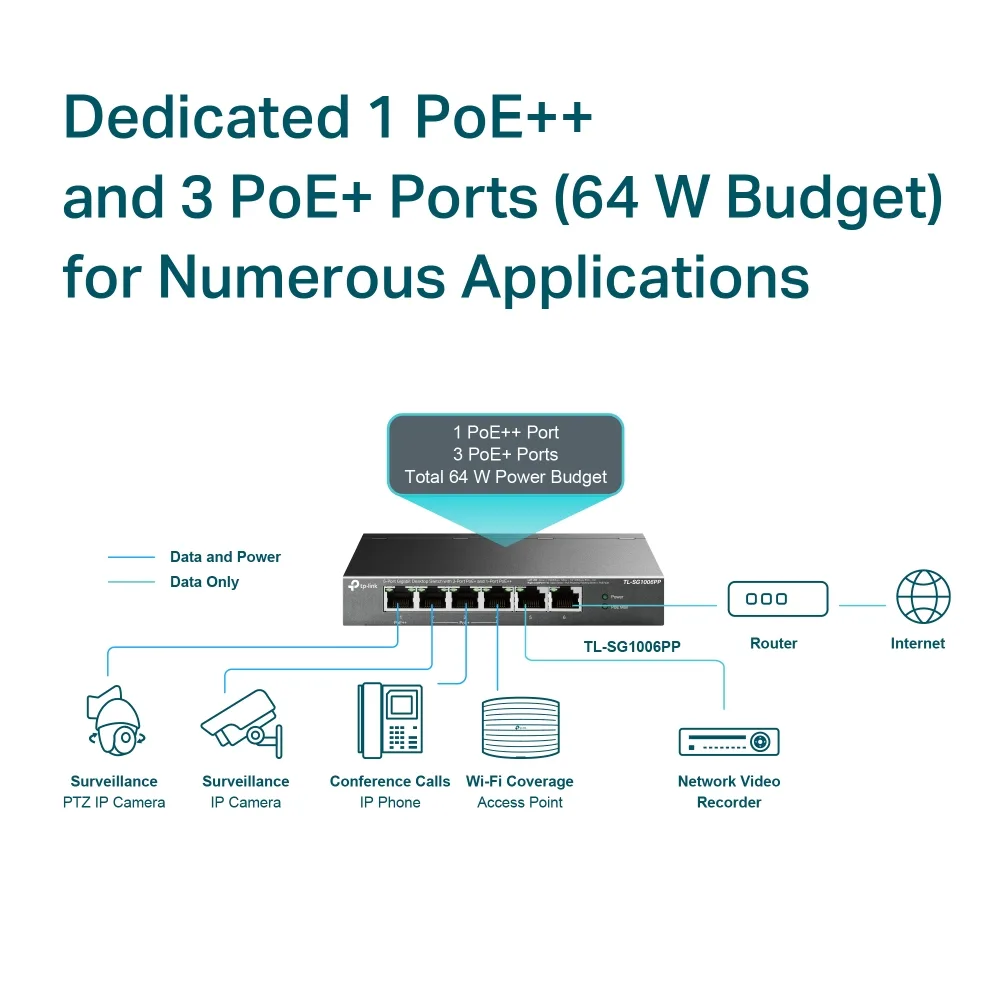

The TP-Link TL-SG1006PP is a desktop switch that delivers six RJ45 ports at 10/100/1000 Mbps. Port one supports 802.3af/at/bt for up to 60 W, while ports two to four support 802.3af/at for up to 30 W each. The total PoE budget is 64 W from a 53.5 VDC external adapter. It suits installers who need a compact unit for IP cameras, wireless access points or VoIP phones.

PoE budget and Extend Mode distance trade-off

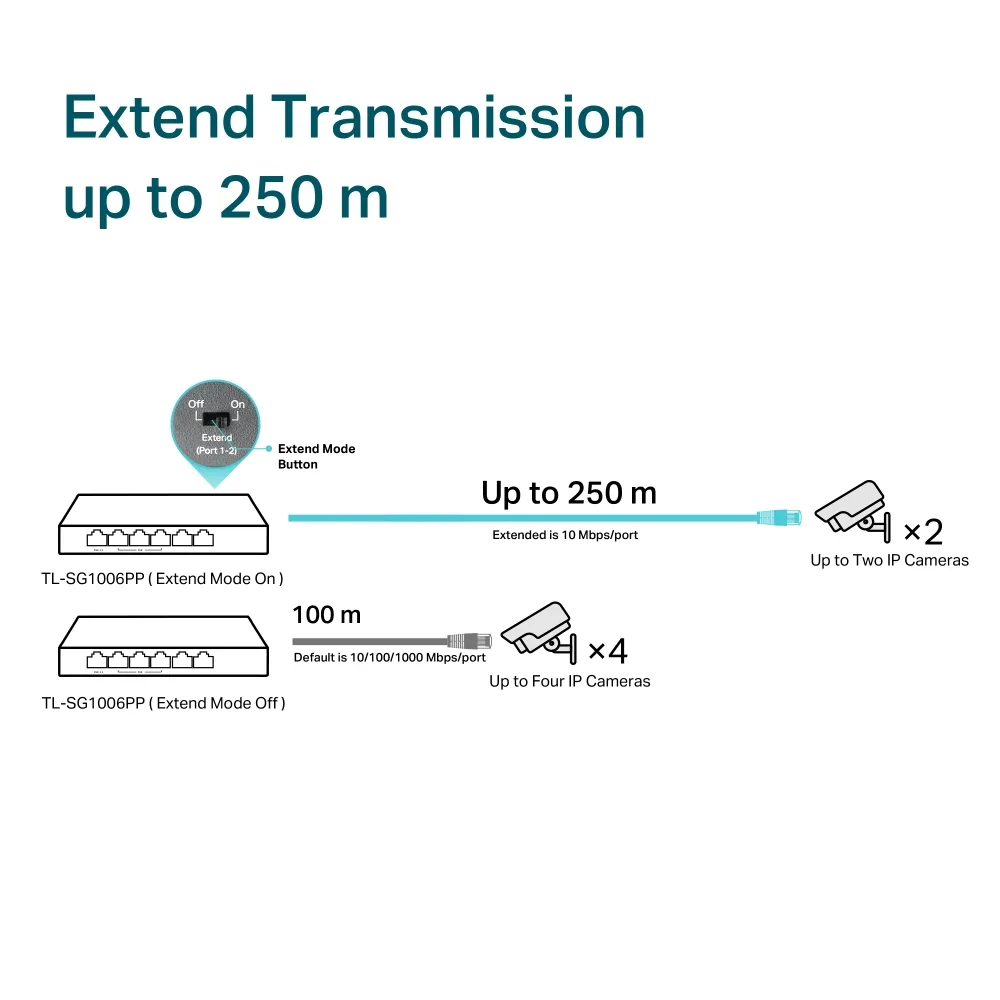

The 64 W budget limits how many high-power devices can run simultaneously; a single 60 W port leaves only 4 W for the remaining PoE ports. Extend Mode on ports one and two pushes data and power to 250 m but drops the link speed to 10 Mbps. The MAC address table holds 4 K entries and the switch consumes 4.75 W idle or 71.46 W at full load.

Check power needs and operating environment

Verify that the combined draw of your powered devices stays within the 64 W budget before ordering. Ensure the installation site stays between 0 and 40 °C with 10 to 90 % non-condensing humidity. The unit measures 6.2" x 4.0" x 1.0" and ships with a power adapter and installation guide; no software configuration is required.

Highlights

  • Powers four PoE devices with up to 64 W total budget
  • One port delivers up to 60 W for high-power equipment
  • Extend mode reaches 250 m at 10 Mbps for long cable runs
  • Auto-recovery button reboots unresponsive PoE devices automatically
  • Plug-and-play desktop switch needs no software configuration

Specifications

BrandTP-Link
ModelTL-SG1006PP
FormatDesktop
Primary Ports6 x RJ45
Primary Port Speed10/100/1000Mbps
Primary Port Type6 x 10/100/1000Mbps RJ45 Ports
MAC Address Table4K
PoEPort 1 compliances with 802.3af/at/bt; Ports 2-4 compliance with 802.3af/at
Power Supply: 64 W
PowerExternal Power Adapter (Output: 53.5 VDC / 1.31 A)
Max Power Consumption
- 4.75 W (220/50 Hz. no PD connected)
- 71.46 W (220/50 Hz. with 64 W PD connected)
Dimensions6.2" x 4.0" x 1.0"
TemperatureOperating Temperature: 0 - 40 °C (32 - 104 °F)
Storage Temperature: -40 - 70 °C (-40 - 158 °F)
HumidityOperating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
Package ContentsTL-SG1006PP
Power Adapter
Installation Guide
Shipping weight2.27 kg
Package size203 × 127 × 127 mm

Questions about this item

Should I use the PoE++ port or the PoE+ ports for a 60 W device?

Use port 1, which complies with 802.3bt and delivers up to 60 W; ports 2-4 are limited to 30 W each under 802.3at.

Will the 64 W power budget run four 15 W cameras simultaneously?

Yes, four 15 W cameras total 60 W, leaving 4 W margin within the 64 W PoE budget.

What speed do ports 1-2 drop to in Extend Mode?

Extend Mode reduces ports 1-2 to 10 Mbps while extending PoE reach to 250 m.
